Fluid Metering, Inc. (FMI)    Syosset, NY 11791
Sep 30, 2009 Based on valveless piston technology, Caustic Soda Injection Pump utilizes single rotating and reciprocating ceramic piston to accomplish both pumping and valving functions, eliminating need for check valves and associated maintenance. Sapphire-hard internal ceramics insure that there is no degradation in accuracy over time and no need to recalibrate. Measuring 10 x 5 x 5 in., pump operates on less than 100 W of power and can be wall mounted.

OKW Enclosures, Inc    Bridgeville, PA 15017

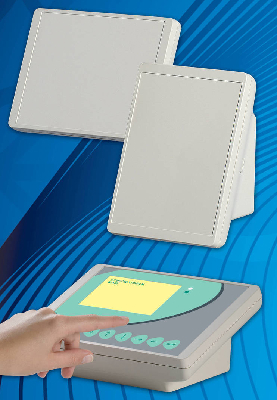

Sep 30, 2009 Available in fixed and 2-part configurations, desk- and wall-mount INTERFACE-TERMINAL cases suit systems that require little or frequent servicing. Fixed cases are assembled with screws, whereas 2-part cases have snap lock. Both are molded in off-white ABS (UL 94 HB) and have external dimensions of 7.480 x 5.315 x 3.740 in. or 8.858 x 6.496 x 4.094 in. Top section is available closed, with recess for membrane keypad or touchscreen, or open for mounting anodized aluminum front panel.

OKW Enclosures, Inc    Bridgeville, PA 15017

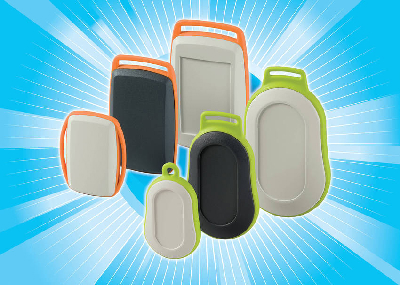

Sep 30, 2009 Available in rectangular style EL and droplet style DL, MINITEC Pocket Enclosures offer dimensions ranging from 2.007 x 1.259 x 0.511 in. to 3.307 x 2.086 x 0.748 in. Each case consists of top, bottom, and soft intermediate ring, which is molded in soft touch TPE in 4 standard colors. Recessed top part is designed for locating membrane keypad or product label. Typical applications include personal safety, detection, monitoring, emergency call, audio, alarm, and remote control devices.

Magnesium Elektron Powders North America (Reade Manufacturing Co.)    Manchester, NJ 08759
Sep 30, 2009 Using ultrasonic immersion detector, Elektron® Ultrasonix operator can ultrasonically check products to Aerospace Material Specification AMS 2154. Automatic ultrasonic flaw detection within immersion tank removes inherent operator error, enabling repeatable checking of material cleanliness. Supported by K-scan data acquisition and analysis software, machine is custom-built to check both round billet and flat plate or extrusions. Scanning envelope accommodates parts up to 3,000 x 1,000 x 450 mm.

Pres-On Products, Inc.    Addison, IL 60101
Sep 30, 2009 Contractor-grade Curb Tape seals roof curbs to HVAC units, preventing rain, moisture, and dust from damaging sensitive electronics. Flexible tape conforms to irregular roof surfaces and features single-side of rubber-based pressure-sensitive adhesive. It is manufactured from blend of closed cell neoprene, EPDM, and SBR in choice of soft, medium, or hard densities. Available in various thicknesses and widths, product passes FM VSS No. 302 for flammability.

Huron Technologies, Inc.    Leslie, MI 49251
Sep 30, 2009 VOC-free Release Coating 7745 accommodates manufacturing at ambient temperatures over 400°F and can be used with various mold materials, such as steel, aluminum, and polyurethane. Release properties can help reduce scrap rates and also make automated demolding possible. Another benefit is minimized build up in molds, which reduces mold cleaning time and subsequently extends production uptime.

SKF USA, Inc.    Lansdale, PA 19446
Sep 30, 2009 Targeting linear motion applications, SKF® LLT Profile Rail Guides have sealed design consisting of double-lip front seals and side and inner seals to prevent contamination and retain lubricant. Guides are supplied pre-lubricated with integral reservoirs to deliver constant relubrication. Available in rail sizes ranging from 80-400 mm, guides feature 4 ball rows in 45° angle with equal loading capacity from all directions, which contributes to self-aligning capabilities.

TDK-Lambda Americas Inc.    San Diego, CA 92154

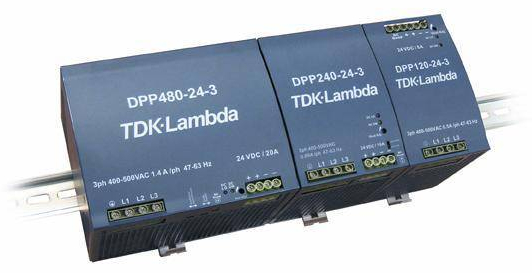

Sep 30, 2009 Featuring 12-24 Vdc outputs, DPP120 series is rated at 120 W, while DPP240 series, rated at 240 W, and DPP480 series, rated at 480 W, offer 24-48 Vdc output. Output voltages are adjustable and all units feature biphase operation, allowing them to operate under dropped phase condition with output power derated to 80%. Operating in -25 to +71°C temperatures, they include power factor correction and overcurrent, overvoltage, and overtemperature protection with auto recovery.

TDK-Lambda Americas Inc.    San Diego, CA 92154

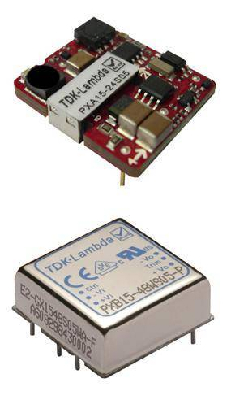

Sep 30, 2009 Featuring fully isolated design, PXA Series has open frame design and PXB Series has shielded metal case. Single-output voltages for both series include 3.3, 5, 12, and 15 Vdc. In addition, PXB Series offers dual-output models that provide ±5, ±12, and ± 15 Vdc. Operating from -40 to +85°C, converters provide efficiency up to 88%, remote on/off and output adjustment, as well as overvoltage and overcurrent/short circuit protection.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Sep 30, 2009 Rated from 100-150 W and available with 6 outputs between 12-48 V, DT100-C and DT150-C series meet Energy Star 1.1 and California Energy Commission level IV efficiency standards. Units operate from universal 90-264 Vac input at 47-63 Hz, in 0-40°C temperature range, and are convection cooled. Off/no-load standby power consumption is less than 0.50 W and units also offer overvoltage and short-circuit protection. Recessed AC input receptacle and 3.4 ft output cable are included.

Aven, Inc.    Ann Arbor, MI 48108

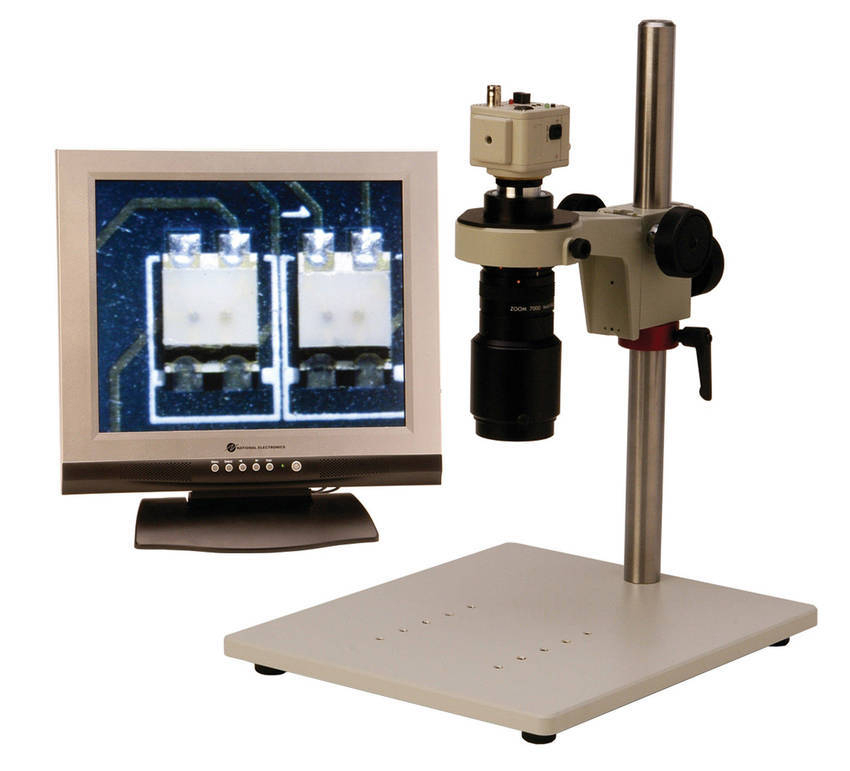

Sep 30, 2009 Aven Macro Zoom integrated system includes 15 in. LCD for electronic components/manufacturing parts inspection, as well as PC link and software. It features 6x macro zoom lens with adjustable iris and close-up lens that magnifies up to 71x at 5 in. working distance. Rugged, portable system's 1/3 in. CCD camera ratchets up and down and, with close-up lens, any working distance from 5-12 in. can be selected. System is available on dual arm boom stand or on standard stand.

Z-Communications, Inc.    San Diego, CA 92126
Sep 30, 2009 Operating at 3,400 MHz with tuning voltage of 0.5-4.5 Vdc, S-band Model CRO3400C-LF features typical phase noise of -112 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 5 MHz/V. Unit delivers output power of 3 dBm at 5 Vdc supply while drawing 24 mA over temperature range of -40 to 85°C. Housed in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in., RoHS-compliant voltage controlled oscillator features typical harmonic suppression of -20 dBc.

FLIR Systems, Inc.    Wilsonville, OR 97070
Sep 30, 2009 Suited for recreational and commercial marine markets, First Mate line of fully submersible hand-held maritime thermal night vision camera runs for over 5 hr on single battery charge, and has more than 120 hr of standby battery life. Camera makes pictures from heat, not light, and can see clearly without any light at all.

Jeio Tech, Inc.    Des Plaines, IL 60018
Sep 30, 2009 Featuring vertical air flow adjustable from 274-914 cmh air volume, Laminar Flow Clean Benches meet ISO 14644-1 Class 4 Air Cleanliness Standards. Work stations have 304 stainless steel work surfaces and polyester prefilter to extend life of primary HEPA filter. Fluorescent and ultraviolet lighting are included in interiors, and available accessories include floor stands, service fixtures, gauges and outlets.

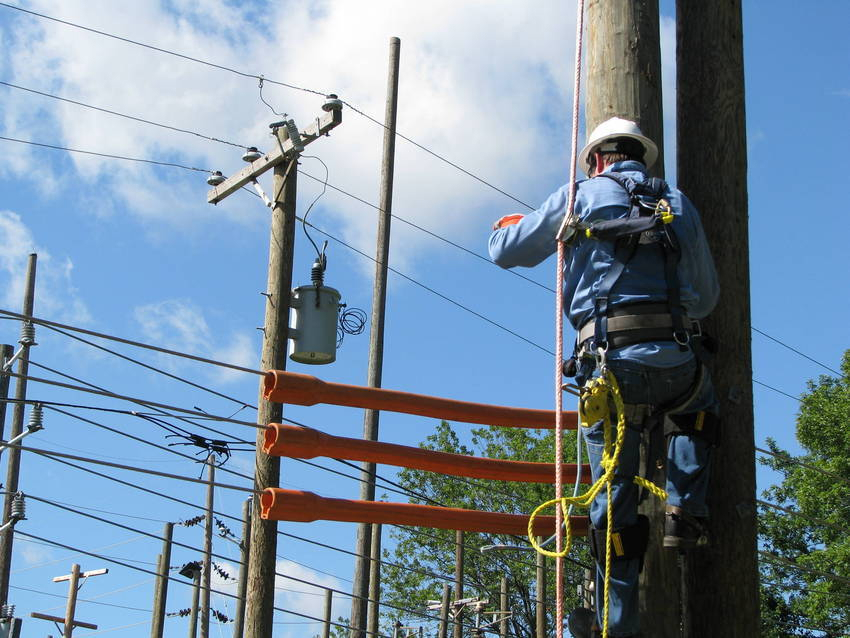

Capital Safety    Red Wing, MN 55066-5005
Sep 30, 2009 Allowing linemen to free-climb poles with 100% fall protection, Saflok(TM) Pole Anchor System enables workers to climb into position around pole obstructions, such as multiple conductors, equipment, vines, and foliage. Stored in weather-proof bag, system comes with anchor tube, 80 ft dielectric rope lifeline, installation/removal tool, carabiner, and rope grab with integrated shock absorbing lanyard.

Mahr Federal Inc.    Providence, RI 02905
Sep 30, 2009 Capable of taking surface finish measurements up to 4 m from evaluation unit, portable MarSurf® M 300 can take measurements in any position, and has measuring range of up to 350 µm. It offers measurement cut-off length selections of 0.08-2.5 mm, surface parameters conforming to ISO, ASME, JIS, and other standards, and can store up to 40,000 measurement results and 30 profiles. Unit includes PHT 6-350 probe, height adjustment bracket, and power supply with 3 plugs for 90-264 V input.

AXIOMTEK    Taipei   Taiwan

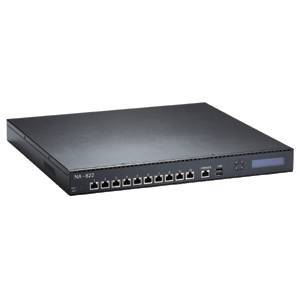

Sep 30, 2009 Built around Intel® 3210 plus ICH9R chipset, NA-822 1U rack-mountable platform supports Intel® Core(TM)2 Quad, Core(TM)2 Duo, Xeon® processors 3000 sequence, Intel® Celeron® E1500, and Celeron® 440 processors in LGA775 socket with 1,333 MHz FSB. It also supports 2 unbuffered ECC DDR2 DIMM memory up to 4 Gb, optional onboard Cavium CN16XX VPN security co-processor, and ten 10/100/1000 Mbps Ethernet ports (Intel® 82574). RoHS compliant unit offers 2 USB, 1 RJ-45 console port, and 1 MiniPCI slot.

Insight Digital Signage    Wentzville, MO 63385
Sep 30, 2009 Double Tilted Fuel Digital Signage/Kiosk Station, Model #WS-Fuel, is suited for displaying digital messages in many industries and locations including gas stations/pumps, retail stores, arenas, convention centers, transportation hubs, and shopping centers. Including metal body with optional 15-24 in. LCD display, kiosk can be custom built to meet requirements of any advertising campaign, indoor or outdoor.

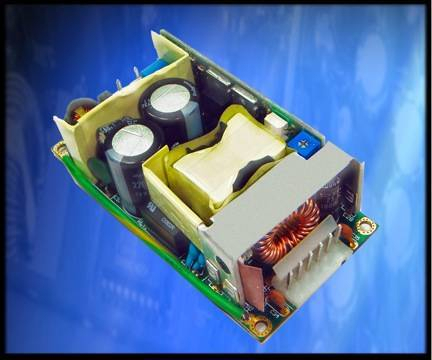

Protek Power North America, Inc.    Hudson, MA 01749
Sep 30, 2009 Designed and safety approved for commercial or medical applications, 2 x 4 in. PM100 Series provides 100 W of power at up to 50°C, and derated power from 50-70°C. It provides single outputs of 5-48 Vdc, from 90-132 or 180-264 Vac autoranging input, and requires no minimum load for start up. RoHS compliant unit features overvoltage and overcurrent protection as standard and achieves MTBF of 270,000 hr. Unit also meets EN55011 and EN55022 Class B for radiated and conducted EMI.

DSM Computer AG    Munich 81249  Germany

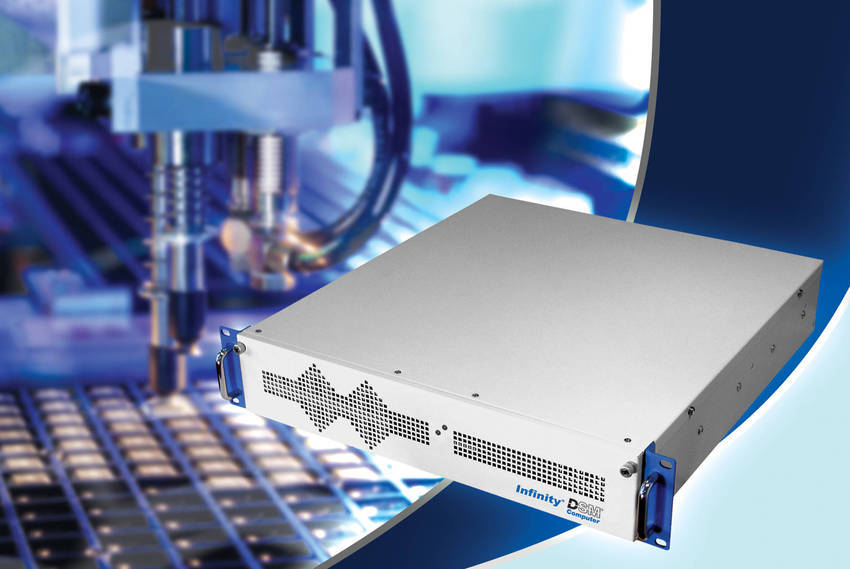

Sep 30, 2009 Based on Intel® Core(TM) 2 Duo processor with 3.0 GHz clock frequency and Intel® Q35 and ICH9R chip set, Infinity® 96M1584E family 19 in. 2U IPC features expandable memory up to 4 GB. It is equipped with PICMG 1.3 bus circuit board that provides 4 slots for system expansion; 1 PCI Express x1, 1 PCI Express x16, and 2 PCI slots. Features include Dual-GigaBit LAN, up to 4 USB 2.0, 2 serial interfaces, one parallel interface, and 250 GB SATA quality hard disk and slimline DVD drive.
