Air-Vac Engineering    Seymour, CT 06483
Oct 02, 2009 Measuring 7/8 x 1 7/8 x 6 ½ in., MFL Series is capable of vacuum flow up to 19.5 scfm and vacuum levels up to 27.2 in. Hg. Compressed air flows through small venturi nozzle and expands into first chamber to generate vacuum. Combination of compressed air and vacuum flow then flows through second and third venturi to also produce vacuum. Pumps are suited for pick and place applications, with vacuum cups for material handling where sealing is difficult and leakage is common due to uneven surfaces.

Bulbrite    Moonachie, NJ 07074
Oct 02, 2009 LED Retrofit Candle employs electronics that create shimmering, flame-like movement effect that simulates flickering flame of real wax candle. Available for 120 V lighting fixtures, used in churches, theaters, pubs, hotels, historic homes, and other buildings, bulb provides same realistic ambient light as traditional candle and uses 1.5 W of energy. It fits any standard candelabra-based socket (E12), measures 5.5 in. high and ¾ in. wide, and has potential life of 100,000 hr.

Linear Technology Corp.    Milpitas, CA 95035

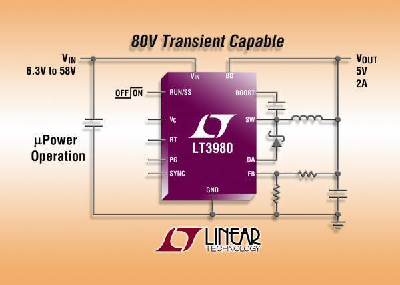

Oct 02, 2009 Operating within VIN range of 3.6-58 V, Model LT3980 includes overvoltage lockout protection against transients as high as 80 V, making device suited for load dump and cold-crank conditions found in automotive applications. Internal 3.4 A switch can deliver up to 2 A of continuous output current at voltages as low as 0.79 V. Housed in 3 x 4 mm DFN-16 package, step-down switching regulator features user-programmable switching frequency from 100 kHz to 2.4 MHz.

Evolis Card Printer    ZI Angers - Beaucouze 49070  France
Oct 02, 2009 Suited for organizations that need to personalize cards in large quantities, Quantum offers monochrome and color printing of pictures, text, and barcodes; single and dual sided personalization; and both USB and Ethernet ports. Dual-sided printing module releases more than 1,000 cards/hr in monochrome full card, and 150 cards (full card, single side) in color. Supplied with machine, detachable and reversible encoding unit combines magnetic, smart contact, and contactless encoders.

Linear Technology Corp.    Milpitas, CA 95035
Oct 02, 2009 Dual-output, synchronous buck regulator LTC3619 has programmable average input current limit of 200 mA to 1.2 A. With efficiencies to 96%, IC delivers up to 800 mA continuous output current from one channel and 400 mA from other. Using constant frequency and current mode architecture, product operates from 2.5-5.5 V input and can generate 2 independent output voltages as low as 0.6 V. Switching frequency of 2.25 MHz allows use of ceramic capacitors and inductors less than 1 mm high.

Linear Technology Corp.    Milpitas, CA 95035
Oct 02, 2009 Suited as companion to high-resolution DACs/ADCs required by instrumentation and test equipment, LTC6655 has noise level of 625 nVp-p from 0.1-10 Hz. Its -40 to +125°C operating range supports automotive and industrial applications, and curvature compensation reduces or eliminates need for system calibration. Load regulation of 3 ppm/mA and ±5 mA source/sink capabilities, coupled with 5 ppm/V line rejection, result in consistent performance across various line and load conditions.

Master Bond, Inc.    Hackensack, NJ 07601
Oct 02, 2009 Formulated to function as preferential heat-transfer path between heat-generating components and heat sinks or other cooling devices, FL901AO epoxy film can cure in 1 hr at 250°F or 30-40 min at 300°F. B-stage, 100% solid adhesive-preform offers thermal conductivity of 10 BTUoin./ft²hr°F and volume resistivity exceeding 10 x 10¹² W-cm, providing no-mess solution to electronic assembly and other industrial bonding and sealing operations.

ABB Inc.    Auburn Hills, MI 48326
Oct 02, 2009 Asset Vision Professional is Windows-based software that offers full-featured device management and asset optimization. Program adds to number of connected PROFIBUS and HART multiplexer devices, lets users simultaneously configure/monitor all devices, and supports asset condition report printouts. Derived from System 800xA architecture, scalable software also allows for parameter setting, online monitoring and tuning, calibration management, and work order processing.

FKN Systek, Inc.    Framingham, MA 01702
Oct 02, 2009 Able to accommodate dies from various manufacturers, C200 table-top crimp tool is operated using standard factory air (5 bar min) and offers max pressing capacity of 1,200 kp. Portable, bench top unit facilitates change of tools and setup for different crimp contacts. In addition to crimping bare and insulated crimp terminals, uses include assembling IDC connectors to ribbon cable, splitting ribbon cable, cutting wire, stamping small components, and other tasks.

MadgeTech    Warner, NH 03278

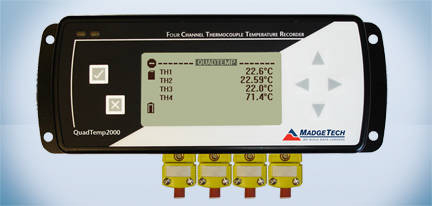

Oct 02, 2009 Featuring individual cold junction compensation for each channel, 4 channel QuadTemp2000 has reading rate of up to 4 Hz and can store up to 500,000 readings per channel. Each channel can be named with up to 10 digit title for easy identification and current reading, minimum, maximum, and average statistics can be obtained through LCD. Users can enable/disable channels to maximize memory capacity and can reset statistics for different cycle processes where tolerance values may vary.

NKK Switches    Scottsdale, AZ 85260-3420

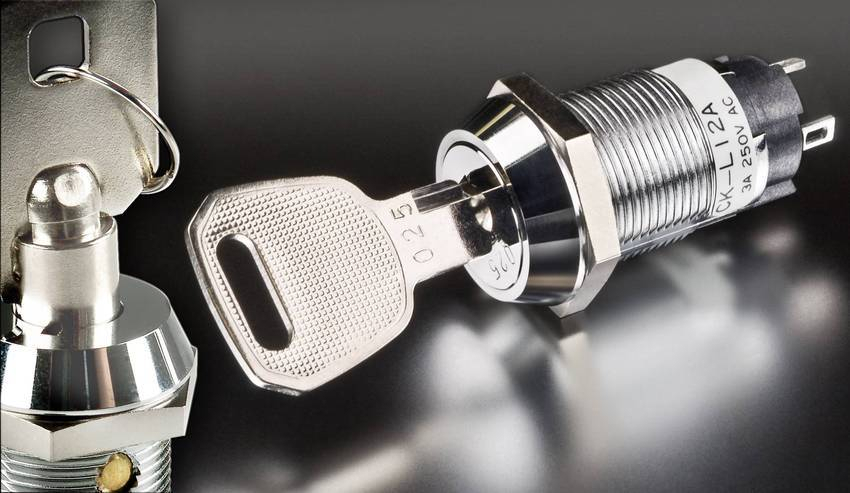

Oct 02, 2009 Constructed of rugged, die-cast zinc alloy with chrome plating, panel mount CKL Series with 19 mm dia bushings feature vertically rotating switching mechanisms and self-cleaning sliding contacts. Operating at -25 to 70°C, devices are rated at 3 A at 250 Vac and are available in single pole with 2 position models featuring 90° angle of throw and 3 position model, with 45° angle of throw. Reversible flat keys are supplied with 25 randomly assigned key numbers while tubular keys have 50.

AKO Armaturen & Separations GmbH    Trebur-Astheim   Germany
Oct 02, 2009 Available in nominal diameters DN040-DN150, VA series is made with flange connection conforming to DIN EN 1092 (PN10/16) as standard. Body and flanges of lightweight valve are made in stainless steel AISI 1.4404 and are electro-polished. Valve design enables sleeve to be changed quickly without need for special tools and adhesives.

ITT Interconnect Solutions    Santa Ana, CA 92705

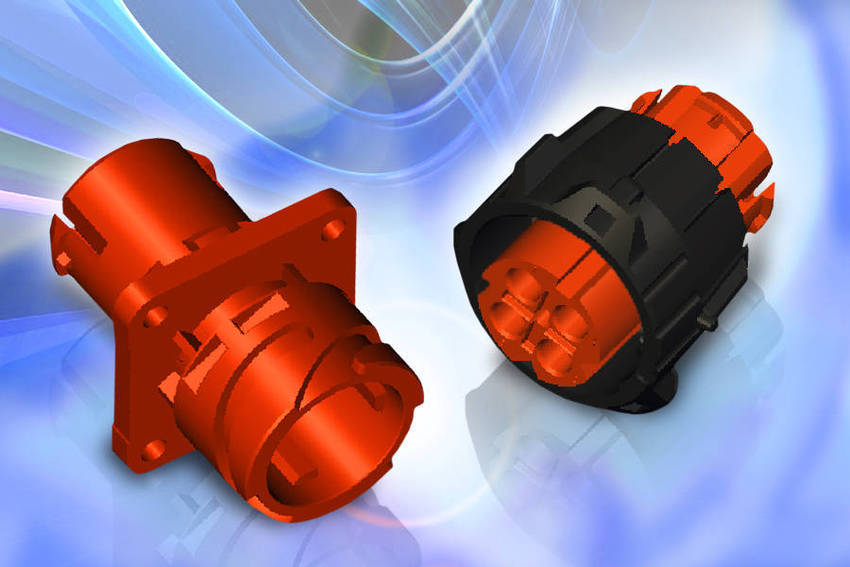

Oct 02, 2009 Suited for medium- and high-volume automotive applications, APD Series direct, in-line and bulkhead sensor connector is resistant to engine, transmission, and brake fluids and operates at temperatures from -40 to +125°C. Recessed contacts ensure operator safety, and 3-point bayonet mating offers vibration resistance and moisture protection up to IP69. Meeting all DIN 72585 specifications, connector can be specified with custom color.

CyberResearch, Inc.    Branford, CT 06405 2932
Oct 02, 2009 Featuring internal sound dampers that reduce chassis noise by 24-28 dB, RCQ MX-400 3U rack mount chassis incorporates advanced thermal monitoring that detects temperatures at 2 points and tracks performance of up to 8 cooling fans. Motherboard-ready chassis has front access to 6 shock-mounted drive bays: four 5.25 in. and two 3.5 in., and includes DVD-RW drive and 2 internal vertical 3.5 in. bays. Depending on selected motherboard, 5-7 expansion slots are offered.

Crystek Corp.    Fort Myers, FL 33913

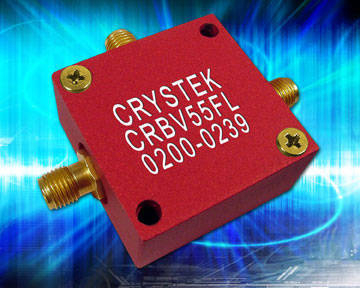

Oct 02, 2009 Operating from 200-239 MHz with control voltage range of 0.5-4.5 V, CRBV55FL-0200-0239 features typical phase noise of -123 dBc/Hz at 10 kHz offset. Housed in 1.25 x 1.25 x 0.58 in. robust aluminum enclosure with SMA connectors, VCO enables plug-and-play integration into any application. It features input voltage of 5 V, with max current consumption of 25 mA. Pulling and pushing are minimized to 1.0 MHz and 1.0 MHz/V, respectively, and second harmonic suppression is -20 dBc, typical.

GAO Instruments Inc.,    Toronto   Canada
Oct 02, 2009 Offering 4 parallel channels, with independent 20 MS/sec 12-bit A/D converter and independent programmable gain amplifier for each channel, model A0720002 PCI2712S parallel DAQ card features voltage signal acquisition ranges from 100 mV to 20 V. Sampling depth of each channel is up to 16 MS/sec. DAQ board with all-electronic calibration, is designed for transient signal recording, refined frequency synthesis, multi-channel parallel acquisition, and time-phase-sensitive acquisition.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Oct 02, 2009 Designed as low and high frequency PDA with optional wireless transfer functions including WiFi, Bluetooth, and GPRS, Model DL720 has 400 MHz processor and integrated 128 MB SDRAM along with 64 MB Flash ROM storage to protect data from resets. It features LCD touch screen and keyboard, 3,800 mAh battery, and captures range of data including RFID tags, barcodes, and images. Device uses Windows CE 5.0 OS and suits various mobile RFID applications.

Visage Mobile    San Francisco, CA 94104
Oct 02, 2009 MobilityCentral v2.3 incorporates BudgetCorrect(TM) feature, which is used for managing mobility and controlling wireless expenses. With it, companies can set budgets, track/allocate expenses, identify overages, and take corrective action to meet cost-savings objectives without sacrificing growing mobility needs of business. Functionality allows for creating and communicating mobility policy with budget expectations as well as identifying overspend and abuse with automated notification.

Redknee, Inc.    Mississauga L4W 4Y9  Canada
Oct 02, 2009 Turnkey Converged Billing (TCB) v8.1 enables operators offering triple- and quad-play offerings to support everything from activation and provisioning, real-time rating, and invoicing to partner management, mobile money services, and customer care via one billing platform. Unified rating engine and integrated bundle and balance management tools enable operators to create and launch targeted promotions with Web-based GUI, facilitating creation of cross-service bundles.

VisEn Medical, Inc.    Bedford, MA 01730
Oct 02, 2009 ReninSense680(TM) FAST imaging agent measures and monitors key hypertension and renal disease biomarker in vivo. Based on Fluorescence Activatable Sensing Technology platform, it is biologically targeted NIR activatable imaging agent designed to measure renin activity as part of renin-angiotensin biologic pathway. Allowing localized in vivo measurement of changes in renin-angiotensin system function, agent is suited for research and drug development.
