Harris    Tyrone, GA 30290
Oct 26, 2009 Featuring ½ in. plate construction with 1 x 4 in. thick reinforcement, Piranha® Closed Door Horizontal Baler provides 110 lb/in² ram face pressure. Machine can handle paper stock, secondary fiber, aluminum/steel cans, PET, and HDPE. In addition to hydraulic door actuator and serrated shear knife, baler has category 3 safety system on conveyor hopper access door. Access to hopper is protected by dual circuit magnetic safety switch and dual trapped key interlock system.

Magnolia Plastics, Inc.    Chamblee, GA 30341
Oct 26, 2009 Magnobond® 133-351 A/B is 2-part epoxy adhesive that bonds fuel filter media to filter end caps. Its conductive carbon filler allow static electricity to be discharged safely, enabling filter manufacturers to use it to create static discharge circuit. Designed to bond dissimilar substrates, low-viscosity adhesive also offers chemical resistance.

Edmund Optics    Barrington, NJ 08007
Oct 26, 2009 Continuously Variable Apodizing Filters include standard Bull's Eye versions, available in 25 and 50 mm diameters, with end densities that decrease radially from center. Reverse Bull's Eye filters feature high optical density coating on edge of filter, which increases from uncoated center, optimizing dynamic range in imaging systems. Both are suited for design wavelength range of 400-700 nm and create even illumination profile in optical systems.

HASCO Hasenclever GmbH + Co KG    Ludenscheid D-58513  Germany
Oct 23, 2009 Multimodule Z3280/.../S combines 2-6 modified Compact Shot nozzles Z3210/... in modular design that enables work with extended cavity-to-cavity distances as well as flexible gating point arrangement. It may also be used individually as central nozzle or in combination with hot runner. Latter facilitates building of manifold molds due to possibility of grouping cavities together in clusters. Solution also enables multi-point gating on one article.

Metabo Corp.    West Chester, PA 19380 4243
Oct 23, 2009 Part of PowerMasterSeries, cordless BS18 LT is fitted with Li-Power Plus 18 V, 2.6 Ah battery and features air-cooled charging technology. Tool weighs 4.5 lb, measures 8 in. long, and incorporates LED worklight. User can remove chuck to drive screws with ¼ in. hexagon recessed spindle using accessory bit retainer, allowing use in tight spaces. Along with Variospeed full-wave electronic speed control, tool offers dual range torque adjustment.

Schaeffler Group Automotive - FAG    Troy, MI 48083
Oct 23, 2009 Split spherical roller bearings are useful when several solid spherical roller bearings are being used to support complex drive shaft or where bearing needs replacing but is located in tight space on machine. With 620 mm dia and 210 kg weight, bearings have split design that enables mounting into existing housing without removal of transmission shaft. Inner ring, outer ring, and cage assembly are split, and cylindrical bore provides direct mounting onto shaft.

General Machine Products Co.    Trevose, PA 19053
Oct 23, 2009 Available in sizes ranging from 1-2.5 in. in length, Innerduct Pulling Eyes (Model 61510) feature threaded body that provides secure attachment to innerduct conduit. Hole in threaded end of pulling eye body provides tie-off of innerduct pulling line or tape, ensuring that unit is not lost during pulling operation. Also available with swiveling head-end and hex feature, pulling eyes can accommodate conduit inter-diameter dimensions ranging from 1-2.18 in.

Ensign Corporation    Bellevue, IA 52031
Oct 23, 2009 Made of UL 94V0 materials, Ener-G-Star(TM) Transformers feature single or dual primary inputs and single, dual, or center-tapped outputs available in 1 V increments from 10-240 V. Split bobbin design eliminates need for electrostatic shielding. Supporting PCB mount, solder/quick connect terminals, and lead wires, RoHS-compliant transformers are 100% hipot tested at 4,000 V and are suited for medical, isolation, thermostat, and various types of controls.

MicroE Systems    Bedford, MA 01730
Oct 23, 2009 Suited for precision manufacturing, inspection, metrology, and medical equipment, miniature Mercury II(TM) 5000 offers optimal short-range accuracy up to ±20 nm, ensuring smooth velocity control. Resolution is programmable and ranges from 5 µm to 1.2 nm, linear. Providing up to 5 m/sec at 0.1 µm resolution and max speed of 10 m/s, A-quad-B output supports high speed applications. Rotational tolerance about Z axis is ±2° and ride height tolerance is ±0.15 mm.

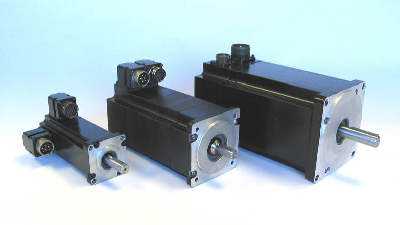

AMETEK Technical & Industrial Products    Kent, OH 44240
Oct 23, 2009 Suited for medical and industrial equipment as well as instrumentation and automation machinery, Models AB23000, AB34000, and AB48000 come in NEMA sizes 23, 34, and 56, respectively. Units provide continuous stall torque from 3.75-114 lb-in. and peak torque from 11.3-339 lb-in., depending on model. Featuring IP65 construction and heavy-duty 0.5 in. shaft, motors range from 2,800-5,200 rpm. Voltage rating up to 325 Vac for offline drives can be achieved.

Turck USA    Minneapolis, MN 55441
Oct 23, 2009 Utilizing A and B output voltage channels plus periodic index with corresponding inverted channels, Kubler by TURCK encoders achieve high accuracy in range of linear motion applications. Resolution is up to 5 µm with quadruple evaluation, and repeat accuracy is ±1 increment with measuring speed up to 82 fps. Models T8.LI20/LI50 are available with push-pull output or RS422 interface and provide voltage range of 4.8-30 Vdc. Both are resistant to vibration and shock.

Zero-Max, Inc.    Minneapolis, MN 55441 5537
Oct 23, 2009 Featuring low-backlash design, Schmidt 5D Couplings simplify adjustment to any misaligned shaft position without imposing heavy side loads on machinery. They accommodate up to 5° angular misalignment and as high as 1.5 in. parallel misalignment while maintaining undisturbed power transmission at constant angular velocity. Mounted to shaft hubs or to machine flanges, units are available in 10 sizes that handle speeds up to 1,000 rpm and torque from 2,800-500,000 lb-in.

Alpha Vision Design,    Dublin 22   Ireland
Oct 23, 2009 Video-based AVD sensor automatically counts number of visitors entering or exiting mall or store. Device can operate stand-alone or be networked with others to produce map of visitor numbers across mall or, via internet, whole retail chain. People counting zones can be set from single interface, allowing users to control all zones from one location. Traffic Central software generates graphs and reports that help retailers analyze customer patterns and trends.

BEI - Duncan Electronics    Irvine, CA 92618
Oct 23, 2009 Supplied in 15.55 x 82 x 113 mm, through-hole, hollow shaft package, 8360 Series suits applications where space and mounting flexibility are critical. It can fit around or over shaft and distinguishes 0.088° increments of motion with accuracy of better than ±2 mechanical degrees at room temperature. Along with 12-bit resolution, features include redundant, dual analog outputs; IP65 sealing; and support for application-specific modifications.

Advanced Machine & Engineering Co.    Rockford, IL 61103
Oct 23, 2009 Providing positive locking without washers and keys, Spieth Locknuts ensure thrust bearing retention on compressors, shafts, spindles, and other industrial/commercial applications. Two axially arranged radial grooves, one from outside and one from inside, result in diaphragm-like cross-section to give locknut predetermined axial elasticity. Full circumference contact ensures locknut does not back off, even when subjected to extreme shock loads.

PneuMagnetic, LLC    Quakertown, PA 18951
Oct 23, 2009 Featuring self-contained, pneumatic magnetic design, PneuMagnetic Solenoid Valve Actuator can be used as drop-in replacement for OEM coil on direct acting solenoid valves, and provides same on/off magnetic field as original coil. No field wiring, conduit, or intrinsically safe barriers and no electricity at valve are required. Actuator is fully compatible with any original hermetically sealed valve.

LEVITON    Melville, NY 11747
Oct 23, 2009 Available in commercial/industrial and hospital grade versions with 15 and 20 A, 125 V ratings, Smart Grid Tamper Resistant Receptacles feature protective shutters that accept only 2-prong electrical plug and also provide built-in surge protection for sensitive electronics. NAFTA-compliant devices provide EMI/RFI noise filtering and afford point-of-use protection for up to 18,000 A of surge current. Units also comply with NEC Section 406.11 and UL 1449's 3rd Edition.

Tripp Lite    Chicago, IL 60609
Oct 23, 2009 Incorporating Isobar® surge suppression and noise isolation technology in 1U device, Model AV3500PC protects connected components on AC, coaxial, and telephone/modem lines. Input voltage LCD meter with dimmer control displays incoming utility power, while diagnostic LEDs report operational conditions. With 5,700 joule protection rating, AV3500PC is optimized for flat panel digital displays, DVRs, A/V processors, amplifiers, Blu-ray DVD/CD players, and subwoofers.

MKS    Andover, MA 01810 2449
Oct 23, 2009 Featuring optimized electronics platform for data acquisition, Microvision 2 and e-Vision 2 offer stability for e-diagnostic, process monitoring, and general vacuum trouble-shooting applications. Ethernet connectivity enables users to access data from anywhere on TCP-IP network, providing solution to wide-scale multi-RGA installations. RGAs are available with variety of software control systems, including built-in web application, recipe-driven Process Eye Professional, and TOOLweb RGA.

Kontron    Poway, CA 92064
Oct 23, 2009 Modular AM4904/AM4910 come in 4 versions: pure Gigabit Ethernet switching MCH, in combination with PCIe mezzanine or sRIO, and with 10 Gigabit Ethernet switching. All versions provide central management and data switching functionality on full-size, single-width AMC form factor. Equipped with 600 MHz PowerPC 405EX processor for MCMC functionality and switching management, products enable efficient, redundant system architectures with up to 12 AMCs, 2 cooling units, and 4 power units.
