FOX IV Technologies, Inc.    Export, PA 15632

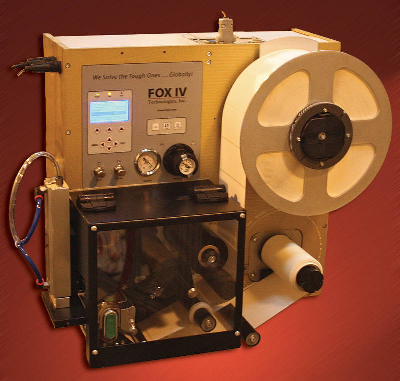

Oct 05, 2009 Incorporating Datamax M-Class Mark II printer, Model 2010 BASIC Mini utilizes 8 or 14 in. application cylinder to print and apply label sizes from 1 x 1 in. to 4.25 x 6 in. Standard communication includes USB and RS232 with options for wired or wireless Ethernet and remote printer monitoring from standard web browser. Peripheral devices such as bar code scanners, scales, and keyboards can be connected directly to BASIC Mini - all controlled by 100 MHz, 32-bit multi-tasking processor.

WAGO Corp.    Germantown, WI 53022

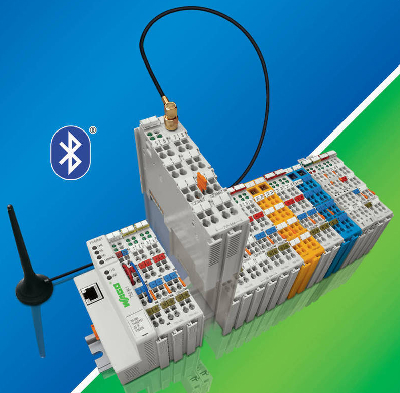

Oct 05, 2009 Configured via WAGO-I/O-CHECK 3 software, 750-644 provides bidirectional, wireless communication between I/O nodes. One 750-644 master can communicate with up to 7 slaves on PAN/piconet via Bluetooth® 2.0+EDR radio technology, and slave-to-slave data transmission is possible indirectly through master. Within 10 ms, it exchanges data up to 1,000 m (line-of-sight) or 100 m (within buildings). Frequency hopping and adaptive transmitting power technologies provide robust communications.

SynQor    Boxborough, MA 01719 1316

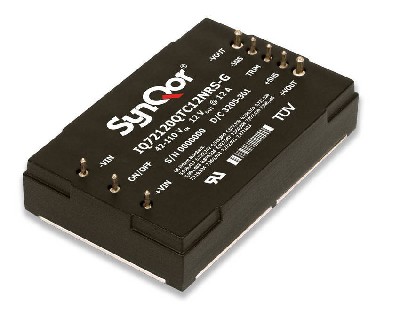

Oct 05, 2009 Completely encased for protection in harsh environments, quarter-brick InQor® IQ72 Series provides output power from 58-150 W and uses synchronous rectification to achieve efficiencies up to 91%. Board-mountable, isolated, fixed switching frequency units feature input voltage range of 42-110 V and provide 9 output voltages of 1.8, 3.3, 5, 7, 12, 15, 24, 30, and 48 V. Two converters of different power levels are available for each output voltage for total of 18 models.

Linear Technology Corp.    Milpitas, CA 95035
Oct 05, 2009 Model LTC3553 multifunction power management IC measures 3 x 3 mm and features PowerPath(TM) manager that delivers up to 400 mA battery charge current from USB port or 5 V wall adapter input. Integrated synchronous buck regulator delivers up to 200 mA output current with output voltage adjustable down to 0.8 V. Unit also includes LDO regulator providing up to 150 mA output, pushbutton controller, and battery charger. Pin-selectable standby mode reduces battery drain current to 12 µA.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada

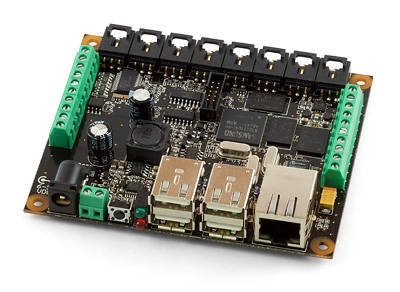

Oct 05, 2009 Equipped with 266 MHz CPU and 64 MB SDRAM, 1070 - PhidgetSBC provides 4 USB full-speed ports that allow use of normal USB Phidgets over network connection, extending effective range of from USB's max of 15 ft to anywhere that network reaches. Integrated PhidgetInterfaceKit 8/8/8 allows user to connect devices to any of 8 analog inputs, 8 digital inputs, and 8 digital outputs. PhidgetSBC can operate autonomously, without need for graphical interface or remote connection at all times.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Oct 05, 2009 Used for design verification or production testing, Model 2920A provides signal generation bandwidth options up to 80 MHz with frequency range of 10 MHz to 4 or 6 GHz. MIMO testing system solution, which can tune to new frequency on DUT's operating band in 300 µsec or less, offers electronic attenuation and fast-tracking, automatic level control loop. Ultra Low Phase Noise option can provide phase noise levels of less than or equal to -135 dBc/Hz at 300 kHz offset on 2 GHz carrier.

Secoa Technology    Dalton, GA 30721
Oct 05, 2009 Secoa technology processes untreated welding nozzles supplied by customers and transforms them into PerfectArcs(TM) nozzles with extended life design to minimize nozzle cleaning time for any manual or robotic MIG welding process. Self-cleaning PerfectArcs(TM) nozzles eliminate need for labor-intensive spatter release sprays and dips. Products shed spatter, permitting shielding gas to flow properly and ensuring proper, clean welds.

iwis drive systems, LLC    Indianapolis, IN 46268
Oct 05, 2009 Suited for nearly all conveying tasks that require flat transport surface, Flexon Flat Top Conveyor Chains are available in plastic and stainless steel versions as both linear and curved tracks. Low-contamination materials fulfill hygiene requirements in beverage and packaging industry. Resistant to chemicals, plastic chains can be cleaned with agents that are either unsuitable for metal chains or would require intensive maintenance.

Jenton International UK    Whitchurch RG28 7BB  United Kingdom
Oct 05, 2009 Converging thermoformed matrix of packs into one line, Packleader BCS offers independently adjustable working and infeed heights as well as HMI with multi-lingual support. Control technology promotes adaptability while facilitating setup/maintenance. Other features include quick-change belts, long-life clutches, and net line length addition of 1,100 mm. Able to accept pack formats at 16 cycles/min, machine offers direct pack collection from thermoformer without extra conveyor.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Oct 05, 2009 Designed for top and reversed mount applications, FMS008-4000-xx is available with variable reading system for SIM and Smart cards. With low assembly height of 0.95 mm, 8-pin SIM block card reader can be used with separate card recognition switch, which can be mounted on PCB in different positions independently from card reader. Both switch and reader offer contact durability of 10,000 mating cycles.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Oct 05, 2009 Card reader FPS009-2910-0 features stand-off of 1.2 mm, allowing for mounting of other components under reader on PCB. Designed for assembly on top side of PCB, it includes push-in/push-out insertion and extraction mechanism with defined ejection. Unit has metal cover and 4 grounding tabs along with soft lock mechanism for SD card and write protection switch. Offering automatic card detection, reader is suited for Flash memory card applications.

Rockwell Automation    Milwaukee, WI 53204
Oct 05, 2009 With pre-installed software and pre-configured operating system, visualization servers and single activation operator workstations for PlantPAx Process Automation System help minimize time associated with specifying, procuring, and installing system hardware and software. Process application system servers can be used to host human interface displays and consolidate data access, while operator workstation serves as window to process.

Clark Solutions    Hudson, MA 01749
Oct 05, 2009 Suited for measuring flow in most clean liquids and many liquids with entrained solids, CSLFC and CSLFB Ultrasonic Flow Transmitters are available with 3-wire RTD temperature output. RTD is built into transducer well, offering process temperature measurement and flow measurement in one instrument. Made of cast brass, CSLFB models are designed for full scale flow ranges from 15-400 gpm in ¾-3 in. pipe, while CSLFC units measure flows to 4,000 gpm in 4-10 in. pipe.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Oct 05, 2009 Optimized for pipe fabrication, PipeWorx(TM) Welding System performs stick, TIG, MIG, and flux cored welding. Switching between processes is almost instantaneous, with no need to manually switch polarity, cables, or hoses, eliminating potential source of errors. Up to 4 programs can be stored for each process, and processes can be shared among different machines via memory card. Quick Set technology sets correct polarity and returns to last settings for that process.

Schunk    Morrisville, NC 27560
Oct 05, 2009 Available in sizes 40 and 50, Compact Class JGP 2-Finger Parallel Gripper and JGZ 3-Finger Gripper feature oval piston and round piston, respectively, plus rigid T-slot guidance for precise and fail-safe handling. Monitoring for both grippers can be carried out with inductive proximity switches or magnetic slot switches.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Oct 05, 2009 Custom 3 x 3 double diaphragm chuck clamps 11 tooth powdered metal gears. Upper and lower jaws flex separately to ensure clamping on pitch line of tapered gears. Engineered to meet needs of metalworking industry, they are available in SAE or metric, in chuck sizes from 3-18 in. (76-457 mm) with accuracies of 0.001-0.00001 in. (0.254 mm).

Master Bond, Inc.    Hackensack, NJ 07601
Oct 05, 2009 Thermal adhesive film FL901AO provides heat-transfer path between heat-generating components and heat sinks or other cooling devices. Curing in 1 hr at 250°F or 30-40 min at 300°F, B-stage adhesive-preform features thermal conductivity on level of 10 BTU-in/ft²hr°F and volume resistivity exceeding 10 x 10¹² W-cm. Properties are maintained over temperature range of -100 to +400°F. It is also resistant to thermal shock, vibration, and impact.

Olympus NDT    Waltham, MA 02453
Oct 05, 2009 Complying with IP55 and MIL-STD-810F standards, IPLEX LX and IPLEX LT provide remote visual inspections of parts or structures where access is limited. LCD monitor, built into main operating unit, features 6.5 in. daylight-view screen that allows detection of small defects. In addition to on-site inspection, units provide image archiving, defect measurement, and image management on PC. JPEG still images and MPEG-4 movies record directly to removable USB flash drive.

Philips Lighting Co.    Somerset, NJ 08875
Oct 05, 2009 Measuring ½ in. high, Affinium(TM) Value-plus and Vision-plus LCM310 LED Cooler Modules replace traditional tubular fluorescent lamps under shelf and in canopy of multi-deck display cases and are suited for multi-tiered displays of meat, dairy, and deli items. Range of wattages, lengths, and color temperatures support variety of merchandising needs and are driven by Philips Xitanium(TM) LED power driver. Compliant with RoHS, modules provide white light that is free of dark spotting.

Mountz, Inc.    San Jose, CA 95112
Oct 05, 2009 Available in cam-over or break-over models, TALS Wireless Torque Wrench System offers multiple channel and tool tracking capability. Wrench is equipped with battery-powered transceiver at end of handle, and when preset torque is reached, unit sends FM signal to TALS Core monitoring device that records fastener has been installed. System is suited for monitoring production line and aids manufacturers with detecting and eliminating screw-fastening errors during assembly.
