Midwest Motion Products    Watertown, MN 55388

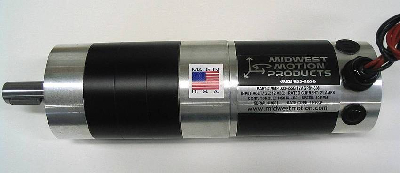

Nov 03, 2009 Accepting any 12 Vdc source, including battery power, Model MMP-D33-455B-12V GP81-308 requires just 21 A to generate full load torque. Unit features keyed output shaft measuring 19 mm dia x 40 mm long, and mounts via 4 face mount M6 threaded holes, equally spaced on 65 mm dia B.C. Rated IP54 for harsh environments, reversible gearmotor is suited for battery powered electric vehicles, robotics, and automation applications. Motor windings for 24, 36, 48, 60, 90 V are available.

Jeio Tech, Inc.    Des Plaines, IL 60018

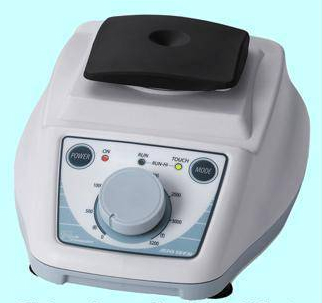

Nov 03, 2009 Lab Companion Vortex Mixers incorporate low-profile design and rubber feet, allowing stability with minimum vibration and sliding. Products include sensitive touch switch with real-time mixing and VS control knob that indicates mixing conditions by LED lamp. Constructed with chemical-resistant polypropylene exterior, mixers also include built-in safety device for overload protection. Tube holders from 10-25 mm and micro plate holder are available.

ADLINK Technology Inc.    Irvine, CA 92618
Nov 03, 2009 Model PCI-8253, 3-axis, and PCI-8256, 6-axis DSP-based servo motion controllers provide ±10 V analog motion control, PID plus feed-forward algorithm, and 20 MHz encoder input frequency. Units feature high-speed position comparison and trigger output speed of up to 1 MHz. They include motion functions such as multiple dimension interpolation and high-speed position comparison. Integrated point table supports over 5,000 points for each axis, suitable for contouring applications.

Avago Technologies    San Jose, CA 95131

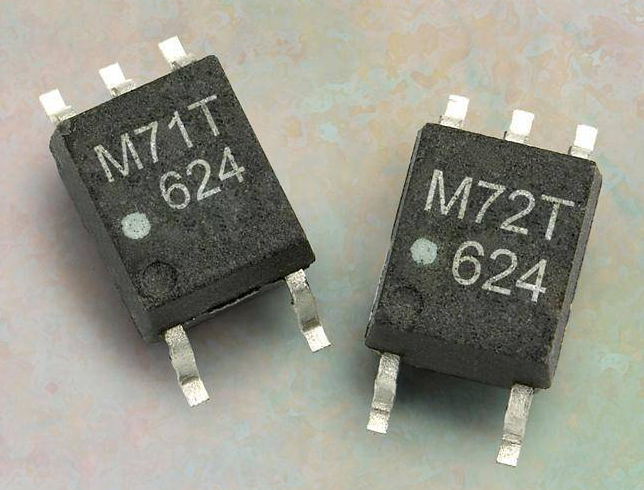

Nov 03, 2009 Models ACPL-M71T single-channel, high-speed 15 MBd and ACPL-M72T low-power LED drive R2Couplers incorporate CMOS IC for reinforced insulation and signal isolation suitable for automotive/industrial applications. Included IC offers ESD performance of 4 kV Human Body Model and 400 V Machine Model. Units feature LED technology with low driving current/power consumption for high- and low-speed digital applications. They operate in temperatures from -40 to +125°C.

Linear Technology Corp.    Milpitas, CA 95035
Nov 03, 2009 Covering 700 MHz to 4 GHz frequency range, LTC554x family of 4 downconverting mixers offer IIP3 of 26 dBm, noise figures of 9-10 dB, and conversion gain of 8 dB. They operate on 3.3 V supply, drawing supply current of 200 mA, and include power-down feature with turn-on and turn-off time of 2 and 3 µs, respectively. Units integrate IF amplifier, LO buffer, LO switch, and RF balun transformers. Identical pinouts let designers share board layouts across multiple platforms.

Curtis Industries, LLC    Worcester, MA 01606
Nov 03, 2009 Available for 2010 Polaris Ranger utility vehicle, Rapid-Convertible System allows rapid transformation from fully enclosed cab to open-air ride. Unit features ROPS base frame with cab receiver mounts for safety and installation. Roof, windshield, and rear panel have quick-release pin-to-slot connection and heavy-duty quick release latch. Used for all body panels, thermoformed TPO material offers low-temperature impact resistance, heat deflection, and dimensional stability.

CS Unitec, Inc.    Norwalk, CT 06850

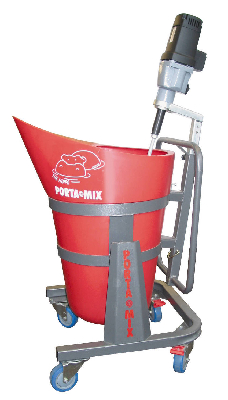

Nov 03, 2009 Equipped with 16 A/1,800 W 2-speed motor, PORTAMIX HIPPO PMH 70F operates at load speeds of 140 and 470 rpm. System features Easy-Roll Trolley and balanced Easy-Tilt Cradle, which allows user to pour, accurately place, and spread up to 20 gal of material simultaneously. With helix ribbon and side bars, two 8 in. dia mixing paddles lift and shear product. PMH 70F is suited for cement screeds, grout, mortar, texture coatings, sealants, and adhesives.

Sullair Corporation    Michigan City, IN 46360

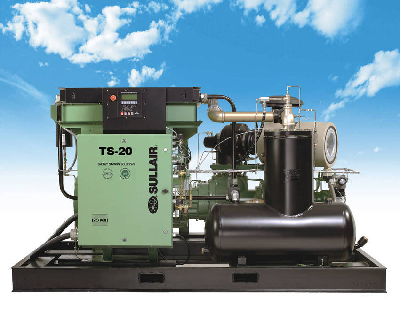

Nov 03, 2009 Rated 100-600 hp, 2-stage TS Series Tandem Rotary Screw Compressors offer choice of constant speed drive Models TS-20, TS-32, and TS-32S with capacities of 500-3,000 acfm, or Variable Speed Drive Models V-200TS and V-320TS with capacities of 495-2,310 acfm. Pressures for all models range from 100-175 psig. Multi-Stage Air Fluid Separation with dual nested Optimizer(TM) separator element minimizes fluid carryover, while Optimalair(TM) heavy-duty air intake filter provides inlet filtration.

INDEX Corporation    Noblesville, IN 46060

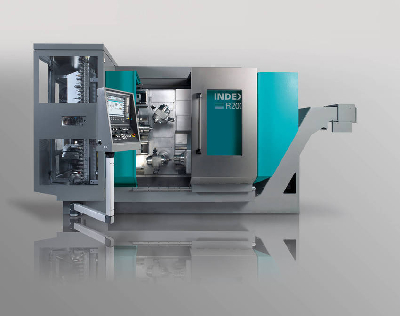

Nov 03, 2009 Featuring vertical cast machine bed with heavily ribbed, enclosed modular design, Model R200 utilizes two 18,000 rpm motorized milling spindles and 2 movable 5,000 rpm work spindles that perform machining operations in 2 independent subsystems, each capable of full 5-axis machining of bar stock to 65 mm. System offers B-axis swivel ranges of 270° and 230° and rapid traverse rate of 45 m/min. It can accomplish full reverse side machining as well as parallel machining.

Walls & Forms Inc.    Dallas, TX 75374

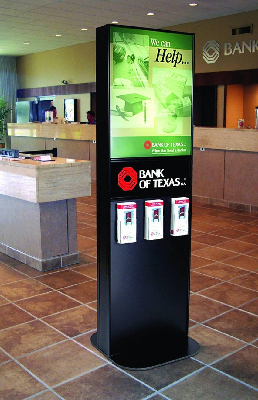

Nov 03, 2009 Available in 2-, 3-, and 4-sided formats with aluminum framing system, Lights Alive Displays can match any decor or color scheme including marble, granite, and wood grain. In addition to permanent tier logo or product section at top, middle, or bottom, units offer changeable graphic tier or merchandising tier that allows user to insert pegboard, slot, panel, or slatwall into frame. Displays are suited for retail, banking, tradeshow, POP, showroom, advertising, and shopping mall applications.

Macronix International Co., Ltd.    Taipei   Taiwan
Nov 03, 2009 Utilizing combination of 24-bit and 32-bit addressing to maintain backward compatibility, Model MX25L25635E supports single, dual, and quad I/O capability with 80, 140, and 280 Mbps performance, respectively. Unit features 4 KB sectors and 32 KB/64 KB block for flexible software architecture. Housed in 16-pin SOIC package, RoHS-compliant device operates from 2.7-3.6 V, is capable of code XIP directly from Flash, and is suited for code and user data storage.

Techno Sommer Automatic    New Hyde Park, NY 11040

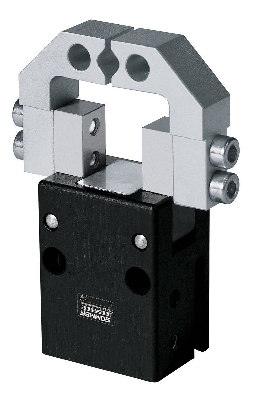

Nov 03, 2009 Available in 8 different sizes starting at 12 x 10 x 26 mm, MGW800 Series is suited for assemblies and multiple pick-and-place applications. Grippers offer grip torque up to 39.36 lbf-in. and stroke per jaw of 37.5°. Miniature size allows manifolding through bottom mounting surface, eliminating side air fittings. Jaw position, whether opened or closed, can be sensed through use of magnetic sensors, providing positive feedback.

Lighting Specialties    Buffalo Grove, IL 60089
Nov 03, 2009 Wolf EcoFlex features grooved aluminum head that rotates 340° vertically and 90° horizontally and incorporates four 1 W dimmable white LEDs that are optically mixed to produce even light pattern. Thermal engineering allows LEDs to achieve rated life of 50,000 hr, and 25 in. flexible arm lets user aim light where it is needed. Designed to be environmentally friendly, lamp offers light intensity of 500 fc at 12 in.; 2,000 fc at 6 in.; and 5,000+ fc at 3 in. or less.

Rockwell Automation    Milwaukee, WI 53204

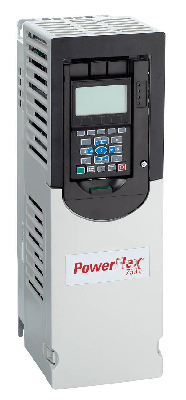

Nov 03, 2009 Available in power ranges from 0.75-250 kW or 1-350 hp at 400/480 Vac and 540/650 Vdc input, PowerFlex 753 supports multiple languages and complies with global standards and certifications. DeviceLogix control technology enables users to combine inputs and/or outputs, as well as local logic functions to determine drive's behavior. Drive can also be configured to provide advanced notification of operating data on cooling fans, I/O relay cycles, motor run-time hours, and potential fault warnings.

E Instruments International LLC    Langhorne, PA 19047

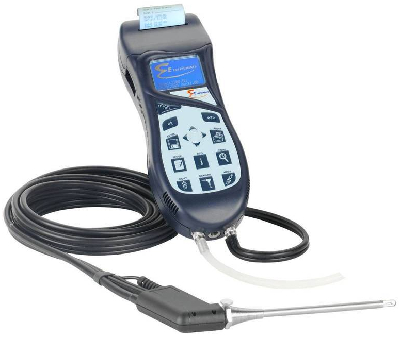

Nov 03, 2009 Featuring field-replaceable sensors, multifunctional BTU1100 measures O2, CO, and CO2; efficiency; and excess air. It incorporates manometer, thermometer (ambient and flue gas), and CO leak detector as well as built-in impact printer. Metal connections are unbreakable, and dual hose configuration enables simultaneous gas and draft measurement. Also, 0-8,000 CO sensor offers built-in NOx filtration to ensure accurate readings. Resolution for CO is 1 ppm.

E Instruments International LLC    Langhorne, PA 19047

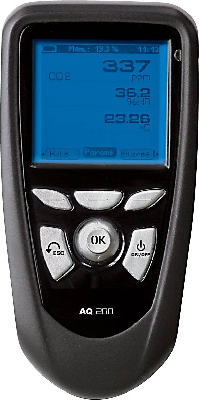

Nov 03, 2009 Featuring ABS shock-proof housing with IP54 dust protection, Model AQ200 includes CO2 sensor measuring 0-5,000 ppm and CO sensor measuring 0-1,000 ppm. Multifunctional unit also measures temperature, atmospheric air pressure, and humidity. Equipped with 2-line ICE BLUE LCD display, tester provides Min/Max/Hold/Unit Selection, 8,000 memory points, and wireless communication.

E Instruments International LLC    Langhorne, PA 19047
Nov 03, 2009 Comprised of models specified for pressure ranges to 30, 150, 350, 500, or 600 psi, Pneumatic PHP Hand Pump Series combines pressure and vacuum generation functionality with spring-loaded, grip-able handle and scissor action. Fine adjustment vernier and pressure release are also included, and connections to fit master indicators are 3/8 in. BSP (F). In addition to cases for pumps, adapters, and hose, options include set of BSP/NPT adaptors.

Klüber Lubrication    Londonderry, NH 03053
Nov 03, 2009 ISO 21469 certified and registered for use in food processing and pharmaceutical industries, Klüberoil® NH1 G 1 US Series consists of mineral white oil, while Klüberoil® NH1 G 4 US Series offers synthetic version. Both perform in high and low temperatures, providing wear protection for gear teeth and rolling bearings. Applications include equipment in bottling operations, meat and poultry processing, dairy operations, fruit and vegetable processing, and pharmaceutical plants.

Schunk    Morrisville, NC 27560

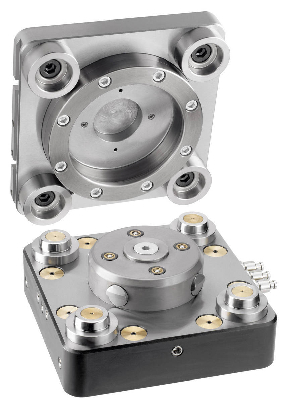

Nov 03, 2009 Measuring 10 x 10 in. and suited for 5-axis machining centers, UNILOCK NSA SF achieves precise centering using 4 short tapers on corners, which also compensate for torques and tilting moments. Single clamping module generates 16,860 lb of force. UNILOCK NSA SF is failsafe, using 4 spring driven form-fit, self-locking clamping slides into centering sleeve that can be monitored. To unlock clamping modules, standard air supply pressure of 6 bars is sufficient.

SmartQuantum Inc    Sunnyvale, CA 94085
Nov 03, 2009 Ultra low noise near infrared single photon detector SQLightSensor has detection efficiency up to 25%, trigger up to 10 MHz, and dark count of 5.10-6 per ns gate. Device provides plug-and-play USB connection to PC, enabling users to easily adjust detection efficiency and tune gate width and delay. Product suits scientific, defense and industrial applications, such as single photon counting, spectroscopy, eye-safe laser range finder and LIDAR, and quantum cryptography.
