Delcam Plc    Birmingham Hampshir B10 0HJ  United Kingdom

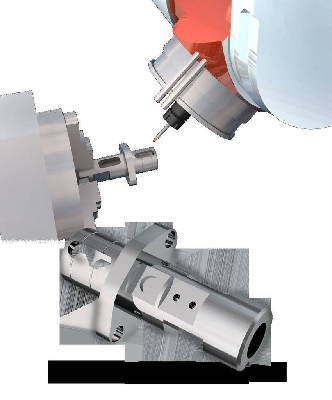

Oct 20, 2009 With degree of automation that accelerates programming, FeatureCAM 2010 delivers functionality from 2D drilling and wire EDM to 5-axis milling and mill-turn operations. Support for multi-threading when generating 3D toolpaths allows calculations to be spread across multiple cores in dual- and quad-core computers. Combined drilling and milling functionality, spiral finishing option, tool-axis smoothing, and automatic rest roughing are also included.

Fredericks Company, The    Huntingdon Valley, PA 19006-6232
Oct 20, 2009 Available in +10° high gain, +25° standard, and +50° wide angle versions, IRIS Tilt Controller enables measurement and command of tilt movement in any direction with reference to unchanging gravity vector. Unit detects angular position using onboard electrolytic tilt sensor with no mechanical moving parts to break or wear out. IRIS can be used to adjust solar panel angles to achieve maximum light intensity and power levels and to detect misaligned panels.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Oct 20, 2009 Targeted at portable applications such as digital still cameras, digital camcorders, and voice recorders, mono Models WM8944 and WM8945 and stereo Models WM8946 and WM8948 integrate speaker, video and microphone amplifiers, and LDO regulator. Models WM8945 and WM8948 also include touch panel controller. Housed in 36-ball W-CSP package, all include dynamic range control, stereo-widening algorithm, 5 notch filters, 5-band programmable equalizer, and programmable wind noise filter.

Daimer Industries Inc    Woburn, MA 01801

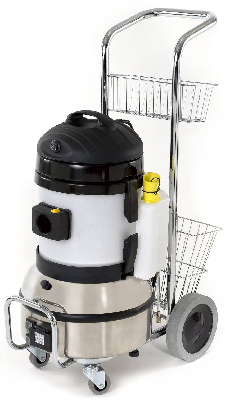

Oct 20, 2009 Featuring ATIS® Advanced Thermal Ionic Sanitization(TM), KleenJet® Ultra 1000CVP Machines kill 99.99% of mold and dangerous bacteria. Units have overall water capacity of 7 l and 5 l extraction chamber for extended continuous cleaning. Included wet-dry vacuum provides 2,200 mm of column lift and comes with water and HEPA filtration to remove allergens. Supplied with variety of tools and attachments, cleaners produce pressure levels up to 89 psi and steam temperatures up to 320°F.

Powerex, Inc.    Youngwood, PA 15697
Oct 20, 2009 Model QJD1210006, with 50 A Schottky free wheeling diode, and QJD1210007, with 100 A diode, are rated 1,200 V and offer total power-loss reduction of 54% when operated at 20 kHz. Constructed in half-bridge configuration, units feature 100 A of silicon carbide MOSFET/switch with 2 switches/model. All components and interconnects are isolated from heat sinking baseplate, simplifying system assembly and thermal management. Products feature junction temperatures from -40 to +200°C.

Asymtek    Carlsbad, CA 92008

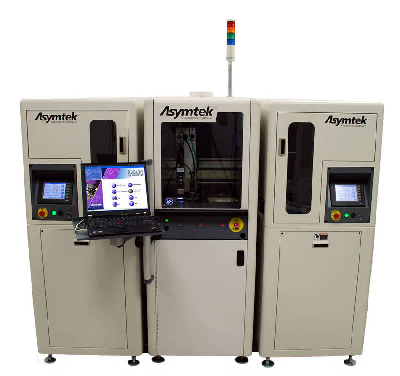

Oct 20, 2009 Configurable for inline or same-side load and unload operations, MH-900 Series supports both single and dual-lane conveyors and handles variety of parts from very thin strips to large boats and carriers. Programmable transport speed and carrier staging maximize units/hr while multiple carrier sensors, active pinch wheels, and thin strip guides ensure safe handling. Elevator and shuttle operate independently with programmable speed to provide precise, high-speed movement.

Sandvik Materials Technology, Strip Products Div.    Benton Harbor, MI 49022
Oct 20, 2009 Providing slickline optimization in oil and gas industry, Wraptor(TM) allows for safe, controlled wire test of up to 3 ft in length for 0.125 in. line and more for 0.108 in. line. With tester, users can make accurate predictions as to state of slickline and its optimum retirement point. Self-contained in carry case, Wraptor comes with chuck, bushing, wire guide for wrap tests, spindle and chuck for torsion tests, as well as pliers, Allen key, table fixtures, and operating handle.

All Metric Small Parts (aMsp)    New Hyde Park, NY 11040

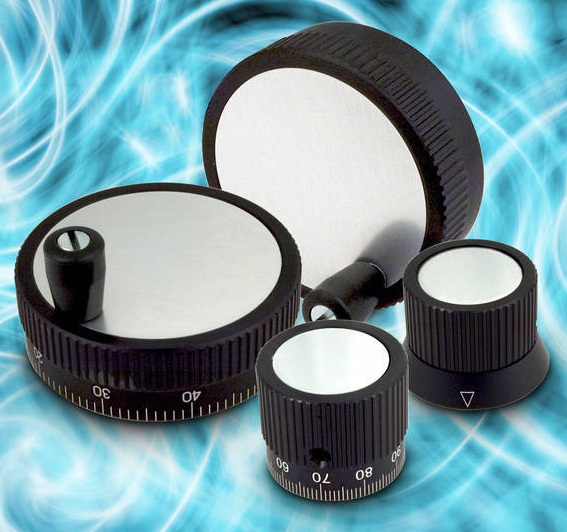

Oct 20, 2009 Configurable for specific applications, MMAHOFM Series of control knobs can be specified with and without handles and 0-100 scales, as well as with or without handles and/or scales. They are available in diameters of 50, 60, and 70 mm.

Harris    Tyrone, GA 30290
Oct 20, 2009 Featuring 18 x 7 ft footprint, HLO 5443 offers baling cycle time of 7.6 sec using twin 25 hp motors. High volumetric displacement enables production rates up to 14 tons/hour. Economy mode shuts down one 25 hp motor to save energy, while rear access doors enable access to cylinders, and stamper automatically removes jams at shear knife. With max operating pressure of 3,000 psi and ram face pressure of 114 psi, baler is suited for processing OCC, ONP, PET, and plastics.

CGI Inspection    Eden Prairie, MN 55344

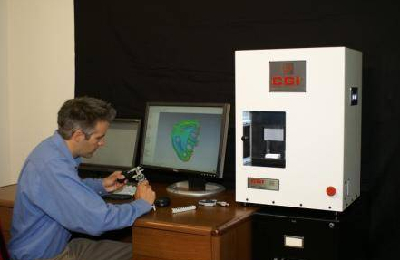

Oct 20, 2009 Using Spec.Check software, Pearl-700 Desktop 3D Cross-Sectional Scanning and Inspection System can digitize, measure, and qualify parts from injection molding tools. After placed in machine, ultra-thin layer of part and encased material is removed one 0.001 in. layer at a time, and high-resolution image of each newly-exposed cross-section is captured. System creates 3D Point Cloud, which can be used for inspection, failure analysis, 3D color mapping, or reverse engineering.

E Instruments International LLC    Langhorne, PA 19047

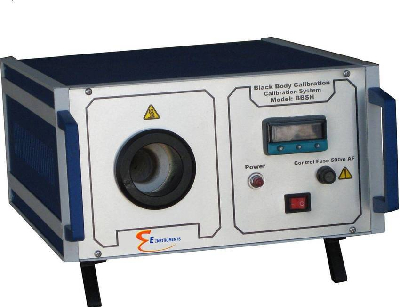

Oct 20, 2009 Suited for high-temperature calibration, portable Black Body BBSH features temperature range of 500-1,200°C with 1°C resolution and accuracy of ±0.5°C of indicated temperature. Stability is ±0.5°C and emissivity is better than 0.97. Consuming 1,000 W, calibration system features 15 minute stabilization time and heating time of 60 minutes. Calibration is traceable to National Standards within ±2°C.

Cooper Lighting    Peachtree City, GA 30269

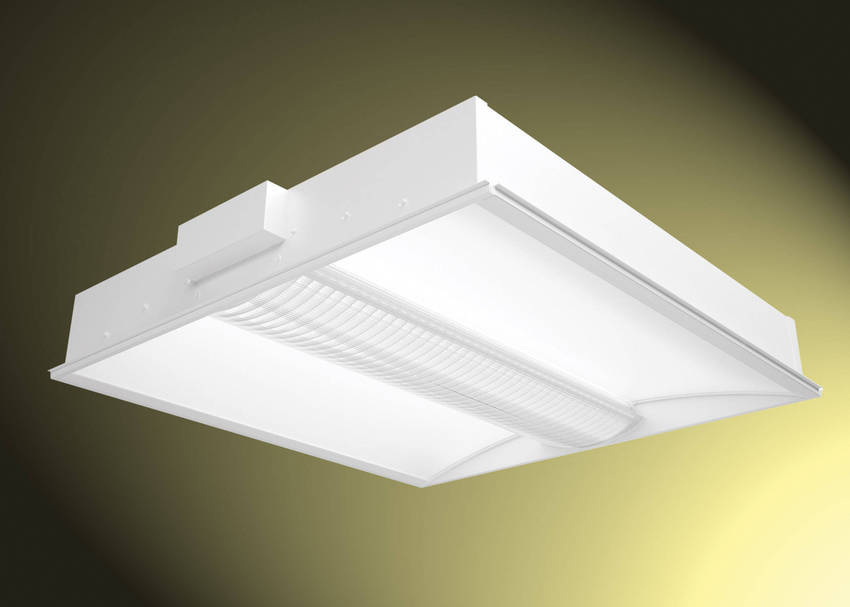

Oct 20, 2009 Offered in 2 x 2 or 2 x 4 ft housing sizes, Corelite Class R3 has shallow 3¾ in. deep housing that accommodates T5/T5HO and T8 (1, 2, and 3), and compact fluorescent (1 and 2) lamping options. Optical reflector design and backlit side panels provide work surface illumination, as well as vertical lighting component that eliminates cave effect. Five lens/shielding options are available including micro baffle, clear micro prismatic, rectangular or round perf, and frosted prismatic lens.

Pelican Products, Inc.    Torrance, CA 90505

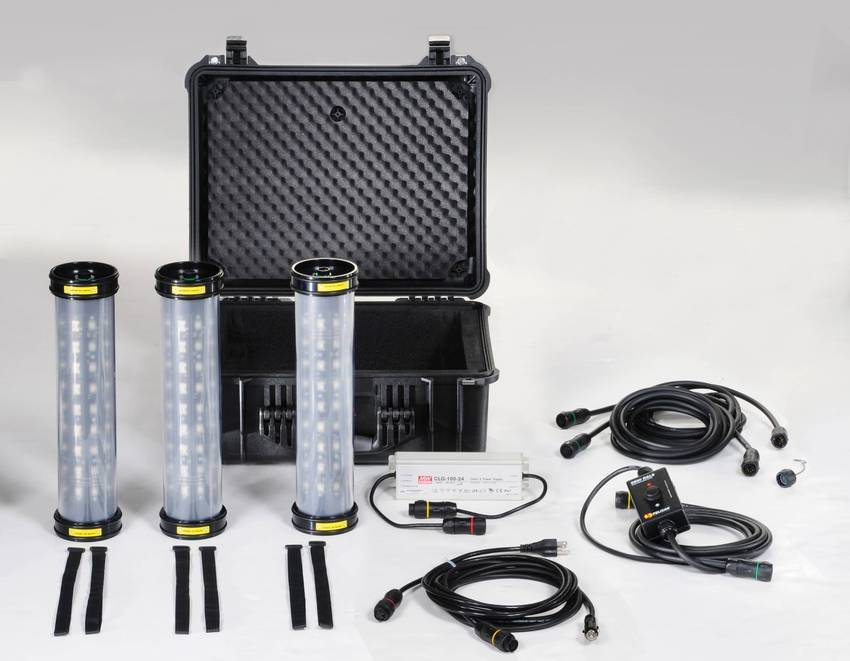

Oct 20, 2009 Including 3 area lighting heads that feature 24 white and 12 red (night-vision-friendly) next generation LEDs, 9500 SLS offers 2,000 lumens of diffused light in white mode or 400 lumens in red mode. Each of 3 heads can be powered by either standard 100-240 V socket or 12-30 Vdc power source. Controlled separately or linked together, system allows user to instantly switch between night-vision and normal modes, and can illuminate small, medium, and large GP military tents.

Coilcraft Inc.    Cary, IL 60013

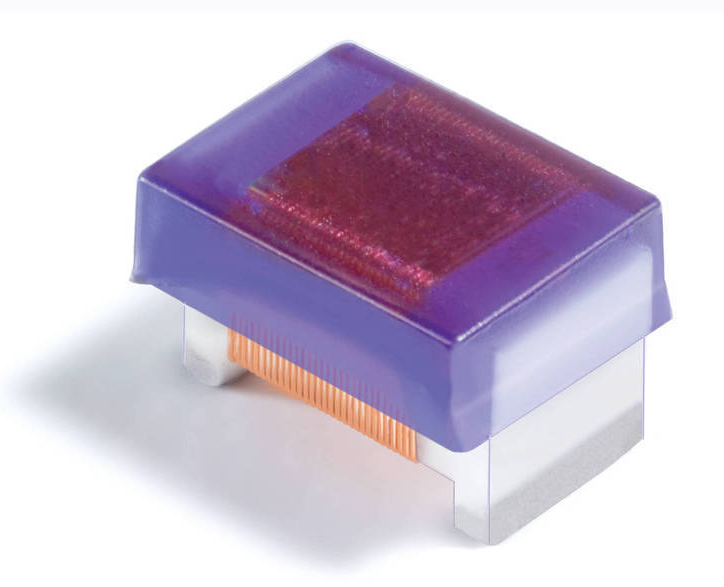

Oct 20, 2009 Suited for mission-critical applications, ML Series 0603-size inductors offer inductance values of 47 nH to 22 µH and Q ratings as high as 50 at 250 MHz with self resonant frequencies as high as 16 GHz. Ceramic construction provides high current handling, while high-temperature encapsulant enables operation in ambient temperatures from -55 to 155°C. Featuring COTS Plus, tin-silver-copper, and tin-lead terminations, units offer MTBF of 1 billion hr.

Penco Products, Inc.    Oaks, PA 19456 0378
Oct 20, 2009 Designed for law enforcement, EMS, fire fighting, and military personnel, Patriot® Duty Lockers include 33 x 18 in. lower base that contains one or more heavy-duty drawers and integral 9½ in. deep wood bench. All standard lockers are 24 in. deep and range in width from 24-48 in. in 6 in. increments, with upper locker portion available in either 60 or 72 in. height. Turnout models have open front, while Gear models feature pair of heavy gauge doors secured by steel turn handle and lock rods.

Crystek Corp.    Fort Myers, FL 33913

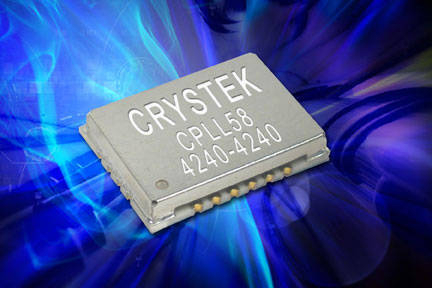

Oct 20, 2009 Housed in compact 0.582 x 0.8 x 0.15 in. SMD package, CPLL58-4240-4240 operates at 4,240 MHz with step size of 2,500 kHz and is programmed using standard 3 line interface (data, clock, and load enable). It integrates VCO and PLL in single package and needs only external frequency reference and supply voltages of 5 and 3 Vdc, respectively, for internal VCO and PLL. Second harmonic suppression is -15 dBc typical and minimum output power is 3 dBm.

Interpower Corporation    Oskaloosa, IA 52577-0115
Oct 20, 2009 Medical Socket Strip is rated for maximum of 15 A with service at 125 V and features manual reset circuit breaker. Designed to be permanently attached to fixture, such as cart or some other type of item in hospital or dentist office, product has attached hospital grade power cord that can be ordered in lengths up to maximum of 25 ft. Outlet covers can also be attached as optional feature.

Interpower Corporation    Oskaloosa, IA 52577-0115
Oct 20, 2009 Medical Socket Strip is rated for maximum of 15 A with service at 125 V and features manual reset circuit breaker. Designed to be permanently attached to fixture, such as cart or some other type of item in hospital or dentist office, product has attached hospital grade power cord that can be ordered in lengths up to maximum of 25 ft. Outlet covers can also be attached as optional feature.

C&K Components    Newton, MA 02458

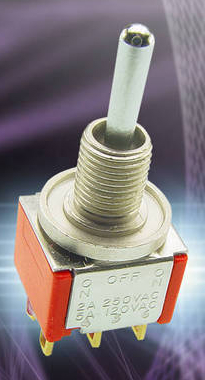

Oct 20, 2009 MIL-S-83731 toggle switches feature 50 µin. selective gold contact plating and are rated for logic level to 5 A resistive loads and 2 A inductive loads. They meet MIL-STD-202 qualifications for vibration, shock, salt spray, moisture resistance, explosion, and sand and dust resistance, and operate in temperature range from -25 to +71ºC. With mechanical life of 20,000 operations and electrical endurance to 10,000 operations, units suit military and aerospace applications.

CILS INTERNATIONAL    Beverly, MA 01915

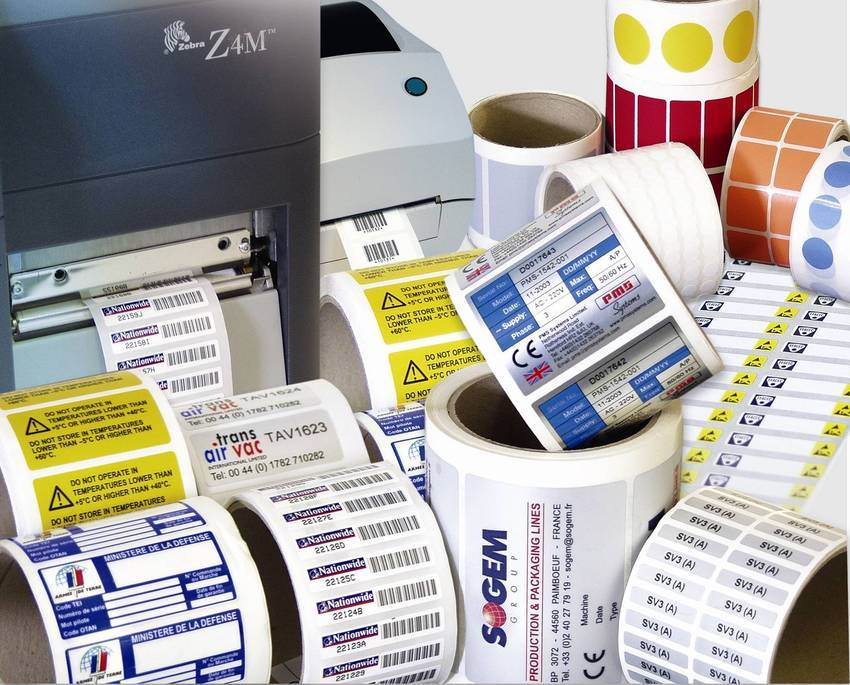

Oct 20, 2009 CIL 8200S metalized polyester range of chemical resistant labels can add variable data using thermal transfer printer. Units used in combination with CILS unique thermal transfer ribbons are suited for rating plate and batch ID labels for aircraft components, fuel valves, hydraulic pumps and flow control gauges.
