Bulbrite    Moonachie, NJ 07074
Oct 26, 2009 Featuring aluminum reflector, Energy Wiser® 9 W PAR20, 15 W PAR30, and 23 W PAR38 produce Warm White or Soft Daylight color and have minimum starting temperature of -4°F. Medium screw-in based bulbs provide Color Rendering Index of 82 and 8,000 hour life. At 3,000 K color temperature, PAR20, PAR30, and PAR38 produce 350 lumens, 670 lumens, and 1,200 lumens, respectively. Applications include track and recessed residential, commercial, and industrial lighting.

Cepoint Networks LLC    Nashua, NH 03062
Oct 26, 2009 Able to scale to 1,000 TB, Model Rx-8500 supports RAID levels 0, 1, 1EE 3, 10, 5, 5EE, 6, 50, and 60. Unit is deployable as NAS, iSCSI SAN, Fibre-channel SAN, or stripped down DAS depending on required application needs. With up to 4 parallel 4 Gb/s I/O interface, visualization is amplified by allowing balanced and distributed I/O sharing without I/O bottlenecks. System is optimized for cloud storage, cloud computing and visualization as well as HD video storage and streaming applications.

Palmer Manufacturing & Supply, Inc.    Springfield, OH 45504
Oct 26, 2009 Suitable for removing foundry particulate emissions, Scrubbers come in 2,500, 4,000, 6,000, 10,000, and 20,000 cfm models. Units provide 99% removal efficiency with inlet loading of 335 ppm. Fabricated from polypropylene, scrubbers feature vertical design, automatic charging and pH monitoring, and color touch screen. HMI Ethernet communication is available and hinged window kit is optional.

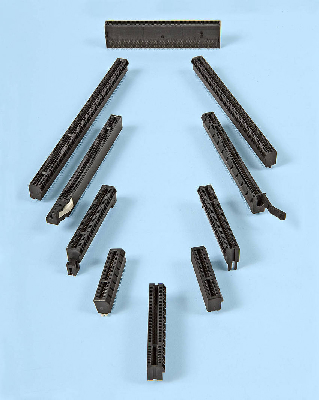

Sullins Electronics Corp.    San Marcos, CA 92079-0189
Oct 26, 2009 Featuring 1.00 pitch, Card Edge Connectors support PCI Express® standards for signal and power as well as auxiliary signals at interface between motherboard and add-in card. Units are rated at 1 A/contact and offer x1, x4, x8, x16, x24, and x32 contact positions to accommodate range of bandwidth requirements. Serial lanes are comprised of 2 differential wire pairs that support data transfer rate of 500 MB/s in each direction, per lane. They feature 2.5 GHz clock rate and 5 GT/s bit rate.

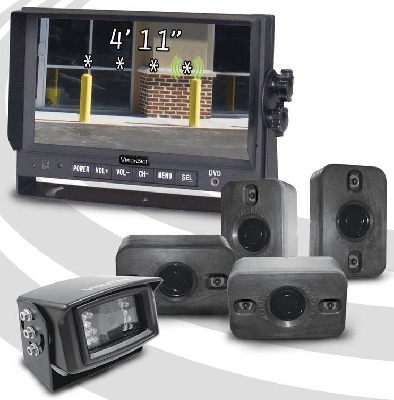

Mobile Awareness, LLC    Solon, OH 44139-2660
Oct 26, 2009 VisionStat(TM) Plus provides driver with audible and visual information when obstacle is detected behind vehicle. Integration of SenseStat(TM) Obstacle Detection Sensor System connected directly with wired VisionStat Camera System, without any additional cabling, allows for visual confirmation via CCD camera along with distance and proximity from any of 4 sensor zones. Commercial-grade system lets driver see exact distance, accurate to 1 in., to closest object on monitor.

Trio Motion Technology Ltd.    Pittsburgh, PA 15238
Oct 26, 2009 With SERCOS II digital drive interface, MC464 Motion Coordinator allows OEMS and automation system integrators to benefit from 64-bit multi-axis motion and machine control. Module sends and receives 32-bit control and feedback values for up to 16 axes at selectable data rates up to 16 MHz with servo cycle period down to 250 µs. As bus master, MC464 can accommodate 4 SERCOS modules, providing synchronization for up to 64 axes, with max fluctuation in accuracy of less than 1 µs.

Variohm Components    Towcester Northamp NN12 6HP  United Kingdom
Oct 26, 2009 Designed for industrial and automotive applications in harsh and extended temperature range (-40 to +125) environments, SP5000 series uses conductive plastic technology in IP67-rated housing and offers choice of 104°, 117°, and 120° electrical angles. Heavy-duty sensor, rated to withstand vibration to 20 g, has working life of 4 million movements with operating speed up to 100 rpm. Electrical characteristics include repeatability to 1% and independent linearity of less than 2%.

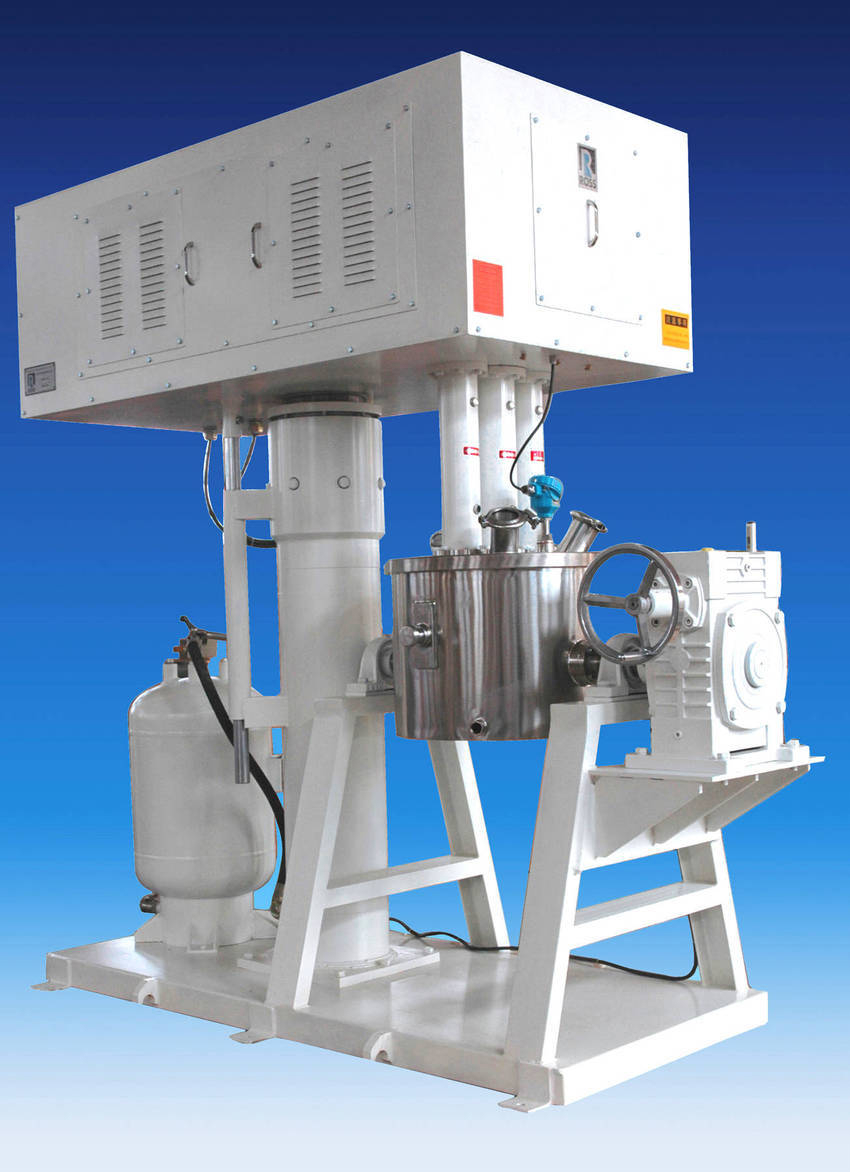

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Oct 26, 2009 Ross VersaMix Model VMC is attached to frame with manual tilting mechanism to allow 120° tilting for full discharge and cleaning. It combines 3-wing anchor, high-speed disperser, and high-shear rotor-stator mixer suited for manufacturing viscous dispersions and emulsions with viscosities up to 1,000,000 cp. Sizes range in capacity from 1-750 gal. Also built for vacuum operation, system includes jacketed mix vessel for heating or cooling as well as built-in light.

Emerson Process Management    Austin, TX 78754
Oct 26, 2009 Micro Motion® H-Series Coriolis meters include Micro Motion Model 2400S transmitter, with MVD(TM) digital processing for sensor health to be monitored while meter is in-line, and which maximizes performance for empty-full-empty batching. Meters have mass flow accuracy up to ±0.1% and volume flow accuracy up to ±0.15% on liquids, mass flow accuracy of ±0.5% on gases, and liquid density accuracy up to ±0.001 g/cc. They mount remotely or in control room using DIN rail, panel, or rack format.

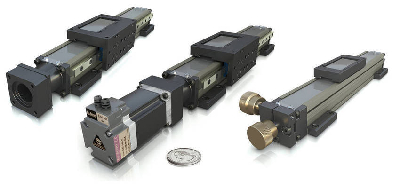

PBC Linear    Roscoe, IL 61073
Oct 26, 2009 Featuring 28 x 32 mm footprint, ML Series is suited for single and multi-axis assemblies. Model MLB comes with motor for automated control, while Model MLC features motor mount for coupling to motor of customer's choice, and Model MLD has hand-turned knob and break for manual control applications. Outer body profile is precision machined using SIMO(TM) process. Comprising 14 plane bearing surfaces, Dovetail style carriage supports low-friction, smooth motion, and quiet travel.

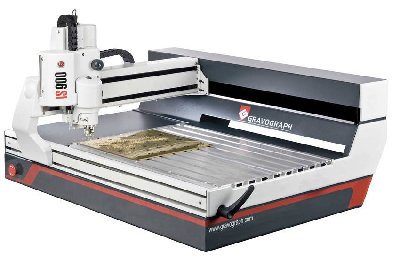

Gravograph - New Hermes Inc.    Duluth, GA 30096
Oct 26, 2009 Designed for flat engraving of identification plates or cutting and engraving of sheets of any material, Model IS 900 can engrave at up to 100 mm/s and handle strips of unlimited length with 660 x 460 mm engraving area. IQ+ electronics enable Point n' Shoot function, which uses laser pointer for visual positioning of engraving on item and simulating engraving work before executing programmed task. Using Terrain Follower, machine follows shape and height of sheet with optical sensor.

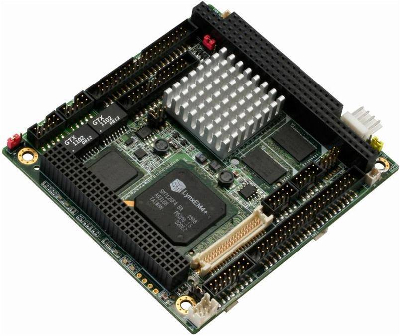

AAEON Technology Inc    Taipei   Taiwan
Oct 26, 2009 Based on DM&P Vortex86SX SoC processor, Model PFM-535S is equipped with Intel 82551ER chipset to support two 10/100Base-TX RJ-45 connectors. Module includes dual Ethernet support, 4 USB2.0 ports, 4 COM ports, and 1 parallel port as well as 1 EIDE and 1 CompactFlash socket for storage, meeting system communication needs of many embedded applications. Module also has PC/104+ expansion interface that will allow it to use PC/104+, PC/104, or PCI-104 peripherals.

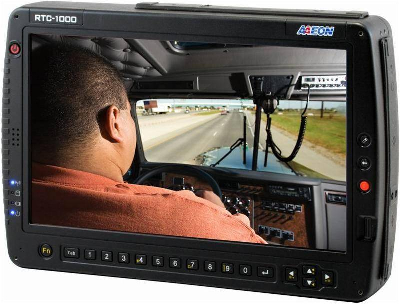

AAEON Technology Inc    Taipei   Taiwan
Oct 26, 2009 Powered by 1.6 GHz Intel's Atom N270 or 1.2 GHz Core Duo U2500/1.0 GHz Celeron M 423 ULV processor, RTC-1000 series has sunlight-readable, 16:9 TFT LCD panel with WSVGA resolution and 450 nits brightness. IP65-sealed solution offers flexible I/O and storage interfaces as well as various wireless networking options. While integrated finger print reader lends to security, features such as handwriting recognition, numeric keypad, and programmable function keys lend to usability.

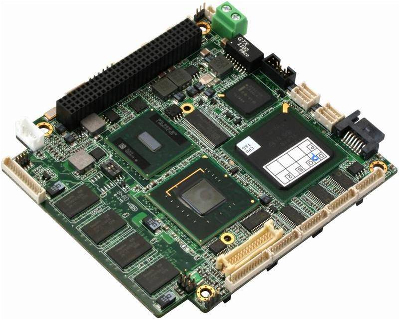

AAEON Technology Inc    Taipei   Taiwan
Oct 26, 2009 Designed for low power consumption and anti-vibration embedded markets, PFM-945C features Intel® Atom(TM) N270 processor and Intel 945GSE + ICH7M chipset with up to 1 GB DDRII 400/533 system memory. PCI/104-Express feature integrates PCI-104 + PCIe/104 functions, and SMSC SCH3114 I/O chipset allows for flexible expansion. Communication is fostered via one 10/100Base-TX Ethernet RJ-45 port as well as 4 USB 2.0 and 4 COM interfaces.

AAEON Technology Inc    Taipei   Taiwan

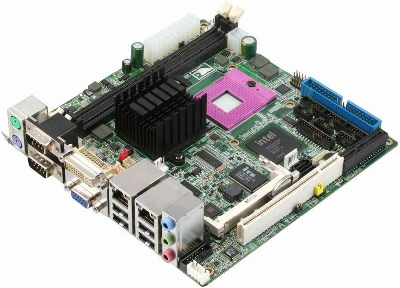

Oct 26, 2009 Equipped with Intel® Core(TM)2 Duo/Celeron® M processor, Model EMB-9658T supports two 200-pin DDRII SODIMM modules providing 4 GB max at speed of 533/667. Board includes Intel® 82566MM and Intel 82573L chipsets for two 10/100/1000Base-TX Ethernet RJ-45 connectors. One EIDE channel, which is shared with CompactFlash(TM) interface and 2 SATA II channels provide storage support. Offering 8 USB2.0, 5 serial ports, 1 parallel port, and 8-bit digital I/O, board is suited for embedded computer market.

Patriot Memory    Fremont, CA 94538
Oct 26, 2009 GearBox turns any USB 2.0 flash device into instant NAS resource, enabling users to connect, share, and stream multimedia files. In addition to offering 2 USB 2.0 connections, product features FTP, Print Server, and UPnP(TM) support. Once any USB flash device is plugged in, instant access is granted to its files via network.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Oct 26, 2009 Supplied in 20-pin SSOP, MCP3901 offers sample rates up to 64 ksps for single- and multi-phase metering, industrial, and medical applications. Precision measurements are made possible via integration of dual 16-/24-bit Delta-Sigma ADCs with up to 91 dB Signal to Noise and Distortion (SINAD); internal PGAs and voltage reference; phase-delay compensation; and modulator output block. SPI interface provides connection to MCU and allows adjustment of ADC oversampling ratio.

ABB Robotics, Inc.    Auburn Hills, MI 48326

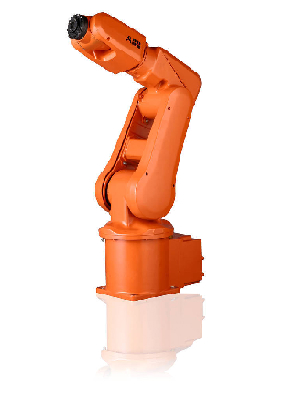

Oct 26, 2009 Weighing 55 lb, 6-axis Model IRB 120 has standard payload of 6.6 lb, vertical wrist payload of 8.8 lb, and 580 mm reach, as well as 411 mm stroke and ability to reach 112 mm below base. Robot can be mounted at any angle, either in cell, on top of machine, or in close proximity to other robots on line. Unit's IRC5 Compact controller enables commissioning through one-phase power input, external connectors for all signals, and built-in, expandable 16 in, 16 out I/O system.

Micro-Epsilon UK Ltd    Cheshire   United Kingdom
Oct 26, 2009 Max distance of 3 m between sensor and capaNCDT 6500 can be bridged without pre-amplifier. If larger distances are required, DL6510 demodulator unit is used instead of standard plug-in module. Pre-amplifier is then connected between electronics unit and sensor, amplifying sensor signal with minimal noise component. Miniature amplifier CP 6001 is used for multi-channel applications without max output requirements, and CPM 6011 can be replaced in existing measurement channel with CP 6001.

American Industrial Systems, Inc.    Irvine, CA 92614
Oct 26, 2009 Designed for 24/7 continuous operation, touch panel PCs come in 7 and 12 in. sizes featuring fanless Intel® Celeron M CPU or 15 and 17 in. sizes with Intel Core 2 Duo CPUs and Intel Q965 Chipset. Aluminum and steel housing and IP65 front bezel protect components from harsh industrial environments including shock/vibration, dust, water, and temperature shocks. Standard VESA spaced holes and flush panel mounting options are available as well as wireless connectivity option.
