Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379
Oct 29, 2009 Available for retrofit to existing 3½ in. Davis-Standard extruders, Hinge-Roll Feedsection offers uniform, consistent feed rate and adjusts automatically based on feed strip size. Feedroll and interior of feedsection are accessible by unfastening 2 swing bolts and lowering attached swing-down cartridge by means of electro-mechanical cylinder. Belt drive eliminates lubrication requirements and belts automatically loosen for feedroll removal.

Hydro Engineering, Inc.    Salt Lake City, UT 84119
Oct 29, 2009 Packaged with Hydrokleen water recycling system and Hydroblaster pressure washer, Hydropad provides green, environmentally friendly turf equipment wash rack. Above ground system eliminates clogged drains and odors from filtered recycle water, only requires electric power and water for operation, and can be placed on any surface. Since all collected wash water is recycled through Hydrokleen system and processed back to pressure washer, system does not required connection to sewer.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Oct 29, 2009 Accepting input voltage of 2.4-5.5 Vdc, 10 A and 16 A Okami OKY and OKX Series come in surface mount and through-hole SIP formats, respectively. Units have programmable output voltage from 0.7525-3.63 Vdc and are based on fixed-frequency synchronous buck converter switching topology for efficiencies up to 95%. Operating from -40 to +85°C, RoHS-compliant converters can drive up to 1,000 µF ceramic capacitive loads and are available with positive or negative on/off control.

Tideflex Technologies    Carnegie, PA 15106

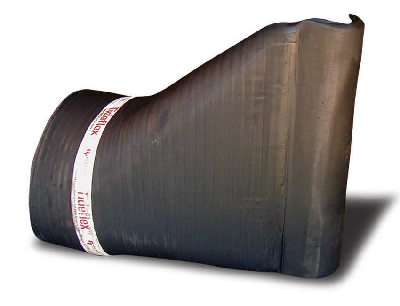

Oct 29, 2009 Constructed entirely of rubber, with enhanced sealing to improve headloss across valve, TF-1 Curved Bill Tideflex® Check Valve is immune to rust, corrosion, and weathering. It can also handle long-term water weight and maintain structural integrity. Vertical angle of spine enables valve to withstand cantilever effect when water is flowing through it.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 29, 2009 Featuring extended AT command structure, WorldModemNET does not require users to have any TCP/IP knowledge to perform tasks such as sending emails, connecting to FTP sites, or initiating TELNET session. ARM processor core manages dialup modem interface and embedded TCP/IP stack, which may be bypassed completely to allow use as standard fax modem. Fully Internet-enabled, dialup device server with ISP service supports all protocols and offers universal world phone network compliance.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 29, 2009 Featuring built-in energy storage and management, AnyWhere Solar Lighting Kits eliminate need for separate battery and controller in solar home system installation. Kits convert electrical energy to light with 23% efficiency and can generate 240 lumens for 4-6 hr per day on any sunny day worldwide. Light output of smallest AnyWhere Lighting Kit is comparable to 40 W incandescent bulb or 7 W CFL. Pull-switch enables dimming to minimize energy consumption.

Saelig Co., Inc.    Pittsford, NY 14534
Oct 29, 2009 Measuring 4 x 4 in., vWire(TM) boards act as wireless 'virtual cables' to provide simultaneous analog, digital, and serial connections between 2 or more sites located up to 1 mile apart. They can also be used within peer-to-peer PAN network to wirelessly access remote analog and digital signals from multiple vWire boards. I/O includes up to 6 optically isolated digital inputs and relay outputs, 2 analog inputs, 2 analog outputs, and RS232. Multiple antenna options are also available.

Atlas Material Testing Technology LLC    Chicago, IL 60613 1831
Oct 29, 2009 Designed for textile market, Ci3000+ Fade-Ometer is available with 2-tier rack option that increases capacity to 3,422 cm². Dual-tier rack combines 2 sample holders in inclined configuration, providing irradiance uniformity across entire vertical exposure area. Each specimen opening is 4 x 14.5 cm, which offers space to take instrumental color measurements. Also, specimen holders have standard insert to facilitate masking of one portion of specimen for visual color evaluations.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Oct 29, 2009 Used to dispense anaerobic flange and gasket sealants from 50 ml tubes, Loctite® 50 ml Tube Squeeze Dispenser provides smooth and consistent adhesive flow. Ergonomic, trigger-controlled dispense gun eliminates tube squeezing and provides controlled positioning of adhesives. Manually operated dispenser incorporates pivoting tray that facilitates tube changeover. Design completely empties tube, reducing adhesive waste and conserving material expenditure.

Aven, Inc.    Ann Arbor, MI 48108

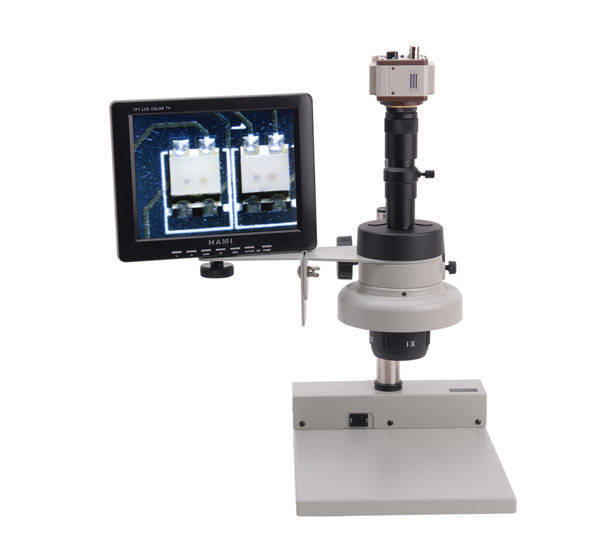

Oct 29, 2009 Incorporating 8 in. LCD monitor and 1/3 in. color CCD camera, VIS-745 performs precision inspection, measurement, and documentation for R/D centers, assembly operations, medical research, and science labs. System offers choice of fluorescent illumination or 150 W fiber optic illuminator with ring light. Video lens, monitor, and camera can be mounted on pole stand or on dual-arm boom stand. With optional USB link and iGauge Lite software, viewing and measurement can take place on PC monitor.

Racine Vortex Flow Meters / Div. of Racine Federated Inc.    Racine, WI 53406
Oct 29, 2009 Featuring HART communication for field programming and system integration, RNS Series (Insertion) and RWS Series (Wafer) vortex steam flow meters are suitable for measuring non-condensing steam and saturated process steam at pressures up to 150 psi. Configurable for mass flow measurements, RNS Series is available for pipe sizes from 6-72 in. and has turndown ratio of 35:1. RWS Wafer meter has 316 SS wetted parts, and is available in 5 sizes for flange mounting in pipes from ½-4 in.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada

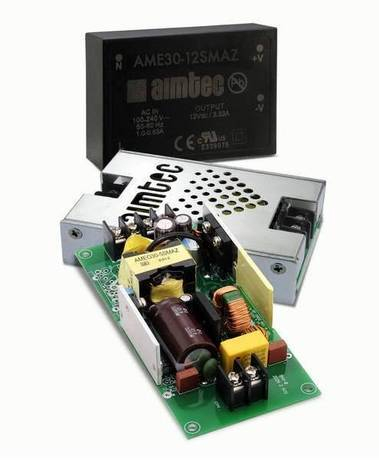

Oct 29, 2009 With operating temperature range of -40 to +85°C, AMExx30-MAZ(30 W) series are offered in encapsulated, open frame-screw terminal, enclosed-screw terminal, open frame-connector, and enclosed-connector packages, all with medical EN60601-1-2 safety certification. Units are designed with universal inputs of 90-260 Vac, 47-440 Hz or 120-370 Vdc, and with single and dual output ranges between 3.3-24 Vdc with ripple and noise as low as 50 mV p-p.

Powr-Flite    Fort Worth, TX 76140
Oct 29, 2009 Designed for burnishing all types of hard-surface floors, 20 in. Millennium electric burnisher has rotational-molded one-piece housing to absorb vibrations. It has precision-balanced weight distribution, which eliminates need for compensation center or front-mount caster, improving operation and ease of use.

Acromag, Inc.    Wixom, MI 48393 7037

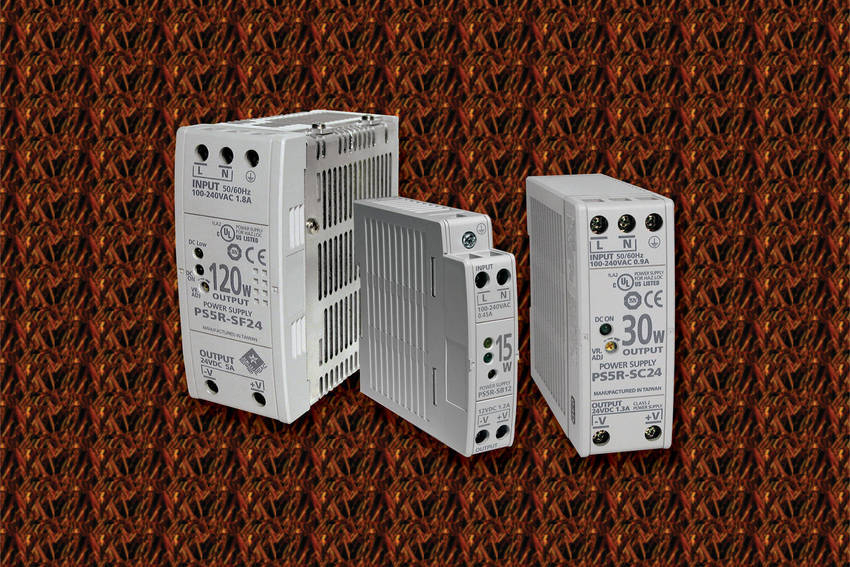

Oct 29, 2009 With output voltage adjustable at ±10%, PS5R-S Slim Line series includes 9 models that provide 10 W at 5 V, 15 W at 12 or 24 V, 30 W at 12 or 24 V, and 60, 90, 120 and 240 W at 24 V. Space-saving 10 and 15 W units require 22.5 mm on DIN rail, while 240 W units are only 80 mm wide. Products have input range between 85-264 Vac, and 100-350 Vdc. They are SELV (Safety Extra Low Voltage) compliant, and UL508 listed and UL1604 approved for Class I Div 2 hazardous locations.

Modern Process Equipment, Inc.    Chicago, IL 60623
Oct 29, 2009 Capable of moving products without use of air, Chain-Vey(TM) Conveyor transfers particle blends without risk of segregation or breakage. Suited for products including ground coffee, dried foods, material chips, and activated carbon, unit is available in sizes of 4, 5, and 6 in., and can convey up to 300 ft. Sealed tube contains aroma and allows for air-tight conveying, while self-cleaning feature eliminates cleaning between change-over.

Gems Sensors Inc.    Plainville, CT 06062
Oct 29, 2009 Made from Noryl® material, PRX-100 Series of corrosion and moisture resistant proximity switches are designed for applications in industrial washers, equipment automation, medical instruments, and safety interlocks. With no standby power requirements or moving parts, units can be used in security systems, household appliances, and door interlocks.

Master Bond, Inc.    Hackensack, NJ 07601

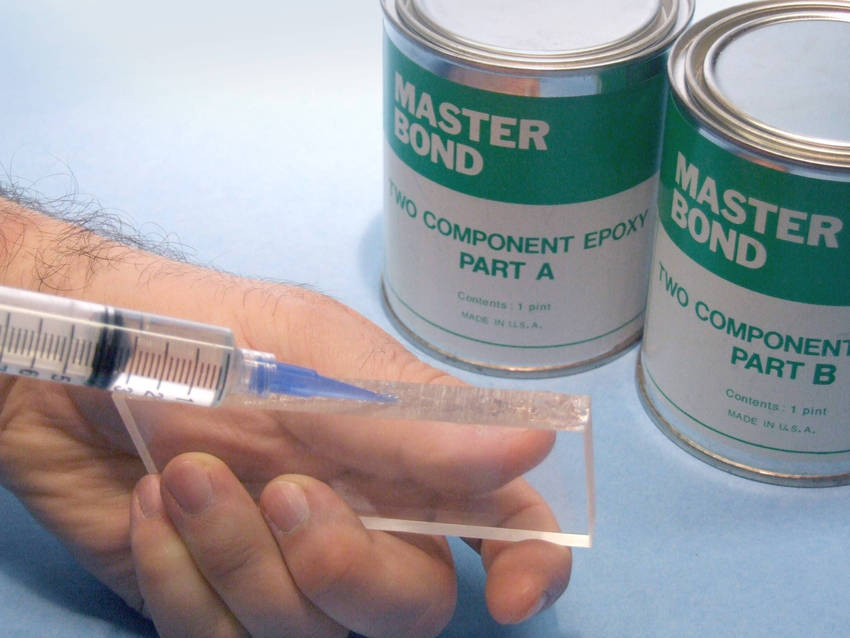

Oct 29, 2009 Low viscosity, optically clear, two part epoxy compound, EP30LV-1 is formulated to cure at room temperatures, and forms bonds with both similar and dissimilar materials including metals, glass, ceramics, wood, vulcanized rubbers and many plastics. Electrical insulator adhesive requires only contact pressure for curing. Suitable applications include optical, electronic, electrical, computer, metalworking, appliance, automotive and chemical industries.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 29, 2009 GN 717 economical indexing plungers come with body and lock nut made of zinc-plated, blue passivated steel. RoHS compliant units are designed for applications that do not require high precision indexing. Plunger pin and spring are made of stainless steel. Pull ring version has stainless steel ring, while pull knob version has non-removable knob of matte black glass fiber reinforced nylon plastic.

Software Toolbox, Inc.    Matthews, NC 08105
Oct 29, 2009 TOP Server v5.1 includes features to integrate custom applications and broaden range of devices TOP Server connects to HMI/SCADA systems. Server interface delivers event log data, and CID interface driver allows integration of existing custom driver code and specialized applications with automation client products. Drivers for Automation Direct - Productivity 3000 Protocol and Mettler Toledo - Continuous Output Protocol are also included.

ARM Ltd.,    Sunnyvale, CA 94085
Oct 29, 2009 Suited for set-top boxes, DTVs, and printers, Cortex(TM)-A9 MPCore(TM) hard macros deliver peak performance of 4,000 DMIPS while consuming less than 250 mW per CPU. Units include CoreSight(TM) Program Trace Macrocell, which provides full visibility into processor's instruction flow, enabling software community to develop code for optimal performance. Both share common 7-power domain, dual-NEON(TM) technology configuration supporting SMP operating systems with up to 8 MB of Level 2 cache memory.
