United Electronic Industries    Canton, MA 02021
Nov 18, 2009 Suitable for rotational position or motion applications, DNx-AI-255 boards are available for use with PowerDNA Cubes and for rack-mounting in PowerDNR RACKtangle or HalfRACK chassis. Each board has 2 fully isolated, synchro/resolver channels with independent ADCs, and each channel offers 16-bit resolution, ±2.6 arc-min accuracy, and scan rates to 4,000 Hz. On per channel basis, product can operate as synchro/resolver input interface or as simulation output device.

PAS    Houston, TX 77062
Nov 18, 2009 Integrity(TM) Automation Genome Software maps databases, programs, displays, and interconnections of all automation systems in plant. It identifies configuration defects and safety vulnerabilities, and retention and collaboration features capture implicit knowledge, contextualizes it, and makes it accessible, ensuring knowledge from experienced personnel is made available to everyone. Disaster Recovery module provides automatic backup and archiving of system and database files.

RGF Environmental Group Inc.    West Palm Beach, FL 33404
Nov 18, 2009 Models OWS 20 and OWS 50 coalescing oil separators run at 20 and 50 gpm, respectively and meet commercial and industrial requirements. High-efficiency oleophilic coalescing inclined honeycombed plates and RGF's micro-matrix oil coalesce are used together to ensure optimum oil removal. Devices are housed in steel-reinforced, molded polypropylene vessel with resistance to extreme climatic fluctuations and corrosion.

Linear Technology Corp.    Milpitas, CA 95035
Nov 18, 2009 Operating from 4.3-38 V input voltage, Model LT3971 features Burst Mode® operation, which keeps quiescent current under 2.8 µA in no load standby conditions. Internal 2.4 A switch can deliver up to 1.2 A of continuous output current to voltages as low as 1.19 V. Switching frequency is user programmable from 200 kHz to 2 MHz. Housed in 10-lead 3 x 3 mm DFN-10 package, step-down switching regulator is suited for automotive or industrial systems that demand always-on operation.

PDC International Corp.    South Norwalk, CT 06854

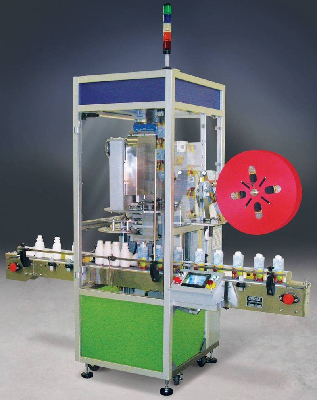

Nov 17, 2009 Operating at 50-170 cpm, 60 Series Evolution Shrinksealer applies full-height bodysleeves and tamper-evident banding to jars, bottles, and products of all types. Use of 2 servos for product handling and sleeve registration promotes flexibility. Sleeve label can be designed to extend up over cap, with horizontal perforation for consumer tamper evidence, and shrink sleeves can also be applied as neck bands around upper portion of container and its closure or as full-height safety seals.

Thermo Fisher Scientific    Waltham, MA 02454

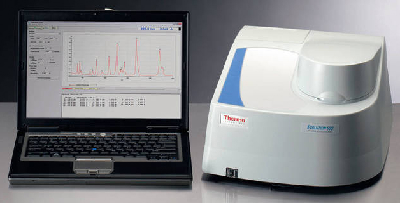

Nov 17, 2009 Offering flexibility for QA/QC, life science, and general research methods, Evolution(TM) 60S offers 1.0 nm spectral bandwidth and scanning technology for acquiring spectral data at speeds over 4,200 nm/min. It meets requirements of international pharmacopeias and offers validation tools for regulated marketplace. Requiring no warm-up time, xenon lamp is rated for 3 years of continuous use. System also comes with 6-position cell changer and aluminum base plate single cell holder.

W.A.C. Lighting Company    Port Washington, NY 11050

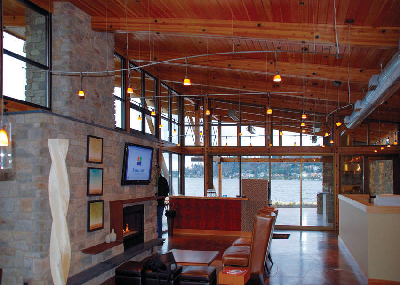

Nov 17, 2009 Measuring ½ in. tall by 3/8 in. wide, SOLORAIL(TM) delivers 300 W at 12 V and 600 W at 24 V. System offers array of low and line voltage track heads and hand blown glass pendants, including Quick Connect(TM) elements. It can be field cut, joined, and independently powered to create systems of various sizes and looks. Featuring slender profile that bends in field to negotiate curves on ceilings, monorail is suited for residential, retail, hospitality, and commercial applications.

Key Technology, Inc.    Walla Walla, WA 99362
Nov 17, 2009 Able to handle up to 600 lb/hr, Compact Dryer features Allen-Bradley controls and fully adjustable spin speed and cycle time. Isolator support frame allows dryer to be free standing and moved from one location to another. Featuring 23 x 38 in. footprint, dryer can be lifted via forklift or pallet jack as well as manually. To discourage bacteria growth, stainless steel NEMA 4X/IP64 unit has self-draining control box area and minimal horizontal and recessed areas that can trap product.

Universal Balancing Ltd./Reco    Pinckney, MI 48169
Nov 17, 2009 Featuring 2.2 x 2.4 x 1.3 m footprint, self-contained V100S Vertical Axis Balancing Machine provides 99.65% unbalance reduction ratio and is capable of handling any component weighing up to 100 kg that requires correction of unbalance by milling. Milling head delivers 300 Nm cutting torque, accommodates axial through radial positions, and cuts arc angles up to 180°. Capable of balancing in 1 or 2 planes, machine utilizes 10 in. air chuck with 2.5 micron repeatability.

Hobart Brothers Co.    Troy, OH 45373-2900

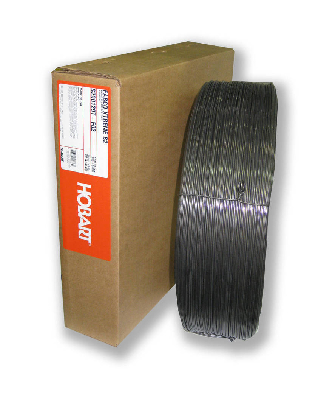

Nov 17, 2009 Offering all-position welding capabilities, FabCO® XTREME B2, XTREME B3, and XTREME 120 operate on DCEN Direct Current Electrode Negative. XTREME B2 is suited for 1 ¼ Chrome - ½ Moly steels, while XTREME B3 deposits weld chemistry needed for 2 ¼ Chrome - 1 Moly steels. Designed to meet DNV Y69MS (H5) for welding on offshore jackup rigs, XTREME 120 wires produce welds in 120-130 ksi tensile strength range, yield strengths over 105 ksi, and Charpy impact properties of 51 lb-ft at -76°F.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Nov 17, 2009 Designed for compressors rated up to 32 Arms, RSBS Series Single-phase Plug-and-Play Soft Start limits amperage demand, which peaks when single-phase scroll compressors are starting. Integrated current limit feedback ensures inrush current reduction to less than 40 Arms for compressors rated to 25 Arms and less than 45 Arms for compressors rated to 32 Arms. Complying with EMC Class B requirements, RSBS Series offers optional auxiliary alarm relay output for interfacing alarms to external panel.

IEI Technology Corp.    Taipei Hsien 221  Taiwan
Nov 17, 2009 Compatible with EM or Mifare cards and tags, RISC-based ACT-457A is all-in-one controller and proximity reader with Windows® CE v5.0 pre-installed. It features 5.7 in. color touchscreen with 640 x 480 resolution and can be set-up and programmed without additional on-site computer. Along with built-in RFID reader, other features include RMI Alchemy(TM) chip with Media Acceleration Engine, 2W speakers, bi-directional microphone, and 300K pixel webcam.

Men Micro Inc.    Lago Vista, TX 78645-4160

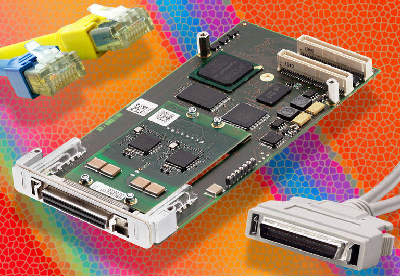

Nov 17, 2009 Suited for use with any PMC-compliant host carrier board in any bus system, 32-bit/33 MHz P511 is based on Universal Submodule (USM) concept that implements desired functionality through one or more IP cores in FPGA. Corresponding line drivers are located on main USM module, which plugs into respective base mezzanine. There are two 10/100Base-T Ethernet channels featuring half and full duplex operation as well as up to 6 GPIO lines that can be used for additional functionality.

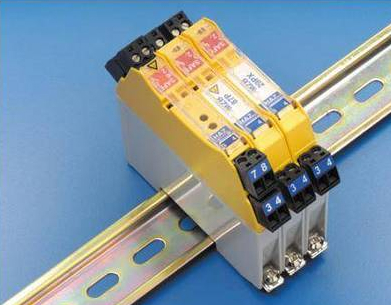

Turck USA    Minneapolis, MN 55441
Nov 17, 2009 Offering both relay and solid-state switch models, MZB Series limits excess energy before it reaches hazardous area. Units feature removable terminals, bussed power feed, and channels as small as 6.3 mm wide. Each channel is fitted with 2 stages of pulse-tested Zener diodes and infallible terminating resistor. If electrical fault occurs in non-hazardous area of barrier, Zener diodes limit voltage available to hazardous area circuits, while series resistance limits current.

Behringer Saws, Inc.    Morgantown, PA 19543

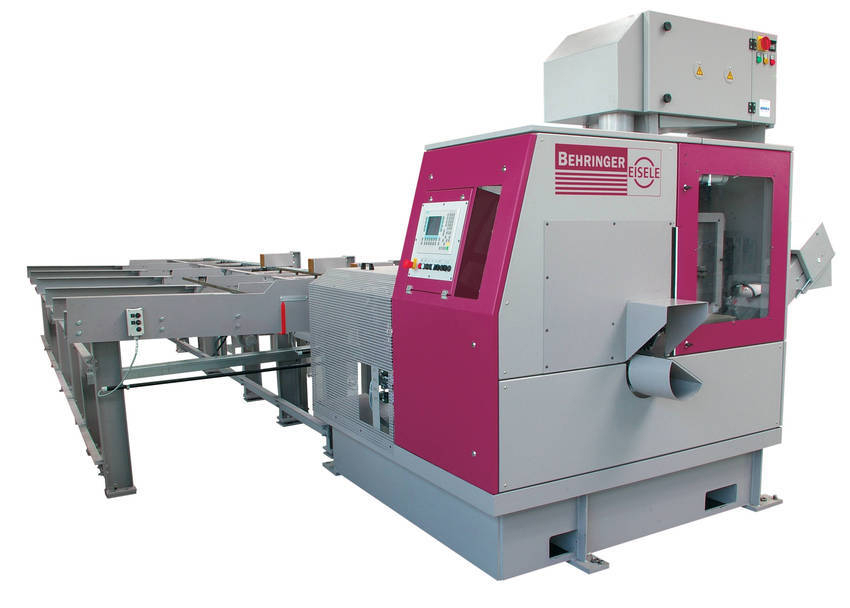

Nov 17, 2009 Model HCS 150 Behringer Eisele Automatic Carbide Circular Cold Saw is designed specifically to cut materials up to 5.9 in. in dia for solid rounds and squares up to 5.3 in. in size. System cuts ferrous metals at 90° with carbide-tipped saw blades ranging from 14.1-18.1 in. in diameter. Controlled by PLC, unit can store numerically controlled program applications such as number of pieces to be cut, length, and discharge handling. Machine includes sorting device and automatic chip conveyor.

Molex Inc.    Lisle, IL 60532-1682

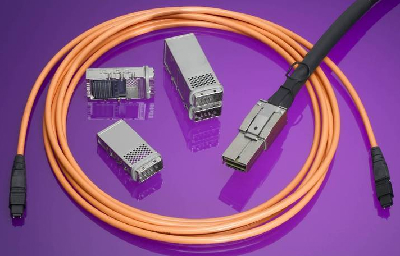

Nov 17, 2009 Offering copper and optical direct attach options for same system port, iPass+(TM) enables 12 channels of 10 Gbps data for up to 120 Gbps of total bandwidth. High-Speed Channel (HSC) pluggable CXP copper and optical interconnect system features unitary press-fit connector and cage assembly that provide one-step placement to host board. CXP 12X direct attach copper cables accommodate single, ganged, or stacked connector configurations in high-density requirement applications.

Misumi USA    Schaumburg, IL 60173

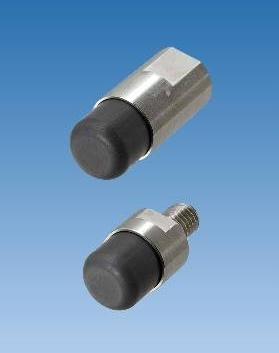

Nov 17, 2009 Designed for factory automation and motion control machinery, Shock Absorbing Bumpers mitigate shock, sound, and vibration caused by moving machine parts as they strike targeted surface. Units combine flexible gel for cushioning with stainless steel core. Offering abrasion and light oil resistance, urethane-based rubber material has Asker F hardness rating of 75. Following compression, bumpers recover original shape, in multiple directions, in 1-2 seconds.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 17, 2009 Supplied in 4 x 4 mm, 20-pin QFN package, TPS386000 series supply voltage supervisors (SVSs) can monitor 4 power rails greater than 0.4 V with threshold accuracy of 0.25%. Independent programmable delay input, which can be set from 1.25 ms to 10 seconds for each supervisor channel, enables power supply sequencing. Operating with quiescent current of 12 µA, ICs offer options for open-drain, push-pull, active high, and active low reset outputs.

STMicroelectronics    Lexington, MA 02421
Nov 17, 2009 Supplied in 4.4 x 7.5 x 1.1 mm package, analog LYPR540AH accurately measures angular rates along 3 orthogonal axes. Resulting 360° angular-rate detection enables 3D gesture and motion recognition, promoting adoption of realistic motion user interfaces in consumer applications. Operating with any supply voltage from 2.7-3.6 V and stable over -40 to +85°C range, product provides 2 separate outputs, 400 and 1,600 dps, for each of 3 axes simultaneously.

LEDAS Ltd.    Novosibirsk   Russian Federation
Nov 17, 2009 As core component of parametric 3D modeling applications, LGS 3D v2.0 allows user to express design intent through geometric constraints and driving dimensions. API function supports definition of simultaneous movements by several geometric objects, each with different rotation and translation. On application side, v2.0 defines optional memory management tools for controlling and optimizing memory use, which is crucial for CAD/CAM/CAE applications that model large assemblies.
