Gumstix, Inc.    Portola Valley, CA 94028
Oct 30, 2009 Palo35 expansion board, part of Overo(TM) computer-on-module series, allows engineers to add 3.5 in. LG LCD with resistive touchscreen overlay at 16 bpp through 60-pin FPC connector. Board features USB Host, USB OTG, audio in/out, and 40-pin unpopulated standard header for PWM, I²C, SPI, A/D, processor control, GPIO, and analog signals. It also includes cell battery backup and accelerometer.

MedUnity, Inc.    East Sandwich, MA 02537
Oct 30, 2009 HIPAA-compliant SMREx HIE (Health Information Exchange) incorporates e-faxing while also allowing backward compatibility with common fax. Web-based, electronic, point-to-point medical record exchange platform enables simplified migration from fax and paper-based communications to secure, electronic-based communications. It also meets regulations of ARRA's Health Information & Technology for Economic and Clinical Health Act.

Schober USA, Inc.    Fairfield, OH 45014
Oct 30, 2009 Used inline at printing press or offline in converting system, Embossing Modules and Tools are applicable for both web and sheet fed processes, in wide variety of materials including paper, board, and laminates. Braille set is comprised of negative segment that includes all possible 288 Braille positions and positive segment, which holds changing Braille embossing patterns.

OK International    Garden Grove, CA 92841
Oct 30, 2009 Soldering and rework system, MX-500, is available with MX-PTZ precision tweezer hand-piece that is ergonomically designed to meet requirements for reworking small electronic components, including 0201. Tweezers enable user to remove and replace components, with targeted application of heat, to soldered connections of devices while mechanically gripping component for removal. Tweezer-action and dual-position pitch adjustment enable operator to size pincer-action to component width.

OK International    Garden Grove, CA 92841
Oct 30, 2009 Providing optimal thermal control, PS-900 Soldering System offers repeatability to produce high-quality solder connections quickly. Powered by SmartHeat® Technology which enables system to solder at low temperatures, it requires no calibration. System is suited for demanding applications such as lead-free soldering processes, multi-layer boards, and thermally demanding components.

Edmund Optics    Barrington, NJ 08007
Oct 30, 2009 Supporting imaging sensors as large as 2/3 in., TECHSPEC® Compact Fixed Focal Length lenses come in 5 focal lengths from 8.5-35 mm. TECHSPEC Compact Telecentrics offer 65 and 110 mm working distances at magnifications from 0.5x-4x, while TECHSPEC Large Format Telecentrics support sensors up to 28.7 mm diagonal with 4M pixel resolution. TECHSPEC High Resolution Telecentrics support sensors as large as 2/3 in. with 5M pixel resolution and come in 0.28x/0.5x/0.9x/1.7x magnifications.

Proceq USA, Inc.    Aliquippa, PA 15001
Oct 30, 2009 Fully compliant with TAPPI T834 om-07 standard used to regulate roll hardness testing, PaperSchmidt instantly displays all key parameters required for assessing quality of paper rolls. Measurement principle, independent of angle of impact, lends to optimized roll-profiling accuracy and repeatability, while intuitive and language-independent UI facilitates operation. For extended life in heavy-usage industry, tester incorporates sealing system and treated impact plungers.

Stahl USA    Peabody, MA 01960
Oct 30, 2009 Wax filler, EX-FI-13-547 is designed for use in association with "American Lifestyle" finishes on variety of leathers. Opaque wax maintains waterproof resistance in finishes, and should be preheated to 75°C and applied using either padding or roller heated to 65-80°C. High melting point wax flows well with high temperature plating and can be used either alone or blended with other suitable oils or waxes to modify properties.

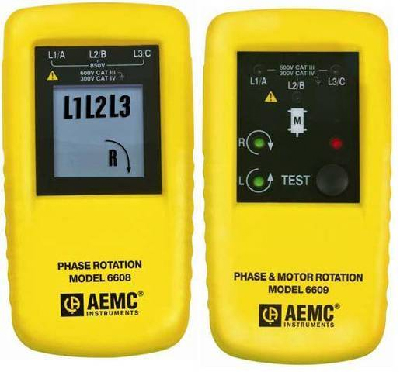

AEMC Instruments    Foxborough, MA 02035
Oct 29, 2009 Useful when installing rotating machinery or motors and for checking generator output, Model 6608 Phase Rotation Meter and Model 6609 Phase and Motor Rotation Meter can identify phase rotation as well as live and open/de-energized phases. Model 6609, using non-contact technique, also measures proper rotation of motors, conveyors, pumps, and other electrical devices interconnected on power line system before installation when rotation direction is dependent on proper phase hook-up.

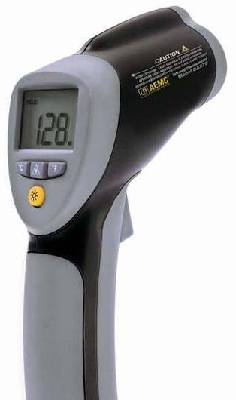

AEMC Instruments    Foxborough, MA 02035
Oct 29, 2009 Powered by one 9 V alkaline battery, Model CA879 uses non-contact, 1 mW (670 nm type) laser targeting feature to measure temperatures from -58° to +1,022°F with resolution of 0.1°F from -58° to +200°F and 1°F beyond. Unit is designed for single-handed operation and measures temperature in °F or °C. Along with 12:1 field of vision ratio and fixed 0.95 emissivity, meter offers Auto-HOLD function, 2000-count backlit LCD, and 400 ms response time.

Analytical Technology, Inc.    Oaks, PA 19426
Oct 29, 2009 Used for online measurement of peracetic acid (PAA) residuals in disinfection systems, Q45/85 Peracetic Acid Monitor uses membrane-covered polarographic sensor that does not require addition of chemical reagents. It provides real-time measurement of low levels of PAA in solution. Available in flowcell or submersion configurations, device is offered in AC-powered analyzer, loop-powered transmitter, or battery-operated portable versions.

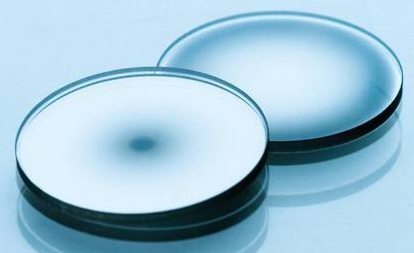

Edmund Optics    Barrington, NJ 08007
Oct 29, 2009 Available in 25 and 50 mm diameters with end densities of 1.0 and 2.0, Continuously Variable Apodizing Filters eliminate undesirable intensity variations and create even illumination profile in optical systems. Bull's Eye filters feature high optical density in center, which decreases continuously to uncoated edge, while Reverse Bull's Eye filters feature high optical density coating on edge, which increases continuously to uncoated center.

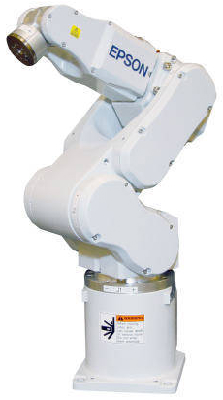

EPSON Factory Automation/Robotics    Carson, CA 90746
Oct 29, 2009 Optimized for cycle time, precision, and motion range, EPSON C3 has SlimLine design featuring slim body and compact wrist that enable wide motion range with minimal mechanical restrictions. Robot can reach into confined and restricted work spaces from many angles with smooth motion, and tight integration of motors and amplifiers along with Hi-Res feedback and control quality lend to motion performance. Micro PowerDrive RC180 Controller is also standard.

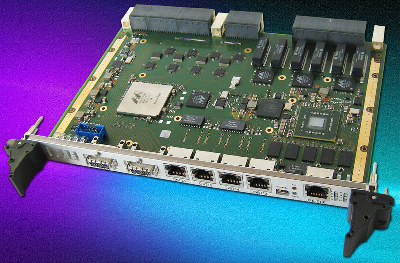

Elma Electronic Inc.    Fremont, CA 94538
Oct 29, 2009 With 24 GigE ports and up to four 10 GigE ports, ComEth 4340a fully managed, 6U VPX Ethernet switch provides full-wire speed switching of up to 125 Mpps. It supports Layer 2 bridging and Layer 3 IPv4/v6 Unicast and Multicast routing with Layer 2-4 advanced traffic classification, filtering, and prioritization. Accessible via browser, CLI, or SNMP, switch comes with test suite for maintenance/security, while port layout promotes accessibility.

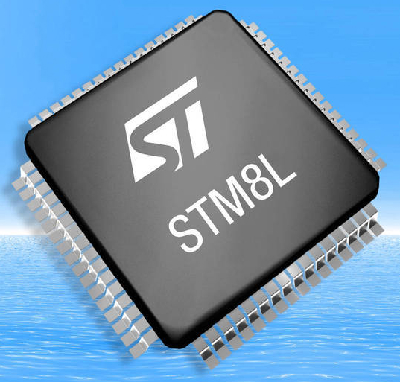

STMicroelectronics    Lexington, MA 02421
Oct 29, 2009 Comprised of 26 devices in 3 lines, STM8L series delivers scalable performance and features with less than 400 nA static power and 150 µA/MHz dynamic current. Each is built on 130 nm process and offers full CPU performance up to max operating frequency throughout 1.65-3.6 V supply voltage (Vdd) range. Use of on-chip regulator makes power consumption independent of Vdd, and multiple power management modes are also offered.

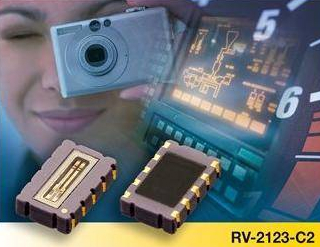

Micro Crystal, U.S.    Arlington Heights, IL 60004
Oct 29, 2009 Housed in 5.0 x 3.2 x 1.2 mm SMD package, Model RV-2123-C2 contains 32.768 kHz Tuning Fork crystal, matched with CMOS-based oscillator and real-time-clock circuitry. Device features ultra-wide 1.1-5.5 V operating range and SPI-Bus® for communications with other circuitry. At room temperature, frequency and time keeping is within ±10 ppm or within ±20 ppm at 25°C. RoHS-compliant clock is suited for compact portable devices, especially where super capacitor is used for backup supply operation.

Crystek Corp.    Fort Myers, FL 33913
Oct 29, 2009 Operating from 500-1,000 MHz with control voltage range of 0.5-18.0 V, CRBV55CW-0500-1000 RedBox VCO features typical phase noise of -104 dBc/Hz @ 10 kHz offset and typical output power of +7 dBm. Product is supplied in 1.25 x 1.25 x 0.58 in. aluminum enclosure with SMA connectors, enhancing durability and providing plug-and-play integration. Other features include 12 V input, max current consumption of 20 mA, and typical second harmonic suppression of -5 dBc.

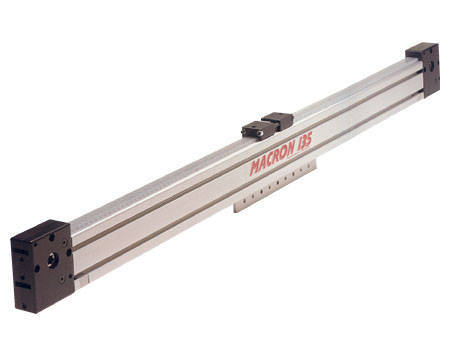

Macron Dynamics Inc.    Croydon, PA 19021
Oct 29, 2009 Available in travel lengths from 184-2,242 mm, MacSTANDARD Actuators provide max speeds of 1,270-15,240 mm/sec and load capacities from 25-500 lb, while Belt Drives provide 100-2,500 lb of force. Customers can configure products through options such as single or double shaft types, preferred drive shaft location, and addition of position sensors. Actuators and drives are suited for industrial linear motion, robotics, and automation applications.

Creform Corp.    Greer, SC 29652-0830
Oct 29, 2009 With minimum turning radius of 17.5 in., Tite-Space BST AGV Tugger is suited for delivering to line-side assembly points where space is limited. Unit consists of drive motor, 24 Vdc power supply, and guidance sensors. AGV travels in single direction along magnetic tape guidepath at speeds of 4-50 m/min and glides under stationary pushcarts, engaging cart by extending catch pin into BST interface. Depending on floor conditions and caster selection, max towed weight/draw bar is 1,320 lb/57 lb.

Paine Electronics, LLC    East Wenatchee, WA 98802
Oct 29, 2009 Offering MPU-based pressure and temperature measurement, Digital True Pressure Series covers pressure ranges from 0-5,000 to 0-30,000 psia and temperatures from -40 to +302°F. All-welded Inconel® construction withstands corrosive environments, and temperature output is programmable in °K/°F/°C. Along with memory-based user access, features include RS-232, RS-485, I²C, or SPI interfaces as well as digital pressure and temperature output with end-user requests or programmed timing.
