EPIX, Inc.    Buffalo Grove, IL 60089 6934

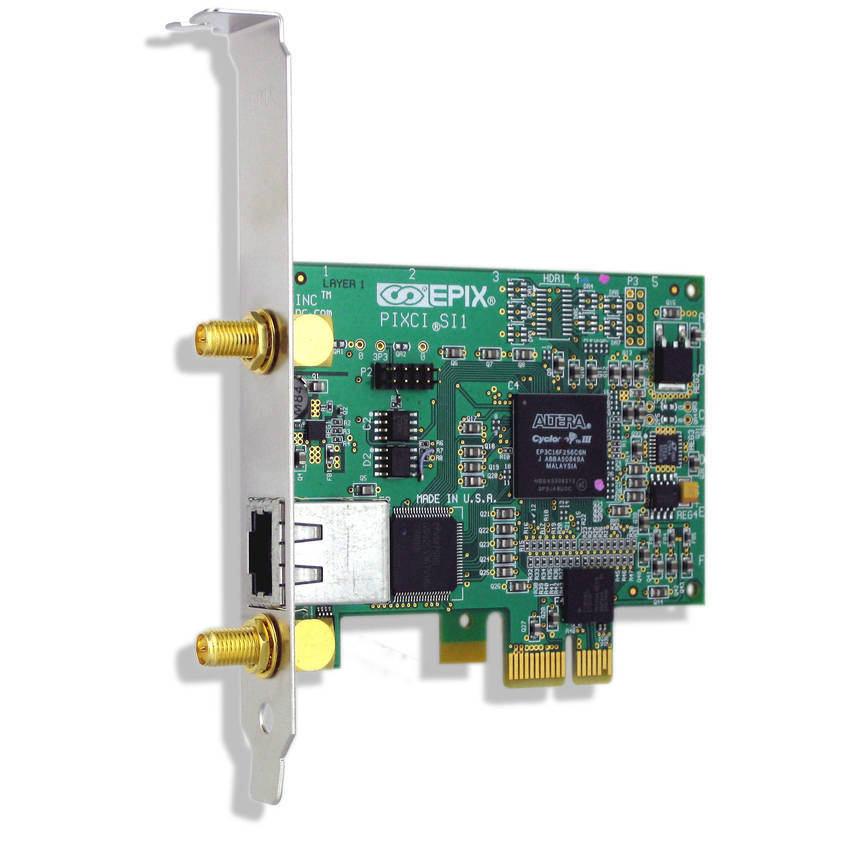

Nov 03, 2009 Available with standard or low-profile bracket, PIXCI® SI1 offers sustained data transfer rates at 190 Mb/sec and burst transfers of 250 Mb/sec. Allowing use of SILICON VIDEO® cameras on PCI Express bus, unit captures images over software-selectable pixel clock range of 25-70 MHz. It supports 64-bit memory addressing for writing long-duration image sequences into terabytes of memory. Bit packing allows more images to be captured, reducing size of 12-bit images by 25% and 10-bit images by 37.5%.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Nov 03, 2009 With head weight of 100 g, 5800BT Series of impulse hammers are available in 5 ranges, between 50-1,000 lbf. Acceleration compensated quartz force sensor ensures that hammer's self-resonances do not produce spurious bumps in output spectrum. Hammers include head assembly containing force sensor and handle with rubber grip, as well as interchangeable head extenders and variety of impact tips, including steel, aluminum and soft plastic.

Allison Engineering    Basildon Essex SS14 3JA  United Kingdom

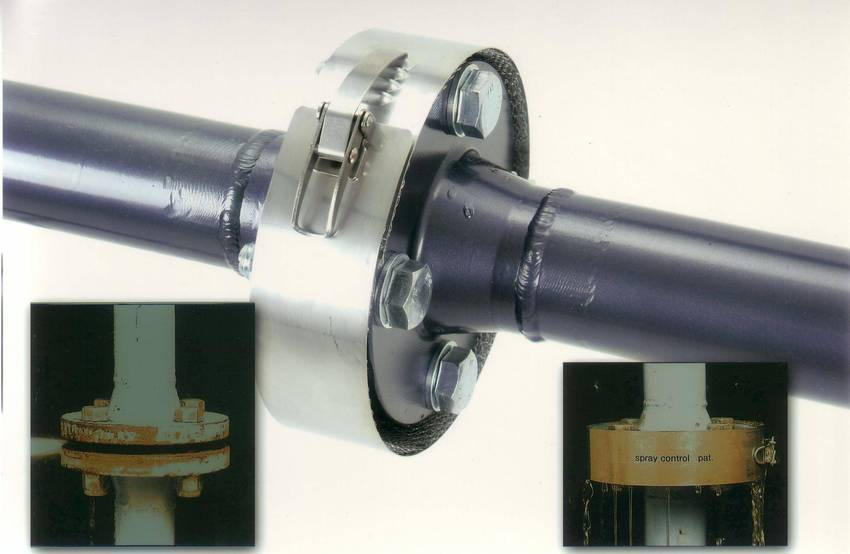

Nov 03, 2009 Stainless steel spray guard protects from dangerous spray-outs of fuel oils such as kerosene, diesel, and other flammable liquids from pipes and flanges. Pressure tested up to 50 bar, TUV approved shield features quick-release connection, and does not require tools or knots to be tied. Safety shield has steel band and internal SS mesh that wraps around flanges and valves. Mesh sits against flange, between it and outer steel band and compresses against it to disperse sprays or leaks.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675

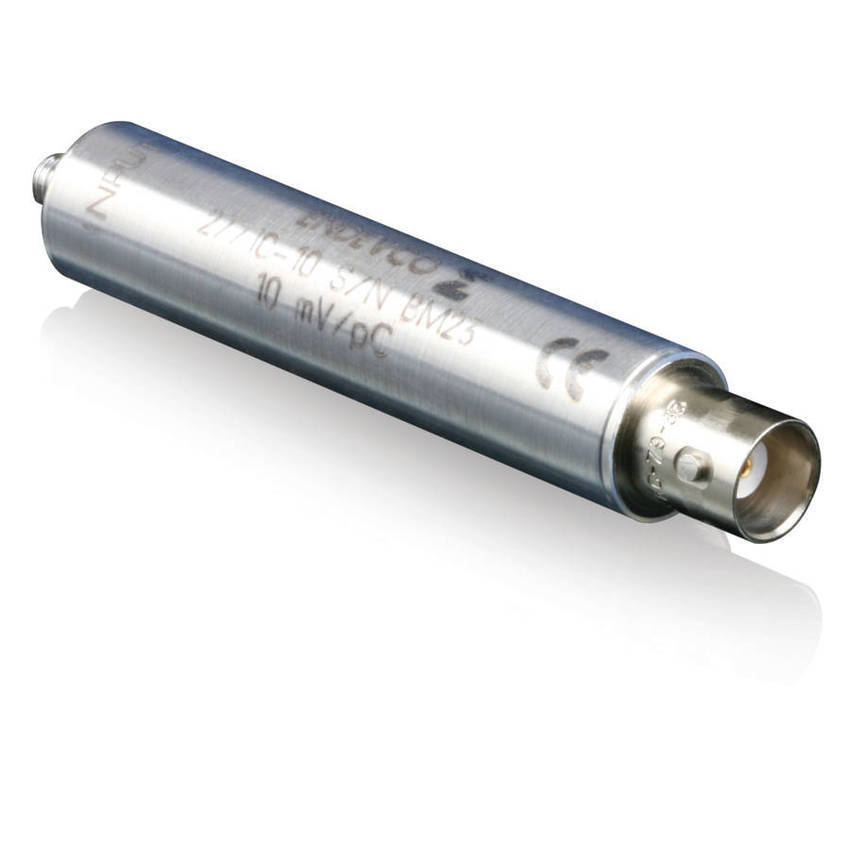

Nov 03, 2009 With rugged 2-wire (IEPE) single ended design, Model 2771C-XX operates from 4-20 mA of constant current power. Unit offers broadband noise range down to 5 µ Vrms, with frequency response of 0.4-50 kHz, and can withstand shock loads of up to 100 g peak. Available in 3 different fixed gains of 0.1, 1.0 and 10 mV/pC, model supports TEDS as per IEEE P1451.4 for smart sensor and larger channel count applications.

Crystek Corp.    Fort Myers, FL 33913

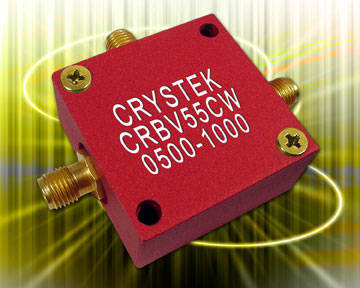

Nov 03, 2009 Operating from 500-1,000 MHz with control voltage range of 0.5-18.0 V, CRBV55CW-0500-1000 RedBox VCO features typical phase noise of -104 dBc/Hz at 10 KHz offset. It is packed in 1.25 x 1.25 x 0.58 in. aluminum enclosure with SMA connectors that enables plug-and-play integration. Product features input voltage of 12 V, with max current consumption of 20 mA. Pulling and pushing are minimized to 4.0 MHz and 2.0 MHz/V, respectively. Second harmonic suppression is -5 dBc typical.

Paine Electronics, LLC    East Wenatchee, WA 98802
Nov 03, 2009 Suited for extreme downhole oilfield applications and specifically designed for high cycle and high pressure applications requiring accuracy, stability, and long term performance, 212-40-010 Series pressure and temperature transducers are offered in pressure ranges from 0-5,000 to 0-30,000 psia and operate at temperatures from -40°F to +400°F. They can be provided with alternate pressure port fittings and electrical connections.

Paine Electronics, LLC    East Wenatchee, WA 98802
Nov 03, 2009 Temperature compensated bi-directional full-line differential pressure transducers in 210-60-200 Series operate at temperatures from -65 to +250°F in pressure ranges of 0-15 to 0-250 psid and have thermal zero shift of ± 0.02% of full scale output per °F. Units are suited for variety of fluids and gases typically found in flow, filter and pump head monitoring as well as liquid level measurement in process control equipment.

Paine Electronics, LLC    East Wenatchee, WA 98802
Nov 03, 2009 Designed for direct media stream immersion, 311-38-540 pressure and temperature combination series comes in pressure ranges from 0-5,000 to 0-30,000 psia, operates at temperatures from -40°F to +425°F and is available with Vdc output and accurate to 0.02% F.S. Product can be offered with alternate port fittings and electrical connections.

BVM Ltd    Southampton Hampsh SO30 0GH  United Kingdom

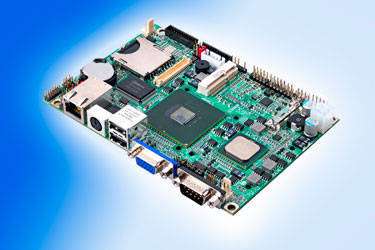

Nov 03, 2009 Based on US15WP chipset and Intel Atom Z510P processor and running at 1.1 GHz with 2 GB of DDR2 memory, 3.5 in. Miniboard LE-375 incorporates 6 USB 2.0, RS232, and RS232/422/485 ports, along with CompactFlash, SD 1.1 card, and PCIE mini card sockets. Integrated Graphics Accelerator GMA500 can address up to 256 MB of graphic memory and supports 2D, 3D, and advanced 3D graphics, as well as integrated full hardware acceleration of H.264, MPEG2, MPEG4, VC1, and WMV.

Cree, Inc.    Durham, NC 27703

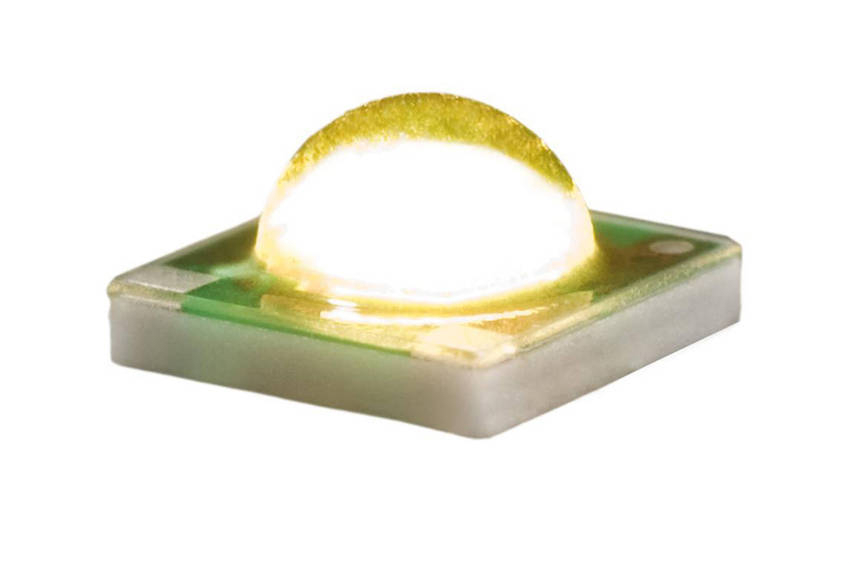

Nov 03, 2009 XLamp® XP-C LEDs come in cool white with up to 107 lumens at 350 mA. Warm white models are available up to 80 lumens at 350 mA. They are offered in ANSI-compatible chromaticity bins for cool and neutral white and in ANSI-compatible warm white bins.

NEXCOM Inc.    Fremont, CA 94538

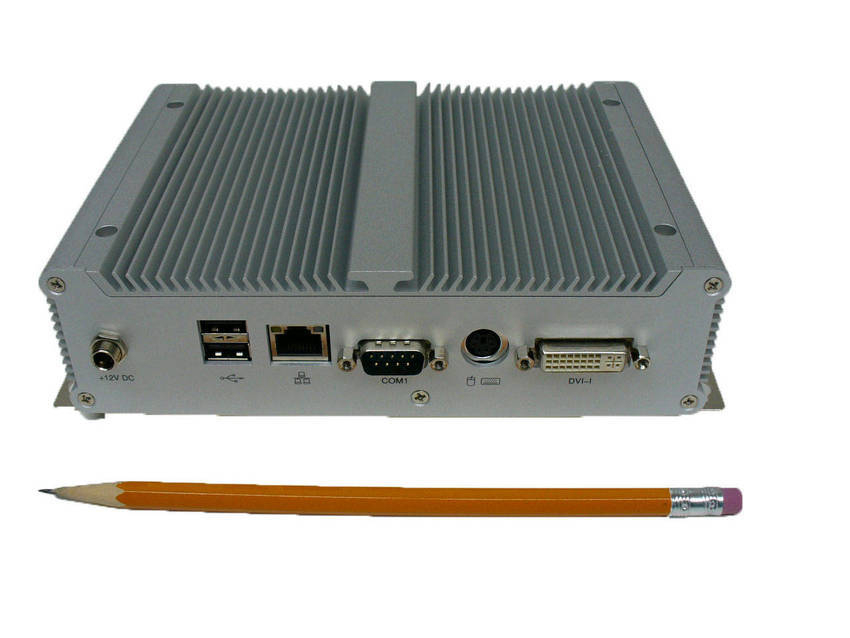

Nov 03, 2009 Packed in 7.28 x 5.2 x 1.97 in. aluminum chassis, NISE 100 targets system control, data processing and automation applications. It is based on energy-efficient Intel® Atom(TM) N270 1.6 GHZ processor with 533 MHz FSB and 945GSE embedded chipset. Features included are 3 COM ports, Single 10/100/1000 Mbps LAN ports and one DVI-I output. Product operates between temperature range of 23-131°F, and can be used in PC-based controllers, facility management and access controls, and machine controllers.

Jescraft    Bogota, NJ 07603

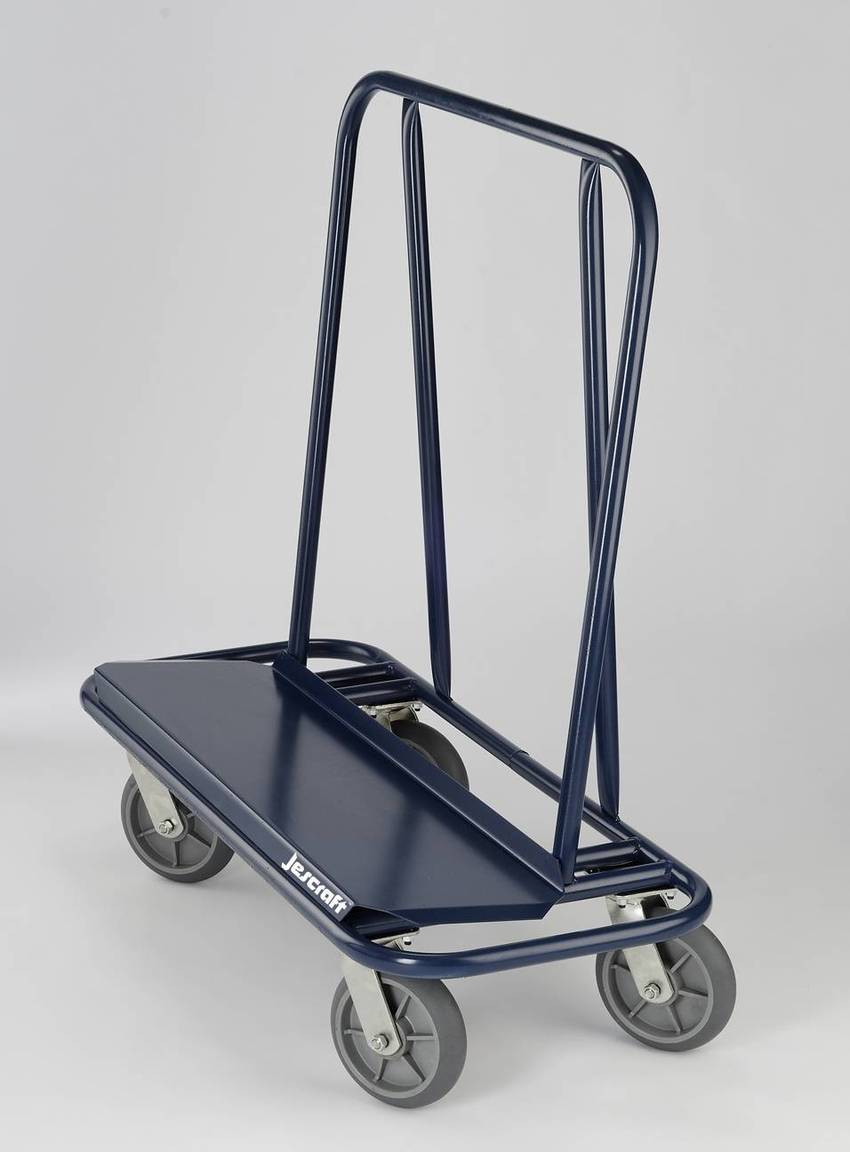

Nov 03, 2009 PRO-LITE carts are available in 16 models, and in varying widths of 20, 24, and 28 in. and 3 bumper styles. All 12 in. deck models have load capacity of 3,200 lb and range in weight from 60-70 lb, while 18 in. decks can carry up to 3,600 lb and weigh 70-80 lb. Non-marking, 8 x 2 in. elastomer swivel casters offer maneuverability over all types of surfaces. Units are offered with 2 types of decks; heavy-duty steel plate or replaceable, impact-resistant ¼ in. thick UHMW polyethylene.

Calex Electronics Limited    Bedfordshire   United Kingdom

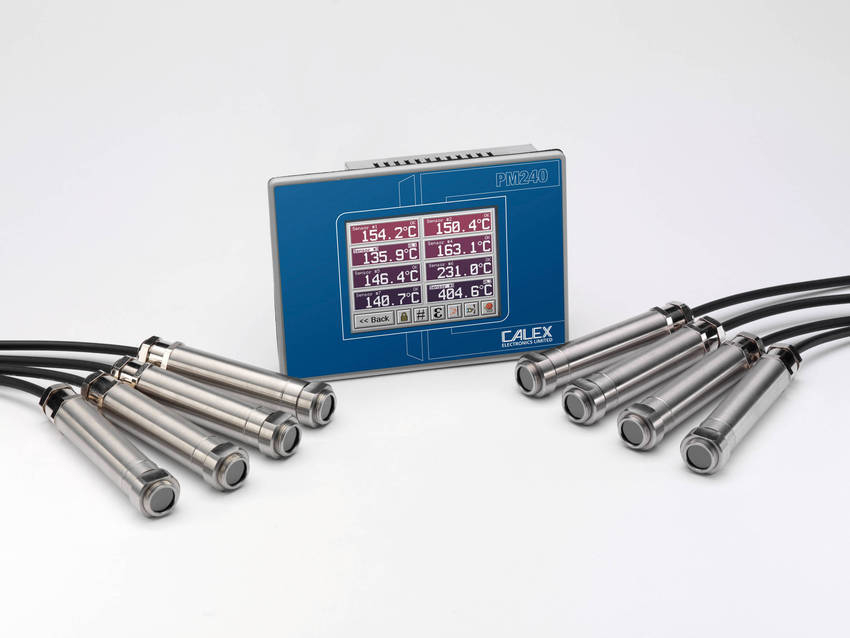

Nov 03, 2009 PyroBus series of infra-red pyrometers measure temperature of inaccessible or moving objects and materials, from -20°C to 500°C, accurately, with response time of 240 msec. Built-in RS485 Modbus RTU interface provides maximum, minimum, average and instantaneous temperature of material or process being monitored. Units measure 18 mm in dia and 103 mm long and are made of polished stainless steel, sealed to IP65. They come equipped with precision Germanium lenses for accurate optics.

Zuken U.S.A    Westford, MA 01886
Nov 03, 2009 Designed to shorten cycle times, CR-5000 Lightning v12.0 supports interactive and automatic trombone lengthening with dynamic push-aside. Graphical layer stack editor lets users control impedance in manual and automatic routing. In addition to Signal Integrity simulation, Power Integrity, and EMI analysis features, functionality covers parameter sweep and waveform comparison, error resolution, as well as automatic escape routing and smart fan-out.

STM Sensors Inc.    Toledo, OH 43617
Nov 03, 2009 Supplied in 52 x 34 x 15 mm package, models V10-C and V10-D are 1 kHz analog amplifiers with 0-10 V and 4-20 mA output, respectively, that are compatible with all STM MICROmote® sensors. Integral digital display presents user with insight on different aspects of application while also facilitating sensor calibration and troubleshooting.

CommAgility Limited    Leicestershire LE11 3EH  Uruguay
Nov 03, 2009 Based on Xilinx Virtex-5 LX110T FPGA, single-width full-size Model AMC-V5F-10G is intended for wireless broadband and other demanding processing and optical data interfacing applications. Full Gigabit Ethernet infrastructure allows for system expansion, and additional optical data interfacing is enabled by dual SFP interfaces from FPGA. High-bandwidth connection to other AMC modules is provided by optional Serial RapidIO or PCIe links from FPGA to the AMC backplane.

CommAgility Limited    Leicestershire LE11 3EH  Uruguay
Nov 03, 2009 Available as mid- or full-size solution, AMC-V5Fe integrates 4x PCIe interface and dual Gigabit Ethernet connections for low-latency connections to MicroTCA systems and host CPUs. Processing power is delivered via Xilinx® Virtex®-5 LX110T FPGA, which configures and boots from FLASH on reset using one of 4 selectable configuration images that are user-programmable and can be updated over Ethernet. Along with clock recovery and synchronization options, AMC offers range of I/O.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 03, 2009 Featuring glass-to-tantalum hermetic seals, 136D Series operates over temperature range of -55 to +85°C, to +200°C with voltage derating, and provides low ESR down to 0.44 W at 120 Hz and +25°C. Standard capacitance tolerance is ±20% at 120 Hz and +25°C, with ±10% and ±5% available. Capacitors are optimized for timing, filtering, voltage hold-up, and energy storage applications in power supplies and military, avionics, space, and oil exploration equipment.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 03, 2009 Series TSOP75xxxW ultra-miniature SMD IR receivers include 2 photodiodes and metal EMI shielding in package with 2.35 mm profile. Lens-less products offer irradiance from 0.3-0.7 mW/m² over wide angle of ±75°. Operating from supply current of 0.35 mA typical at 3.3 V, units have supply voltage range of 2.5-5.5 V and operate over carrier frequency of 30-56 kHz. They are insensitive to supply voltage and ripple noise and offer immunity against ambient light.

OK International    Garden Grove, CA 92841
Nov 03, 2009 Suited for production soldering, touch-up soldering, and SMD rework, MFR-2200 Series features SmartHeat® power and control technology, which responds to load, delivering energy required for each connection, while protecting sensitive components and substrates from damage. One or two hand-piece operation is chosen via front panel switch. With 2 separate power supplies, full power is available for each hand-piece that is in use. Three handpiece options are available.
