EAO Switch Corp.    Milford, CT 06460
Nov 05, 2009 Featuring modular construction, M Series Keypads allow designers to specify any number of keys, as well as standard 4, 12, and 16 key layouts. Units offers multiple button shapes and colors within one keypad, blank spaces for separation between keys in one unit, and LED illumination in blue, red, yellow, green, or white. Available with click-dome or membrane technology, vandal-resistant keypads have plastic or aluminum keys that are anti-twist, anti-pull off, and non-sticking.

Spiroflow Systems, Inc.    Monroe, NC 28110
Nov 05, 2009 Using automatic gain in weight adjustment to monitor and compensate for any weight variation, Model C1-2 can achieve filling rates up to 20 bags/hr, depending on flowability of product and storage hopper or conveyor used. Programmable one-touch controls enable operator to control filler operations as well as upstream in-feed devices. Offering accuracy within 1%, filler is suited for chemicals, food, dairy, pharmaceutical, plastics, minerals, and aggregates.

Griswold Pump Company    Thomasville, GA 31792
Nov 05, 2009 Intended for fluid handling applications, 811 Series is available with broad selection of seals that can accommodate most any fluid and temperatures up to 500°F. Oversized seal chambers provide optimal seal environment for heat dissipation, solids, entrapped air, and vapor. Radial clearances between mechanical seal and seal chamber wall maximize circulation of liquid to and from seal faces. Standard, large, and tapered bore style chambers are available.

Thayer Scale-Hyer Industries, Inc.    Pembroke, MA 02359
Nov 05, 2009 Built with stainless steel frame, Ultra-Sanitary Model SI features troughed belt to keep product away from edge, eliminating need for side skirts. Entire conveyor assembly is coupled to mass counter-balanced Force Measurement Suspension System that allows load cell selection based on net, rather than gross weighing requirements. Unaffected by dirt, shock, or vibration, system can withstand overloads in excess of 1,000% of rated capacity without damage or calibration drift.

Pregis Corp.    Deerfield, IL 60015
Nov 05, 2009 Able to handle both clean and dirty PE foam, Desinator(TM) Compactor helps minimize landfill and facilitates recycling. PE plank scrap is fed into hopper, shredded, compacted, and then run through light heating process. Material is compressed to 1/15th original size, resulting in high-density PE log measuring 6 x 6 x 48 in. with thin rigid outer shell. Logs can then be fed directly into most plastic reclaim systems. Unlike bailing systems, Desinator(TM) requires no strapping.

Behringer Saws, Inc.    Morgantown, PA 19543
Nov 05, 2009 Utilizing bi-metal or carbide-tipped saw blades, HBM 540A/ALU Bandsaw cuts aluminum profiles and solids. Heavy-duty machine, constructed with cast iron bow frame which travels on 3 sets of vertical linear ways and guides for stability, can cut rounds up to 21.2 in. dia and rectangular shapes up to 24.8 x 21.2 in. It incorporates frequency-controlled, 29.5 hp main drive motor with 984-4,264 sfm range and double chip conveyor system for removal of chips spun off during cutting cycles.

Hawk Measurement    Middleton, MA 01949

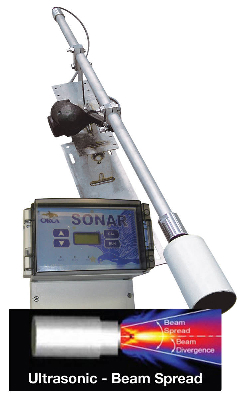

Nov 05, 2009 ORCA Sonar Bed Level Transmitters, used to control compact bed level/hindered layer level, maximize efficiency and performance of tailings thickeners, CCDs, high-rate thickeners, Lamella thickeners, and clarifiers. By monitoring 2 independent interface densities, reliable process feedback is provided for control of underflow pump. Designs include 3-7 sonar crystals mounted in one head, and each sonar array produces concentrated sonar beam.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670

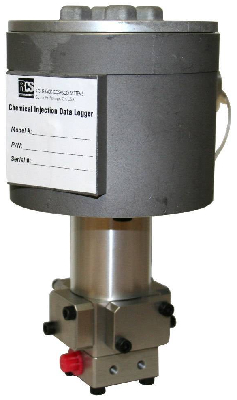

Nov 05, 2009 Able to reduce chemical injection problems, RDC-CI Chemical Injection Data Logger monitors chemical flow through injection quills and nozzles to calculate chemical delivery rates. Data gathered in 0.0005 gal increments yields accurate flow rates over user-selectable time periods from 2 min to 1 day. Available for use with range of chemicals and temperatures from -40 to +158°F, logger accepts chemical flow rates from 0.5-100 gal/day and has 6-month battery life.

Lumex Inc.    Carol Stream, IL 60188

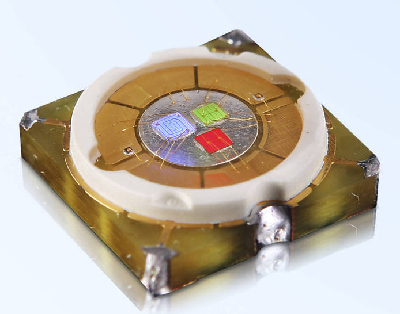

Nov 05, 2009 Measuring 10 x 10 mm, 3 W TitanBrite(TM) LED contains three 1 W dies in red, green, and blue. Square shape is useful for applications that require optimal resolution for up-close viewing and for integration of dynamic, smaller images. RGB light allows for adjustable color tuning and can create shades of white, as well as every other color in visible spectrum. Applications include electronic signage, safety/security lighting, general illumination, and graphic backlighting.

Emerson Process Management    Pleasanton, CA 94566
Nov 05, 2009 Integrated into Ovation expert control system, Ovation® Security Center streamlines and centralizes execution of cyber-security management functions for water and wastewater facilities. Security events are collected from each network device such as network intrusion detection systems, firewalls, routers, and servers. Centrally located console facilitates event management, patch deployment and audit, malware prevention, event log storage and reporting, and vulnerability assessment and management.

Walker Magnetics Group, Inc.    Worcester, MA 01606
Nov 05, 2009 ExBeam products are available in Ex 10 model, which expands from 2-6 ft and has lifting capacity of 2,200 lb. It can be used with 2 Neo-250 or 2 Neo-500 lift magnets. Offering lifting capacity of 8,000 lb, Ex 12 expands from 3-6 ft and is used with 2 Neo-1000 or 2 Neo-2000 lift magnets. On each, lifting lug that supports magnets is manually adjustable and devices, designed for lifting steel, can also be used with logs or paper rolls when used with slings/chains.

E Instruments International LLC    Langhorne, PA 19047
Nov 05, 2009 Combining pressure and vacuum generation, PHP Series features spring loaded stroke adjustment, scissor action, and fine adjustment vernier. Handheld units include Model PHP 2 with pressure range up to 30 psi, Models PHP 10/25 with pressure ranges up to 150/350 psi, and Models PHP 35/40 with pressures ranges to 500/600 psi. All include 3/8 in. BSP (F) connection to fit master indicators.

EAO Switch Corp.    Milford, CT 06460
Nov 05, 2009 Used in aggressive environments such as ticketing machines, vending machines, and access control panels, R Series offers flush mounting and stainless steel construction that lend to vandal resistance and cleanability. Design meets IP65 standards and has rated mechanical service life of 1,000,000 operations. Available in 16 and 19 mm varieties, pushbuttons feature round actuator with momentary switching action. LED illumination (halo ring or central dot) is offered for 19 mm versions.

Union Process, Inc.    Akron, OH 44313
Nov 05, 2009 Able to process 200-500 lb of limestone/hr, CL-5 Stirred Vertical Ball Mill is suited for wet grinding limestone for flue gas desulphurization in power plants and for mineral grinding. Utilizing 2.5 gal of grinding media, it is equipped with variable frequency drive and 15 hp inverter duty motor. Attritors are top fed with product (approximately 6 mm) and water entering through the top of the mill where they are propelled down into media bed. Final product exits through top side of mill.

Phihong USA    Fremont, CA 94539
Nov 05, 2009 Available in 5 and 9 Vdc outputs, PSC12x Series consists of A, E, K, S, and C fixed plug versions for use in US, Europe, UK, Australia/New Zealand, and China, respectively. Units are double insulated, meet Class B EMI standards, and feature short-circuit protection with auto-restart, as well as over-current and over-voltage protection. Per ENERGY STAR Level V efficiency standards, all models feature power draw of less than 0.3 W at no-load.

Philips Lighting Co.    Somerset, NJ 08875
Nov 05, 2009 Optanium® T8 programmed start parallel electronic ballasts, designed to maximize energy savings, enable independent lamp operation, which allows exact identification of expired lamps. Hot restrike feature allows users to replace lamps without cycling power, while striation reduction feature minimizes chance of striation issues when used with standard/energy-saving lamps. They are available with .88 balast factor and meet NEMA/CEE energy efficiency requirements.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Nov 05, 2009 FOUNDATION(TM) Fieldbus Interface allows ControlWave® RTUs and ROC800-Series Remote Operations Controllers to access multiple variables over single pair of wires in point-to-point or multi-drop configuration. Efficiency is increased in oil/gas and water/wastewater applications through accuracy of digitally retrieved process data and diagnostic information provided to decision makers. Included software, Field Interface Configurator, facilitates setup and commissioning.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Nov 05, 2009 Providing full-load performance across -40 to +85°C temperature range, MER1 Series isolated 1 W single-output DC/DC converters are available in 5 input voltages ranging from 5-48 V and output voltages of 5, 9, 12, or 15 V. Typical efficiency levels are up to 89%, while galvanic isolation of 1 kVdc helps minimize switching noise. Fully encapsulated 0.774 x 0.242 x 0.4 in. units utilize UL 94V-0 package materials and are RoHS-compliant.

Pinpoint Laser Systems    Peabody, MA 01960

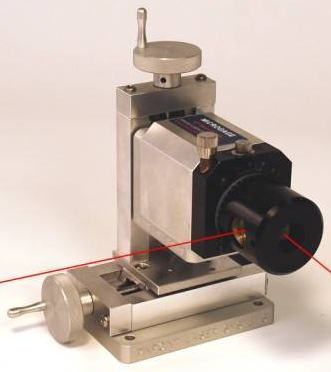

Nov 05, 2009 Coupled with Laser Microgage system, 90-Line Square Plane facilitates accelerated equipment measurement and alignment. Placed into path of laser reference beam, it forms precise right angle laser reference beam. Nosepiece of 90-Line, and right angle laser beam projected from it, can be turned through 360° rotation to define flat reference plane. Together, products provide precise measurements accurate to 0.0001 in. and can be used over ranges to 180 ft.

Powerex, Inc.    Youngwood, PA 15697
Nov 05, 2009 Models VLA312-2425 and VLA313-2450 step-down DC-DC converters feature capacity of 25 or 50 W, respectively, and provide 2,500 Vrms electrical isolation between input and output. Input voltage range is 475-850 Vdc. Featuring overcurrent and overvoltage protection, units are intended for use on board preregulator for industrial control equipment.
