Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173
Nov 24, 2009 With 1.2 x 1.0 mm footprint and 0.9 mm (max) profile, CM01S600 features precise wire-wound structure that enables delivery of 10 GHz typ cut-off frequency. It provides noise suppression characteristics without distorting wave pattern of high-speed differential signal interface. Along with 60 X @ 100 MHz typ common mode impedance, characteristics include 0.4 X max DC resistance, 300 mA max rated current, 20 V max rated voltage, and 100 MX min dielectric frequency.

Chassis Plans    San Diego, CA 92123

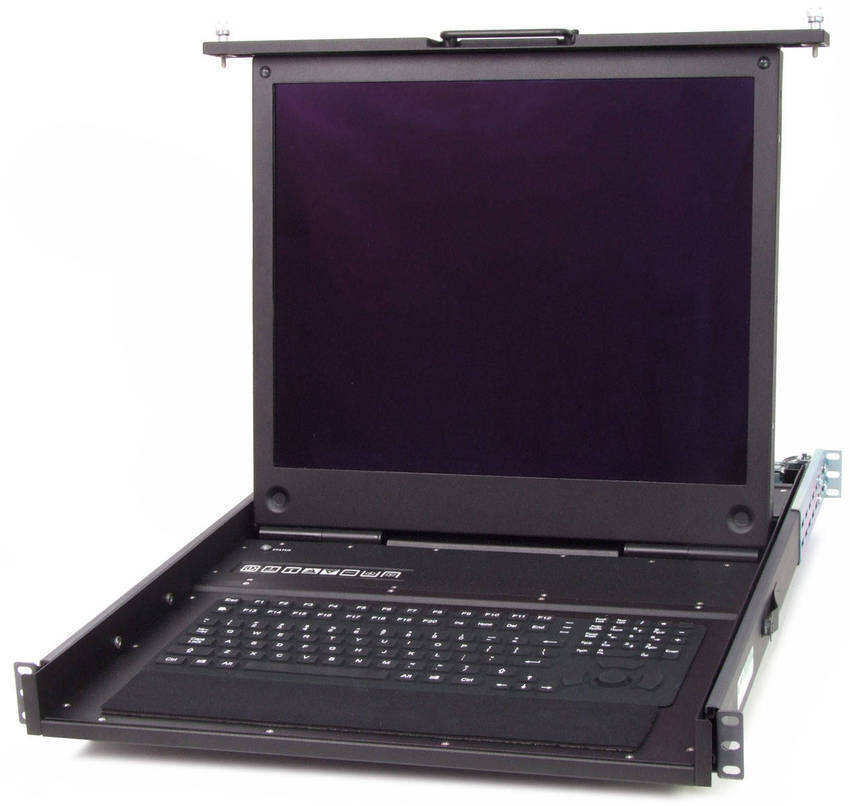

Nov 24, 2009 Model CCI-17 and CCI-19 Rugged Industrial Grade 1U Rackmount LCD Keyboard drawers include 17 or 19 in. TFT LCDs, providing 1,280 x 1,024 resolution, with antiglare hard coat for protection. Silicon rubber keyboards, sealed to NEMA-4/IP65 standards, offer full travel with tactile feedback to simplify typing. Constructed of 5052-H32 aluminium alloy, units measure 24.4 in. deep and are resistant to shock and vibration. They are powered by native 12 Vdc and rackmount 110/220 Vac supply.

Maxim Integrated Products    Sunnyvale, CA 94086
Nov 24, 2009 Housed in 2.0 x 2.0 x 0.65 mm wafer-level package, Model MAX8649 achieves initial accuracy of ±0.5% at 1.27 V and total accuracy of better than ±2% over load, line, and temperature, allowing processors to run at max clock speed. Synchronous, fixed-frequency step-down converter operates from input supply as low as 2.5 V to support deep-discharge battery chemistries. I²C interface allows programming of output voltage between 750 mV and 1.38 V in 10 mV steps.

General Kinematics Corp.    Crystal Lake, IL 60014

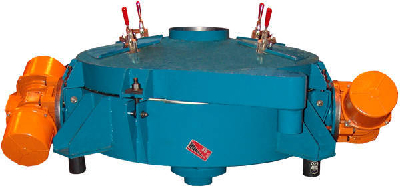

Nov 24, 2009 Available in carbon steel, stainless steel, and food-grade construction, OMNI-SCREEN(TM) C-Series(TM) vibratory screen is built with round body design featuring 2 motors for optimal throughput and material flow. In addition to spiral flow of product from central infeed point, separator offers self-contained, motorized drive with variable vibration amplitude and adjustable angle of attack. Features allow high-capacity wet/dry screening in compact design.

KenBay    Mendham, NJ 07945
Nov 24, 2009 Equipped with 18 x 28.5 in. chute type opening, Series K100 can compact waste into stainless steel containers or plastic bags, or be used as baler for recycling materials. Depending upon type of material being compacted, users can expect compaction ratios from 6 times to double that amount. Units operate from 120/220 V single phase power or 240-480/600 V for marine use. Made of AISI 304 SS, marine version has stainless steel washdown motor and all electrical wiring in waterproof compartment.

Grieve Corporation, The    Round Lake, IL 60073-2898
Nov 24, 2009 Used to dry ceramic parts, No. 1018 electrically heated oven has 180 kW installed in Incoloy-sheathed tubular heating elements and 40 ft x 18 in. x 18 in. workspace. Three 3 hp recirculating blowers provide airflow to workload, which can be accessed via any of 3 independent doors. Oven contains 12 in. wide, ½ in. stainless steel flat wire conveyor belt with 1/3 hp motor drive, 30 in. long open belt loading zone, and 60 in. long open unloading zone.

Xiris Automation Inc.    Burlington, ON L7L6B8  Canada

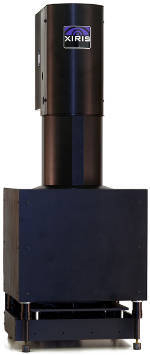

Nov 24, 2009 Using combination of visible and non-visible illumination sources and single optical path, dual camera PVCI-1500 is configurable for crystalline silicon cell and wafer inspection. It is available in 2 versions: one with high powered back illumination, front illumination and high resolution monochrome camera for incoming cell inspection, and other with multi-angle front illumination and color camera to support cell classification.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Nov 24, 2009 Designed to meet requirements of food processors, rugged, waterproof, programmable 6- or 8-channel Multipaq21 data logger records product or air temperatures and transmits data to computer while traveling through oven. IP67-rated unit features operating temperature of up to 185°F, is fully USB compatible, and also incorportes serial port for data transfer. Linkage with Datapaq Insight Software provides data for HACCP and other documentation needs.

Anver Corp. - Anver.Com    Hudson, MA 01749

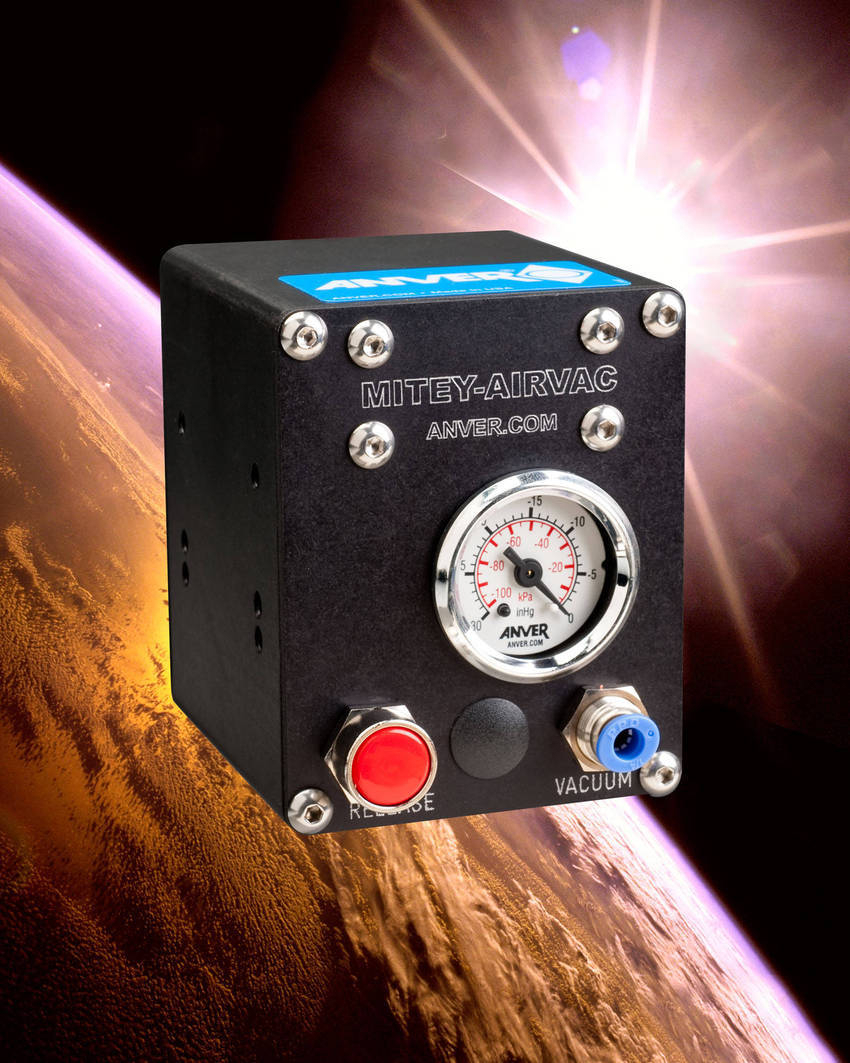

Nov 24, 2009 Mitey-AirVac(TM) Miniature Vacuum Stations include venturi, internal check valve which maintains vacuum in case of power loss, switches, and gauge. Featuring symmetrical mounting hole locations, they have an aluminum case, weigh 2 lb, and pull 26 in. Hg vacuum with 1.27 scfm air consumption. MTY-1 measures 3.31 x 3.66 x 4.11 in. and MTY-2 is 3.31 x 6.41 x 4.11 in. with flow rates from 0.74-4.4 scfm. Vacuum Stations use standard ¼ in. push-connect fittings.

AMETEK Technical & Industrial Products    Kent, OH 44240

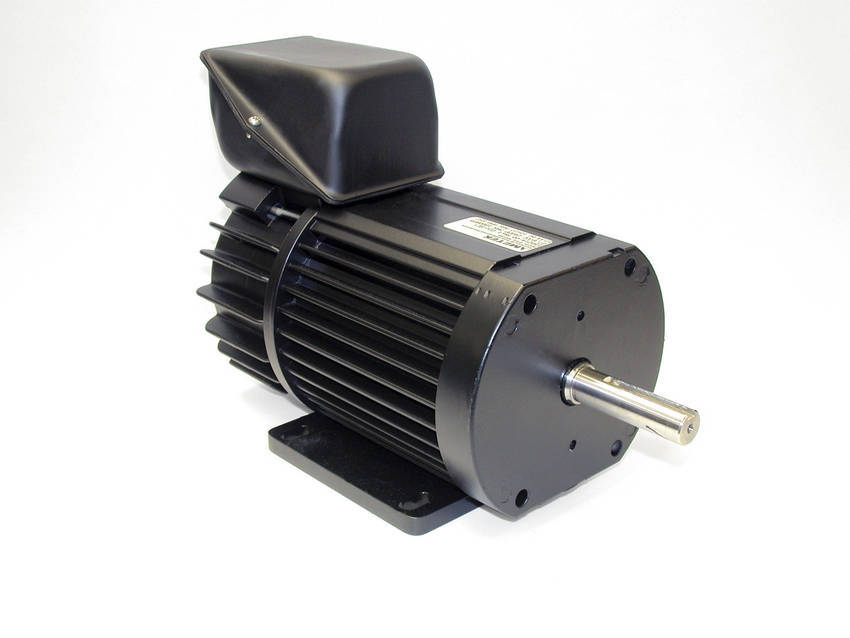

Nov 24, 2009 Rotron® brushless DC motors come in 47 and 64 frame sizes and accept voltage inputs of 12, 24, 37, 74, 90, and 110 Vdc. Applications include fans, blowers, pumps, and compressors from 0.5-2.25 hp. Series 47 Frame motors are available in lengths of 6.08 and 6.68 in. and achieve continuous torque up to 50 oz-in. and speeds up to 4,425 rpm, while 64 Frame series comes in 7.08, 10.125, 10.36, and 13.34 in. lengths and offers 800 oz-in. continuous torque and speeds up to 3,900 rpm.

Perfect Switch, LLC    San Diego, CA 92121

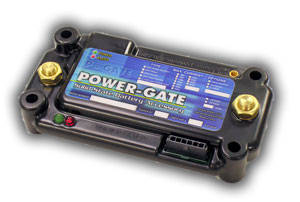

Nov 24, 2009 Capable of direct currents up to 500 A, POWER-GATE low voltage disconnects require no heat sinking or airflow. Programmable, autonomous solid state relays are designed as central point of connect or disconnect for DC accessories such as inverters, radios, and motors. With high voltage trip, low voltage trip, timing features, logic feedback, and external monitoring, devices are customizable for fleet and OEM applications.

Servomex Group Ltd    Crowborough East Su TN6 3DU  United Kingdom
Nov 24, 2009 Servomex SERVOPRO FID provides 100 ppb resolution hydrocarbon measurement, with all flow electronically and temperature regulated. It includes Ethernet/Internet connectivity, allowing users to check parameters or troubleshoot unit offsite. Device's logarithmic amplifier minimizes drift and thermal noise. Lock Range function allows operator to fix unit within desired range, while automatic ranging feature changes measurement parameters according to impurities detected.

WatchGuard Technologies, Inc.    Seattle, WA 98104
Nov 24, 2009 Offering unified network, application, and data protection, WatchGuard XCS 770/970/1170 series suit mid-tier and enterprise environments that require inbound and outbound messaging security as well as Web content control. Anti-spam engine, contextual analysis of message traffic, and quarantine for spam and suspect email are included along with zero-hour threat outbreak response, content/URL filtering, and malware protection. On-demand clustering and queue replication is also supported.

PolyCore Software, Inc.    Burlingame, CA 94010
Nov 24, 2009 To help minimize programming workload, Eclipse GUI-based Poly-Inspector(TM) identifies application hot spots, which are prime candidates for distribution onto multiple cores. Resulting information is graphically displayed, enabling developer to browse application call tree and interpret data. Poly-Inspector can present performance information from profilers, simulators, or traces.

WatchGuard Technologies, Inc.    Seattle, WA 98104
Nov 24, 2009 Featuring always-on email security, WatchGuard XCS 170/370/570 series protect against spam, phishing, viruses, spyware, and malware. Centralized management and reporting capabilities include archiving, on-box reporting, messaging logs, customizable granular policies/reports, TLS encryption, and message redundancy. For businesses with up to 1,000 users, XCS 570 provides other advanced messaging security for SMBs that require enterprise-grade protection.

Teklynx    Whitefish Bay, WI 53217
Nov 24, 2009 Supporting Windows® 7/Server 2008/Vista/XP and all Windows printer drivers, CODESOFT® v9 barcode labeling and integration software is designed for enterprise-wide printing from centralized locations. Label design wizards with symbologies, drag-and-drop label designer, and label comparison tool simplify and automate labeling environment without custom programming. Also, database connection and formula wizards facilitate database integration and queries.

Solar Metrology    Holbrook, NY 11714
Nov 24, 2009 Consisting of atmospheric in-line x-ray fluorescence metrology tool platform, System SMX-ILH provides composition and thickness measurements for thin film solar PV metal film stacks on flexible roll to roll substrates such as stainless steel, aluminum, and polyimide or rigid substrates such as float glass. Remote SMX-ILH models are designed to measure in one static location or across gradient. Typical measurement applications include Mo thickness and all CIGS combinations.

Actel Corp.    Mountain View, CA 94043 4655
Nov 24, 2009 Configurable DSP IP cores enable designers to create common DSP functions such as filters and transforms for RTAX2000D and RTAX4000D DSP FPGAs. They use GUI embedded in Libero® IDE and are supported through comprehensive software dialog windows that simplify selection and configuration of common DSP functions. Units can also generate structural netlists in either Verilog or VHDL and can be integrated into complex RTAX-DSP FPGA designs using Actel software.

BitArmor Systems, Inc.    Pittsburgh, PA 15222
Nov 24, 2009 BitArmor DataControl v4.0 offers integrated USB, email, and full disk encryption solution, delivered from cloud, that is suited for mid-market businesses. Providing military-grade encryption to prevent data breaches as well as comply with state and federal data privacy regulations, solution leverages existing infrastructure and makes encryption completely transparent to users. Multiple redundant servers and offline capabilities optimize availability.

Ipera Technology, Inc.    Redwood City, CA 94065
Nov 24, 2009 Developed for high-speed video processing, Pixel Xtream® v2 offers expanded HD and professional format support, including MXF, to allow for integration into file-based workflows. Intelligent, always-on enhancement mode removes distortions and applies visual enhancements without operator intervention. Engineered to process large volumes of simultaneous transcode and transrate operations, program meets requirements of online video destinations, broadcasters, and cable and telco service providers.
