STMicroelectronics    Lexington, MA 02421
Nov 06, 2009 Intended for car body applications, L99PM62XP helps reduce stand-by current consumption to preserve energy stored in car battery. Dedicated regulator with optimized dynamic behavior enables periodic system activation to monitor configurable wake-up sources. Fail-safe functionality, including supervision of MCU, supply voltages, and temperatures, promotes sustainability and reliability of automotive electronic control units.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 06, 2009 Carrying 4-63 V ratings and offered in A/B/C/D/E/V case sizes, TANTAMOUNT® Hi-Rel COTS T83, low-ESR TR3, and standard industrial grade 293D series solid tantalum chip capacitors allow designers to incorporate solid SMT tantalum capacitors into +28 V power supply designs while fully complying with derating requirements. Products provide options for decoupling in 63 V applications and power supplies at +28 V as well as dc-to-dc conversion at 35 V.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 06, 2009 Operating in temperatures from -55 to +125°C, PLT series precision thin film resistors are made of corrosion-resistant, stable film and offer performance characteristics of 500 ppm at +70°C for 10,000 hr. They are available in 0603, 0805, and 1206 case sizes, with resistance range from 250 W to 100 kW. Noise rating is less than -30 dB, voltage coefficients are 0.1 ppm/V, and power ratings are from 150-400 mW at +70°C. Units are available with lead-free or lead terminations.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Nov 06, 2009 Constructed to minimize effects of stress factors and humidity, VHP100 hermetically sealed Bulk Metal® Foil resistor provides tolerances to ±0.005% and load-life stability of ±0.005% typ for 2,000 hr at +70°C and 0.3 W. Standard resistance range of 100 x to 150 kx, and other values are available upon request. Difference between Max and Min resistance values will not deviate by more than 60 ppm over -55 to +125°C range. Thermal stabilization time is under 1 sec, and rise time is 1.0 ns.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192

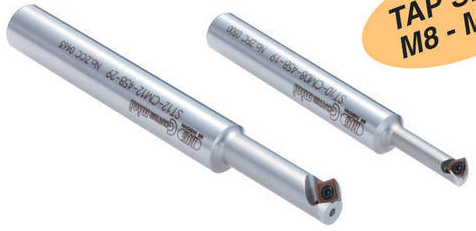

Nov 06, 2009 Available with offset body extension to achieve bolt hole and tap chamfers, C-Cutter Mini utilizes single insert to achieve 45° top and bottom chamfers while avoiding interference with inside of hole. Chamfer diameters range from .217-.827 in., with tap sizes from M8-M20 and bolt sizes from M6-M16. Design reduces cutting diameter to lowest limit, helping achieve high spindle speeds and feed rates, and multiple extension lengths are available to reach through holes as deep as 3.031 in.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

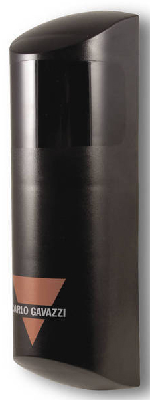

Nov 06, 2009 Intended for industrial door and gate applications, PD180 through-beam photoelectric sensor can be powered for up to 2.5 years on one pair of 3.6 V lithium batteries. Sensing range can be set by user at 15 or 30 m, and receiver can be powered by 12-24 Vac/dc. Unit contains SPST relay output for normal door/gate operation and separate SPST output for low-battery alert. Mechanical alignments are flexible due to lenses that can be adjusted vertically and horizontally.

Bel Fuse, Inc.    Jersey City, NJ 07302 4419

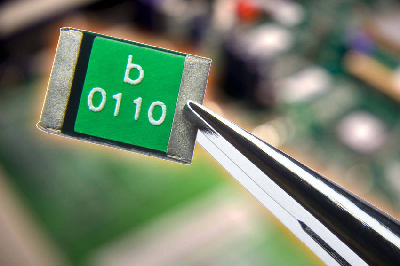

Nov 06, 2009 Offered in 5 EIA/IECQ case sizes from 0805 to 2920, surface mount 0ZCx Series limits flow of dangerously high current during fault conditions to protect products from over-current surges and over-temperature faults. In event of fault, fuses reset themselves once power is removed, fault is corrected, and voltage is reapplied. RoHS-compliant, lead-free, and halogen-free, fuses are suited for consumer electronics such as PDAs, digital cameras, MP3 players, and video recorders.

Linear Technology Corp.    Milpitas, CA 95035

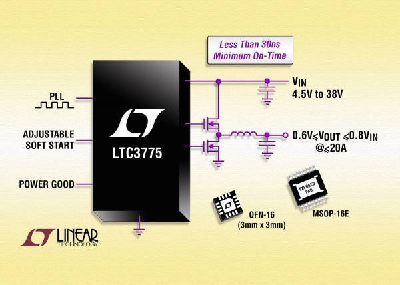

Nov 06, 2009 Housed in thermally enhanced 3 x 3 mm QFN-16 package, LTC3775 synchronous step-down DC/DC switching regulator controller features 4.5-38 V input range and 30 ns minimum on-time. Onboard MOSFET gate drivers allow use of high-power external MOSFETs to produce output currents up to 20 A with output voltages ranging from 0.6 to 80% of input voltage. Constant-frequency, leading edge modulation, voltage mode line feed forward architecture provides selectable or PLL frequency from 250 kHz to 1 MHz.

Widia Inc.,    Latrobe, PA 15650
Nov 06, 2009 Available over standard diameter range of 0.3150-0.8264 in., Victory TOP DRILL M1(TM) Modular Drills come in flanged-shank or round-shank configurations. Units feature solid coupling for consistent performance from insert to insert, and front clamping mechanism to facilitate insert changes. Inserts are offered with UP(M) geometry in grade K20FTiAlN, featuring application-oriented differentiated point design aimed at holemaking in steel and cast-iron components.

Para Systems, Inc.    Carrollton, TX 75007

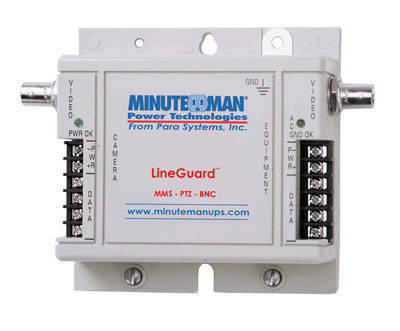

Nov 06, 2009 Incorporating solid-state surge protection technology with response time of 2-5 ns, Minuteman LineGuard(TM) Suppressors protect analog and digital surveillance cameras, DVRs, and network peripherals, including devices using Power over Ethernet. Units clamp surge to ground and automatically reset after low-voltage surge occurs. If catastrophic surge such as lightning does hit data line, LineGuard products provide fail-safe protection.

Kontron    Poway, CA 92064

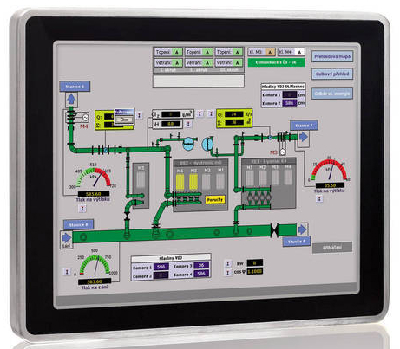

Nov 06, 2009 Protected by IP66 stainless steel housing, Kontron Nano Client 10.4 in. is powered by 45 nm Intel® Atom(TM) Z5xx processor up to 1.6 GHz and integrates Intel System Controller Hub US15W as well as 1024 MB max soldered RAM. Open x86 architecture facilitates variant creation and offers future-proof alternative to RISC-based solutions. Designed to meet highest hygienic requirements, solid-state unit incorporates 24 Vdc power supply as well as GigE, USB 2.0, and Compact Flash interfaces.

Edmund Optics    Barrington, NJ 08007
Nov 06, 2009 Able to integrate smaller optics ranging from 3-12.5 mm in dia, S-Mount product line is comprised of simple and achromatic lens mounts, various tubes and spacers, and various adapters, including S-to-C type. Products feature adjustable thickness and are threaded for M12 x 0.5 mm mounting, commonly used for micro-video lenses and board level camera mounts. Manufactured from anodized aluminum material, components have 12 mm ID, thread pitch of 2 threads/mm, and 16 mm OD.

Tripp Lite    Chicago, IL 60609

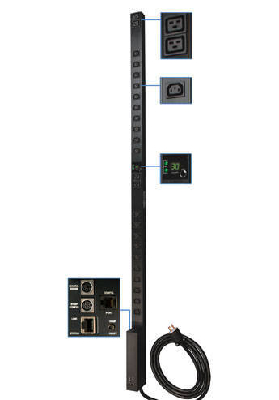

Nov 06, 2009 Available in 2 horizontal and 5 vertical models, Monitored Power Distribution Units provide RJ45 Ethernet interface for remote monitoring and remote condition reporting of power and environmental conditions via SNMP, Web, or telnet. Digital meter locally displays connected equipment load in amps. Providing up to 24 outlets, PDUs assure optimal power distribution in IT applications and prevent downtime by enabling automatic load threshold notification.

Sauer-Danfoss    Ames, IA 50010
Nov 06, 2009 Integrating OSP steering technology and electrohydraulic steering valve, OSPE improves vehicle performance and comfort while facilitating compliance with Machinery Directive 2006/42/EC and simplifying hydraulic system architecture. Safe State feature can isolate electrohydraulic section of steering valve to protect steering system. Other features include selectable reactive and non-reactive steering modes, Load Sensing and Open Center options, and variable steering ratio.

High Energy Corp.    Parkesburg, PA 19365
Nov 06, 2009 Measuring 1 7/8 x 1½ x 1½ in. and weighing 0.9 lb, CHGOIL5XXX series mounts with two ¼ or 6 mm bolts on 1½ in. mounting footprint. Capacitors in CHLOIL5XXX series, measuring 2¾ x 1 3/16 x 1¼ in. and weighing 0.7 lb, mount with 2¼ or 6 mm bolts on 5/8 in. footprint. Both conduction-cooled, metallized polypropylene capacitors are available in 0.05-2.4 µf and operate continuously at 1,000 Vrms and 400 kHz, generating 250 kVAr. At lower voltages, they operate at frequencies up to 1 MHz.

Lehigh Fluid Power, Inc.    Lambertville, NJ 08054
Nov 06, 2009 Designed to reduce energy consumption, JHDG GREEN Series combines Miracalube piston lubrication system with Dual Max pressure control regulator and ILCN seals. By reducing operating pressure when it is not needed, Green series cylinder reduces demand for compressed air. Solution is available in 1.5-6 in. bore sizes with strokes from 0.5 to over 120 in.

Mid-West Instrument    Sterling Heights, MI 48314
Nov 06, 2009 Certified to CSA, UL, and ATEX standards, 220/240 differential indicating switches feature aluminum or 316/316L construction; weather-resistant, 4½ in. gage front; and ½ in. FNPT Cable or conduit entry. Model 220-Piston Style switch, rated for working pressures to 4,000 psi, comes in 0-5 to 0-100 psid ranges. Featuring total separation between high and low side, Model 240-Diaphragm Style switch has 1,500 psi working pressure rating and comes in ranges from 0-20 in. H20 to 0-100 psid.

AutomationDirect.com    Cumming, GA 30040-9905

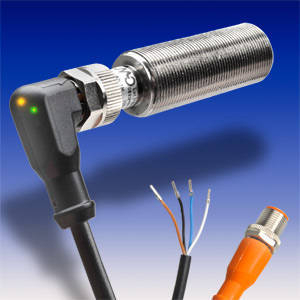

Nov 06, 2009 Available in 6 lengths from 0.3-10 m, Patch Cables have right-angle M12 female plug with LED indicator on one end and axial male connector on other end. Polyurethane jacket enables use in oily and direct sunlight applications. Offered in 2, 5, and 10 m lengths, Quick Disconnect Cables include LED indicator to confirm signal presence. They have M12 right-angle female plugs and can be used with patch cables to extend distance.

AutomationDirect.com    Cumming, GA 30040-9905
Nov 06, 2009 Available in 45 and 55 mm DIN rail mountable frame sizes, microprocessor-based Stellar(TM) SR22 Series is overcurrent protected and has operating voltage range of 208-460 Vac. Each unit is equipped with 3 potentiometers allowing adjustable start and stop times of up to 30 sec and adjustable start pedestal voltage from 30-100%. Separate 24 Vdc control voltage is required. Starters are suited for applications such as pumps, blowers, and conveyors.

Boker's Inc.    Minneapolis, MN 55406
Nov 06, 2009 Available without tooling charges in short, medium, or long runs, Washers range in size from 0.080-12 in. O.D. They come in choice of more than 2,000 commonly specified and hard-to-find materials, including low carbon sheet steel, 5 types of spring steel, stainless steel, aluminum, brass, copper, and nickel silver. Non-metallics, such as ABS, acetal, polyester, nylon, PTFE, polycarbonate, fiber, polyethylene, and various phenolics are also available.
