Navico Inc.    Nashua, NH 03063
Nov 11, 2009 Optimized for sensitivity, accuracy, and rapid acquisition times, 5 Hz GS15 comes in 3 in. housing and is compatible with WAAS, EGNOS, and SBAS. Exact Course Over Ground (COG) feature, usable at any speed as well as in tight turns, offers users precise chart synchronization. Fully waterproof unit also includes 16-channel receiver that provides rapid signal acquisition and locking capability, promoting faster start position location and consistent position accuracy.

Intellian Technologies USA, Inc.    Irvine, CA 92618
Nov 11, 2009 Featuring Intellian multi-band WorldView low noise block module, W-Series includes two commercial 3-axis stabilized satellite TV antennas, t110W and t130W, and two recreational 2-axis models, i6W and i9W. LNB module receives both circular polarized signals used in America and linear polarized signals that are standard elsewhere. In addition, antennas include Intellian's Wide Angle Search algorithm for fast signal acquisition, and Dynamic Beam Tilting signal locking technology.

NC4    El Segundo, CA 90245
Nov 11, 2009 Homeland Security Cloud(TM) provides communities securing USA with applications for situational awareness, emergency management, law enforcement, and secure communication/collaboration. Examples of security-minded features include need-to-know visibility, access models, and support for multiple 2-factor authentication mechanisms. Utilizing standards-based connections, solution supports 2,500+ homeland security communities with 80,000+ users total.

Fujitsu Semiconductor Europe    Dreieich-Buchschlag D-63303  Germany
Nov 11, 2009 Model DKXC5VADAPT-1 provides physical link between data headers on DK86064/65-2 development kits and HiTech Global V5-PCIE2 FPGA prototype board. Featuring 6 Samtec sockets that plug into headers on both boards, it connects 28 matched LVDS data pairs, DAC loop clock pairs, and 2 divided clock signals between both boards. All clock signals are routed to dedicated global clock inputs on FPGA. System allows testing and developing of FPGA-DAC interface.

Aviel Electronics    Las Vegas, NV 89118
Nov 11, 2009 With push-lock feature, SMB Connectors require disengagement force of 5 lb minimum. Locking shell pushes over mated interfaces, locking interface while allowing full rotation of mated pair. Pulling back shell allows interfaces to be disengaged. Hermetically sealed and IP68 rated, connectors feature 0-4 GHz reflection frequency range and are usable up to 10 GHz. Mating pairs include right angle plug with crimp attachment for RG-174U cable.

Schleuniger, Inc.    Manchester, NH 03103
Nov 11, 2009 With patented floating blade system, JacketStrip 8310 can process round or out-of-round cables without damaging underlying cable layers. Unit can slit various cable insulation materials such as PVC, PUR, rubber, Teflon®, Tefzel®, and Kapton. It can process cables from 0.1-1.0 in. diameter with stripping lengths up to 20 in. If length scale is removed, lengths greater than 20 in. can be processed. Rotating blade system follows contour of cable, ensuring precise radial slitting of jacket.

Kavlico    Moorpark, CA 93021

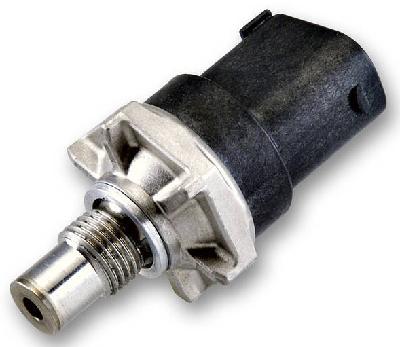

Nov 11, 2009 Used to measure common-rail pressure in diesel engines, sensor operates on 5 Vdc and provides 0.5-4.5 Vdc linear amplified analog output proportional to pressure to Electronic Diesel Control Unit. Using thin film TiON sense element, EMI-/EMC-protected product operated in high-vibration environments and is fully temperature compensated across entire measurement range of 0-40,000+ psi. Monitoring common rail pressure can help increase engine power, reduce engine noise, and create cleaner exhaust.

Mornsun America    Hudson, MA 01749
Nov 11, 2009 Operating from 85-260 Vac or 110-370 Vdc input, UL60950-1 approved LD03 Series comes in PCB-mount, encapsulated package for test and measurement, industrial control, communications, and consumer electronic products. Input to output isolation of 4,000 Vdc and EN60601-1 safety approvals on LD05 Series suit patient vicinity medical device designs. Both RoHS-compliant switching power supplies offer single output voltages, which range from 3.3-24 Vdc and are tightly regulated to ±1%.

Mazak Corp.    Florence, KY 41042 3092

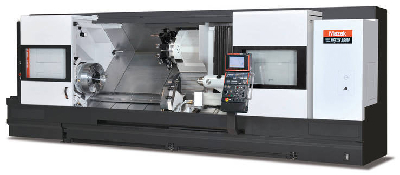

Nov 11, 2009 Slant Turn NEXUS 550M has headstock with 10.8 in. bore mounted on 60 hp, 1,000 rpm turning spindle that generates up to 5,163 ft-lbs of torque. Spindle is also used as C-axis, capable of being indexed at 0.001° increments to position part for slotting cuts and precisely drilled holes. Additionally, C-axis spindle acts as full-function CNC controlled axis for milling. System also has 10 hp, 4,000 rpm milling spindle for roughing, grooving, endmilling and facemilling.

Norwood Marking Systems, A Div. Of ITW    Downers Grove, IL 60515

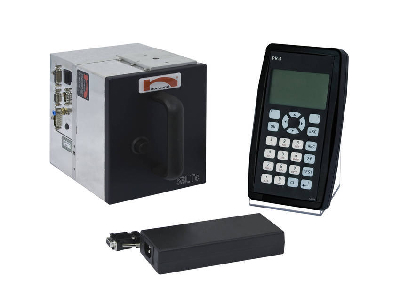

Nov 11, 2009 Offering print area up to 2.08 x 1.97 in., continuous motion Model 53LTc includes PR5 handheld controller with USB port, printer resident barcodes, and cassette ribbon loading. Unit offers 300 dpi resolution and 600 m ribbon capacity. Optional external Ethernet device enables remote changeovers and centralized control of multiple printers via plant-wide networks. With Windows-based label design software, Model 53LT can print fixed and variable data.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 11, 2009 Model SVM4800 builds on modular U1083A VME/VXS base card with analog digitizer mezzanine that includes 2 DC-coupled 14-bit quad-ADCs. This 8-channel, 14-bit VME/VXS digitizer, with more than 300 MHz input signal bandwidth, achieves sampling rates up to 125 MS/sec. Additional analog performance characteristics - up to 82 dBc SFDR, 82 dBc THD, and over 70 dBc SNR - provide effective resolution of greater than 11.2 bits. Mezzanine also includes Xilinx Virtex-5 FPGA with data MUX function.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 11, 2009 Featuring compact form factor with 254 mm depth, Model E5061B includes 5 Hz to 30 MHz gain-phase test port and 5 Hz to 3 GHz S-parameter test port with dynamic range of 120 dB at greater than 1 MHz and 90 dB at less than 100 Hz. DC bias source from 0 to ±40 Vdc can be added to AC test signal or can be used as sweepable DC source. Applications include general RF-network measurements and low frequency measurements for loop-gain evaluation of DC-DC converters.

Baumer Ltd.    Southington, CT 06489 1534
Nov 11, 2009 With measuring frequency up to 1 kHz and resolution up to 0.1 mm, ParCon Line Sensor enables web edges in packaging, textile, or paper industry to be measured precisely and positioned exactly. Additionally, object widths can be determined, regardless of objects' position within measuring field. Measuring 34 x 16.5 x 67 mm, sensor contains sender, receiver, optics for creating parallel beam, and evaluation electronics.

Baumer Ltd.    Southington, CT 06489 1534
Nov 11, 2009 With plastic frame adapter, Series 14 can be installed without screws or tools. Once snapped into adapter, sensors are inserted into 1.75 x 5.4 cm recess in steel sheet. Two plastic clamps secure adapter in cut-out and sensors are mounted tightly. Sensors cannot be readjusted or shifted accidentally, but can be dismounted for servicing. Adapter fits all Series 14 sensors, including diffuse, retro-reflective, and LED-based distance sensors.

Baumer Ltd.    Southington, CT 06489 1534
Nov 11, 2009 Adjusted via teach-in button, Model FRDK 14 is designed to detect glass, transparent packaging, or PET bottles. Short response time of 0.1 msec enables edges of moving, transparent foils to be positioned exactly, while adaptation time of 20 msec permits sensor to be taught subsequently or to be adjusted to changing tasks via external teach-in connections while process is running. In addition to red light sensor, laser version is available for higher precision requirements.

Banner Engineering Corp.    Minneapolis, MN 55441

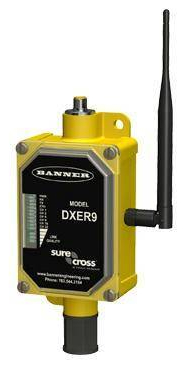

Nov 11, 2009 Suited for applications that are too noisy or too great in distance for standard WiFi based systems, SureCross(TM) DXER9 is used to create point-to-multipoint configurations of wireless Ethernet networks with up to 16 subscriber units. Industrial-grade, 900 MHz radio offers 10+ mile line-of-sight range outdoors and wall-penetrating 1500+ ft range indoors. Support for up to 12 access points per site provides total of 192 points, and operation will not interfere with 2.4 GHz WiFi networks.

Baumer Ltd.    Southington, CT 06489 1534

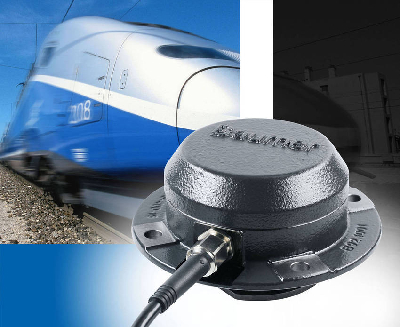

Nov 11, 2009 Featuring up to 12 channel outputs, MagRes BMIV Magnetic Incremental Encoders deliver data with different pulse rates. Wear-free, non-contact units provide rotational speed data, speed monitoring, wheel slide/slip protection, roll back detection, and torsional vibration detection. Housed in cast iron, IP67-rated encoders withstand dirt, oils, grease, water, condensation, and temperature extremes from -40 to +50°C. They comply with railway standards and offer SIL 2 certification.

Smith & Loveless, Inc.    Lenexa, KS 66215 1234

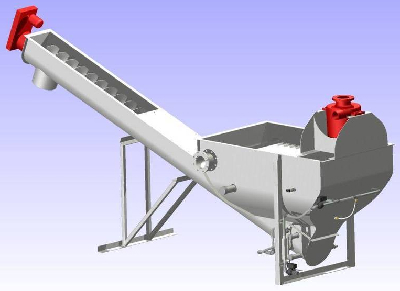

Nov 11, 2009 Employing hydro-flushing and air infusion to aid organic separation, ARRA-compliant PISTA® TURBO(TM) Grit Washer uses Tri-Cleanse Technology(TM) to produce clean grit while minimizing odor. Custom-engineered screw further cleans grit through additional agitation, and dedicated PLC provides all necessary control functions for proper operation. System shows less than or equal to 5% putresible material in washed grit and less than 10% water content in washed grit.

ITW Muller    Arlington Heights, IL 60004

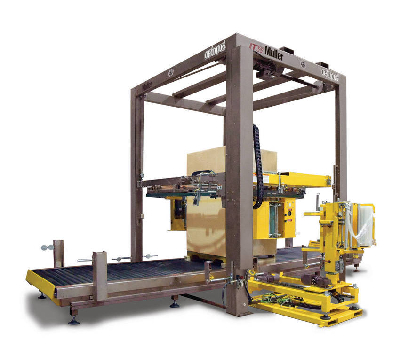

Nov 11, 2009 Capable of wrapping up to 150 loads per hour, Octopus(TM) 808 Twin Automatic Rotary Ring Series features dual film carriages that operate simultaneously to double wrapping speed and to independently to provide optimal load containment. Machine can be programmed to continue wrapping utilizing single carriage if film break occurs. It is available with optional roll changer for automatically replacing depleted or broken film rolls.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040

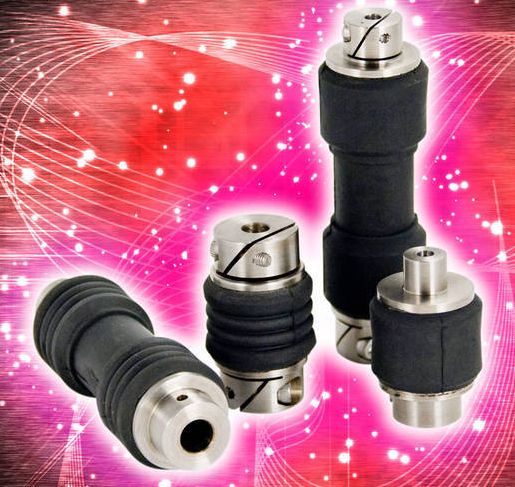

Nov 11, 2009 Neo-Flex couplings include Short Series V50FSR and V50FSRM models as well as Long Series V5DFLR and V5DFLRM versions. They are manufactured from 73 durometer molded neoprene with 303 SS hubs and are offered with conventional pin type hubs which use set screw for fastening. Fairloc® versions include integral hub fastener which eliminates marred shafts. Couplings also offer shaft-to-shaft insulation and are designed to fit 3-6 mm metric shafts or .1200, 1/8, 3/16, and ¼ in. shafts.
