Daimer Industries Inc    Woburn, MA 01801
Nov 16, 2009 Non-toxic and safe to use around humans and food, plant-based Eco-Green® Stove Hood Degreaser and Duct Cleaner is based on Micro-Blasting® green chemicals that utilize microscopic cleaning molecules to penetrate oils and fats. Formulation does not harm ozone layer and contains no VOCs. Available as concentrate in containers from 5-5,000 gal, single gallon of degreaser yields up to 4 gal of finished product. Cleaner also prevents re-deposition of dirt and grease onto cleaned surfaces.

Akro-Mils, A Myers Industries Co.    Akron, OH 44301
Nov 16, 2009 Molded from high-impact plastic, ProHANGER is suited for holding long tubes (plastic or metal), rods, electrical conduit, lumber, trim, and pipes over 36 in. long. It can be used with louvered or rail hanging systems, or can be attached to any surface with screws. Featuring bright red color for visibility in dark or in low-light environments, system can be used alone or placed side-by-side to support longer parts or products.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 13, 2009 SuperSpeed USB (USB 3.0) transmitter and receiver test solution supports automated compliance tests and characterization. Components include oscilloscope, USB 3.0 test fixture, pattern checker and pattern generator based on J-BERT N4903B high-performance serial BERT, and N5990A test automation software platform. Signal generation and analysis capability also supports many serial bus standards such as USB, PCI Express®, SATA, and DisplayPort testing.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 13, 2009 Signal integrity Channel Simulator features statistical mode, which is part of Advanced Design System 2009 Update 1, suited for design and verification of high-speed, chip-to-chip data links. Mode lets engineers generate eye diagrams with ultralow BER contours in seconds. It allows simulations using circuit-level models that can be verified against measured data and EM simulation of layout artwork. Also, it enables noise calculations, jitter injection, and equalization optimization.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 13, 2009 Measuring 114 x 95 mm, SOM-4461 CPU Module is powered by 1.6 GHz Intel Atom N270 processor with 945GSE chipset, which utilizes advanced power management technology. Integrated graphics engine is powered by Intel GMA950 graphic core and Microsoft's DirectX 9.1. Consuming 10 W in full operation, SOM-4461 combines 2 GB DDR2 memory with 36-bit LVDS, SDVO, VGA, TV out, AC97 audio, and 10/100 LAN, as well as 4 x PCI masters, 2 SATA ports, 4 USB 2.0 ports, 1 EIDE, 2 serial ports, and FDD/LPT port.

OSRAM Opto Semiconductors GmbH    Regensburg D-93049  Germany
Nov 13, 2009 Developed for video display market, LRTB GFTM MultiLED uses in-line arrangement of chips, providing homogeneity and high color fidelity across entire viewing angle. Device's black surface enables optimal contrast in both indoor and outdoor environments. Housed in 6-lead package that delivers thermal management, MULTILED utilizes Thinfilm and ThinGaN technologies and contains no lead or mercury.

Semtech Corp.    Newbury Park, CA 91320
Nov 13, 2009 Supplied in 2 x 2 x 0.6 mm plastic package, models SC654, SC657, and SC658 drive 6, 5, and 4 LEDs, respectively. Integrated mAhXLife(TM) charge pump monitors each LED's forward voltage and automatically selects 1x, 1.5x, or 2x mode to optimize efficiency. Also included, low-dropout current sink regulators provide LED current matching of 0.5% typ. LED current may be adjusted from 0-25 mA in 29 settings via one-wire SemPulse® interface, which also controls various other functions.

Semtech Corp.    Newbury Park, CA 91320
Nov 13, 2009 Designed for resistive touchscreens on portable devices, 4-wire Model SX8650 consumes 23 µA at 8 kSPS rate, supports 400 kHz fast-mode I²C serial bus data protocol, and operates from 1.65-3.7 V. Unit features 12-bit ADC for coordinates and touch pressure measurement and can achieve equivalent throughput output rate of 50 kSPS. Available in 3 x 3 mm 12-DFN and 1.46 x 1.96 mm 12-WLCSP packages, controller incorporates dedicated hardware/RESET pin and on-chip programmable settling time.

Semtech Corp.    Newbury Park, CA 91320
Nov 13, 2009 Manufactured on sub 65 nm technology and supplied in 1.0 x 0.6 x 0.4 mm package, uClamp2501T and uClamp2511T are 2.5 V single-line MicroClamp® transient voltage suppression (TVS) devices targeted at multimedia smart phones. They feature 10 nA leakage current and 2.5 V operating voltage. While unidirectional uClamp2501T is rated at 30pF, bidirectional uClamp2511T offers capacitance of 10pF max. Both are compliant to RoHS and WEEE standards.

Semtech Corp.    Newbury Park, CA 91320
Nov 13, 2009 Housed in 3 x 3 mm, halogen-free, RoHS-compliant packaging, Model SC419 is intended for operation in systems that have dual supplies, while Model SC418 integrates LDO regulator to enable operation from single supply up to 28 V. Units feature ultrasonic power save with programmable floor frequency, and SmartDrive(TM) technology, which minimizes EMI and eliminates need for snubbers or gate drive resistors by adjusting drive characteristics to needs of specific MOSFETs.

OSRAM Opto Semiconductors GmbH    Regensburg D-93049  Germany
Nov 13, 2009 Similar to human eye, SFH 5712 detects ambient brightness and offers standard as well as high speed (3.4 MHz) rates. There is no need for additional control commands; IC in sensor automatically provides measured value between 3 and 65,000 lx twice per second. Measuring 2 x 2 x 0.7 mm, sensor has 4 connections and can be controlled via its I²C interface. Applications include adjusting the brightness of displays on mobile terminals to suit ambient light conditions and conserve energy.

RECOM Power Inc.    Brooklyn, NY 11201
Nov 13, 2009 Exhibiting efficiency close to 80%, RAC04 series operates with inputs from 90-264 Vac at 47-440 Hz and provides outputs of 3.3, 5, 9, 12, 15, or 24 V. Completely encapsulated, 36.5 x 27.0 x 17.1 mm package weighs 26 g and suits applications with mounting space restrictions and weight requirements. Isolated to 3 kVAC (4 kVAC optional), products are protected against short-circuit, overload, and overvoltage conditions. They also exhibit no-load current draw, in standby-mode, of 120 mW.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 13, 2009 Featuring 7 in. TFT screen and 1.3 M pixel CMOS camera, UBiQ-480 is suitable for wall mounting or desktop/tabletop use. Built-in microphone and speaker allow use without handset, and noise canceling technology promotes audio quality. Capable of controlling building life support systems as well as various other devices, terminal offers optional wireless connectivity as well as standard I/O features such as dual-LAN, RS-232, RS-485, USB, and DIO ports.

OSRAM Opto Semiconductors GmbH    Regensburg D-93049  Germany
Nov 13, 2009 Targeted specifically at residential sector, Warm White LED features color temperature of 3,000 K, color rendering index of 82, and efficiency of 104 lm/W. Color location is precisely on Planckian curve, and light is exactly white, showing no shift to green spectral region. With operating current of 350 mA and chip surface of 1 mm², LED achieves brightness of 124 lm.

VueMetrix Inc    Sunnyvale, CA 94089
Nov 13, 2009 Respectively rated at 120 and 200 W, Vue-TEC-15 and Vue-TEC-24 are switch mode DC/DC converters with smoothing filters. Operating point is regulated automatically, and auxiliary second serial port allows internal communication with another controller. In addition to being microprocessor-based control, features include fault diagnostics, user-settable operational limits, and library of interface commands. USB, RS-232, or both can be used to interface with controller.

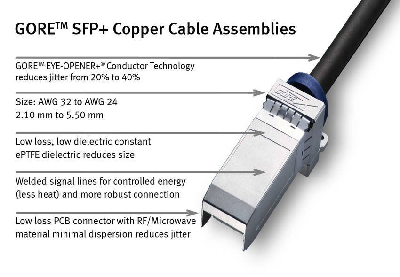

W. L. Gore & Associates, Inc.    Elkton,, MD 21921
Nov 13, 2009 Fully compliant with SFF-8431 Revision 4.1 specification, Chapter 3, Limiting Port Copper SFP+ Cables utilize GORE(TM) EYE-OPENER+® Conductor Technology and low loss expanded PTFE cable dielectric. Cables satisfy limiting port specification up to 7 m, without using active technology. Core/skin design of conductors provides distributed or per unit length equalization without resistor-inductor-capacitor circuitry required on connector paddle card.

Graywolf Sensing Solutions    Shelton, CT 06484
Nov 13, 2009 As area monitor for Indoor Air Quality (IAQ), WolfPack accepts 1-3 DirectSense® probes with up to 6 sensors per probe. Up to 18 specific electrochemical gas sensors are also available, and up to 21 parameters - TVOCs, CO2, %RH, °C/°F, particulates, auto-zeroing DP, and Air Velocity - may be monitored simultaneously. Equipped with tactile color screen, monitor also features WolfSense® 2009 application software that aids data logging setup and customization for specific applications.

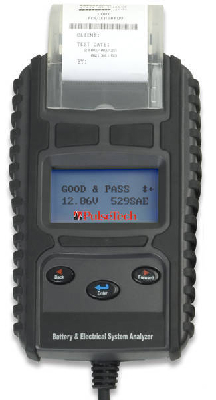

PulseTech Products Corporation    Southlake, TX 76092
Nov 13, 2009 Able to test 6 and 12 V batteries and systems as well as 24 V systems, 777P-PT helps keep fleets on road and out of shop. It tests all lead acid battery types, including VRLA (AGM and Gel) batteries, both deep cycle and standard designs. Featuring built-in thermal printer, product can produce screen images and deliver printouts in 10 languages. Micro-load dynamic resistance testing technology provides for fast and easy use with intuitive screen prompts.

Hotwatt    Danvers, MA 01923
Nov 13, 2009 Featuring swaged construction and 300 stainless steel sheath with precision dimensions, Superwatt® Heaters ensure efficient heat transfer and tight and stable contact when inserted in end-use equipment. Units have heliarc welds, ceramic caps, and high-temperature fiberglass insulated leads. Resistant to shock and vibration, heaters are suitable for life- and bio-science applications, as well as plastics molding, adhesive dispensing, and instrumentation.

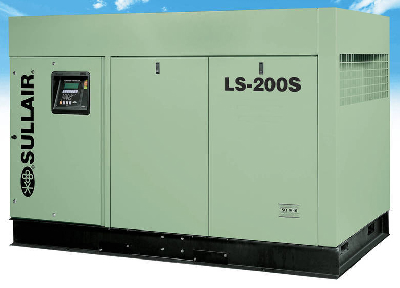

Sullair Corporation    Michigan City, IN 46360
Nov 13, 2009 Featuring capacities from 457-980 acfm and pressure ranges of 100-175 psig, 200 hp compressors include models with choice of constant speed drive (LS-200S) or constant speed drive with variable capacity control (VCC-200S and VCC-250S). Variable Capacity Control allows compressor to match pressure and capacity with system demand. Also available, Variable Speed Drive model (V-200S) offers capacities from 576-967 acfm and features flange-mounted motors and air ends.
