Aeroflex Laboratories    Plainview, NY 11803

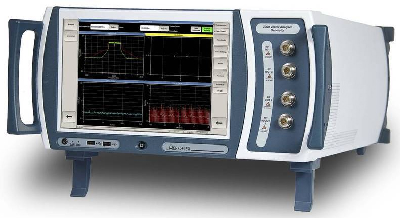

Nov 16, 2009 Operated via touchscreen UI, 7000 Series Vector Analyzer Generator provides integrated approach to measurements for complex wireless standards. Modular, software-defined functionality provides flexible, future-proof platform for wireless technologies such as LTE, GSM/GPRS/EDGE, 3G/HSPA, and WLAN. As many as 2 signal generators can be integrated for intermodulation and other key tests, and operating frequency range is 1 MHz to 6 GHz, with 90 MHz bandwidth for generation and analysis.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887

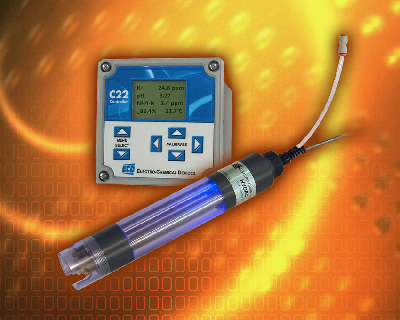

Nov 16, 2009 Featuring ISE technology, HYDRA C22 can be used to monitor ammonium nutrient load directly in aeration basin of wastewater treatment plant as well as environmental waters, lakes, streams, and wells. Device uses Ammonium Ion Electrode, Potassium Ion Electrode, and pH Electrode to measure ammonium and potassium in concentrations from 0.1-1,000 ppm, pH from 0-14, and temperature from 32-212°F. Housed in NEMA 4X enclosure with backlit LCD, analyzer can operate up to 200 m from sensor.

Centorr/Vacuum Industries, Inc.    Nashua, NH 03062
Nov 16, 2009 Featuring compact furnace layout with construction on structural steel base, MIM-Vac(TM) M is offered in 18 x 18 x 36 or 48 in. sizes to meet demands of metal injection molding (MIM) industry. Use of Molybdenum alloys in hot zone and retort offer creep resistance, high recrystallization temperatures, and long service life, while Sweepgas(TM) technology promotes consistent gas flow dynamics over all parts. Dry mechanical pumping system with T/P binder condensing trap is also featured.

HASCO Hasenclever GmbH + Co KG    Ludenscheid D-58513  Germany
Nov 16, 2009 Designed to control temperature in 2-128 zones, Model Z1240 utilizes PID control technology that is accurate to 1/10°C. Integrated diagnosis program detects wiring errors and thermocouple breaks, while fuses protect control from mains voltage at sensor inputs caused by short circuits. Through automatic comparison with last used output levels, deviations are displayed, informing operator of imminent malfunctions, corrosion, soiling, or possibility of heating failure.

HBM, Inc.    Marlborough, MA 01752 3014
Nov 16, 2009 Multi-purpose torque flange, T40, is available with rated torques of 200 and 500 Nom as well as 1, 2, 3, 5, and 10 kNom. Identical electrical configuration throughout series allows use in various applications without modification. Able to handle numerous torque measurement applications on test benches and in process monitoring, product is insensitive to parasitic loads and ensures secure, error-free measured value acquisition/transmission even under difficult ambient conditions.

austriamicrosystems AG    Premstatten   Austria
Nov 16, 2009 Operating from 1.2-3.6 V supply, AS1371 LDO can function at input voltages down to 1.2 V. It offers dropout voltages of 20 mV at 100 mA and 80 mV at 400 mA as well as 50 µA quiescent current at maximum load. Unit is available with preprogrammed output voltages between 0.6-3.3 V, programmable in 50 mV steps. Featuring -40 to +85°C operating temperature range, it also includes overtemperature/overcurrent protection, under-voltage lockout, and low battery detection.

Master Magnetics, Inc    Castle Rock, CO 80104
Nov 16, 2009 Available in 14 x 6.25 x 1.5 in. rectangle, 9.5 x 5.6 x 1.5 in. rectangle, and 6 x 1.25 in. round sizes, Magnetic Parts Trays are suited for any project involving assembly and disassembly with small metal parts. Trays feature corrosion-resistant stainless steel construction and permanent magnets covered with rubber footing to prevent scratching and damage to surfaces. They can be used horizontally, vertically, or even upside down.

Master Magnetics, Inc    Castle Rock, CO 80104

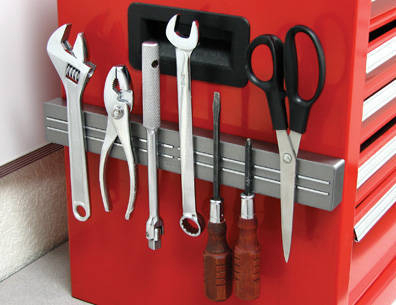

Nov 16, 2009 Available in screw-mount and magnetic-mount styles, 12 in. Magnetic Knife and Tool Holder holds up to 30 lb/in. Unit stores frequently used knives, utensils, and tools for quick access. Magnetic mount style bar attracts to any ferrous metal surface with permanent magnets, will not slip from mounted position, and is movable to other work areas.

Steinmeyer Inc.    Bedford, MA 01730
Nov 16, 2009 Available with 0.5-3 mm leads, 5 mm Miniature Ball Screws come in 4 nut styles. Single nut Series 1112 has connecting thread without wipers, while single nut Series 1412 has double flange and wipers on both ends, and Series 1214 consists of cylindrical nut without wipers. Using end-cap ball returns manufactured from plastic rather than metal tubes, single nut Series 2422 is virtually noiseless. Applications include micromanipulators, miniature robotics, and compact actuators.

Horton, Inc.    Roseville, MN 55113
Nov 16, 2009 In most conditions, Arctis(TM) Two-Speed Fan Drives are powered by eddy current, minimizing operating noise while maximizing available horsepower for auxiliary systems. When vehicle needs more cooling, fan drive springs actuate to run fan at full input speed. Featuring high torque clutch package and large air chamber for full disengagement, drives are suited for medium-duty trucks, buses, severe-service vehicles, and rear-engine cement mixers.

Wabash MPI    Wabash, IN 46992 0298
Nov 16, 2009 Featuring 15 x 15 in. platen size, Triton Series includes high end controls for pressure and temperature ramping. PLC controller offers 3 in. touch screen and stores up to 10 programs. Operator controls include 2 clamp close buttons, clamp open, emergency stop, and power on/off. Guards include manual hinged front with magnetic safety switch interlock, sheet metal wrap that can be removed for maintenance access, and expanded metal windows.

Automation Products Group, Inc.    Logan, UT 84321
Nov 16, 2009 Leveraging MEMS-based sensing technology, IP67 rated Model PG7 features full 5-digit display with 0.4 in. characters. Unit is available with ranges from vacuum to 500 psi and from 0-10,000 psi, with ±0.25% full scale accuracy and .01 digit resolution through 100 psi. Equipped with all stainless steel sensor that is resistant to vibration and shock, gauge includes microprocessor-based circuit with Tare, Peak Hold, and Max-Min capability. Lockout feature prevents unauthorized access.

AAEON Technology Inc    Taipei   Taiwan

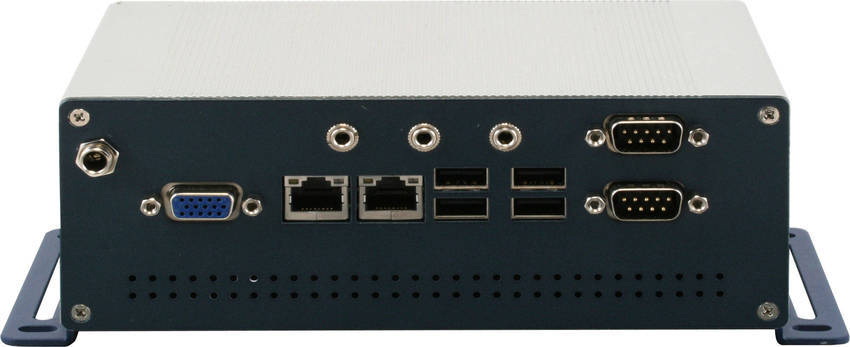

Nov 16, 2009 Offering low power operation, compact embedded controller AEC-6420 features SODIMM DDRII 400/533 system memory (up to 2 Gb), SATA/IDE interface, internal CompactFlash socket for storage expansion, and optional SATA HDD kit. It is suited for machine control, factory automation, and building automation applications. Other features include 2 COM, 4 USB 2.0, and one parallel port, as well as 2 Gigabit Ethernet RJ-45 ports.

Bulbrite    Moonachie, NJ 07074

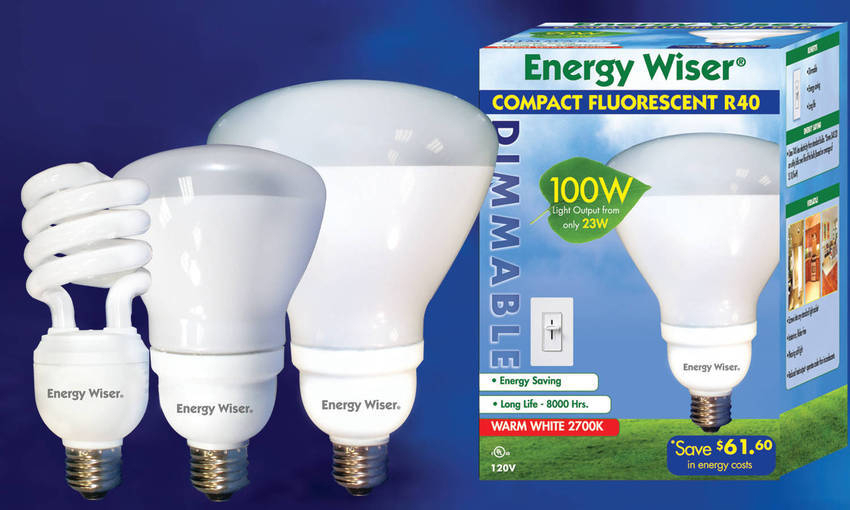

Nov 16, 2009 Suited for use with portable lamps, as well as recessed and track task lighting, 23 W Coil CFL, 15 W R30 bulb, and 23 W R40 bulb produce 1600, 680, and 1050 lumens, respectively, and offer continuous dimming down to 20% lumen output. They work with most incandescent dimmers and offer life of up to 8,000 hr. Suited for use on 120 V system, compact fluorescents feature E26 base, color rendering index of 82, color temperature of 2700 K, and have minimum starting temperature 0°F.

WAGO Corp.    Germantown, WI 53022

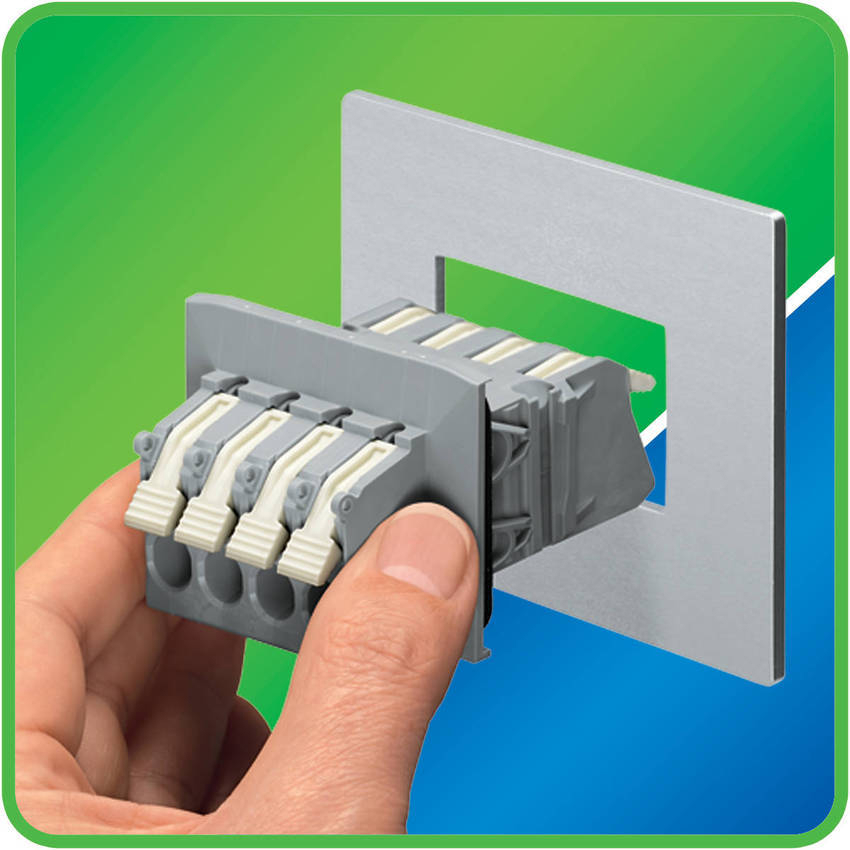

Nov 16, 2009 Featuring single-piece construction, 828 Series utilizes CAGE CLAMP® Spring Pressure Connection technology and provides tool-free and maintenance-free terminations for feeding of currents up to 40 A (AWG 6) through enclosure walls. Integrated lockout feature accommodates security seal or similar tagout marker, limiting unauthorized access to external terminations. Panel gasket seal provides splash-resistant seal to enclosure for additional protection.

Bardons & Oliver, Inc.    Cleveland, OH 44139

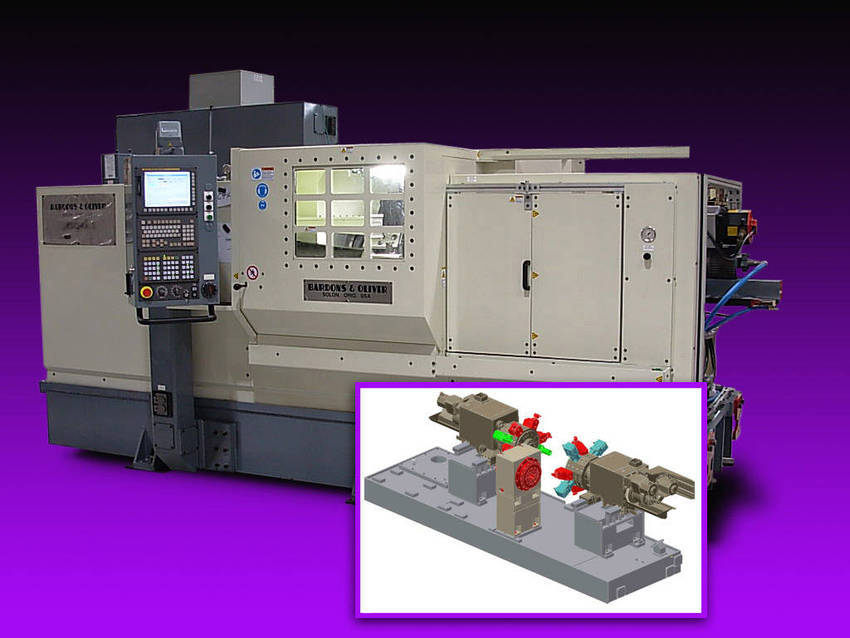

Nov 16, 2009 Allowing critical surfaces at each end of part to be machined concentric to each other, 4-axis Center-Drive Lathe has one 12-station turret that machines front end of work piece, while second 12-station turret simultaneously machines back end. Lathe can be loaded manually, robot-loaded, or configured with automatic barfeed to produce finished parts from full-length raw material. Product is suited for production of oilfield tool joints, axle housings, and conveyor rollers.

J. W. Winco, Inc.    New Berlin, WI 53151
Nov 16, 2009 Designed for installation in thin walled sheet metal, GN 822.1 Steel Mini Indexing Plungers offer lockout position for applications that require plunger pin to be retracted for extended period of time. They are made of zinc-plated, blue passivated steel, with stainless steel plunger and spring, and non-removable knob of matte black glass fiber reinforced nylon plastic. Offered in metric sizes and in compact dimensions, plungers are RoHS compliant.

Vasco Data Security Inc.    Oakbrook Terrace, IL 60181
Nov 16, 2009 Combining e-signature functionality with EMV-CAP compliance, multi-functional DIGIPASS 830a complies with French market two-factor authentication standards and UK APACS standard. Users insert standard EMV chip card into device and type PIN. After PIN-entry, DIGIPASS 830a generates One-Time Password which user will type into web browser for authentication on online banking application. Through verification of OTP or e-signature, identity is confirmed and access is granted.

Dexela Limited    London N1 7EU  United Kingdom
Nov 16, 2009 Dexela flat panel CMOS X-ray detectors are based on CMOS sensor that features high fill factor, efficiency, and low noise which combine to produce DQE of 0.70 at skin dose of 280 µGy. Sensor consists of photodiode array with pixel size of 75 µm, while detectors are available in models with up to 86 fps frame rate and active area up to 290 x 230 mm. They feature shock-/vibration-resistant aluminum housing and operate in temperatures from 10-40°C. High-speed Camera Link interface is included.

Lancope    Alpharetta, GA Georgia 30022
Nov 16, 2009 StealthWatch v5.10 upgrade with StealthWatch® FlowSensor AE appliance delivers flow-based Response Time Management and visibility of network and server performance metrics. Features deliver actionable security and network intelligence to reduce total network and security management efforts. Appliance extends visibility into areas of network that lack flow data or where traditional Ethernet sensor technology is cost-prohibitive.
