Electro Standards Laboratories    Cranston, RI 02921 3403

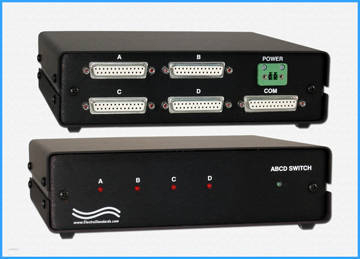

Nov 19, 2009 Model 7288SS DB25, 4-port Code Operated Switch allows sharing of one device among 4 separate devices on ports 1, 2, 3, and 4. Network switch maintains last set position on power loss and returns to position upon restoration of power. Unit is controlled using remote commands via data stream of common port to switch it and change lock state. Pins 1-8 and 20 of DB25 interfaces are switched and all DB25 ports function as DCE ports.

Metallized Carbon Corp.    Ossining, NY 10562
Nov 19, 2009 Manufactured to specifications using carbon-graphite materials, Metcar Mechanical Seal Primary Rings and Seal Faces come in antimony impregnated grades, which offer self-lubricating properties and are suited for running in volatile hydrocarbons. Nickel chrome impregnated grades are suitable for high pressure, liquid lubricated, lift off seals. Offering dimensional tolerances as close as 0.0005 in., seal rings can be lapped and polished to 1 Helium light band flatness.

Micro Plastics, Inc.    Flippin, AR 72634
Nov 19, 2009 Molded in corrosion-resistant Nylon 6/6, sealing and retaining ring washers are used to lock and seal metal fasteners using cold flow principle. Torque nut causes washer ID to flow into screw or bolt threads, and washer OD will flow outward to completely surround nut base and engage hex points. With design that facilitates assembly, specialized sealing washers fit standard screw sizes No. 4, 6, 8, and 10 as well as ¼, 5/16, 3/8, and ½ in.

Benko Products Inc.    Sheffield Village, OH 44054
Nov 19, 2009 Featuring large handrails and galvanized steel back box sections, Elite Series provides safe access from loading dock rack or dock to elevated walkway. Connection point eliminates shakiness and maximizes stability of attached fall protection enclosure, while non-skid, self-leveling grip strut tread provides optimal footing. With customizable options for dimensions and construction materials, stairs are suited for chemical, dry bulk, and petroleum industries.

Emerson Process Management / Process Liquid Division / Uniloc Division    Irvine, CA 92606
Nov 19, 2009 Measuring up to 6 sample streams sequentially, Rosemount® Analytical online wet chemistry analyzers for sodium, silica, phosphate, hydrazine, and ammonia are used for process monitoring in power and ultrapure water industries. Routine reagent replacement and maintenance takes 5 min every 3 months, while replacing valve pump requires ~15 min every 2 years. Reagents are ready-to-use, without chemical solutions to prepare/standardize, and self-diagnostics validate measurement accuracy.

Pat Mooney, Inc.    Addison, IL 60101
Nov 19, 2009 Utilizing 25-70 rpm saw spindle drive system, Nishijimax NHC-230 can saw 9 in. round 1045 bar stock in 50 seconds and provide surface finishes from 40-80 RMS. System's 51 hp induction motor drives saw blade spindle via reduction gearbox. In addition to ensuring that precise feed rate is set automatically, NC saw spindle feed axis maintains input chip load. Saw blade feed rate is controlled via AC servo motor with encoder, programmable servo drive, and precision ball screw.

Tridak    Torrington, CT 06790
Nov 19, 2009 Designed for fluid dispensing, Model 340PS is suited for shot volumes from 0.004-0.180 mL, while Model 340PSL offers larger shot capability up to 1.200 mL. Both incorporate disposable fluid path from reservoir to dispense tip. Sequenced piston actuation dispenses consistent shot-to-shot volume regardless of material viscosity or viscosity fluctuation. Offered with polyurethane, flexible polyethylene, or Teflon® tubing, valves feature over-stroke adjustment to prevent premature tubing wear.

TE Connectivity Ltd.    Berwyn, PA 19312

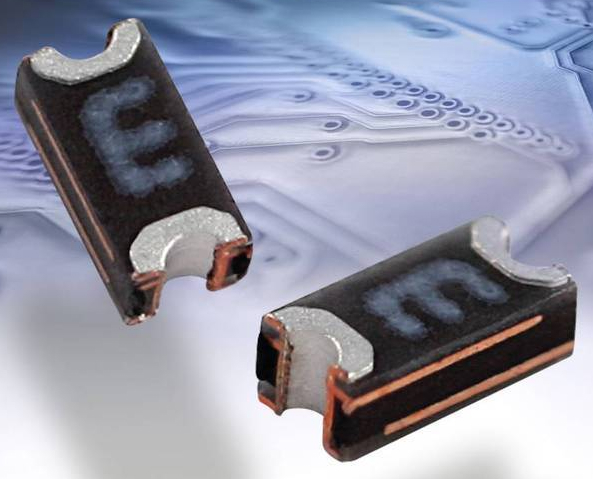

Nov 19, 2009 Measuring 1.6 x 0.8 x 0.5 mm, femtoSMDC016F protects sensitive electronics from damage caused by overcurrent and overtemperature events. Time-to-trip (0.10 sec at +25° and 1 A) and resettable functionality promote reliability of portable electronics. Rated at 9 V, industry-standard SMT 0603 device provides hold current of 0.16 A, max fault current rating of 40 A, and max resistance of 4.2 W. It is terminated with nickel-tin finish and complies with EIA and RoHS standards.

CCTV Camera Pros    Lantana, FL 33462
Nov 19, 2009 Portable CCTV test monitors include model MON-LCD4, with 4.2 in. screen offering 480 x 234 pixel resolution, and 1 BNC video input/1 BNC video output and audio in/out via RCA. It features rechargeable battery with power supply for charging. Products are also available in versions with 2.5 and 3.5 in. screens. Monitors strap to installers wrist or arm, enabling them to mount, test, and focus security camera without assistant.

Process Control Corp.    Atlanta, GA 30340
Nov 19, 2009 Utilizing off-the-shelf electronics and blender control software for optimal throughput, Guardian® Series come standard with touch screen operator interface that can be remote mounted up to 1,000 ft from blender. Each hopper has 90° side and no transition sections to maximize material flow. Three-phase mixer motor and starter come standard for sizes 5 kg and larger. All models offer dual hinged doors with quick release latches for weigh hopper/mixer access.

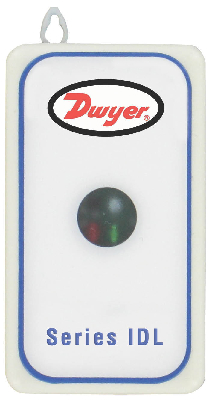

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 19, 2009 Supplied in 2 23/64 x 1 3/8 x 25/32 in. ABS housing, Series IDL provides accurate record of temperature or process signals depending upon model. There is storage capacity for 16,384 readings, and downloads are possible via IR transfer dock with RS232 serial interface. In addition to user-selectable sample rate, series features programmable high/low alarms indicated with LED and audible buzzer. Ranges include -40 to +158°F (IDL-0), 0-22 mA (IDL-2), and 0-10 V (IDL-3).

Z-Communications, Inc.    San Diego, CA 92126

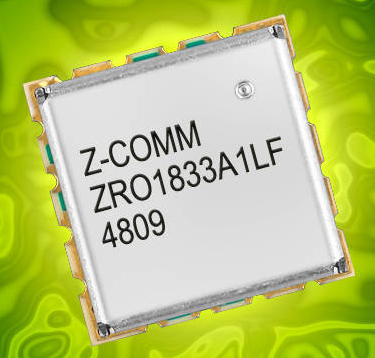

Nov 19, 2009 Model ZRO1833A1LF in L-band operates at 1,832-1,834 MHz with tuning voltage range of 0.5-4.5 Vdc and offers typical tuning sensitivity of 5 MHz/V. Delivering output power of 4.5 dBm at 5 Vdc supply, it typically draws 25 mA over temperature range of -40º to +85ºC. Second harmonic suppression is -20 dBc. RoHS-compliant VCO is available in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in.

Martel Electronics    Londonderry, NH 03053

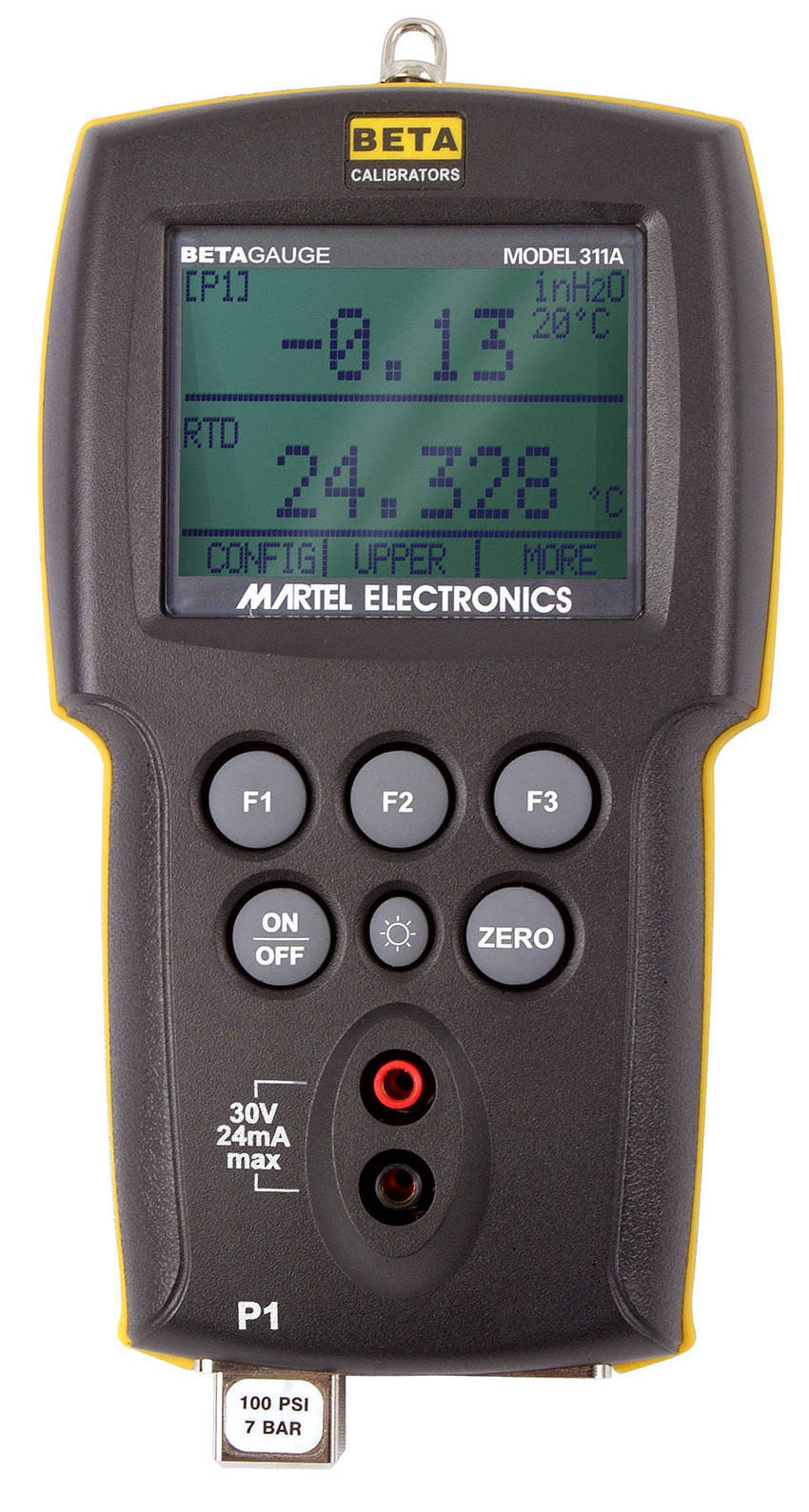

Nov 19, 2009 Housed in Power-Tool-Tough enclosure that handles 6 ft drops, single sensor BetaGauge 311A and dual sensor BetaGauge 321A feature RTD input, external pressure module interface, mA/V measurement, and integral 24 Vdc instrument loop power supply. Firmware provides adjustable display resolution and custom engineering units, while hardware offers internal HART(TM) resistor and secure off keypad. Optimized circuit and sensor stability handle demanding environmental conditions.

Advanced Telemetrics International    Spring Valley, OH 45370

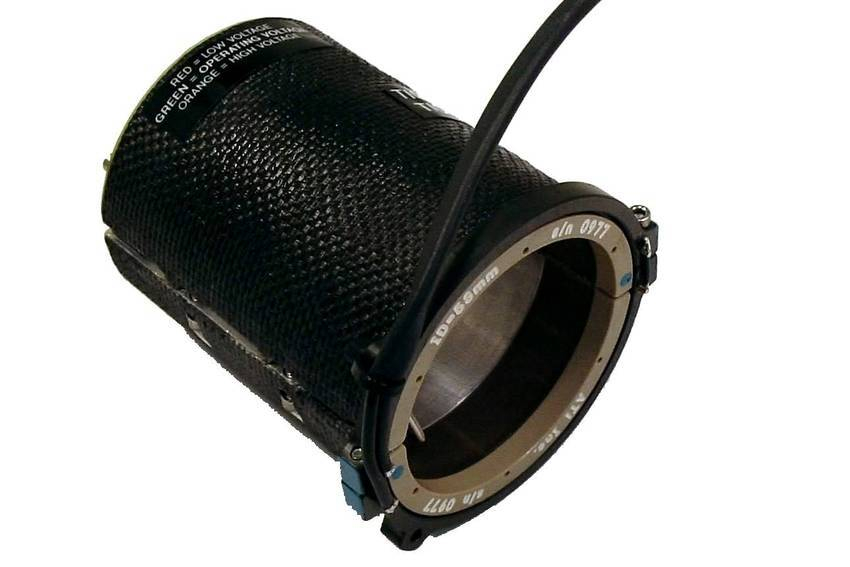

Nov 19, 2009 Housing all electronics needed to provide RF link from sensors mounted on rotating shafts, reciprocating rods, or other moving machinery to stationary DAQ/display instruments, Series 2010iUT is capable of transmitting data with signal content from DC up to 1,100 Hz. Embedded rotating loop antenna and induction power converter to provide continuous, non-interrupted measurements. Receiver demodulates signal and converts it to ±2, ±5, ±10 Vdc or 4-20 mA analog output.

Eurotech Group    AMARO (Udine) 33020  Italy

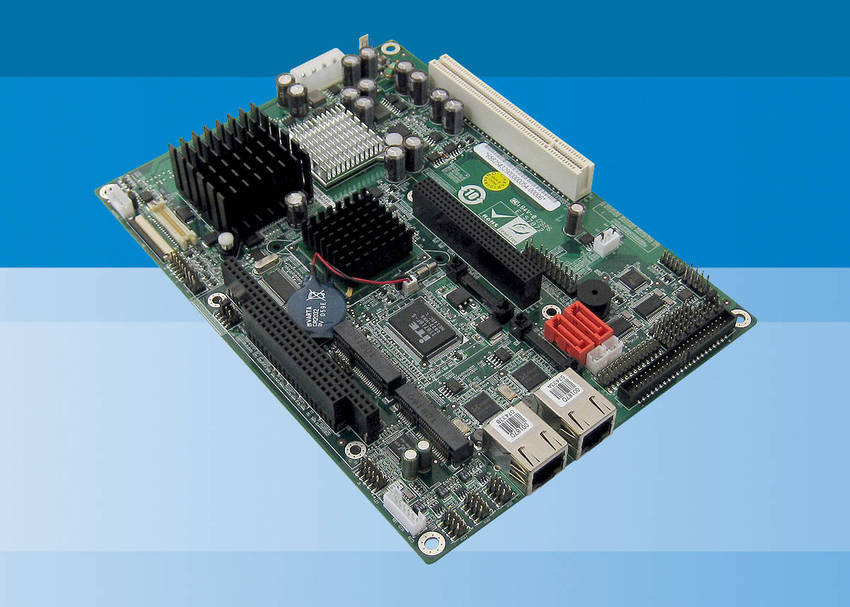

Nov 19, 2009 With form factor of 5.25 in., Intel® Atom(TM) based high performance, low power, fanless, ALUDRA single board computer suits applications within energy, medical, transportation and industrial automation industries. It is available with pre-installed ready-to-run embedded operating systems including Windows XP Embedded and Fedora Linux, and offers PC/104, PC/104+ and PCIe expandability for 3G and Wi-Fi. Product delivers full Intel x86 compatibility.

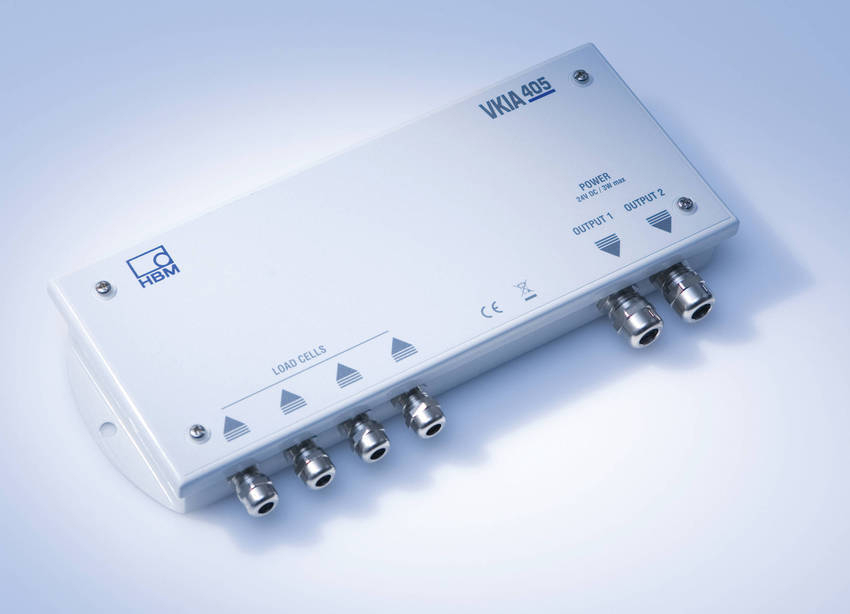

HBM, Inc.    Marlborough, MA 01752 3014
Nov 19, 2009 Providing digital measured value processing with long-term stable supply voltage for up to 4 analog load cells, VKIA405 enables monitoring of loads during operations and prevents any possibility of overloading in storage area. It is fitted with serial RS485 interface for integration with control and data processing system of warehouse. Featuring integrated off-center load compensation network, device eliminates need for additional wiring connection boxes for load cells.

Memory Protection Devices    Farmingdale, NY 11735

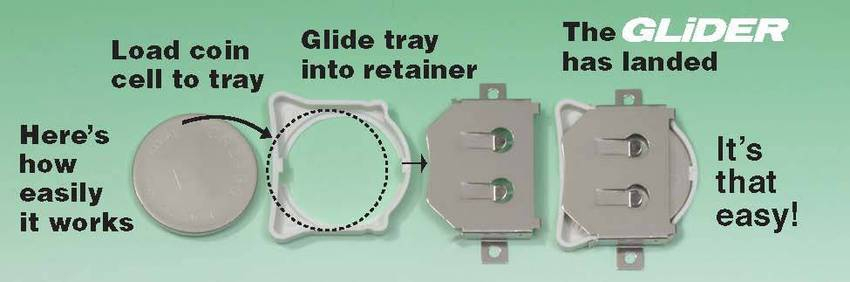

Nov 19, 2009 Available in 20 styles ranging from 10-24 mm dia, with either printed circuit pins or SMD leads, Lithium Battery Gliders feature built-in circuit protection and prevent electrical connection by battery when upside down. Retainer is made of nickel-plated phosphor bronze and has pressure contacts that offer low electrical resistance while maintaining tight connection with battery. Versions that hold 2 batteries in series for 6 V applications are also available.

Streamlight, Inc.    Eagleville, PA 19403

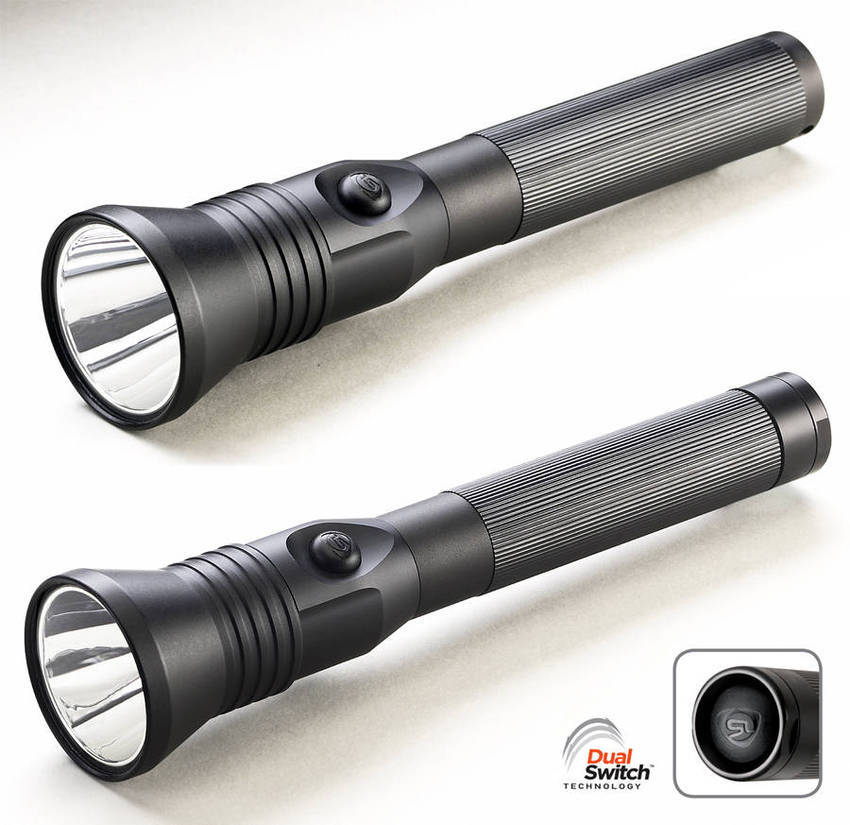

Nov 19, 2009 Measuring 9.23 and 9.65 in. long, respectively, Stinger® LED HP and Stinger DS® LED HP are powered by 3 cell, 3.6 V nickel-cadmium sub-C batteries. They provide 3 intensity levels of 48,000, 24,000, and 11,000 candela and run up to 7.25 hr at low brightness. Made of machined 6000 series aircraft aluminum, flashlights feature non-slip rubberized comfort grip and deep-dish parabolic reflector that produces long-range targeting beam with optimum peripheral illumination to aid in navigation.

Dalemark Industries, Inc.    Lakewood, NJ 08701
Nov 19, 2009 Dsigned to accommodate web stocks from 7-26 in. wide at speeds up to 215 fpm, Cooper MINIFLEX offline reel-to-reel 1 or 2 color flexographic printer has been designed for both converters as well as pharmaceutical/cosmetic market and other users of flexible materials such as tyvek, papers, films, and foils. Compact unit can be run with water-based or UV inks as well as varnish or digital primer and is available with either UV or IR dryers.

SICK, Inc.    Minneapolis, MN 55438
Nov 19, 2009 Suited for non-contact detection of metal targets in industrial environments, IME Inductive Sensors feature ASIC programming chip that enables it to provide accurate and repeatable measurements. Hot Melt filling materials allow sensors to withstand humid areas and resist shock and vibration. Featuring immunity to RFI signals, voltage and current spikes, and electrostatic discharge, sensors are suited for applications in packaging, assembly, metal forming, and automotive industries.
