Boge American, Inc.    Powder Springs, GA 30127

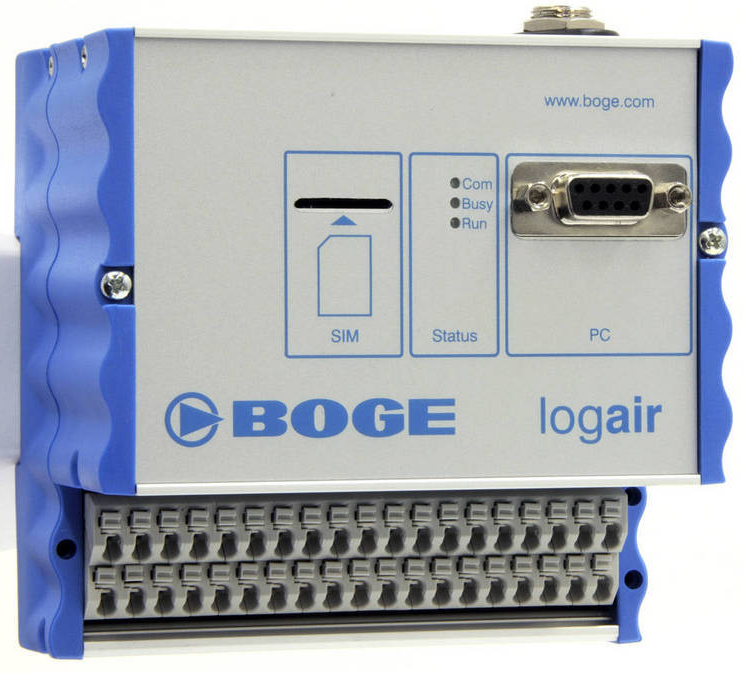

Dec 07, 2009 Enabling remote monitoring via PC or cell phone, Logair alerts factory manager to any compressor requirements or issues requiring immediate action. Wireless communication system offers permanent online link that provides remote data request system and visualization over Internet without requiring comprehensive management system. Programmable via PC or laptop, solution can transmit fault messages via SMS to chosen cell phone, and all data/messages are accessible via Internet.

Pointwise, Inc.    Fort Worth, TX 76104-1107
Dec 07, 2009 Designed to generate structured, unstructured, and hybrid meshes, Gridgen v15.15 interfaces with CFD solvers, such as ANSYS FLUENT, STAR-CD, ANSYS CFX, and OpenFOAM. Program's T-Rex technique extrudes layers of high aspect ratio tetrahedra for boundary layer resolution, gradually transitioning to isotropic tets away from body. Optional post-processing step combines adjacent tetrahedra into pyramid and prism elements in extrusion layer.

ITW Ransburg    Toledo, OH 43697
Dec 07, 2009 Consisting of control unit, ground probe, and low voltage cable, GMS(TM) Ground Monitoring System provides non-contact method for detecting presence of ground path on non-metallic substrates, and includes visuals for precise feedback on ground path strengths. Improper grounding can cause overspray, excess paint build-up, thin film build, or ruined parts. By incorporating GMS into electrostatic finishing system, optimum performance and safety is ensured.

IQPod, LLC    Los Gatos, CA 95032
Dec 07, 2009 Used to avoid harm and safety issues of ladder handling, Strap-n-Go handle is designed to facilitate safe and ergonomic ladder lifting and transport. Design evenly distributes weight of any ladder while maintaining balance, comfort, and control. This helps eliminate injuries as well as decrease stress, strain, and fatigue caused by carrying ladder via traditional high- or low-shoulder methods.

Eye Lighting International    Mentor, OH 44060

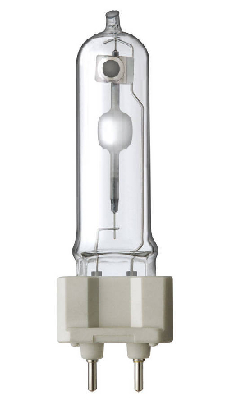

Dec 07, 2009 Rated at 3,600 K with CRI of 92, EYE 39 Watt Cera Arc Lamp produces rich colors, especially red, making it suited for grocery store meat, fish, produce, and other displays. Lamp also delivers rich greens, blues, and whites that are essential to floral, clothing, and jewelry merchandising. Supplied in G12 base, lamp can be mounted in any position.

Techni-Tool, Inc.    Worcest, PA 19490-1117

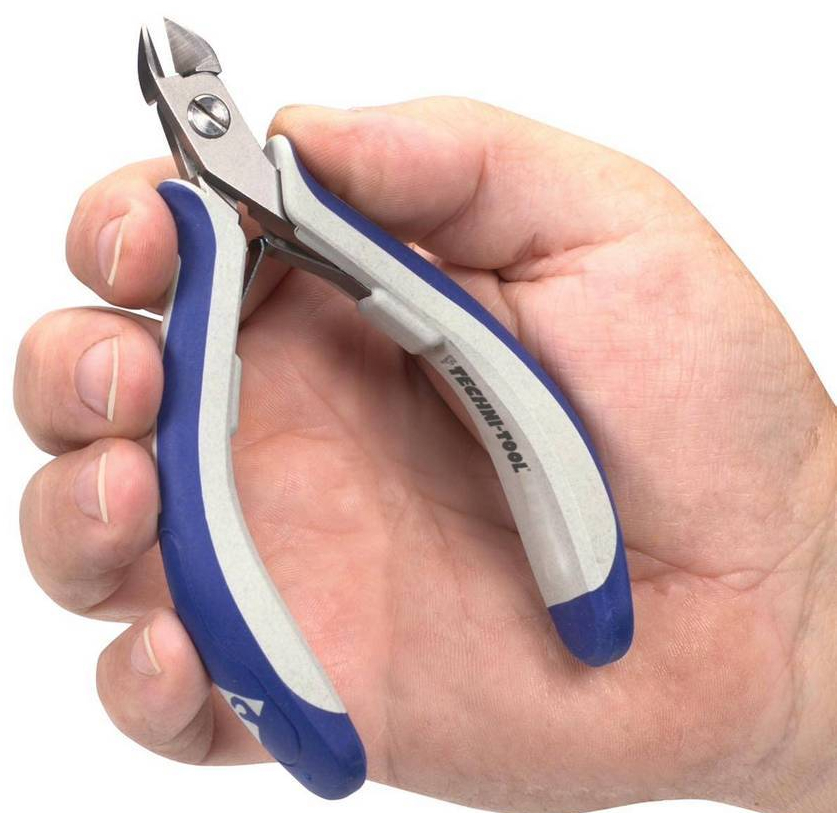

Dec 07, 2009 Tec-Cut Infinity Elite series includes 6 micro-cutter models capable of cutting 18-20 AWG electronic wires. Constructed of heat-treated, ball bearing steel, tools employ cutter heads sized to reach into tight spaces and promote user control. Oval and tapered style cutter heads are available with choice of semi-flush, flush, and full-flush cuts, and required open/close force remains constant over time. Also, lap-joint blade design, joined with steel screw, keeps cutting edges aligned.

Bondhus Corp.    Monticello, MN 55362 9347

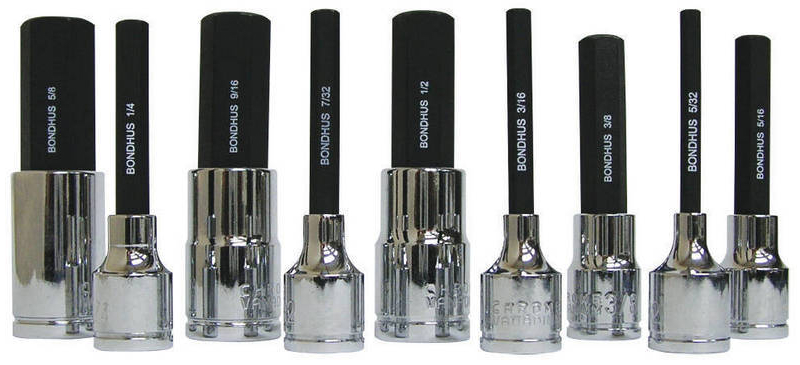

Dec 07, 2009 Inch and metric ProHold® Socket Bits, offered in 2 and 6 in. lengths, are available in various set combinations covering sizes from 5/32-5/8 in. and 4-17 mm. Made of Protanium® steel for strength and featuring ProGuard(TM) finish for corrosion protection, bits stay securely in place when pushed into any 6-point socket due to 2 buttons on socket-end of each bit. Sets with and without sockets are available.

Deublin Company    Waukegan, IL 60085-6747
Dec 07, 2009 Modular in design, Multi-Passage Rotating Unions convey virtually any liquid or gas medium, including steam, water, coolant, hydraulic or cutting fluids, inert gas, or vacuum. Depending on requirements of each application, units are available with 2-12 passages, 1/8-1¼ in. port diameter, and variety of port styles including G, NPT, PT, and SAE. Users can also choose flange type, housing material, and whether electrical slip rings are required.

Ermanco, Inc.    Spring Lake, MI 49456 9652

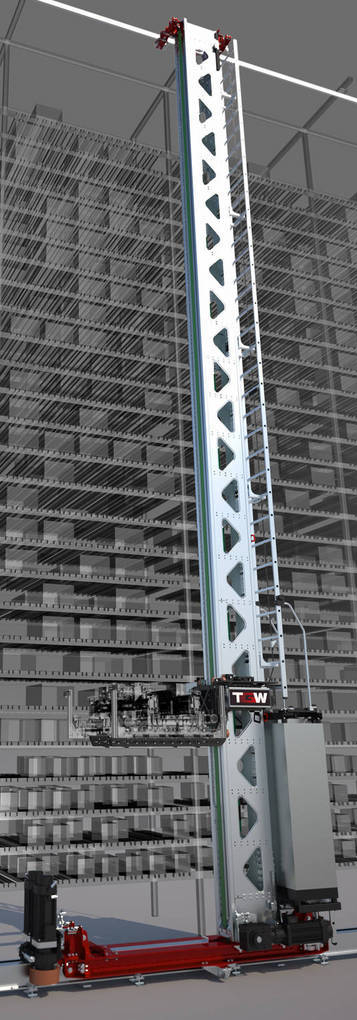

Dec 07, 2009 With payload capacity of 220 lb max and optimum height of 39 ft, Mustang Evo meets requirements of over 70% of all mini-load automated storage and retrieval systems (AS/RS). Chassis, chassis frame, and lifting unit are reinforced and engineered using weight-optimized design, which contributes to strength, center of gravity, and distribution of loads to running wheels. Crane reaches 19.7 fps max speed, offers 9.8 fps² lifting acceleration, and offers 9.8 fps max lifting speed.

ITT Corporation    White Plains, NY 10604

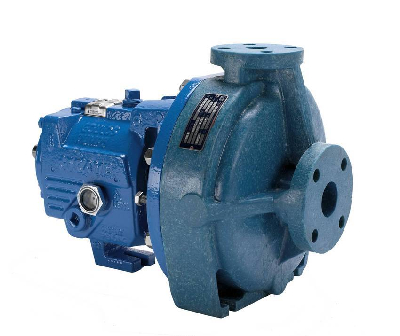

Dec 07, 2009 Constructed of fiberglass-reinforced plastic, Model NM 3196 offers alternative to metal-alloy pumps for processes involving highly corrosive fluids. Unit features i-FRAME power ends with i-ALERT(TM) on-board condition monitor, which automatically monitors temperature and vibration, warning users with flashing LED if either are exceeding normal parameters. Operating up to 195°F, Model NM 3196 comes in 13 hydraulic sizes with capacities to 1,400 gpm and heads to 500 ft.

Continental Hydraulics    Savage, MN 55378

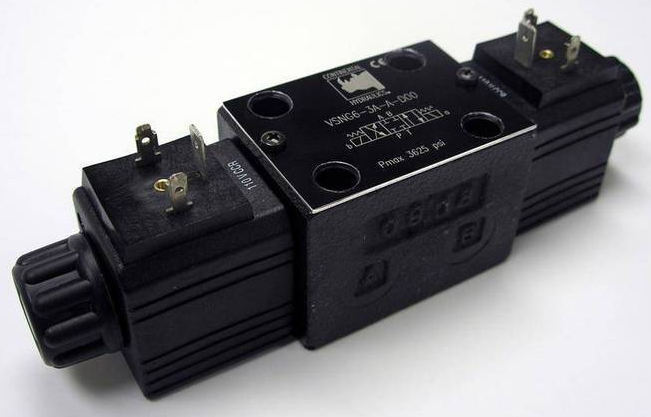

Dec 07, 2009 Supplied in 3- or 4-way designs with interchangeable spools and different porting configurations, VSNG6 Directional Control Valves feature bodies of high-strength iron castings and internal passages that minimize flow pressure drop. Additional features include DC or rectified current wet armature solenoids with interchangeable coils and 5 different types of electrical connections. Flow rates reach 13.2 gpm max, with pressure to 4,060 psi max.

Cotta Transmission Co., LLC    Beloit, WI 53511
Dec 07, 2009 Available as speed increaser and decreaser, SN2057 high-speed transmission is offered with selectable speed output capability for test-stand applications. When test-speed requirements change, output cartridge can be removed and replaced by one more appropriate without requiring any re-fitting, takedown, or new equipment. Gearbox has 350 hp nominal capacity, 50,000 rpm max output speed, 6,000 rpm max input speed, and standard ratios of 8.50 and 11.96 (custom ratios available).

Casella USA    Amherst, NH 03031
Dec 07, 2009 Model CEL-350 dBadge(TM) micro noise dosimeter measures employee noise exposure over working day and helps assure compliance with OSHA, NIOSH, or ISO standards. Attaching to shirt, overalls, or hardhat, it is operated via 2 side buttons and includes display and indicating LED. It has 64 KB memory, storing 180 hr of data, and captures time history for every noise event, logged in 1 min intervals. Unit's software allows generation of user-defined databases for reporting.

Sealed Air Corp.    Saddle Brook, NJ 07663-5291

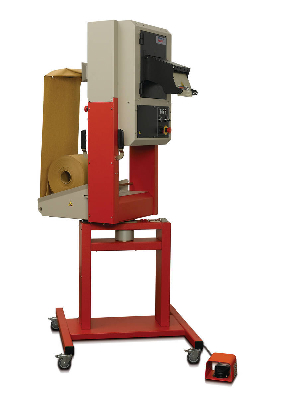

Dec 07, 2009 Capable of operating at up to 260 fpm, FasFil(TM) System uses 3 pre-set speeds to create pad-shaped paper for void-fill applications. System adapts to on-demand workstations or high-volume continuous feed environments with multiple packaging stations. Available in 3 height configurations, FasFil features drop-in front and back loading design and foot pedal operation. Customers can choose weight, width, and length of paper, depending on specific protection requirements.

Flow Technology Inc.    Tempe, AZ 85284

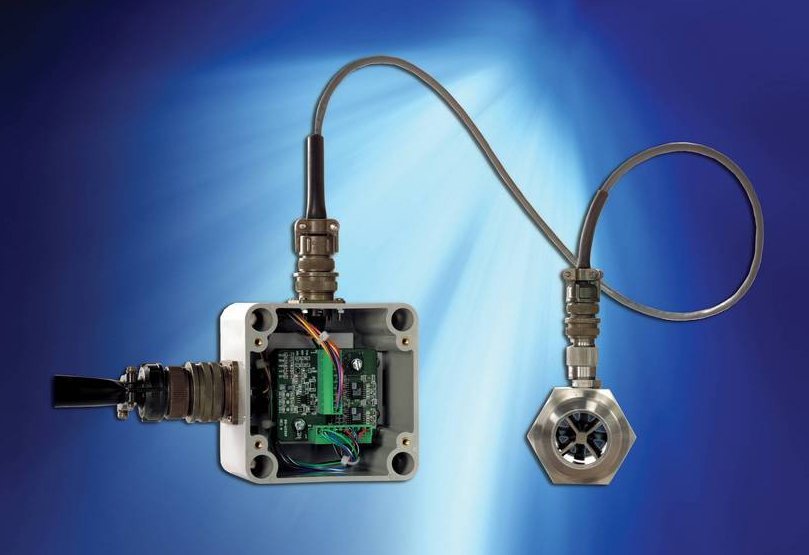

Dec 07, 2009 Suitable for wide range of liquid applications, FT-BD turbine flowmeter system can compensate for viscosity changes due to variations in ambient fluid operating temperature. System's flowmeter with bidirectional Universal Viscosity Curve calibration employs dual RF/RTD pickoffs for determining flow direction and sensing temperature. Product can output 4-20 mA flow measurement signal to DAQ system and display digital readouts via panel-mount display.

Cleveland Vibrator Co., The    Cleveland, OH 44113
Dec 07, 2009 Featuring 2.25 in. base, Turbomite CVT-P-22 Acetal Body Mini Turbine Vibrator is constructed with acetal plastic and SS exterior parts with laser etching. Operating from 10-100 psi, it generates 18,000 vibrations/min at 80 psi with force output of 55.2 lbf and air consumption of 20 cfm. Unit is controlled with simple hand valve or 2-way solenoid valve and regulator. Also included are SS mounting bolts, muffler, and nickel-plated brass push-on inlet fitting.

ERICO    Solon, OH 44139-2631

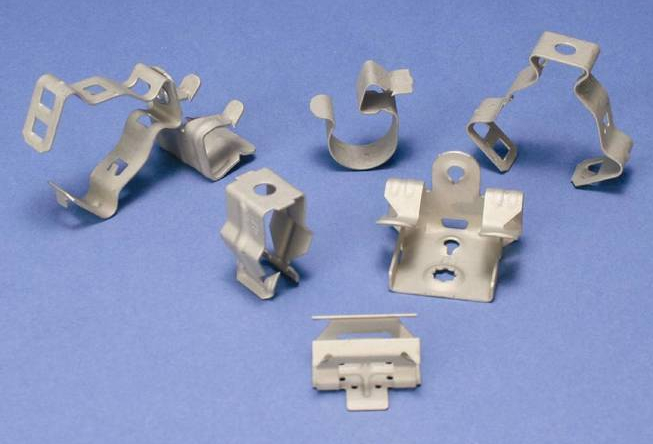

Dec 07, 2009 CADDY® ARMOUR is chrome-free, bimetallic corrosion protection coating system that combines inorganic basecoat with organic topcoat for barrier protection. It is applied consistently to steel parts via computer-controlled process. Self-healing coating is UL®-recognized and RoHS-compliant.

SICK, Inc.    Minneapolis, MN 55438
Dec 07, 2009 Offering measurement range up to 600 bar, PBS electronic pressure switch integrates IO Link which permits automatic sensor parameterization and measurement data collection. When exchanging devices, any necessary parameter changes can be carried out automatically within msec without erroneous manual adjustments. Pressure measurement can also be conducted directly on pressurized container. Compact switch combines electronic switching outputs, analog output, and display in rotating housing.

SICK, Inc.    Minneapolis, MN 55438
Dec 07, 2009 Model V300 WS Extended meets IEC 61508 SIL2 and EN ISO 13849 Performance Level d standards. Transmitter and receiver are integrated in single housing that allows horizontal or vertical installation. Suitable for machine openings and monitored areas up to 1.5 m x 1.5 mm, it generates field that reaches to reflector strip mounted opposite device and montiors length and breadth of strip with selectable resolutions of 20, 24, or 30 mm. Movement of machine is stopped within 20 msec.

Pinpoint Laser Systems    Peabody, MA 01960
Dec 07, 2009 Designed to operate with Laser Microgage 2D, Transparent Receiver allows laser beam to pass clearly through it while making precise position measurement for aligning machinery and equipment. Compact unit fits in small places for bore alignment, lathe and spindle alignment, checking machine tool runout, and roll and web alignment. Operating over distances of 100 ft or more, receiver delivers measuring precision of 0.0005 in.
