GlobTek, Inc.    Northvale, NJ 07647
Dec 08, 2009 Custom Li-Ion Prismatic battery pack, rated 7.4 V, 1,900 mAh, consists of 2 Panasonic CGA103450A 103450-sized cells packaged in enclosure with included protection and fuel gauge circuitry. Able to deliver 80% (min) of rated capacity after first 300 cycles, pack features custom frame of polycarbonate/ABS mixture and nickel contacts. Onboard protection is offered for short circuit, over-voltage, over-current, under-voltage, overcharge, over-discharge, and over-temperature conditions.

GlobTek, Inc.    Northvale, NJ 07647
Dec 08, 2009 Accepting inputs of 9-18, 18-36, and 36-72 Vdc, PCB-mountable DC-DC Converters deliver outputs of 3.3, 5, 12, and 15 Vdc along with sense, trim, and remote on/off controls. Convection cooled units are suitable for portable equipment, communication, video, power tools, consumer electronics, industrial and medical equipment. Multiple output designs are also available.

Infineon Technologies AG Dep. CIC MC      Germany
Dec 08, 2009 Designed for driving 0.5 W LEDs with typ current of 150-200 mA, BCR320 and BCR420 feature negative thermal coefficient that helps extend LED lifetime and digital interface for PWM signal that supports dimming. Both negate usage of inductors, capacitors, and free-wheeling diode. While BCR320 is designed for peak output current up to 300 mA and has internal breakdown voltage of 20 V typ, BCR420 has internal breakdown voltage of 50 V typ and nominal output current of 150 mA.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Dec 08, 2009 Featuring Guidebar(TM) Technology, DVPHD High-Definition Annotator allows presenters to write or draw over live computer and full-motion HD video images using touchscreen or mouse. Intuitive touchpanel functionality of Guidebar puts annotation palette plus source and room controls at presenter's fingertips. With constant HDCP authentication, DVPHD can display up to 8 sources simultaneously, and each video window is independently controllable in real-time with dynamic transitions, graphics, and text.

Delcam USA    Salt Lake City, UT 84111
Dec 08, 2009 Incorporating Parasolid kernel alongside surface modeling operations, PowerSHAPE enhances solid modeling abilities. This aids in development of history-based geometric models as well as design of tooling and plastic products/housings. Also, components that contain Power Features react automatically when placed within assembly. All necessary fit-features are added to connecting components, and tolerances between various components are also defined.

GAO Tek Inc.    Toronto M1B2K4  Canada
Dec 08, 2009 Model TVS-21 network video server integrates high-speed digital processor capable of audio/video compression that supports high-quality image transmission and display. Allowing remote view of video through Internet, product supports 2 level domain names to recognize dynamic IP addresses, and embedded web server enables monitoring and configuration via browser. System's frame rate ranges from 1-30 fps according to bandwidth. It is compatible with HALF-D1/CIF formats.

ThorLabs    Newton, NJ 07860
Dec 08, 2009 Consisting of breadboard and frame, base ScienceDesk Workstations are available with working surfaces from 2 x 3 ft to 3 x 4 ft. Range of vibration isolation options and accessories are available depending on application and environment. With shelving options, user can add or remove shelves and place instrumentation above, below, or around isolated work surface. Applications include high-resolution, confocal, and scanning probe microscopy, as well as electrophysiology.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Dec 08, 2009 Quartz shock accelerometers of 3200BM and 3200BT series measure mechanical shock events of up to 100,000 g amplitude. Featuring compression design quartz seismic elements, miniature instruments are offered in 6 variations each, between 2,500-70,000 g range, and weigh just 6 g. Both series are electrically isolated from sensor base and offer 10-32 axial connector. For mounting, 3200BT series has integral 10-32 mounting stud, and 3200BM series has metric M6 x 1.0 integral stud.

Digital Wave Corp.    Centennial, CO 80111
Dec 08, 2009 UE23(TM) Ultrasonic DOT cylinder testing machine utilizes water column created by UE squirter design to optimize performance. It is capable of testing 200-1,000 cylinders/month or up to 4,000 Med E's/month, or up to 60 M6/Med E or 10 T/K size cylinders/hr. All configurations, such as steel, aluminum, or exemption cylinders, are supported, and unit offers simplified setup. Customizable digital reports allow for information collection and digital tracking.

Del City    Menomonee Falls, WI 53051
Dec 08, 2009 Able to replace currently employed circuit breakers, manual reset models 75910/75915/75920/75925/75930 fit into most ATC®/ATO® fuse panels and are color-coded with industry standard fuse coding to facilitate proper amperage rating identification. These thermal breakers, rated for 28 Vdc, have operating temperature of -40 to +185°F and meet SAE J553 and J1171 standards for ignition protection. Individual amperage ratings include 10, 15, 20, 25, and 30 A.

PulseTech Products Corporation    Southlake, TX 76092
Dec 08, 2009 Rated at 1.6 A, 25 W SP25 SolarPulse® automatically charges, maintains, and desulfates batteries including standard, AGM, and gel types. It works with single batteries or up to 4 batteries connected in parallel. Waterproof, industrial design features polyurethane-encapsulated solar panel mounted on solid aluminum back plate and uses single-crystalline silicon photovoltaic cells. LED indicators relay status of system, which offers various mounting options.

Pentek Inc.    Upper Saddle River, NJ 07458
Dec 08, 2009 Suitable for connection to HF or IF ports for communications, radar, telemetry, and medical systems, Model 71620 features three 200 MHz 16-bit TI ADS5485 A/Ds delivering input bandwidth of 350 MHz, and dual-channel 800 MHz 16-bit TI DAC5688 D/A providing 2 wideband analog outputs. Multichannel XMC module supports Gen 2 PCI Express as primary control and data streaming interface. With lane widths up to x8, data can be moved on and off board at rates up to 4 GB/sec.

Aeroflex / Metelics, Inc.    Sunnyvale, CA 94085
Dec 08, 2009 Comprised of PIN diode SPST switch elements, MS- series comes in series, shunt, and series shunt configurations and offers 1-10 GHz max frequency. Models offer 5-50 W max rated power, 0.15-0.40 dB insertion loss at 1 GHz, and 10-63 dB isolation at 1 GHz. With stable broadband performance beyond 10 GHz, MSAT High Dynamic Range Shunt Attenuator Diodes include 2 models, one NIP and one PIN style, with 0.3 dB typ insertion loss and typ attenuation values from 0.4-27 dB @ 10 µA to 100 mA.

DP Technology Corp.    Camarillo, CA 93012
Dec 08, 2009 Optimized to embrace capabilities of multi-core computers, ESPRIT® 2010 includes FreeForm 3- and 5-axis machining cycles for milling, mill-turn, and Swiss-turn machine tools. Multi-threaded stock automation engine enables customers to instantly start part program simulation at any time and at any point in program. With feature recognition function, program automatically recognizes pockets with any combination of open and closed walls, fillets, chamfers, and tapered walls.

Omega Engineering, Inc.    Stamford, CT 06907
Dec 08, 2009 Model OS-DT8855W is non-contact temperature measurement instrument with laser circle/dot sight. High-performance device defines target for point-and-shoot measurement of temperatures from -58 to +2,498°F and reads surface temperature in less than 1 sec. It includes hard carrying case, USB wireless data receiver, mini-tripod, power supply, type K thermocouple, probe lead adapters, and software.

Slaughter Company    Lake Forest, IL 60045

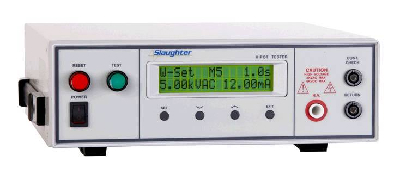

Dec 08, 2009 Comprised of Model 2955 Hipot Tester, Model 2965 AC/DC Hipot Tester, and Model 2975 AC/DC Hipot Tester with built-in insulation resistance testing, 2nd generation 2900 Series provides 10 program memories to store and recall test setups. Optional RS-232 interface enables direct connection to PC, allowing remote setup and download of test results. Additional features include tamper-proof front panel controls, adjustable ramp and dwell timers, and line/load regulation.

JKL Components Corp.    Pacoima, CA 91331-2376
Dec 08, 2009 Maintaining 20 mm profile for use in switches and other applications, LE-0903 Series is available in neutral white with 12 or 24 Vac/dc voltage. Three cylindrical LEDs embedded in T-3¼ wedge base provide even light distribution. Featuring 120° viewing angle, flat top RoHS-compliant units are suitable for display lighting, gaming machines, and panel illumination, as well as landscape and architectural lighting.

Opto Diode Corp.    Newbury Park, CA 91320
Dec 08, 2009 Suited for fluorescence in medical, scientific testing instruments, and forensic applications, OD-469L LEDs with narrow beam angle are available in hermetically-sealed TO-5 can with 3 leads. They deliver power output of 80-170 mW at 25°C and feature dominant emission wavelength of 465-475 Nm with typical operation at 470 Nm. Maximum ratings at 25°C include 1,000 mW power dissipation, 350 mA continuous forward current, peak forward current at 2 A, and reverse voltage at 5 V.

Next Generation Power Engineering, Inc.    Jacksonville, FL 32246
Dec 08, 2009 Available in 1,800 or 3,000 rpm with 1-4 cylinders, Next Gen Hydraulic Power Packs employ heavy-duty, diesel Kubota engine and can be configured for mobile or stationary purposes. All units feature automatic shutdown for low oil pressure and high coolant temperature. Units are custom built with options including generators, welders, and compressors. Other options include direct drive or belt drive designs, radiator or remote cooling and various control panels.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

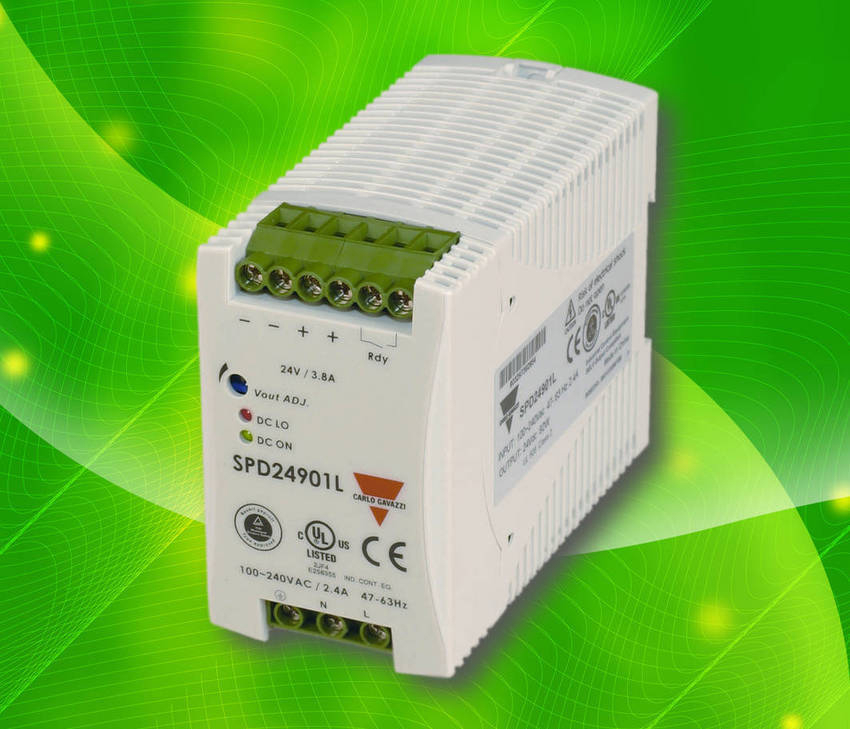

Dec 08, 2009 Accepting 90-264 Vac and 120-375 Vdc input, compact 90 W SPD242901L offers power ready relay output and secure DIN-rail mounting. It has 2 diagnostic LEDs for visual indication of DC output power status, and operates at -25 to +60°C without derating. Unit is UL 508, cUL listed and TUV approved, and carries CE and RoHS marks. Standard features include short circuit protection, overload protection, and power factor correction functionality.
