Daimer Industries Inc    Woburn, MA 01801
Apr 21, 2009 Along with stainless steel heating coils, Super Max® 7000/9000 employ tri-mode technology for selective use of steam, hot water, or cold water. Also included, Automatic Shutoff Technology® switches off key components - pump and motor - after 30 sec of inactivity. Super Max 7000 offers flow rates to 2.5 gpm, up to 1,000 psi; hot water from 180-210°F, and steam to 330°F. Respectively, Super Max 9000 offers up to 2.8 gpm, 1,500 psi, 180-210°F, and 250°F.

DVS Digital Video Systems AG    Hannover 30165  Germany
Apr 21, 2009 Supporting compressed formats such as Avid DNxHD®, XDCAM®, and DVCPRO®, VENICE Server provides secure processing of digital video content. Unit features 2 independent pairs of video channels for ingest and play-out, and captures data directly from cameras, tape recorders, P2 cards, or hard drives. VENICE also supports parallel processing of SD and HD projects. Material can be accessed and processed directly with multiple editing systems.

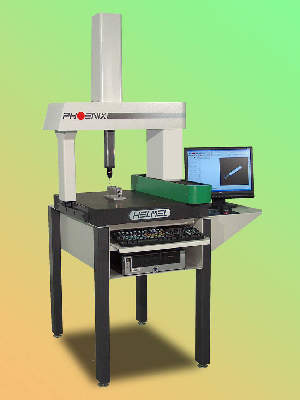

Helmel Engineering Products, Inc.    Niagara Falls, NY 14305
Apr 21, 2009 Providing measuring capacity of 12 x 12 x 10 in., PHOENIX RB features self-contained moving bridge design with full granite table on stand that houses electronics and computer. Hardened and precision ground ways with mechanical bearings provide long-term reliability, while steel scales mounted on steel structures assure uniform thermal response. Motorized system includes controller, joystick, Renishaw probe, and GEOMET software.

advanced PANMOBIL Systems GmbH & Co. KG    koln   Germany
Apr 21, 2009 Available in basic and gun versions, SCANNDY reads 1D and 2D barcodes in addition to being able to read and write LF/HF/UHF RFID tags. Modular unit weighs 139 g and accommodates various accessories to meet different application requirements. Able to read up to 170 tags/sec, scanner features OLED display with 170º viewing angle, cable (PS2, RS232, USB) and RF communication (Bluetooth/GPRS/WiFi/433 MHz/ZigBee). Scanned data is transferred into chosen application once connected to PC.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Apr 21, 2009 Suited for landscaping, construction, and agricultural applications, JLG® 619A has 6,000 lb capacity at maximum reach height of 19 ft, while 723A allows 7,000 lb at height of 23 ft. Both models feature all-wheel steering along with single joystick control design. Controls include standard lift/loader mode feature allowing operator to switch primary function of x-axis from controlling telescopic function of boom to controlling tilt or dump function of attachment.

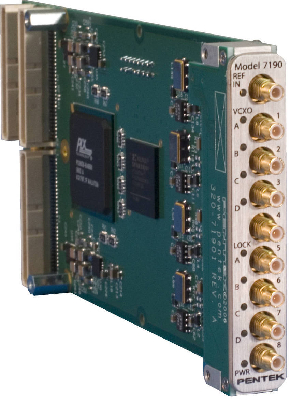

Pentek Inc.    Upper Saddle River, NJ 07458
Apr 21, 2009 Using 4 TI CDC7005 clock synchronizers, each controlling one quad-frequency VCXO, Model 7190 lends designers working with A/Ds and D/As precise source of clock signals in PMC format. All 8 output clocks are phase-locked to external frequency reference, and unit is programmed to select any one of its 4 VCXO frequencies. Resulting frequencies can be divided by 1, 2, 4, 8, or 16. Up to 5 different frequencies or one identical clock can be delivered to 8 front-panel SMC output connectors.

GAO RFID Inc.    Toronto   Canada
Apr 21, 2009 Able to read all FDX-B and HDX RFID tags, 134.2 kHz GAO212001 is tailored for continuous operation in feeding stations, animal scales, or sorting gates. ISO 118784/5-compliant solution includes auto-tuning and diagnosis modules that optimize read range and stability, even under changing environments, and enable on-site diagnosis for noise problems. Clock synchronization enables use in applications where several readers or antennae are used in close proximity.

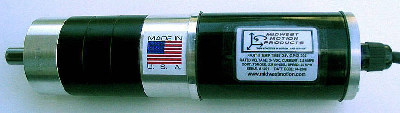

Midwest Motion Products    Watertown, MN 55388
Apr 21, 2009 Measuring 2.14 in. dia x 7.7 in. long with 12 mm dia x 25 mm long keyed output shaft, MMP-TM55-24VGP52-236 reversible gearmotor accepts any 24 Vdc source and can produce 238 lb-in. continuous torque at 20 rpm (443 lb-in. peak). Lightweight (3.5 lb) solution, available with motor windings for 12, 36, 48, 60, and 90 V, is rated IP54 and accommodates variable speed controls. It suits battery-powered electric vehicles, robotics, and automation applications.

Electro-Optical Products Corporation    Glendale, NY 11385
Apr 21, 2009 Measuring 0.9 x 0.5 x 0.43 in., SC-3 Non-MEMS Resonant Scanner features one fixed scanning frequency in range of 100-1,000 Hz and optical scan angle up to 50°. Electromagnetically driven, moving mirror device deflects light beam with continuous sinusoidal motion. High flexural stiffness provides resistance to shock and vibration, as well as low wobble and optimal scan repeatability. Models can be used in VIS, IR, UV, high-temperature, and vacuum applications.

Belden    Richmond, IN 47375
Apr 21, 2009 Able to be deployed in long cable runs for HD video (HD-SDI) or 1080p/60 applications, Brilliance 7732LL plenum-rated RG-11 precision digital video coaxial cable exhibits return loss of -23 dB from 5-1.6 MHz and -21 dB from 1.6-4.5 GHz. Cable features 14 AWG solid bare copper conductor, Duofoil + 95% Tinned Copper Braid Shield, PTFE insulation, and fluorocopolymer jacket. Applications include TV and video production as well as video editing, distribution, and duplication.

Micro Plastics, Inc.    Flippin, AR 72634
Apr 21, 2009 Available in flame-retardant polypropylene, nylon 6, and polyethylene materials, Split Loom is offered in 1/4, 3/8, 1/2, 5/8, 3/4, and 1 in. dia sizes and supplied in variety of packaging options, including rolls, payout boxes, and mini and full size gaylord boxes. Flexible corrugated tube has opening seam down side for simplified wire insertion and removal. Extruded from durable black materials, corrugated tubing is resistant to temperature and corrosion.

JAI, Inc.    San Jose, CA 95134
Apr 21, 2009 With GigE Vision interface, BM-141GE (monochrome) and BB-141GE (Bayer color) 1.4 megapixel cameras suit outdoor traffic and high-end surveillance/security applications with wide ranging and continuously changing lighting conditions. They offer pre-set shutter speeds up to 1/10,000 sec and programmable exposures as short as 63 µsec, while Automatic Exposure Function simultaneously controls gain, shutter, and lens iris. Other features include sequence trigger mode and NIR-capability.

R & M Energy Systems    Houston, TX 77060
Apr 21, 2009 Moyno® Even Rubber Thickness(ERT(TM)) 2 7/8 in. power sections are lined with UltraFlex® 114 elastomer to provide fluid compatibility and resistance to explosive decompression. High power outputs are achieved by applying even thickness of rubber to one-piece stator, and steel reinforcement of stator's lobes promotes quality of rotor/stator seal during operation and also compensates for loss of elastomer strength that occurs at high temperatures and when exposed to chemicals.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Apr 21, 2009 Featuring 4-cutter solid carbide heads, MX4 Carbide Drill bits have 90° cutter alignment and resist locking up in rebar when drilling reinforced concrete. They feature 4 spiraled flutes for fast debris removal and impact durability, while centering tip ensures accurate hole placement and minimizes slipping.

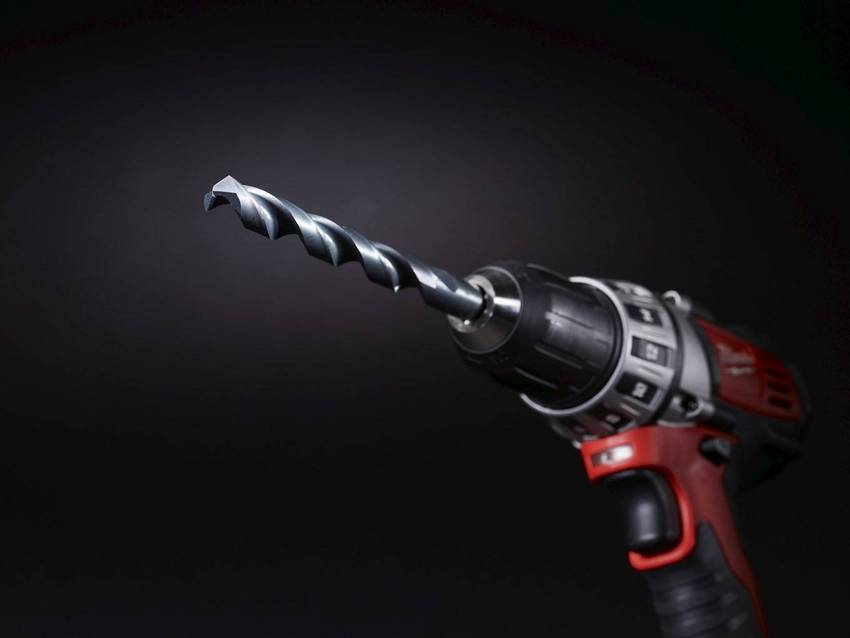

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Apr 21, 2009 With black oxide finish that provides lubricity to protect bit from corrosion and reduces friction for efficient chip removal, drill bits feature 3-flat secure-grip shank to prevent slipping in drill chuck. Thunderbolt® Black Oxide drill bits are designed for metal, wood and PVC, while Silver & Deming (S&D) Bits are suited for heavy-duty metal drilling, automotive/body shop and metal fabrication. Aircraft Length bits are designed for hard to reach areas and for installing wire and cable.

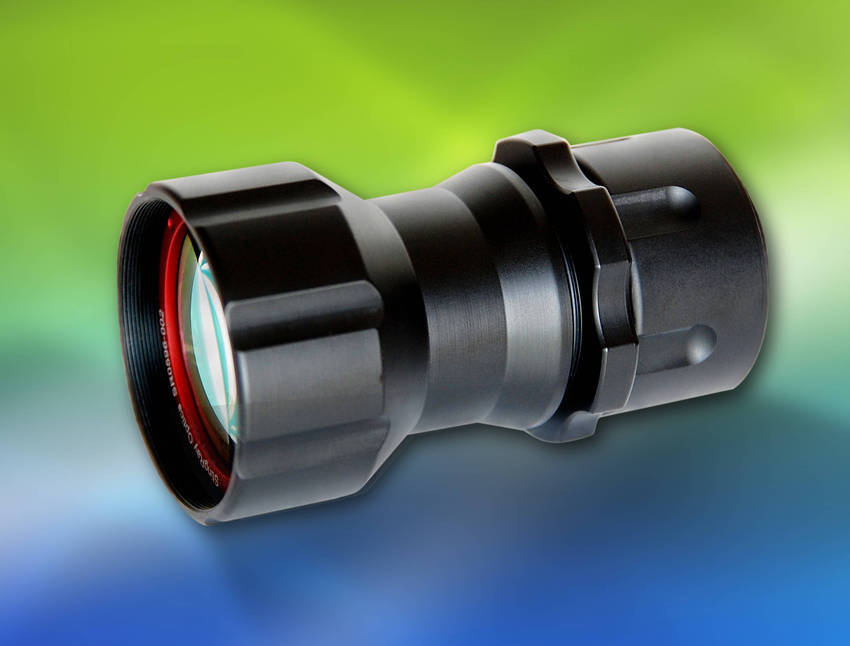

SUI    Princeton, NJ 08540
Apr 21, 2009 Suited for imaging in 0.7-1.7 micron spectral range, rugged 50 mm SWIR SOLO 50 has fixed aperture at f/1.4 that provides sharp imagery with low distortion. It works with high sensitivity, InGaAs-SWIR, KT and SD camera families, which are designed for large focal plane arrays up to 640 x 512 with 25-micron pixel pitch. Applications include 24-hour, day and night surveillance with human recognition at 250 m range, UAVs, imaging lasers, and driver vision enhancement.

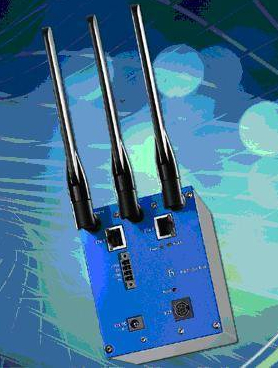

Belden    Richmond, IN 47375
Apr 21, 2009 Utilizing MiMo send and receive technology to mitigate interference, industrial LAN access points feature wireless interface in compliance with IEEE802.11n (draft 2.0) and enable transmissions in 2.4 and 5 GHz frequency range. Device is offered in 2 models: BAT300-Rail is designed for installation on standard rails in control cabinets, and BAT300-F with housings rated to protection classes IP65 and IP67 for direct field installation.

Fredericks Company, The    Huntingdon Valley, PA 19006-6232
Apr 21, 2009 Capable of driving one or two electrolytic tilt sensors, 0729-1751, 1752, 1753 Series of tilt sensor signal conditioner boards can be integrated into variety of OEM equipment/systems in production applications. They feature built-in temperature sensor, and can be configured for single axis, dual axis (x and y in same sensor), or 2 single axis modes (x and y with 2 separate sensors). Devices are also available with 3 SPI, RS-232 and Analog/PWM outputs.

GAO RFID Inc.    Toronto   Canada
Apr 21, 2009 Designed to ease integration for devices requiring multiple read-points, GAO733001, MXH and MXU antenna multiplexers feature either host or reader module for any of 8 antennas to be explicitly addressed using 3 GPIO pins. Multiplexers can be added for increase in number of antennas to allow module to support beyond 8 presenting scalable solution.

Martin Engineering    Neponset, IL 61345 9766
Apr 21, 2009 Made from accumulation-resistant molded polyurethane, MARTIN® Dust Caps are pyramids that cause material to fall away from conveyor foot, allowing user to collect dust and clean it by washing down or sweeping around conveyor. Caps prevent buildup of fugitive material, fire hazards, and corrosion and weakening of conveyor structure. Available in 3 and 4 in. sizes to fit structural steel angles, caps are safety orange in color, for visibility.
