Analog Devices, Inc.    Norwood, MA 02062-9106
Jan 11, 2010 Delivering minimum CMRR of 80 db from dc to 10 kHz, Model AD8209 is suited for amplifying and low-pass filtering small differential voltages in presence of large common-mode voltage. Input common-mode voltage range extends from -2 to +45 V at single +5 V supply, and typical offset and gain drift are less than 5 µV/°C and 10 ppm/°C, respectively. Qualified per AEC-Q100 specifications, amplifier includes input overvoltage and ESD protection, as well as EMI filtering.

Chemetall    New Providence, NJ 07974
Jan 11, 2010 Chlorine EP activated Tech-Cool® 35052 is designed for use with aluminum alloys, stainless steels, titanium, and high nickel alloys, such as Inconel and Hastalloy. Semi-synthetic, low foaming product delivers lubricity, corrosion resistance, and cleanability, as well as emulsion stability, which allows for residue-free operation. Highly bio-resistant, Tech Cool® 35052 provides protection against bacteria growth without use of biocides, DCHA, or other secondary amines.

Seiko Instruments U.S.A., Inc.    Torrance, CA 90505
Jan 11, 2010 Featuring voltage detection circuit and delay circuit, S-8211E Series is suitable for monitoring overcharge and overdischarge of 1-cell lithium ion/lithium polymer secondary battery packs. Overcharge detection voltage ranges from 3.6-4.4 V with accuracy of ±25 mV at +25°C and ±30 mV from -5 to +55°C. Overdischarge detection voltage ranges from 2.0-3.0 V with ±50 mV accuracy. Housed in SOT-23-5 package, lead-free IC operates from -40 to +85°C while typically consuming 3.0 µA.

Seiko Instruments U.S.A., Inc.    Torrance, CA 90505
Jan 11, 2010 Suitable for small battery-powered portable equipment, S-89230/89240 Series consists of CMOS type comparators with VDD of 1.8-5.5 V and IDD of 23 µA/5 µA. Lead-free units are available in SNT-8A and TMSOP-8 packages with input offset voltage of 4.0 mV max. Applications include mobile phones, notebook PCs, digital cameras, and digital video cameras. Dual circuit S-89230B/89240B Series is also available.

Seiko Instruments U.S.A., Inc.    Torrance, CA 90505
Jan 11, 2010 Consuming 9.0 µA during operation, S-11L10 Series features input voltage of 1.2-3.65 V and output voltage of 0.8-3.3 V, selectable in 0.05 V steps. Positive voltage regulator has built-in overcurrent protection circuit, power-off circuit, and discharge shunt function. Ceramic capacitor of 1.0 µF or more can be used as I/O capacitor. Available in SOT-23-5 and SNT-6A(H) packages, IC is suited for power supplies for battery-powered devices, mobile phones, and portable equipment.

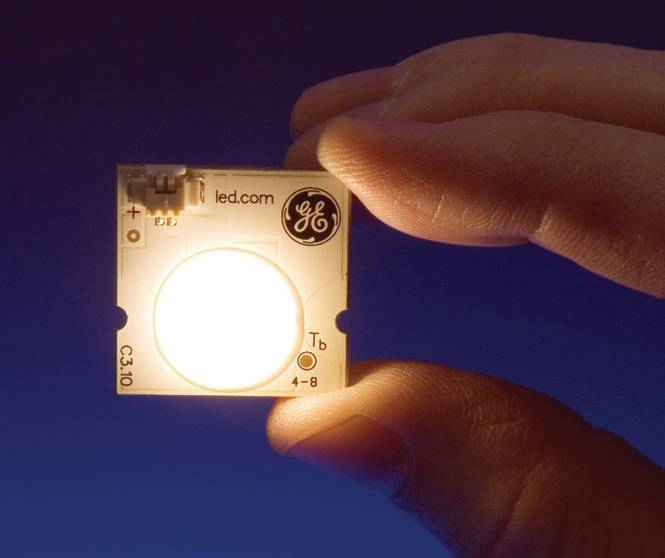

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 08, 2010 Offered in 3000, 3500, and 4100°K color temperatures, VIO(TM) high-power white LEDs are available in 1 and 4 W versions with up to 55 lumens/W. High-power versions distribute diffused light evenly over 180° beam angle. Suited for general/commercial/landscape/ architectural applications, units include high-efficiency VIO violet chip and hemispherical lens on which phosphors convert violet wavelength to white light. They feature ESD Class II rating and are mercury-free/RoHS-compliant.

Safety Technology International    Waterford, MI 48327
Jan 08, 2010 Designed to protect strobe-only alarm units against vandalism and damage, Strobe Damage Stopper® STI-1221E is molded of clear, UV-stabilized polycarbonate material rated for -40 to 120°F. UL-Listed cover has open backbox, which is useful for retrofits or for flush mounted units. Enviro Kit can be used for extreme conditions where dampness, water, or dust is present.

EMC Corp.    Hopkinton, MA 01748-9103
Jan 08, 2010 EMC® Symmetrix® V-Max(TM) and EMC CLARiiON® CX4 networked storage systems as well as EMC Celerra® NS unified storage systems are available with fully automated storage tiering (FAST) technology. Combining benefits of enterprise flash and SATA drives, FAST technology leverages software and file system/management capabilities to let users create and apply tiering policies to transparently automate control, placement, and movement of data within storage system based on business needs.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 08, 2010 Equipped with RFID warehouse navigation unit featuring Horizontal Positioning and Rack Height Select modules, ergonomic EKS 210/312 communicates with ground and WMS to identify position and automatically navigate to proper location in aisle. EKS 312, capable of lifting up to 1,200 kg loads, has 9,500 mm max lift height and 1,650 mm turning radius. With 1,000 kg payload capacity, EKS 210 has 6,000 mm lift height and 1,550 mm turning radius.

TandD US, LLC    Saratoga Springs, NY 12866
Jan 08, 2010 Able to simultaneously measure and record illuminance, UV light, temperature, and humidity, TR-74Ui Illuminance UV Recorder can also display cumulative illuminance and cumulative UV light on LCD. All-in-one package - data logger unit, sensor, and software - connects to PC via USB and can measure/record up to 8,000 readings per measurement item. Along with 15 recording interval choices, unit offers one-time or endless recording modes.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 08, 2010 Powered by 2 maintenance-free, 12 V gel batteries, Model EME 114 achieves outputs up to 1,000 W for drive engine or 800 W for lifting engine. Pedestrian-controlled truck travels at speed of 5 kph with climbing gradients of 8% without load and 5% with load. Built-in charger can be plugged into any 230 V socket. In addition to externally visible charge status display, energy management system includes operating hour meter and feature that automatically blocks unintentional start-up.

TriQuint Semiconductor, Inc.    Hillsboro, OR 97124
Jan 08, 2010 Covering 17-24 GHz frequency range, Model TGA4531 facilitates 3G/4G wireless network RF design. Microwave backhaul radio amplifier provides 32 dBm nominal output power at 15 dBm input power, with small signal gain of 23 dB. Nominal TOI is 40 dBm and noise figure is 6 dB. Highly linear amplifier enables manufacturers to meet complex modulation requirements and is also well suited for K-band sat-com applications.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Jan 08, 2010 In addition to multifunction tiller head and optional sideways battery removal, EJE series offers clearly arranged rocker switches with contactless electronics that ensure safe operation. Range 1 models EJE 116/118/120 have 494 mm front length to promote maneuverability and support loads to 2,000 kg. Range 2 models EJE 220/225 have 2,500 kg max capacity and are built to withstand continuous application with heavy loads as well as 3-shift operation under rough conditions.

JVL Industri Elektronik    Birkeroed DK-3460  Denmark
Jan 08, 2010 Model MAC00-EW4 WLAN module is programmable, allowing small PLC programs to be executed directly in motor. Enabling access to motors via Internet using fixed IP-addresses or via VPN, module includes GUI for setting parameters and programming in JVL's MacTalk software. Connection of supply and signals is accomplished via 3 M12 connectors, while standard antenna connector is also included. Unit supports baud rates up to 19,200 and incorporates Web server.

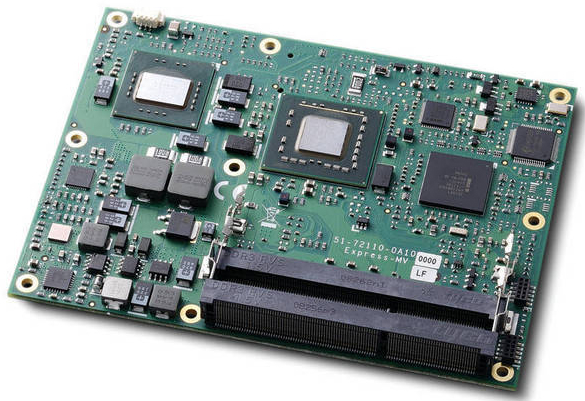

ADLINK Technology Inc.    Irvine, CA 92618
Jan 08, 2010 Based on Intel® Core(TM)2 Duo CPU and GS45 chipset with Graphics Media Accelerator 4500MHD, Express-MV is available with 2.26 GHz clock speed and up to 8 GB DDR3 800/1,067 MHz memory. COM Express(TM) Type 2 module integrates Mobile Intel® Graphics Media Accelerator 4500MHD, and also supports Intel® Dynamic Video Memory Technology 5.0. Other features include PCIe® Graphics x16 bus, general-purpose PCIe device support, as well as GigE and SATA/300 ports.

Marvell Semiconductor Inc.    Santa Clara, CA 95054
Jan 08, 2010 Designed to power intelligent applications and services for home and office, Plug Computer 3.0 plugs directly into standard wall socket and features 2 GHz ARMADA(TM) 300 CPU as well as embedded Wi-Fi, Bluetooth, and built-in hard drive. This always connected, turnkey platform supports additional peripherals, such as Direct Attached Storage, via USB 2.0 port. Multiple standard Linux 2.6 kernel distributions are supported, enabling accelerated application development.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Jan 08, 2010 Able to meet requirements of tier-one handset manufacturers, 2.8 x 3.2 x 2.5 mm OVM7692 VGA CameraCube(TM) can withstand multiple reflows during rework as well as dual-sided reflow. In addition to OmniPixel3-HS(TM) architecture, which is optimized for sensitivity and low-light performance (960 mV/Lux-sec), standard features include DVP parallel and MIPI serial output interface support, automatic 50/60 Hz luminance detection, and integrated EMI solution.

Macron Dynamics Inc.    Croydon, PA 19021
Jan 08, 2010 Available in 064, 084, and 118 sizes, MDI Gear Boxes offer gear ratios of 3, 5, 7, or 10:1. Units provide direct bolt-on installation for any Macron linear actuator, eliminating need for couplings and large mounting brackets. Fixed input with radial clamping ring facilitates mounting to both metric and English motors. Offering low backlash operation, gear boxes come filled with lubrication and no oil change is necessary for life of unit.

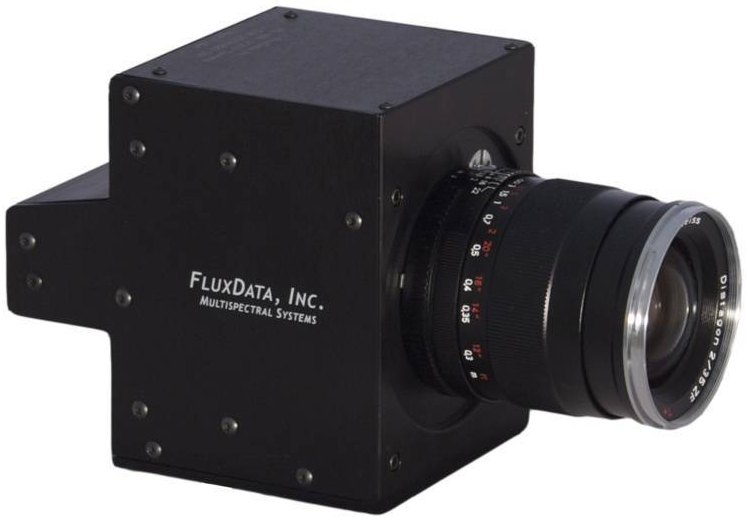

FluxData, Inc.    Rochester, NY 14623
Jan 08, 2010 Measuring 4.8 x 3.5 x 4.4 in., Series FD-1665 cameras are available with choice of polarization, multispectral, and high dynamic range filtering options. GigE connectivity supports cable lengths to 100 m and data transfer rates to 1,000 Mbps, and optical prism engine offers minimized spherical and chromatic aberration while allowing use of 35 mm SLR F-mount or T-mount lenses. Modular design encompasses 12 CCD sensor options with frame rates to 120 fps and resolutions to 1,626 x 1,236.

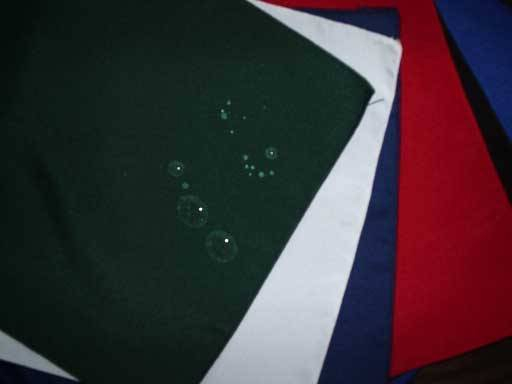

MVP Visuals, LLC    New Canaan, CT 06840
Jan 08, 2010 Intended for event and promotions, Eco-Poly Tablecloth is made of Eco-Polyester Poplin. This fabric, made of 100% recyclable materials, has same feel as standard polyester poplin and supports custom printing. Also available, water-repellent fabric tablecloth consists of coated polyester fabric that supports full color imprinting. Both tablecloths are machine-washable and wrinkle-resistant and hold full color dye sublimation print for branding.
