Mitutoyo America Corp.    Aurora, IL 60504
Dec 23, 2009 Able to inspect small, cylindrical workpieces, RA-10 Roundtest is operated via touch panel LCD and includes functions such as one-stroke recall and zero-set button for one-touch resets. X-axis stopper and Z-axis scale unit are also included, and measurement data can printed from built-in printer, output via RS232C/SPC ports, or stored to external memory via USB port. Max probing height and depth are 5.98 in. and 3.94 in., respectively, with max 4.61 in. Z- and 2.95 in. X-axis travels.

Mitutoyo America Corp.    Aurora, IL 60504
Dec 23, 2009 With 0.20 µm straightness accuracy and 20 mm/s max drive speed, Surftest® SJ-500 calculates numerous form analyses to 46 different ISO, ANSI, DIN, and JIS parameters. Input features can be created using drawing symbols, joystick control enables fine positioning, and interchangeable nosepieces allow skid or skidless measurement. Used for hand-held or fixtured-in-place operation, surface roughness tester features dedicated control unit with color display and built-in thermal printer.

Mitutoyo America Corp.    Aurora, IL 60504
Dec 23, 2009 Along with PC-based control, Roundtest® RA-120/P features rotational accuracy of 0.04+6H/10,000 µm and precise air bearing turntable rated up to 55 lb. Roundness measuring machine, equipped with various optimizations for accelerated inspection, combines lab-level accuracy with factory floor capacity. Also included, ROUNDPAK® measurement and analysis software facilitates control as well as preliminary setup.

Ircon Inc.    Niles, IL 60714
Dec 23, 2009 Available in 1- and 2-color fiber optic models designed for harsh operating environments, Modline® 6 Series features background-reflected energy compensation capabilities and signal processing options such as averaging, peak hold, and valley hold. Electronics support 2-way serial communications, remote sensor setup and configuration, real-time display of target temperature, and field calibration software. RS-485 serial data communications networking capability supports up to 32 sensors.

Omron Corp.    Kyoto 600-8530  Japan
Dec 23, 2009 Offering simplified operation/maintenance, E5GN temperature controller includes display that notifies operator of current conditions and which offers changeable colors to show status. Universal inputs allow connection of thermocouples or platinum resistance thermometers. Device's control output ON/OFF counter notifies user of maintenance cycle for internal/external relays. Screwless clamp terminals are included as well as analog inputs, current outputs, and RS-232C communication.

Tektronix, Inc.    Beaverton, OR 97077
Dec 23, 2009 Automated compliance test solution for HDMI 1.4 CTS specification features Tektronix AWG7000B Series Arbitrary Waveform Generator with direct synthesis. System eliminates nonlinearities involved with test setup for source, sink, and cable tests. It includes automated test setups to validate HDMI Ethernet and Audio Return Channel; Automotive HDMI-Type E and Mobile HDMI-Type D; and necessary 3D, 4K x 2K, and colorimetric patterns to meet full test capability for HDMI 1.4.

Tektronix, Inc.    Beaverton, OR 97077
Dec 23, 2009 Designed to complement MSO/DPO4000 Series oscilloscopes, Model DPO4USB automates key measurement and analysis tasks on USB 2.0 low-speed, full-speed, and high-speed buses, enabling engineers to troubleshoot and debug designs. Module instantly decodes protocol, presenting acquired waveforms and decoded data packets time-aligned on oscilloscope display, and provides ability to automatically trigger on and then search for specific packet level content.

Thermotron Industries, A Venturedyne, Ltd. Co.    Holland, MI 49423
Dec 23, 2009 Equipped with 16 in. diameter magnesium armature, Model DSX-4000 is air-cooled and fully compatible with environmental test chambers, supporting payloads up to 1,000 lb and velocity up to 80 ips. Unit provides sine, random, shock, resonant search and dwell, real data acquisition and playback, and random-on-random and sine-on-random capabilities. Featuring dynamic centering system, shaker has optical sensors that ensure armature is accurately centered during operation.

Samsung Electronics Co., Ltd.    Seoul 100-742  Korea (south)
Dec 22, 2009 Intended for high-density multimedia handsets and mobile devices, Multi-Die Package consists of 8 identical dies and uses 30 nm class, 32 Gb NAND flash chips, each measuring 15 µm to deliver 32 GB NAND solution. Package technology can be adapted to other existing MCPs, and configured as system in packages or package on packages.

Mitutoyo America Corp.    Aurora, IL 60504
Dec 22, 2009 Mitutoyo LSM-902/6900 features resolution of 0.01 µm, linearity of ±0.5 µm, and repeatability of ±0.05 µm throughout 0.1-25 mm measuring range. It measures wires with diameters as small as 0.005 mm and cylindrical workpieces with diameters up to 25 mm. Utilizing multiface, polygonal mirror and high-speed motors to generate up to 800 scans/sec, it is capable of freeze motion measurement. Unit is available with integrated or remote displays and in dust- and splash-proof IP64-rated models.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 22, 2009 Eurostyle wire-to-board terminal blocks equipped with left- and right-hand plugs offer multiple wire access angles that mate with 90° and 270° header interfaces. Rising screw clamp orientation mates to industry-standard open and closed end headers on same centerline spacing. UL-recognized products are also end-to-end stackable without loss of centerline spacing. Applications include control, I/O, and field wiring.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 22, 2009 Designed as monostable normally closed relay, Model HCR 200 provides electrical continuity in case of failures in control circuit. Current carrying capability is up to 130 A continuous at 110°C ambient temperature, enabling integration into pre-fuse boxes and power distribution boxes in engine compartment. Relay offers both galvanic isolation and shock resistance of 30 g.

TE Connectivity Ltd.    Berwyn, PA 19312
Dec 22, 2009 Combining benefits of LGA socket with simplicity of BGA component, LGA 1366 sockets feature 1,366 contacts with 1.016 x 1.016 mm grid, are validated to Intel design guidelines, and ensure efficient soldering to PCB. Each cantilever beam contact is equipped with precise solder ball located on bottom, and cover protects contact array while facilitating vacuum pick and place. Specific applications include CPU interconnects in servers and high-end desktop computers.

NKK Switches    Scottsdale, AZ 85260-3420

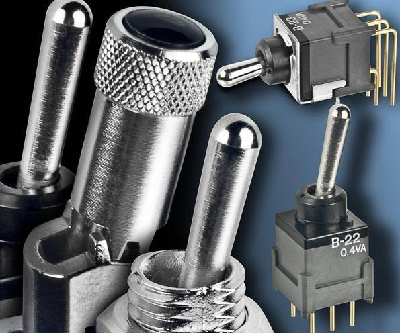

Dec 22, 2009 Incorporating Sliding Twin Crossbar contact mechanism to ensure smooth positive detent action, B Series features antistatic superstructure with carbon-impregnated bushing that prevents static discharge to contacts. Glass-reinforced polyamide housing and process sealed body protect against contact contamination. Rated 0.4 Va max at 28 Vac/dc max, PCB-mount switches come in single and double pole models with 11 circuits in momentary and maintained actions.

Sensocon, Inc.    Lakeland, FL 33801

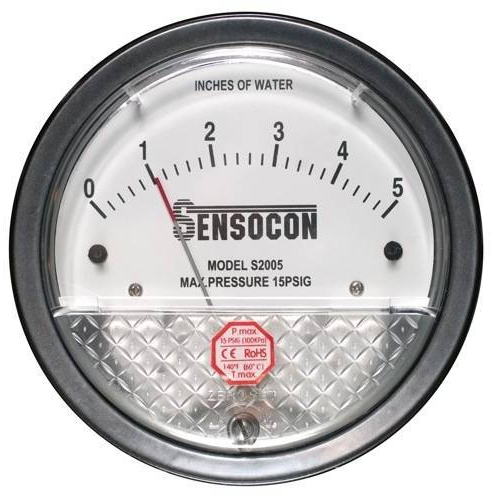

Dec 22, 2009 SENSOCON(TM) Series S2000 can measure positive, negative, or differential pressure of air and compatible gases from -20 in. Hg to 15 psi (MP option: 35 psi). It is available with Low Temperature Option for applications down to -20°F and tamper-proof Adjustable Signal Flag that does not use external adjustment knobs. Exhibiting ±2% FS accuracy, gage has die cast aluminum case and bezel with acrylic cover. Several accessories are available.

Aven Industries, Inc.    Ann Arbor, MI 48108
Dec 22, 2009 Mighty Mag Magnifying Lamp offers shadow-free lighting for design, assembly, and inspection work. It features 3-diopter crystal clear lens that delivers 1.75x magnification, 7 x 5.2 in. surface for wide field of view, and 9 W fluorescent bulbs for distortion-free light. Adjustable lamp is integrated into tiltable ivory or black plastic housing engineered with ESD protection. Internal spring-balanced arm with jointed neck extends up to 30 in. and sets in any position.

Grieve Corporation, The    Round Lake, IL 60073-2898
Dec 22, 2009 Rated to 2,000°F, electrically heated No. 954 features 30 x 48 x 30 in. workspace and 57 kW, supported by vacuum-formed ceramic fiber, installed in nickel chrome wire coils to heat load. Roof-mounted, heat-resistant alloy recirculating fan is powered by 1 hp motor with V-belt drive, and 100 lb capacity alloy loading cart has cast alloy roller rails. Construction also features motor-operated vertical lift door, 7 in. thick insulated walls, and 6½ in. floor insulation.

Z-Communications, Inc.    San Diego, CA 92126

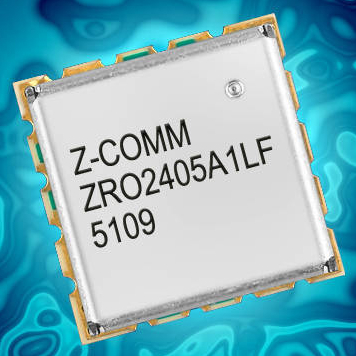

Dec 22, 2009 Operating from 2,400-2,410 MHz with tuning voltage range of 0.5-4.5 Vdc, ZRO2405A1LF features typical phase noise of -116 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 8 MHz/V. RoHS-compliant VCO delivers typical output power of 3 dBm at 5 Vdc supply while drawing 23 mA (typ) over -40 to 85ºC range. Featuring typical second harmonic suppression of -12 dBc, product comes in 0.5 x 0.5 x 0.22 in. MINI-16-SM package.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

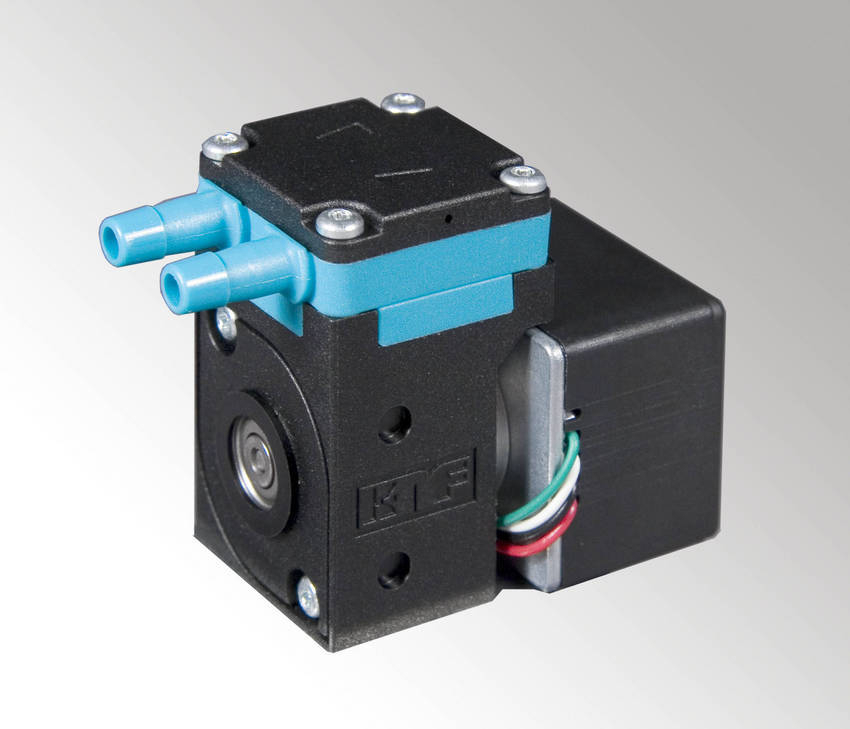

Dec 22, 2009 With patented valve system that ensures linear flow-to-motor speed curve, KNF NF25 can handle liquid and gas-liquid mixtures at flow rate up to 250 mLpm in less than 2.3 cu in. It delivers self-prime to 9 in. Hg, continuous pressure to 14.5 psig, and integrates anti-cavitation chamber on inlet side for high flow. Standard components include shock mounts, hose and electrical connectors, valves, and filters. Unit suits dosing applications such as fuel cells and inkjet printers.

Duperon Corp.    Saginaw, MI 48607
Dec 22, 2009 Capable of cleaning and compacting screenings of less than 4 in. at rates of up to 60 cu-ft/hr, Duperon® Washer Compactor features dual auger system that utilizes thermal-mechanical dynamics for enabling fibrous materials to absorb grease. Self-cleaning dual augers eliminate debris wrapping,and discharge chute travels up to 10 ft in multiple configurations for convenient positioning. Compacted debris shows up to 84% volume reduction and 60% dry solids.
