Gems Sensors Inc.    Plainville, CT 06062

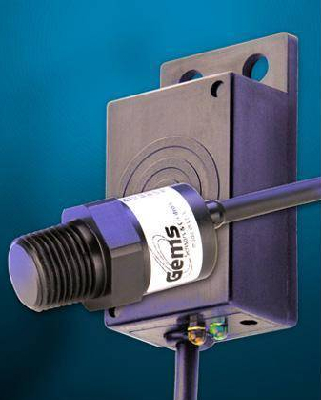

Dec 30, 2009 Available in aqueous and non-aqueous versions, CAP-100 and CAP-200 Series offer level sensing for variety of bottle types, including plastic, glass, and fiberglass. Non-contact CAP-100 Series mounts to exterior of non-metallic tanks and bottles with wall thicknesses up to 5.8 in., while CAP-200 Series mounts via threaded ½ in. NPT boss in metallic or plastic vessels. Both are suited for medical applications such as waste, reagent, or diluent liquids as well as dark, sticky, or viscous fluids.

SMW Autoblok Corp.    Wheeling, IL 60090
Dec 30, 2009 Designed to reduce maintenance, sealed sliding jaw chucks feature specially designed master jaws, internal parts, and Teflon® seals that create airtight seal to keeps chips, dirt, and fluids out of chuck body. Sealed chucks distribute lubrication to all internal components and maintain constant gripping force throughout 6-month lubrication interval. Available sizes and styles include Open and Closed Center Chucks in Standard, Long-Stroke, High-Speed, and Quick Jaw Change configurations.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Dec 30, 2009 PowerScan industrial, intrinsically safe, handheld barcode scanner is designed for continuous use in heavy-duty conditions. Able to read most commonly used barcodes from up to 1.1 m, it can be connected to host computer up to 150 m away or operated along with TERMEX operator terminals and VisuNet/iPC-Ex control stations. Device integrates Puzzle Solve(TM) technology to read damaged and dirty barcodes.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Dec 30, 2009 Designed to facilitate connection of traditional I/O signals onto bus network, LB/FB Remote I/O Systems support general-purpose or intrinsically safe applications with modules that can be mixed and matched on same backplane. Products facilitate connection to PROFIBUS DP, Modbus, and FOUNDATION fieldbus for all traditional signal types, including discrete, analog, frequency, and temperature. Redundancy for communication interface and power supply promotes reliability.

Maxim Integrated Products    Sunnyvale, CA 94086
Dec 30, 2009 Supplied in Pb-free TQFN package, MAX11046 eight-channel SAR ADC enables Class 0.2 precision for 220 V and measures up to 6 kV mandated by IEC 62053 and EN 50160 for polyphase power-grid monitoring and protection. Architecture provides on-chip, negative supply voltage, and true 16-bit performance is achieved via high-impedance bipolar input using single positive external supply. Input also eliminates precision external buffers on each channel, while bipolar input saves level shifter.

AAEON Technology Inc    Taipei   Taiwan
Dec 30, 2009 Model HSB-945P CPU module features Intel® 945GSE and ICH7M chipset, which supports Intel Atom 1.6 GHz processor. System includes SODIMM socket for 200-pin DDR II SODIMM up to 1 GB and utilizes Intel® 945GSE and Chrontel 7307 to support simultaneous CRT/LCD displays and Intel® GMA950 graphics engine. Also included are DB15 VGA and DVI interfaces through box header. Unit has various communications ports and 2 SATA II, IDE slot, and Type II CompactFlash(TM) socket, while Ethernet is optional.

CompuLab Ltd.    Haifa 32000  Israel
Dec 30, 2009 Based on TI OMAP3503/OMAP3530 with Cortex-A8 core at 720 MHz, CM-T3530 provides set of multimedia, connectivity, and storage features on 66 x 44 x 7 mm system-on-module. It is offered with up to 256 MB mDDR and 512 MB flash disk and comes with camera interface up to 16 Mpixel. Operating from 3.8 V supply or li-ion battery while consuming 0.2-2 W, product supports 3D and video decoding acceleration as well as LCD interface at resolutions up to 1,400 x 1,050.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Dec 30, 2009 Enabling calibration in glass-free environment, Plastic VisCal Kit includes 600 mL plastic beaker, 1 liter Silicone Viscosity Standard in plastic bottle, and metal lid for anchoring beaker in temperature bath. Reversible lid fits containers of various sizes. Using Brookfield Viscosity Standards with accuracy ±1%, operators can verify calibration of Brookfield Laboratory Viscometer/Rheometer.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Dec 30, 2009 Optimized for speed and accuracy by leveraging Direct Sampling Procedure (DSP), Bresle Chloride Test Kit includes all necessary equipment for assessing level of soluble salts on blast-cleaned surfaces prior to coating. It complies with ISO 8502-6 and ISO 8502-9 standards and is also suitable for determining contamination of blast-media in use as to prevent dissolved salts in recycled abrasive media or water from re-contaminating surface being cleaned.

Gigahertz-Optik Inc.    Newburyport, MA 01950 4009
Dec 30, 2009 Measuring 43.5 x 25 x 17.5 mm, ISD-1.6-Si-1 and ISD-1.6-Si-FC-1 with FC connector for spectrometer feature 16 mm dia sphere for light sources such as laser diode dyes and optical fibers. Silicon photodiode detectors measure beam power through 3 mm measurement port. They offer spectral range from 400-1,100 nm and typical absolute sensitivity of 200 µA/W at 630 nm (500 mW max power). Detector heads are traceably calibrated and certified to international standards.

Wildeck, Inc.    Waukesha, WI 53187
Dec 30, 2009 Designed to meet ANSI/ASME B20.1 Safety Standard for Conveyors, V-Lift(TM) Hydraulic Cantilever Material Lift incorporates guide columns constructed of 6 in. wide flange structural steel and hydraulic ram with 2½ in. diameter dual pistons that deliver positive lifting motion. System features 6 x 6 ft carriage with lifting capacity up to 3,000 lb, and enables material to be loaded or unloaded in C, Z, or 90° pattern. Safety interlocks prevent VRC from moving unless gates are fully closed.

Boulder Imaging, Inc    Louisville, CO 80027
Dec 30, 2009 Supporting various input types, including NTSC, GigE, and Cameralink, Quazar VR300 Compact has ability to record from multiple input sources simultaneously. It has small footprint of 8 x 11 x 13 in., weighs 24 lb, and can record up to 150 MB/sec for long durations. Entry level device can stand alone or be integrated with other vision systems. Applications include medical imaging, machine vision, security and surveillance, scientific research, and quality control.

Future Systems Solutions    Bluffton,, IN 46714
Dec 30, 2009 With Casper v6.0, users can create complete, immediately bootable PC backup replacement for failed or corrupted disk. Backup can be tested for viability immediately after being created, and when backup is needed, no special rescue disks are required. Complete PC backups can also be made unattended, at any time, even while user is performing other computing tasks. With SmartAlert(TM) email notifications, user is alerted when backup has been completed or when backup requires attention.

Huntkey Enterprise Group    SHENZHEN   China
Dec 30, 2009 Intended for ATX/Micro ATX motherboard formats, H403 PC case is constructed mostly of 0.6 SECC materials. Its cooling structure - front panel with anti-dust mesh design, 12 cm LED fan, and optional rear fan - complies with Intel TAC 2.0 heat dissipation specifications. Liquid cooling is also optional. In 475 x 190 x 450 mm frame, solution supports 7 expansion slots - USB 2.0, audio, eSATA, and HDD charge - and includes bays that accommodate four 5.25 in. or seven 3.5 in. drives.

EMC Corp.    Hopkinton, MA 01748-9103
Dec 30, 2009 Configured with 2 or 4 engines and software compression for EMC SRDF traffic over Fibre Channel and native Gigabit Ethernet connections, EMC® Symmetrix® V-Max® offers features to help improve data center flexibility and performance. EMC Virtual Provisioning(TM) includes zero space reclamation, thick-to-thin/-thick support for EMC TimeFinder®/Clone software, and automated rebalancing of virtual provisioning storage pools. Another feature enables secure erasing of Flash drives for data security.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Dec 30, 2009 Providing typical ON resistance of 5.7 mW at 3.6 V, Model TPS22924C comes in 1.4 x 0.9 mm chip scale package, addressing space-constrained, battery-powered applications. Unit features input voltage range of 0.75-3.6 V, maximum continuous switch current of 2 A, and shutdown current of less than 2 µA. Applications include media players, point-of-sale terminals, GPS systems, netbooks/notebooks, and smartphones.

Amulet Technologies    Santa Clara, CA 95050
Dec 30, 2009 Measuring 1.5 x 3.0 in., GEMexpress(TM) is integrated 6-layer PCBA that can interface to any display and is comprised of GEM Graphical OS Chip(TM) for color displays and those parts required to support this chip. Chip includes LCD controller, touch panel decoder, ARM7 processor, and Graphical Operating System in Silicon(TM). In addition to 32 Mb serial flash and 64 Mb SDRAM, features include 4- or 5-wire touch panel decoder, dedicated crystal, and necessary power management devices.

Antenova Ltd    Elgin, IL 60124
Dec 30, 2009 Capable of supporting 10 wireless protocols, Agilis A10346 Switchable Magnetic Dipole Antenna provides global dual-mode GSM/LTE capability plus Wi-Fi®, Bluetooth®, and WiMAX(TM) in single structure. Single capacitive feed antenna is implemented with 3-pin diode switch that enables operation in 3 sets of frequency bands. Unit is suited for embedded cellular and mobile broadband applications such as mobile handsets, PNDs, PMPs, laptops, netbooks, and femto base stations.

Imtek Environmental Corp.    Alpharetta, GA 30023
Dec 30, 2009 Online MSDS Management Solution facilitates handling of multiple MSDSs and related information in secure environment to aid hazard communication management and compliance. Capabilities include independent system management, bulk upload, and detail-specific search technology with real-time results. Those with admin rights can also edit MSDS info and load/transfer/copy/delete MSDSs, and any number of documents can be loaded for each product.

Bivar, Inc.    Irvine, CA 92618 2593
Dec 30, 2009 Intended for commercial and industrial machinery, 3-lead common cathode, bi-color PM5-3 Series provides multi-color status indication and multiple configuration choices, including stripped wires and 0.100 in. pitch 3-pin connector. White diffused lens appearance offers wide viewing angle and uniform indication. Available in 0.16 in. protrusion and recessed versions, 5 mm RoHS-compliant assemblies are vibration-resistant and come with 94V-0 rated plastic holder.
