GE Intelligent Platforms    Charlottesville, VA 22911

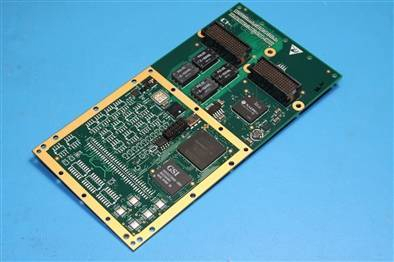

Dec 29, 2009 Model RXMC-1553 High-Density XMC module offers 1 or 2 dual-redundant channels, each supported by 1 MB memory. Its multifunction interfaces are configurable to emulate bus controller, up to 31 remote terminals, or bus monitor. Supporting Windows® and VxWorks®, conductively cooled module is designed for use in harsh environments. It includes 45-bit microsecond message time tagging, triggers, error injection/detection, API software, and factory-configurable programmable I/O.

AXIOMTEK    Taipei   Taiwan
Dec 29, 2009 Operating from -20 to +70°C, fanless eBOX620-823-FL is powered by Intel® Atom(TM) 1.1 GHz Z510PT or 1.33 GHz Z520PT CPU. It incorporates Intel System Controller Hub US15W XL with Intel GMA500 graphics engine, which utilizes up to 256 MB frame buffer, and offers one 200-pin DIMM socket that supports up to 2 GB DDR2 400/533 DRAM. Measuring 200 x 120 x 56 mm, RoHS-compliant PC integrates range of I/O options as well as MiniPCI Express expansion capability and Watchdog Timer.

Lattice Technology, Inc.    San Francisco, CA 94104
Dec 29, 2009 Offered in Basic, Standard, and Pro versions, XVL Studio v9.0 enables design review, motion simulation, kinematics, process design, and reporting in standard document formats. Program provides core platform for creation of print-ready and interactive digital documentation including 3D spreadsheets, mBOMs, process instructions, and 2D illustrations directly from 3D. It also offers dynamic measurements between moving parts, shape comparison between 2 parts, and cross sections during animations.

STMicroelectronics    Lexington, MA 02421

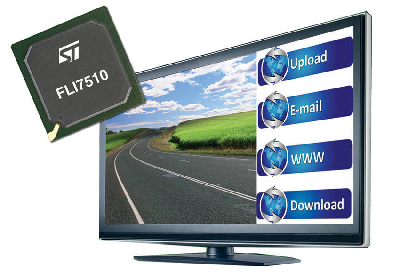

Dec 29, 2009 Compatible with digital terrestrial TV standards worldwide, full HD H.264/MPEG Model FLI7510 comprises decoder that supports all major video content formats, content protection via secure processor, and Internet TV-ready environment including fully dedicated application processor and graphics capabilities. Chip meets system-energy consumption standards for green consumer electronics equipment, and addresses both digital broadcast and broadband-Internet TV markets.

Pentek Inc.    Upper Saddle River, NJ 07458
Dec 29, 2009 Model 7753, featuring 8 channels and x16 wide PCIe interface, and Model 7853, offering 4 channels and x8 wide PCIe interface, are high-speed software radio boards used for processing baseband RF or IF signals. Both incorporate beamforming functions and house up to four or eight 200 MHz, 16-bit A/Ds, each equipped with its own wideband digital down converter. Also, daisy chaining support with Aurora protocol results in x4 point-to-point data path between boards at 1.25 GBps

Honeywell Sensing and Control    Golden Valley, MN 55422
Dec 29, 2009 SMART Position Sensor, 75 mm Linear Configuration, features non-contact design with 0.002 in. accuracy. It combines ASIC and array of magnetoresistive sensors to determine position of magnet attached to moving object. Air gap between sensor and magnet of up to 0.118 ±0.098 in. provides interface flexibility, while sealed packaging allows unit to resist shock, vibration, and extreme temperatures. Self-diagnostics and temperature compensated output are also featured.

Switchcraft, Inc.    Chicago, IL 60630

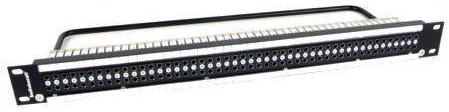

Dec 29, 2009 Featuring micro video jack design that allows for 48 channels/96 patchpoints in 1 RU, 19 in. rack, MMVP Series is rated at 3 GHz and meets SMPTE 424M specifications utilizing DIN 1.0/2.3 rear terminations. Screw in jack design withstands vibration in mobile applications, and design is available in 75 Ohm terminated, non-terminated, normalled, and non-normalled versions. Other configurations include 1.5 RU (2 x 48 or 4 x 48) and 2 RU (2 x 48 or 4 x 48).

Switchcraft, Inc.    Chicago, IL 60630
Dec 29, 2009 Broadcast Series is comprised of 3-conductor ¼ in. Longframe audio patchcords suited for analog applications as well as digital AES/EBU audio and SMPTE time code patching. Made with low-capacitance 110 ohm cable, products come in 1-10 ft lengths, have flexible jacket available in 7 colors, and feature overmolded rubber flex handle-boot that reduces cable strain when pulled/tugged. Also, overmold covers metallic shell and minimizes crosstalk. Mil Spec Series, M642, is also available.

Fox Electronics    Fort Myers, FL 33905 5022

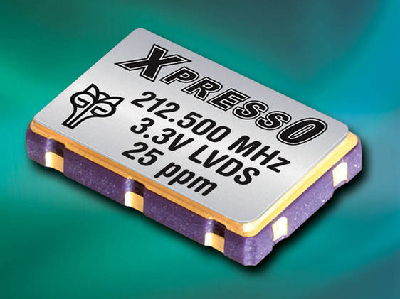

Dec 29, 2009 Ranging from 0.75 MHz through 1.35 GHz with stabilities as tight as ±25 ppm, 3.3 V XpressO XO FXO-LC33 Series features tri-state enable/disable feature that allows user to turn off output to minimize power consumption. Units operate over temperature range of -20 to +70°C or -40 to +85°C with extremely low jitter of less than 1 pS. RoHS- and REACH-compliant, oscillators are suited for use in SONET, SDH, ATM, Ethernet, SAN, microprocessors/DSP/FPGA, and industrial controllers.

Panduit Corp.    Tinley Park, IL 60477 3091
Dec 29, 2009 Pan-Way® Fast-Snap(TM) Surface Raceway System is available with single gang, power rated outlet box, JBP1FS, which is UL5A-Listed and complies with NEC for electrical wiring routing. To accelerate installation, base and cover of box snap together without hardware. Compatible with entire line of Pan-Way® Snap-On Faceplates and multiple lines of Pan-Way® Surface Raceway, JBP1FS offers tamper resistance by not allowing easy access to remove screws.

Arc Informatique      France

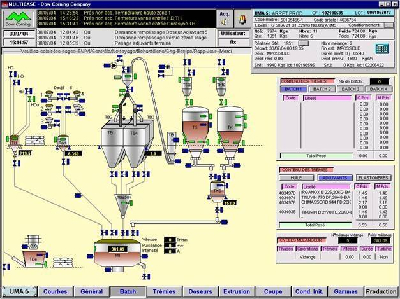

Dec 29, 2009 Designed to shorten development and deployment lead times for supervision applications, PcVue v9.0 integrates OPC KEPWARE servers as well as Smart Generator Step7®. Configuration file exchange via FTP servers has been natively integrated, allowing information to be stored or read on FTP server. FactoryLink(TM) Smart Generator enables automatic conversion and presentation of TCP communication objects and mapping, while CAD Smart Generator offers native import of CAD files.

Premix, Inc.    North Kingsville, OH 44068

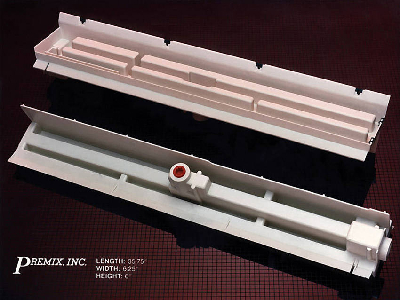

Dec 29, 2009 Custom-formulated for applications requiring Class I rated material, Premi-Glas® 2550 CR-SX is suited for use in HVAC and construction products. Product exhibits resistance to corrosion, noise, and vibration while providing structural rigidity. Applications include housings, drain pans, and side walls for hot air furnaces, air handlers, and air conditioning units; and for building products such as residential and commercial doors. Antimicrobial version is also available.

Nexen Lift Trucks Ltd    Suffolk NR32 1UL  United Kingdom

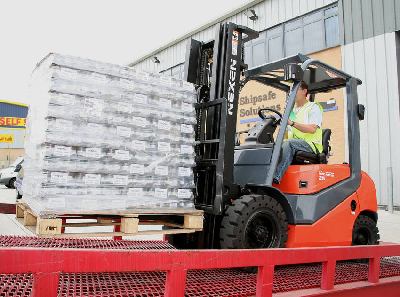

Dec 29, 2009 Featuring fully floating and vibration-isolated driver's cell with adjustable suspension seat and steering column, X-Range Forklift Trucks minimize transmission of drive train vibration to operator. Overhead guard is isolated from chassis for maximum protection. Optimal versions include Driver Presence Sensing system, which automatically locks all hydraulic functions as well as drive to transmission if operator leaves seat. Optimal + models additionally incorporate anti-rollback system.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 29, 2009 To rid agricultural, building, and public places of bird nuisances, COMPACT(TM) series emits predator species distress calls to create environment that appears to be hostile to birds yet appears inoffensive to humans. It works even in rainy weather and does not endanger birds. Able to operate 24/7, automated series can be set up to activate when bird movement is detected using IR sensor. Portable COMPACT 1313, powered completely via solar energy, provides up to 360° degree dispersal.

Baumer Ltd.    Southington, CT 06489 1534

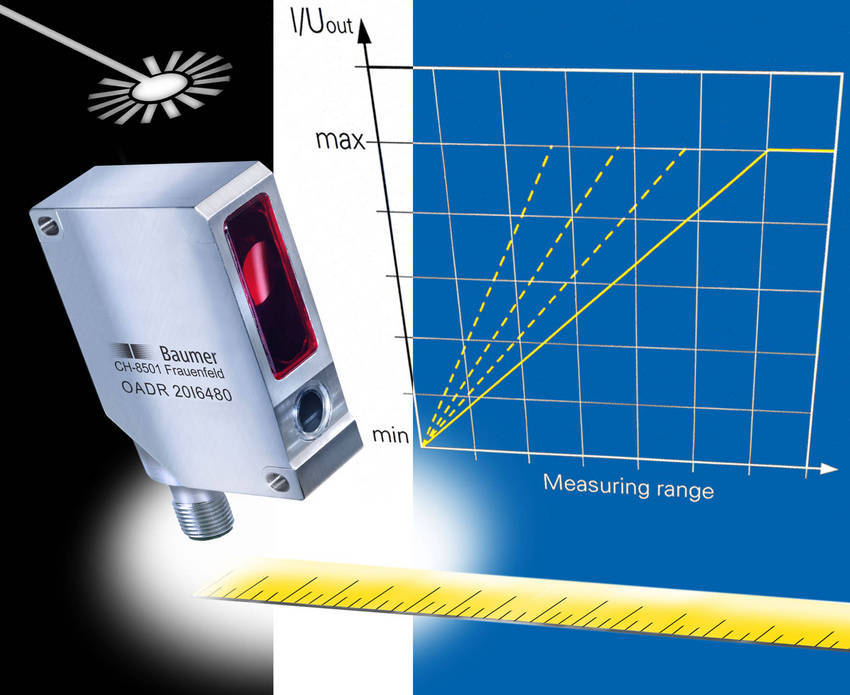

Dec 29, 2009 Available in 6 different models, IP69K-rated OADR 20 sensors feature corrosion resistant stainless steel housing with PMMA front screen designed for washdowns and harsh environments. They are offered in measuring ranges of 30-600, 50-300, and 100-600 mm, each range with either point beam for focused applications or line beam to monitor large areas and rough/uneven surfaces. Sensors offer resolutions up to 0.005 mm and response times of less than 0.9 msec.

LeCroy Corp.    Chestnut Ridge, NY 10977
Dec 29, 2009 Built on Voyager protocol verification platform, Compliance Test Suite for USB 3.0 provides automated, turnkey test application that allows device vendors to begin pre-testing SuperSpeed USB designs in advance of industry's certification program. Software addresses Command Layer and Link Layer compliance verification, including Chapter 9 framework tests for USB 2.0 and 3.0 devices. Console steps through test process and generates pass/fail reports identifying possible violations.

Anite    Berkshire SL1 4PF  United Kingdom
Dec 29, 2009 Network simulator solution SAS LTE helps mobile device manufacturers and network operators identify and eliminate LTE interoperability issues. It allows controllable and repeatable testing of LTE devices. System's GUI enables it to be operated by users without programming knowledge.

ASI-Modulex    Dallas, TX 75220
Dec 29, 2009 Comprised of anodized aluminum extrusion body that accepts various insert applications, from ADA-Ready(TM) to paper, Venus combines contemporary flat-face system design with minimal components to facilitate installation and updates. Various extrusion sizes, finishes, and accent/insert options are available, and optional design accent bar allows various placement and finish options on each sign type present.

Analog Devices, Inc.    Norwood, MA 02062-9106
Dec 29, 2009 Measuring 2 x 2 x 0.6 mm, dual 600 mA Model ADP5022 is suited for space-constrained portable electronics. Unit features 24 µA quiescent current per channel, PSRR of 60 dB up to 10 kHz, and 65 µVrms output noise at VOUT3 = 3.3 V. Included 3 MHz regulators provide fixed-voltage outputs and internal compensation, while eliminating up to 12 discrete components from system board design. To maintain efficiency at light and heavy loads, ADP5022 automatically shifts between PWM and PSM.

NEC Electronics    Santa Clara, CA 95050
Dec 29, 2009 Model uPD5740T6N LNA wideband IC, with bypass/through function, is designed for receiving broadcast TV on mobile devices. Product switches from amplification mode when receive signals are weak to bypass mode when receive signals are strong, extending battery life. Supporting 0.05-1 GHz frequency range and operating from 2.8 V supply with control voltage of 1.0 V, it can also be used in short range wireless systems in 450, 868, and 900 MHz frequency ranges.
