Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Dec 24, 2009 Equipped with self-diagnostics, RVS58S series is designed for use in safety aligned systems up to SIL3 for IEC 61508, performance level e for IEC 13849, and Category 4 for DIN EN 954-1. They are also suitable as motor feedback systems for safe drives concerning IEC 61800-5-2. While functional safety promotes system integration, thermal stabilization lends to Hi-Res interpolation. Products have sin/cos interface and 1,024 or 2,048 signal periods and deliver 200 kHz max output frequency.

Vincotech GmbH    Unterhaching   Germany

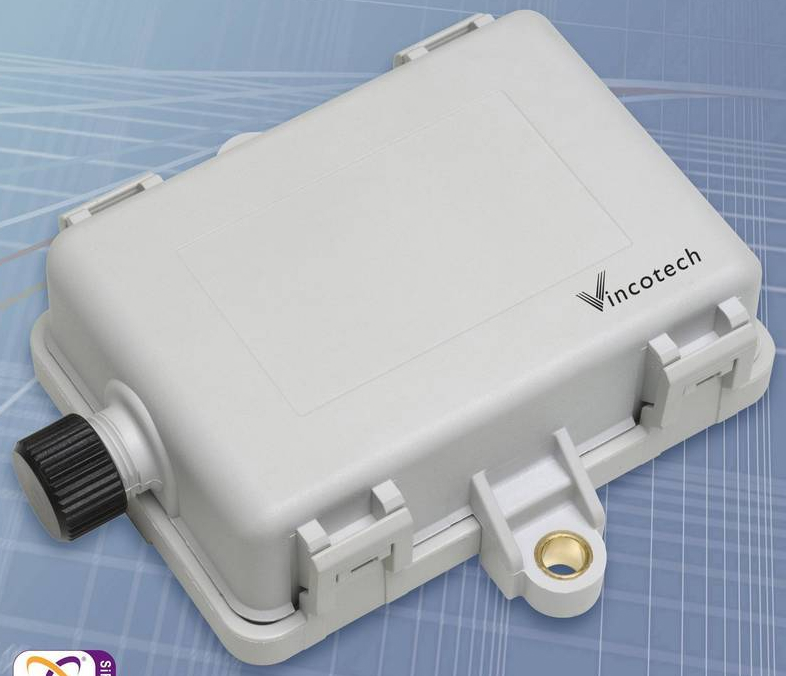

Dec 24, 2009 Integrating antennas into waterproof enclosure, programmable A1091 integrates SiRFstarIV GPS receiver, quad-band GSM/GPRS modem, and Cortex-M3(TM) ARM MCU. Digital and analog I/O, serial port, Dallas 1-wire®, and CAN interfaces foster connectivity, while SiRFstarIV technology can detect, attenuate, and remove jamming signals. Set in SiRFaware(TM) mode, which draws 50-400 µA, GPS maintains hot start conditions continuously and can provide accurate position within seconds.

Jae Electronics, Inc.    Irvine, CA 92618
Dec 24, 2009 Available in straight and angled types, all-plastic JN1 and metal-reinforced JN2 Series for machinery and industrial equipment are, respectively, available in variation with 10 and 15 solder termination contacts. Solder termination contacts can be separately connected using commercially available soldering irons, allowing termination work at any work site. Without changing plug connector main unit, crimp and solder termination contacts can be selected and combined according to demand.

Maxim Integrated Products    Sunnyvale, CA 94086
Dec 24, 2009 Housed in 3 x 3 mm, 16-pin TQFN package, MAX15041 features built-in MOSFETs that offer 93% efficiency while minimizing EMI. Device operates from fixed 350 kHz PMW frequency and utilizes peak-current-mode architecture to simplify compensation. Operating from 4.5-28 V input voltage, regulator provides ±1% output-voltage accuracy over temperature range of -40 to +85°C. It includes enable input and power-good indicator, and offers ability to safely start up into pre-biased output.

Maxim Integrated Products    Sunnyvale, CA 94086
Dec 24, 2009 Intended for Ethernet and Fibre Channel equipment, MAX3625B utilizes low-noise VCO and PLL architecture to generate high-frequency, low-jitter (0.36 psRMS) clock signal from low-frequency crystal resonator or reference clock input. Its -57 dBc PSNR minimizes jitter degradation and facilitates design in noisy system environments. Specified over -40 to +85°C range and operating from 3.3 V ±5%, IC provides 3 LVPECL outputs up to 320 MHz from 2 programmable output-divider banks.

Maxim Integrated Products    Sunnyvale, CA 94086
Dec 24, 2009 Featuring digital LDD interface, Model DS1874 controls and monitors all functions for SFF, SFP, and SFP+ optical modules and fully supports SFF-8472 standard. Device monitors 6 analog channels, including temperature, VCC, and MON1-MON4. Laser modulation is controlled by temperature-driven LUT to compensate for tracking error, and 2 DAC outputs with 36-entry LUTs are provided for additional monitoring and control. Housed in 5 x 5 mm, 28-pin TQFN package, controller operates from -40 to +95°C.

WEG Electric Corp.    Duluth, GA 30097
Dec 24, 2009 Suited for extreme environments with space constraints, WGM Water Jacket Cooled Motor is available in frame sizes from 315-560 IEC and 5,000-8,800 NEMA with 2-8 poles and voltages from 690-6,600 V. Unit features variable frequency drive operation, vertical or horizontal mounting, and minimized thermal dissipation. Through circulation of water over frame construction and endshields, system allows effective thermal exchange between motor and water.

AutomationDirect.com    Cumming, GA 30040-9905

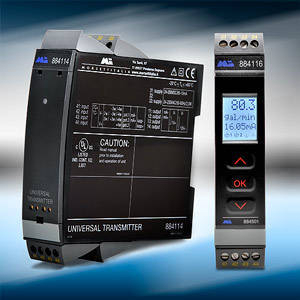

Dec 24, 2009 Models 84116 and 884114 convert, isolate, and transmit scale signals from various process sensor and controller I/O. Both DIN-rail-mountable models incorporate mA and Vdc outputs while 84116 adds 2 individually programmable relays for alarming/control functions. Scalable input signals supported include Vdc, thermocouple with internal cold junction compensation, 2-4 wire RTDs, linear resistance, and potentiometer signals. Detachable LCD programming/display module is optional.

NKK Switches    Scottsdale, AZ 85260-3420
Dec 24, 2009 Rated 0.4 Va max at 28 Vac/dc max, HB2 Series Subminiature Switches are SPST momentary devices combining full face illumination and quiet actuation with crisp tactile feedback. Units come standard with red/green or red/yellow built-in bicolor LEDs, which provide evenly diffused illumination. Featuring glass fiber-reinforced polyamide housing, switches have 7.5 mm square caps with clear lens and white diffuser. Units are PCB mounted with crimped power terminals.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Dec 24, 2009 Rated for temperatures to 1,200°F, hermetically sealed Model 357C90 has integral 10 ft connecting cable and is mounted via thru-hole ¼-28 thread bolt. Charge output unit, constructed of Inconel, offers 5 pC/g sensitivity, 1,000 g peak measuring range, 2.5 kHz frequency response, and 14+ kHz resonant frequency. In addition to engine turbine testing during flight test or in ground-based test cells, applications include environmental chamber testing or exhaust system vibration measurement.

HEM Data Corp.    Southfield, MI 48076 2106

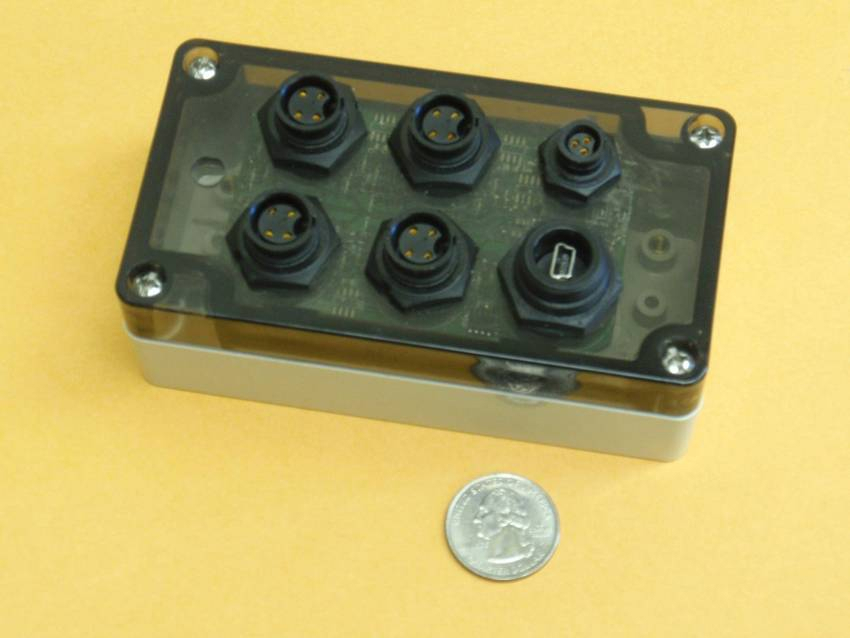

Dec 24, 2009 Measuring 120 x 65 x 40 mm, 8-channel Mini ADAC Logger acquires variety of inputs including voltages, currents, and temperatures and converts pulses to counter/timer signals. It features 16 bit A/D with maximum rate of 100 S/sec per channel, standard voltages of 0-5 and 0-36 V, K type thermocouple inputs, and 0-40 mA current range. Suited for in-vehicle and field testing applications, logger operates on 6-40 V at temperatures from -40 to +70°C.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom

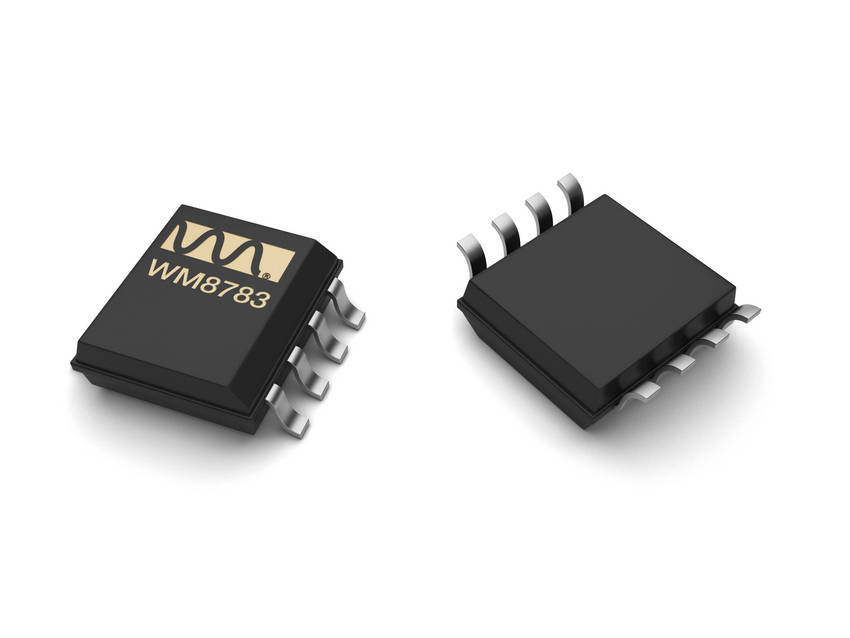

Dec 24, 2009 Requiring only 2 decoupling capacitors, low power WM8783 uses multi-bit Sigma Delta ADC architecture to offer high quality line input audio in recordable media applications, including LCD TVs, set top boxes, and DVD recorders. It achieves 95 dB SNR, -83 dB THD, and supports sample rates from 8-96 kHz. Offered in SOIC-8 package, ADC accepts analog inputs up to 1 Vrms and provides integrated high pass filter to remove DC offset and suppress low frequency noise.

Thermotron Industries, A Venturedyne, Ltd. Co.    Holland, MI 49423
Dec 24, 2009 Model DSX-12000 electrodynamic vibration test system features lightweight 16 in. dia magnesium armature able to produce acceleration levels up to 120 g. Air-cooled system integrates dynamic centering system with optical sensors to ensure that armature remains centered during travel. Compatible with environmental test chambers, product supports payloads up to 1,500 lb and offers velocity up to 115 ips. Shaker is controlled by VCS-3200 Vibration Control System software.

TRENDnet    Torrance, CA 90505
Dec 24, 2009 Model TEW-649UB Mini Wireless N Speed USB Adapter connects laptop or desktop computer to wireless n network. It features one-touch Wi-Fi Protected Setup (WPS) technology to simplify connection to network. Measuring 1.3 in. across, it includes 2 onboard antennas that utilize Multiple Input Multiple Output (MIMO) antenna technology to maximize range and output. It also offers wireless encryption for data protection.

TRENDnet    Torrance, CA 90505
Dec 24, 2009 Model TEW-648UB Mini Wireless N USB Adapter, measuring 1.3 in. end-to-end, connects laptop or desktop to wireless n network. One-touch Wi-Fi Protected Setup (WPS) technology simplifies connection to network and eliminates need for entering complex code. Unit also integrates wireless encryption to protect data.

Minicom Digital Signage    Zurich   Switzerland
Dec 24, 2009 Supporting 3, 4, 6, or 9 screens of any size, DS Vision® Wall is designed for in-store use for video, advertising, and audio purposes. System supports most common multimedia file formats and includes bezel compensation. It also supports Flash animation overlays, RSS feeds, crawls, and more and can be configured to display 1 image or multiple targeted digital messaging images. Screens can be mounted vertically, horizontally, or side-by-side.

Bitrix Inc.    Alexandria, VA 22314
Dec 24, 2009 Designed to meet needs of SMBs, Bitrix® Intranet Portal v8.5 enhances collaboration, communication, social networking, workflow, and knowledge management. Drag-and-drop actions can visualize process construction, synchronize people and departments, and automate routine activities. Along with PRO+PRO(TM) security framework and built-in XMPP/Jabber IM, features include Extranet, Site Controller, and Web Analytics modules as well as event scheduler.

CCI    Novato, CA 94945
Dec 24, 2009 Marketing Planner enables vendors to work with their channel partners to identify clear strategies, aligned goals, and shared metrics. This provides accurate picture of program ROI in advance of program funding and enables comparison of forecast vs. actual at program's conclusion. Resulting complete picture of projected marketing activities, expenditures, and business outcomes early in process facilitates influence and monitoring of their execution.

Keterex    Austin, TX 78746
Dec 24, 2009 Supported by USB-900 Control Center application, USB-910H provides connectivity between host PC and embedded system using SPI, I²C, SMBus, or parallel interface. Hardware supports I/O levels from 1.65-5 V, and programmable supply connection can directly power target system. Along with automatic slave address recognition, support is included for master, slave, and multi-master configurations. Handling of low-level transactions in hardware enable max 24 MHz SPI and 1.5 MHz I²C speeds.

Littelfuse, Inc.    Des Plaines, IL 60016
Dec 24, 2009 Housed in 1.25 x 1.0 x 0.5 mm µDFN package, ±8 kV Model SP1010-04UTG has capacitance of 3.5 pf for high speed buses, while ±15 kV Model SP1011-04UTG offers 7 pF of capacitance for optimized ESD protection. Both 4-channel arrays are RoHS-compliant and suitable for cell phones, smart phones, PDAs, portable navigation devices, digital cameras, netbooks, and portable medical devices.
