Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 04, 2010 Inductors in PSC series are designed for RF circuits that require wire bondable components. Available in 5 versions, they offer DCR up to 0.26 W, Q up to 18 at 1,000 MHz, and SRF up to 10.2 GHz. Inductance values range from 1-100 nH. Measuring 0.045 x 0.045 x 0.010 in., lead-free inductors offer power handling to 250 mW and operate over temperature range of -55 to +125°C.

Kistler Instrument Corp.    Amherst, NY 14228 2119

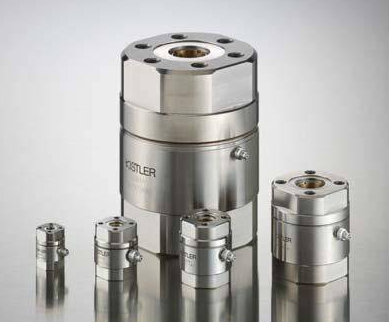

Jan 04, 2010 Type 9383A piezoelectric press force sensors feature calibrated measuring ranges of 0-3, 0-30, and 0-300 kN for measuring dynamic and quasistatic forces. Force acting on quartz element generates proportional electric change at output, which is converted by connected in-line charge amplifier into process signal. Unit features flange connections at both ends, centering rings for axial adjustment, and rotationally symmetrical shape makes it suitable for use at end of push rods or press plungers.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581

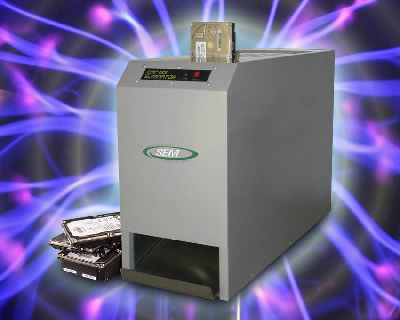

Jan 04, 2010 With effective field strength up to 40,000 gauss, Model EMP001 Eliminator Hard Drive and Magnetic Tape Degausser erases data from longitudinal and perpendicular magnetic recorded hard disk drives with up to 3 TB of storage and nominal coercivity ratings up to 5,000 Oersteds. Unit also erases data tapes with nominal coercivity ratings up to 2,800 Oersteds. Powered by 8 A at 120 V or 4 A at 240 V, degausser complies with DoD requirements for destroying classified information on magnetic media.

Bobcat Company    West Fargo, ND 58078
Jan 04, 2010 Available for CT120 and CT235 tractors, Models FCTSB49 and FCTSB62 feature cutting widths of 49 and 62 in., respectively. Discharge chute rotates hydraulically, so operator can redirect snow as needed. To operate front-mounted snowblower, tractor must be equipped with mid-PTO, loader joystick, and control valve. Snowblowers are suited for homeowners with acreage, landscapers, or buildings and ground maintenance specialists that need to clear snow from driveways, sidewalks, or parking lots.

infinias, LLC    Fishers, IN 46038
Jan 04, 2010 Intelli-M® Access v1.2 provides access control, photo ID badging, and more while managing infinias Ethernet-enabled integrated door controller. Users can create/manage data, view events/alarms, generate reports, and monitor status of devices via UI from any device capable of displaying fully functional web browser. Along with door/zone schedule override and reset, functionality supports multiple door selection, zone-based cardholder location, and barcode-integrated cardholder reports.

Totech America Corp    Las Vegas, NV 89123
Jan 04, 2010 Designed to exceed challenges associated with IPC J-STS-033B.1 for handling of Moisture Sensitive Devices, MSD 1200 Series desiccant cabinets feature modular enclosure offering access from 2 sides, and dry unit with closed loop on-demand regeneration. U5001 Dynamic Series Zeolite dryers enable basic MSD1212 to take only 240 seconds to move from 50% RH to less than 5% under unloaded conditions at 25°C. Optimal humidity levels are below 0.5% RH.

Mazak Corp.    Florence, KY 41042 3092

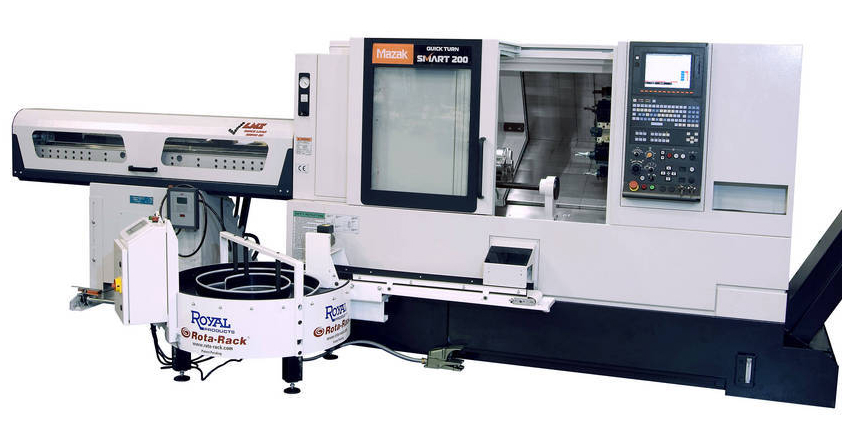

Jan 04, 2010 Controlled via MAZATROL SMART control, QT-SMART 200 features headstock with 8 in. chuck, mounted on 20 hp, 5,000 rpm spindle motor with 3 in. spindle bore. Roller LM guides are used to maximize rigidity at feed rates of 1,811 ipm on X-axis and 1,299 ipm on Z-axis, while X-axis ball screw pretension ensures high accuracy. Unit's 12-position, nonlift drum turret allows rapid tool indexing. It also has NC servo-driven tailstock for automated processes, 10.4 in. LCD color display, and USB port.

FCI    Etters, PA 17319
Jan 04, 2010 BergStak® mezzanine connector system double-row 0.8 mm connectors feature stack heights from 40-200 position sizes in 20 position increments and 5-16 mm stack heights in 1 mm increments. Scalable, parallel board-to-board connectors offer performance of up to 10 Gbps. With blade-on-beam design, units ensure precise contact positioning for accurate mating alignment and reliability. They are suitable for communications, computer, industrial, medical, and test equipment applications.

Honeywell Sensing and Control    Golden Valley, MN 55422
Jan 04, 2010 Model SS345PT Unipolar Hall-effect Digital Position Sensors respond to single north pole while SS445P units respond to single south pole. Both sensors include open collector output with built-in pull-up resistor that interfaces with common electronic circuits. Operating from 2.7-7 Vdc supply, they are operated by magnetic field from permanent magnet or electromagnet. Products are suited for commercial, industrial, and medical applications.

STMicroelectronics    Lexington, MA 02421

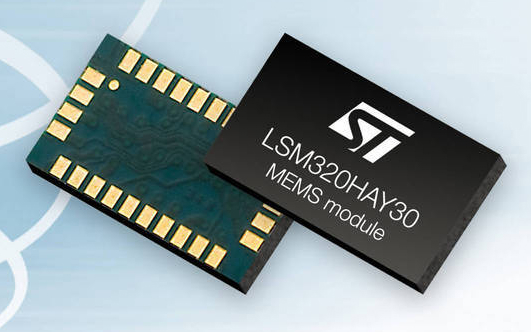

Jan 04, 2010 Model LSM320HAY30 multiaxis motion sensor module integrates 3-axis digital accelerometer with 2-axis analog gyroscope in single module. Gyroscope element provides 2 separate outputs for each axis simultaneously. Operating in temperatures from -40 to +85°C, with supply voltage from 2.7-3.6 V, module provides acceleration of ±2/±4/±8 G and angular-rate detection from 30-6,000 dps along pitch and yaw axes. MEMS sensor enables high-precision gesture/motion recognition in mobile devices.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 04, 2010 PowerBridge(TM) rectifiers feature maximum peak reverse voltage ratings of 600-1,000 V and case dielectric strength of 1,500 V. Measuring 30 x 20 mm with 3.8 mm profile, they allow for efficient dissipation of heat. Units are suitable for AC-DC rectification in switchmode power supplies for PCs, servers, LCD TVs, audio/video systems, power inverters in home appliances, and in primary rectification circuits for supplies in telecommunication systems.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jan 04, 2010 Model SiB455EDK 12 V, p-channel TrenchFET® Gen III power MOSFET offers on-resistance of 27 mW at 4.5 V, 39 mW at 2.5 V, 69 mW at 1.8 V, and 130 mW at 1.5 V. Measuring 1.6 x 1.6 mm in PowerPAK SC-75 package, unit provides gate-source voltage of 10 V and features typical ESD protection of 1,500 V. Halogen-free in accordance with IEC and RoHS, MOSFET is suited for use as load, PA, and battery switches in various handheld devices.

Fox Electronics    Fort Myers, FL 33905 5022

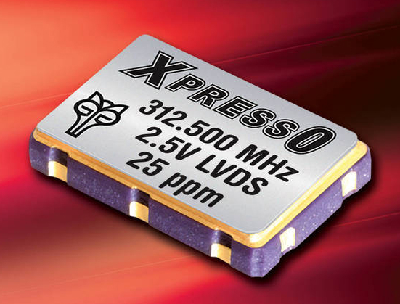

Jan 04, 2010 Housed in 3.2 x 2.5 mm package with stabilities as tight as ±25 ppm, 2.5 V XpressO FXO-LC32 Series features frequency range of 0.75 MHz to 1.0 GHz. Tri-state enable/disable feature allows user to turn off output to minimize power consumption. Operating from -20 to +70°C or -40 to +85°C with low jitter of less than 1 pS, RoHS-compliant oscillators are suited for SONET, Ethernet, SAN, fiber channel, test and measurement equipment, and industrial controllers.

Panduit Corp.    Tinley Park, IL 60477 3091
Jan 04, 2010 QuickNet(TM) High Density SFQ Fiber Optic Cable Assemblies feature MTP SFQ cassettes that achieve up to 72 fiber connections each, providing up to 576 fiber connections in 1 RU unit. Assemblies work with QuickNet(TM) Copper System to achieve optimal cable access and management capabilities in data centers as well as main, horizontal, and equipment distribution areas.

Panduit Corp.    Tinley Park, IL 60477 3091
Jan 04, 2010 Offered in 24 and 28 in. widths, 48 in. depth, and 42 and 45 RU heights, Net-SERV(TM) Cabinet System helps improve thermal management and space utilization in data centers while also reducing power consumption. Cabinets are available configured from factory with various cable management options, including high density, standard density, and vertical patch. Products also maintain hot/cold air separation and eliminate exhaust-area choke points.

Switchcraft, Inc.    Chicago, IL 60630

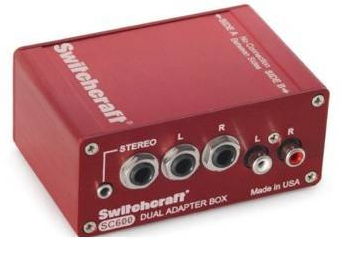

Jan 04, 2010 Featuring 1/8 in. stereo jack, ¼ in. stereo jack, two ¼ in. mono jacks, and 2 RCA jacks, Model SC600 Dual Adapter Box enables any connection to be used as input or output. Box can be used as passive splitter to send audio from one device to up to 3 devices with different connections. For example, users can plug audio output of laptop into 1/8 in. jack, then access stereo signal from ¼ in. mono jacks and RCA jacks.

Switchcraft, Inc.    Chicago, IL 60630

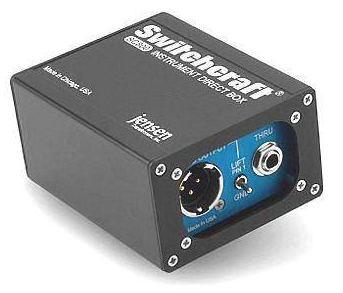

Jan 04, 2010 Model SC800 Instrument Direct Box converts outputs of high-impedance line level audio devices to low-impedance, balanced, and isolated mic level signals. Product offers common mode rejection of greater than 100 dB at 60 Hz as well as input impedance of greater than 150 kW at 1 kHz and output impedance under 170 W at 1 kHz. Total harmonic distortion plus noise is less than .05% at 20 Hz, +4 dBu and under .006% at 1 kHz, +4 dBu. Frequency response is 10 Hz to 40 kHz ± 0.3 dB.

ON Semiconductor, LLC    Phoenix, AZ 85008
Jan 04, 2010 Providing total frequency stability of ±50 ppm, PureEdge(TM) NBXzzzzzz series single- and dual-frequency oscillator modules deliver high-precision performance for LVDS and LVPECL 2.5 and 3.3 V clock generation applications. Products use low-frequency, high Q fundamental mode crystal and analog PLL multiplier for accuracy. They operate from 2.5 and 3.3 V input voltage and are supplied in hermetically sealed 5.0 x 7.0 x 1.90 mm ceramic CLCC-6 SMD package.

Conxall    Villa Park, IL 60181
Jan 04, 2010 Available with male and female panel mount receptacles, 8 mm Sensor-Link Nano-Mizer Assemblies feature threaded snap coupling combinations with locking function. Units come in single and double ended models featuring 3- and 4-pole insert configurations with 20 size contacts and straight and right angle overmolds.

Janis Research Co., Inc.    Wilmington, MA 01887

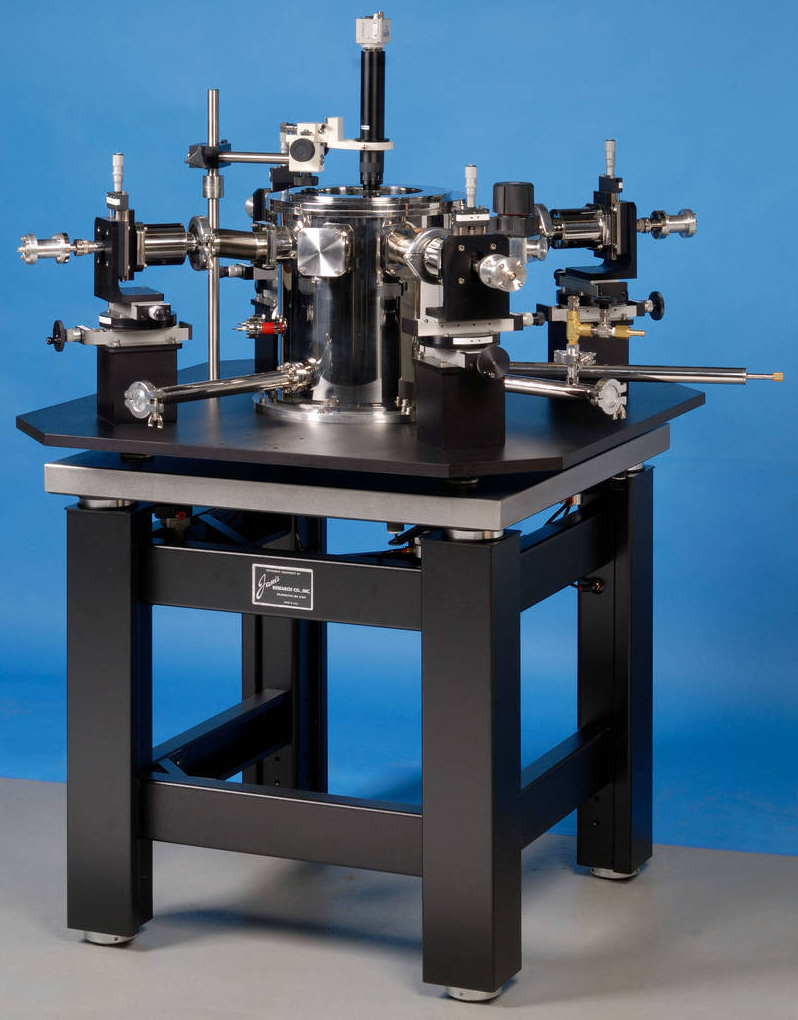

Jan 04, 2010 Used with liquid helium or nitrogen, micro-manipulated probe station operates from 4.2-400 K with 0-3 Tesla magnetic field and can be provided with up to 6 low frequency or microwave (67 GHz max) probes or optical fiber probe arms. Several types of probe tips are offered with 3-axis manipulation, along with probe cooling, and system cools down to 4 K in ~90 min. Other features include high/low temperature superconducting magnet leads and thermometry at all critical stages of cryostat.
