IBASE Technology Inc.    Taipei   Taiwan
Jan 20, 2010 Suited for POS, kiosk, automation, and multimedia applications, MB950 offers Socket H (LGA1156) supporting Intel® Core(TM) i7, Core(TM) i5, Core(TM) i3, or Pentium® G9650 CPU. Board is based on Intel Q57 chipset and supports dual VGA/DVI-D display. Along with up to 16 GB memory configurable in 4 DDR3 sockets at 1,066/1,333 MHz, features include range of expansion - PCIe (x16, x8, x4 Link, x1), PCI, and ISA - and connectivity - Gigabit LAN, SATA-II, IDE, USB, COM, HD audio - options.

FCI    Etters, PA 17319
Jan 20, 2010 Supporting 20+ Gbps data stream, TwinMezz(TM) connectors have hermaphroditic design that mates to itself and supports stack heights from 12-40 mm with 200-800 total contacts. Configurations with 6 differential signal pairs per column provide maximum signal density, delivering 25 high-speed signal pairs in 1 cm² or 161 signal pairs in 1 in². Options for integrated molded or metal guides and capability to mix signal and power wafers in single connector promote flexibility.

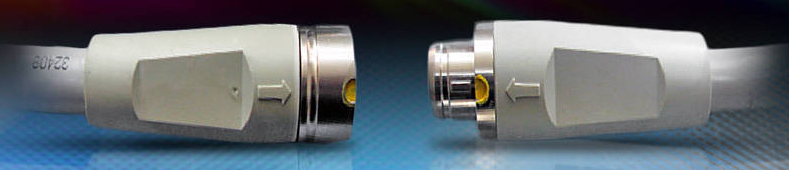

ITT Interconnect Solutions    Santa Ana, CA 92705
Jan 20, 2010 Featuring EMI shielding throughout, 19-way commercial Pogo pin connector and cable assembly are suited for use in medical, aircraft, instrumentation, and industrial equipment. Pogo pin technology achieves contact resistance under 10 mA and ensures lifespan of 5,000+ mating cycles. Connector features stainless steel shells, snap-on breakaway coupling, and interfacial seal, while cable assembly includes bulkhead, front mount, receptacle, plug with RJ45 and in-line plug options.

Advanced Thermal Solutions Inc.    Norwood, MA 02062
Jan 20, 2010 Featuring spread fin array that maximizes surface area for effective convection cooling, maxiFLOW(TM) heat sinks cool ICs and other hot components in narrow packaging and low airflow velocity conditions. Standard heights are as low as 9.5 mm, and extruded aluminum fabrication minimizes thermal resistance from base to fins. Pre-assembled with ATS maxiGRIP(TM) mounting hardware, sinks meet requirements for Telcordia GR-63-Core, ETSI 300 019, and MIL-STD-810.

Pulse Engineering, Inc.    San Diego, CA 92128
Jan 20, 2010 Fully compatible with SMT devices, RoHS-compliant GSM Dual-Band Antenna model W3047A provides radio interface for multi-purpose machine-to-machine (M2M) devices such as broadband access, monitoring, automated meter reading (AMR), and security. It is designed for use in US and operates at 850 and 1,900 MHz bands. Measuring 12 x 3 x 3 mm and weighing 530 mg, product is designed to conserve board space and facilitate integration.

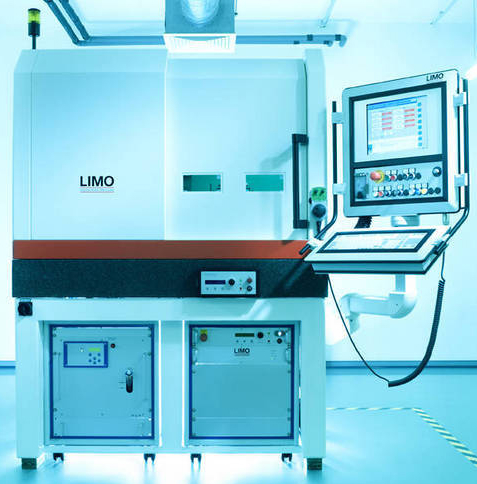

LIMO    Dortmund   Germany
Jan 20, 2010 Based on process-optimized beam shapes, L³ LIMO Line Lasers® offer variety of processing heads that enable use with any type of material. They are equipped with 450-950 W laser sources that run in CW or pulsed mode with power density up to several 100 kW/cm² and typical line length of 10-30 mm. In combination with 3 linear stages, beam moves across target with up to 1 m/s velocity. Lasers are optimized for annealing, crystallization, and tempering of thin films.

Eclipse, Inc.    Rockford, IL 61103 1299
Jan 20, 2010 Offered in No-Purge, Purge, and Modulating versions, Trilogy T400 flame safeguards provide safe and secure burner startup and flame monitoring. Other features include integral display for status, sequence, and faults; history and diagnostics; and programmable timings. Designed to optimize burner and valve control while simplifying setup and maintenance, IP66-rated Trilogy T500 Actuator is offered with 2- or 3-position step and analog (4-20 mA) drive types.

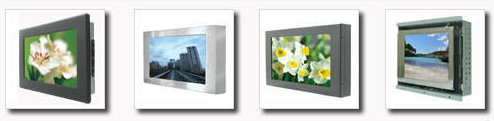

Kaspro Group    Miami, FL 33166
Jan 20, 2010 Falcon Series industrial-grade monitors feature crisp, clear, and sharp display. They are offered in panel-mount, chassis, rack-mount, full IP65/NEMA4, and open-frame options. Models with screen sizes of 15, 17, and 19 in. are available, but sizes up to 50 in. are also possible on demand.

VIA Technologies, Inc.    Taipei 231  Taiwan
Jan 20, 2010 Leveraging USB 2.0 bandwidth of 480 Mb/s, VIA Vinyl Envy VT1730 USB 2.0 Audio Controller achieves cinema-quality audio recording and playback in high-fidelity USB and MIDI system applications. Eight-channel, 24-bit/192 kHz controller supports I²S standard, enabling Blu-ray Disc(TM) audio content protection. Providing smooth interface between USB, analog and digital audio devices, chip is also suited for headphones, audio hubs, and recording consoles.

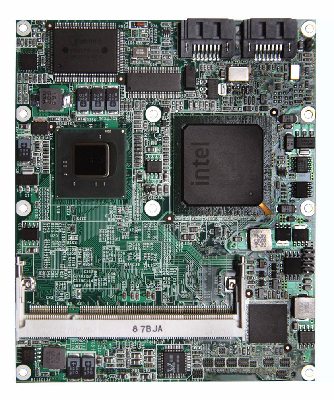

WIN Enterprises    North Andover, MA 01845
Jan 20, 2010 Available with choice of 1.66 GHz Intel® Atom D450 or D510 processor, which integrate Northbridge functions, Model MB-80200 has 2 SATA interfaces and supports dual display with VGA and LVDS. Module consumes minimum of 8 W with Intel N450 CPU plus chipset and supports Windows 7 operating system. Two-chip device is suited for portable medical, gaming/entertainment, military, kiosk, and aerospace applications.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Jan 20, 2010 Trailblazer® 302 EFI welder generators weld 280 A at 100% duty cycle (300 A for wire welding) and Bobcat 250 units weld 250 A at 100% duty cycle (275 A for wire welding). Providing 10,500 W continuous power, both Electronic Fuel Injected engine-driven, twin-cylinder models support stick, MIG, flux cored, AC/DC TIG, and gouging systems. Outputs are rated for operation at 104°F and machines include protective armor for high-impact and chemical resistance.

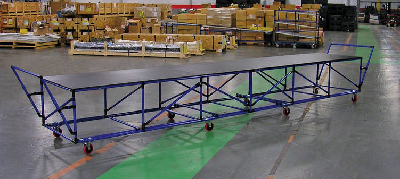

Creform Corp.    Greer, SC 29652-0830
Jan 20, 2010 Utilizing plastic-coated steel pipes, metal joints, and accessories, Extreme Size Carts can be manufactured in virtually any size and are suitable for moving large parts from one manufacturing station to another. Units incorporate elevated load platform with solid plastic shelf surface to provide damage-free handling. Offering 500 lb load capacity, Extreme Size Carts are equipped with 8 swivel casters with brakes and height-adjustable handles at both ends.

Bosch Security Systems    Fairport, NY 14450 9199
Jan 20, 2010 With Cam-set v3.02, users can connect to MIC Series PTZ cameras via RS485/422 serial link, and multiple MIC Series cameras can be set up and controlled over IP network via video encoders. Software allows configuration settings to be simultaneously uploaded to 1-256 cameras over serial link, and max of 4 cameras per video encoder IP address. Program incorporates self-diagnostic and servicing tools, including pan-tilt motor testing, camera module testing, and communications testing.

ESI Group    Bloomfield Hills, MI 48304
Jan 20, 2010 Addressing automotive industry requirements, Visual-Environment v5.5 offers open engineering framework where applications and interfaces covering multiple simulation domains can be implemented. Program includes Model Checker, Barrier Positioning tool, and Model Compare tool, which compares 2 iterated models and identifies variations on basis of set criteria. Animation speed within Visual-Viewer has been adapted to meet increasing performance targets, and true batch mode execution is supported.

Vernier Co.    Beaverton, OR 97005
Jan 20, 2010 With its 2 different excitation wavelengths centered at 405 and 500 nm, SpectroVis Plus can quantitatively measure fluorescence spectra of various compounds. It has 380-950 nm rage and collects up to 570 values with 1 nm between reported values. Unit collects full wavelength spectrum (absorbance, percent transmittance, or intensity) in less than 1 sec. Once the peak wavelength is determined, user can determine concentration of solution or monitor rates of reaction.

Vernier Co.    Beaverton, OR 97005
Jan 20, 2010 Suited for educators collecting data with computer, LabQuest Mini interfaces with Logger Pro software and features max sampling rate of 100,000 samples/sec. There are 5 sensor ports that promote flexibility by allowing users to choose from 50+ compatible sensors, and included Logger Lite software starts students collecting, graphing, and analyzing data. Compact design is connected and powered by USB 2.0 Full Speed interface.

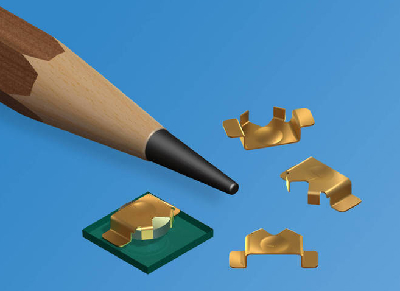

Keystone Electronics Corp.    Astoria, NY 11105
Jan 20, 2010 Suited for high-density PCB packaging, miniature Lithium Button Cell Retainers are engineered with spring tension to assure low contact resistance while firmly securing battery. Surface mount units are compatible with all soldering and reflow operations. Manufactured of phosphor bronze with solder tails located outside body, retainers are suitable for miniature electronics such as watches, hearing aids, calculators, and keyless door entry fobs.

Belden    Richmond, IN 47375
Jan 20, 2010 Featuring built-in activator tab that performs fiber splicing and crimping action in one motion, FiberExpress Brilliance Field-Installable Connectors enable contractors to terminate tight buffered fiber in just 3 steps. Units are available for 900 µm LC and are built to withstand temperatures from -40 to +75°C. Connectors can be used as backbone, horizontal, or fiber-to-the-desk components in any commercial building, government agency, or data center.

DALSA    Waterloo, ON N2V2E9  Canada
Jan 20, 2010 Supported with full suite of vision tools, BOA Smart Camera can be applied to color inspection applications, such as identification of parts or assembly features, sorting, counting, and verification of color hue. iNspect Express software interface allows users to rapidly prototype and deploy solutions and is available with emulator for offline application development and debugging. Featuring 44 mm cube form factor, camera has IP67-rated housing for harsh, washdown environments.

Electronic Assembly Manufacturing, Inc    Methuen, MA 01844
Jan 20, 2010 Featuring Times Microwave Systems T-Flex® cable, 3 ft long, 0.141 in. dia flexible cable assemblies provide VSWR characteristics of 1.35:1 from 45 MHz to 18 GHz. Terminated with SMA male connectors, 50 ohm flexible cable assemblies meet all MIL-C-17 requirements. Available in standard and custom lengths, corrosion resistant units feature PTFE (Teflon®) dielectric with silver plated copper tape and braid shield and fluorinated ethylene propylene jacket.
