PR Electronics    San Diego, CA 92128
Jan 05, 2010 PReview 5714 displays digital current, voltage signals, resistance, and temperature indications. It includes scrolling help text to guide user step-by-step to ease configuration via front keys. Unit's 4-digit, 14-segment LED display optimizes visualization of letters in menu, while 2 yellow front LEDs indicate relay status. Featuring 24-250 Vdc/Vac universal voltages, display also has overcurrent-protected input, current-limited output, and polarity-protected voltage supply.

PR Electronics    San Diego, CA 92128
Jan 05, 2010 Featuring universal power supply of 21.6-253 Vac and 19.2-300 Vdc, PReasy 4100 Series can be configured for all types of industrial measuring signals such as RTD, TC, Ohm, Potentiometer, mA, and V. Depending on desired output function, user can choose between Model 4114 with analog output, Model 4131 with 2 relays, or Model 4116 with analog output and 2 relays. Display front, Model 4501, can be used for signal visualization, but modules can also function without display.

Bosch Security Systems    Fairport, NY 14450 9199
Jan 05, 2010 Suited for analog video, DVR, and PC applications, LED Flat Panel Monitors come in 8.4 and 10.4 in. versions with max brightness from 400-450 cd/m² and contrast ratio from 600:1-700:1. Panels refresh every 10-20 ms, providing clear images with minimal smearing and image ghosting in fast-motion video. LED backlight panels help to avoid luminance degradation, enabling monitors to maintain brightness level over time.

Franklin International    Columbus, OH 43207
Jan 05, 2010 Offering environmentally safe alternative to UV-curable and solvent-based PSAs, Acrynax® acrylic polymer hot melt adhesives come in 4 formulas to meet product requirements. All adhere to variety of materials, including polyester, glass, steel, aluminum, vinyl, fabric, non-wovens, and paper. They are optically clear, skin-friendly, and resistant to water, solvents, UV light, and many plasticizers. Because they are fully cured, adhesives allow for optimum coating speeds.

BinMaster    Lincoln, NE 68507
Jan 05, 2010 Enabling remote wireless inventory management of stored material, BinLink® consists of SmartBob2 and SmartBob-TS1 sensors mounted on bins, wireless or wired data communication network, gateway to provide connectivity to PC or IP network, and data collection software that can be viewed by authorized user via Internet connection. System features encryption and authentication functions for security, and can send email and cell phone alerts when bin conditions meet user-defined thresholds.

Absopulse Electronics, Ltd.    Carp, ON K0A1L0  Canada

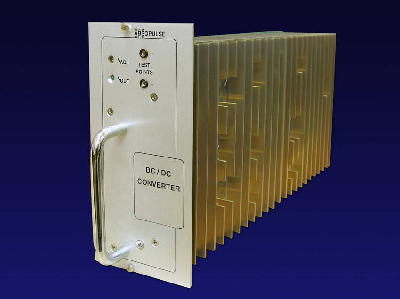

Jan 05, 2010 Measuring 4U x 16 HP x 12 in., Model BKP 419-EH is typically used in 19 in. rack mount applications. Unit comes in natural air convection cooled version that generates 1,000 W and model with forced-air cooling that generates up to 1,500 W. Standard version of plug-in module operates from 125 Vdc line voltage and delivers single output of either 24 or 48 Vdc. Built-in redundancy diode allows for parallel connection or N+1 redundant operation, including hot-insertion.

CTS Corp.    Elkhart, IN 46514
Jan 05, 2010 Featuring quick ¼ turn locking action, ZIF Prime meets Military Standard 810 vibration/shock test performance. Uniform clamping pressure eliminates hot spots, creating uniform heat transfer, and ZIF characteristics are unaffected by adverse environments. Designed for .031, .050, .084, .093, and .125 in. thick circuit boards, retainers exhibit thermal resistance as low as 0.9°C/W/in. of retainer length. ZIF provides visual indication that rods are in open/closed position.

K-Sun    Somerset, WI 54025
Jan 05, 2010 Using 11 LABELShop heat-shrink tube sizes and colors, including ½ in. size, plus all 58 colors and sizes of polyester LABELShop labeling types, K-Sun LABELShop BEE3+ Terminator can label, barcode, and heat-shrink tube to identify wires, cables, terminals, tools, face plates, parts, instruments, and equipment. Unit has 6 bar code formats and more than 1,000 special symbols including ANSI, safety, electrical, transportation, vehicle, hospital, and bio-hazard.

GOEPEL electronics LLC    Austin, TX 78759

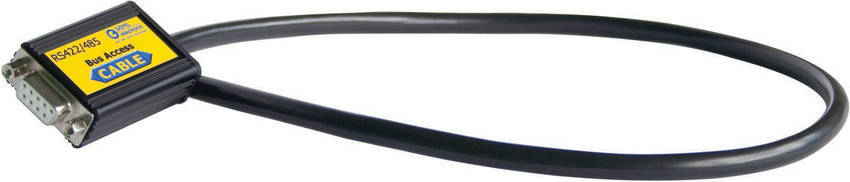

Jan 05, 2010 SCANFLEX® multi port module SFX-9305 accepts BAC 9305-RS422/485, which enables tests of RS422 and RS485 interfaces in combination with extended JTAG/Boundary Scan operations. Bus Access Cable (BAC) can be independently plugged into any free port of I/O module, where interface will be recognized and automatically configured. Available interface functions contain stepwise handling of protocol layers, including bi-directional data transfer.

Hobart Welding Products    Lithonia, GA 30058
Jan 05, 2010 Optimized for soft alloy wire welding in light industrial, automotive, and farm applications, DP 3545-20 Spool Gun comes with 20 ft cable as well as gun barrel and cable suited for IronMan 230 MIG welder's 250 A output. Direct-connect power pin accelerates connection to wire drive system. Offering wire speed range of 200-1,200 ipm, 200 A spool gun weighs 8 lb with cable assembly and uses .030-.047 in. dia aluminum, steel, and stainless steel wire.

AXIOMTEK    Taipei   Taiwan
Jan 05, 2010 Supplied in IP30 aluminum enclosure with DIN-rail or panel mounting, iCON-33000 has up to sixteen 10/100Base-TX ports and 2 combo Gigabit ports (copper or fiber optic). It supports multi- or single-mode fiber or WDM fiber and features redundant power inputs with terminal block and dc jack available. Operating over -40 to +75°C range, RoHS-compliant switch provides non-stop Ethernet connection via support for alpha-Ring technology that provides network recovery within 15 mS.

Everlight Electronics Co. Ltd.    TAIPEI   Taiwan
Jan 05, 2010 Supplied in package with 2 mm max height and 2.54 mm lead pitch, EL101X-G series of 4-Pin SOP phototransistor optocouplers enables power supply designers to derate their boards up to 110°C. Characteristics include 5,000 Vrms isolation voltage, minimum creepage and clearance distance of 8 mm, and 80 V breakdown voltage. Halogen-free, Pb-free, and RoHS-compliant, product also offers multiple selectable current-transfer-ratio (CTR) bins and operates from -55 to +110°C.

Power-Win Technology Corp.    Taipei   Taiwan
Jan 05, 2010 Rated to 500 W max, digitally controlled PW-500B series operates from 90-264 Vac and provides regulated outputs of 12, 24, 36, 48, 54, or 57 Vdc. Grounded single-output, single-phase power supply features active PFC and optional active current share function utilizing built-in OR-ing FET diode. Compliant with IEC60601-1 and IEC60601-1-2, supply is suitable for use in B and BF type medical applications and offers redundant operation capability as well as inhibited remote control.

AXIOMTEK    Taipei   Taiwan
Jan 05, 2010 Suited for multimedia devices, ETM831 integrates 1.6 GHz Intel® Atom(TM) N270 CPU with Intel 945GSE and ICH7M chipsets in 4.5 x 3.7 in. footprint. Mobile Intel® 945GSE Express chipset integrates Intel Graphics Media Accelerator 950 that provides CRT and single/dual channel 18-/24-bit LVDS. In addition to range of connectivity and expansion interfaces, RoHS-compliant SBC includes watchdog timer and supports up to 2 GB DDR2 system DRAM on one SODIMM.

Device Technologies, Inc.    Southborough, MA 01772-1033
Jan 05, 2010 Designed to protect wires, cables, and hoses from abrasion, RoHS-compliant Trim-Fast S Series includes broad range of profile shapes and sizes manufactured with steel or stainless steel substrate, wire or segmented clip, which snaps on to panel thicknesses from 0.029-0.750 in. and locks into place without adhesives. Flexible substrate is encapsulated with abrasion-resistant elastomeric polymer, EPDM, Silicon, or PVC to resist damaging conditions.

Process Technology    Mentor, OH 44060
Jan 05, 2010 Available in 120, 208, and 240 V models, Quartz Infrared Heating Elements have heavy wall quartz sheath and ceramic insulators that provide positive electrical insulation. Elements are capable of reaching full heat in 40-65 sec and offer watt densities of 50 W/in². Suited for curing, baking, and drying applications, elements contain nickel chrome resistance wire with peak wavelength of 2.55 microns, max power density of 1.3-1.75 kW/ft², and heat/cool response time of 1-2 min.

NCH Software, Inc    Greenwood Village, CO 80111
Jan 05, 2010 Inventoria professional stock management software allows inventory management in one or several locations and generates purchase orders to send directly to vendor. Windows-based program enables users to categorize items, set low-level stock warnings to alert them to reorder, execute/record stock transfers between locations, and maintain database of suppliers/customers. Reporting includes inventory levels and location and program also simplifies automation of recurring orders.

Fluid Components International    San Marcos, CA 92069
Jan 05, 2010 Designed for use in line sizes from 0.25-6 in., 180 Series OEM Flow Sensors provide switching, alarming, rate metering, and totalizing of air, gases, or liquids. They are suitable for equipment or machinery that requires flow/level sensing as part of control system loop or OS. Products incorporate 2 platinum RTD sensors mounted in miniature thermowells which are sealed to avoid contamination by process fluid. Units have no moving parts and are maintenance free.

Ci Design Co., Inc.    Irvine, CA 92618
Jan 05, 2010 Housed in aluminum enclosure, 8-bay Safari 2.5 in. iT8PMIS/iT8PESA systems are equipped with MiniSAS/SATA II port Multiplier chipset technology and offer speeds in excess of 600/400 MBps, respectively. Portable storage solutions can handle advanced formats such as 2K, 4K, full resolution 1080i HD, 720P, HDV, SD, and VFX. Equipped with studio-grade low-noise cooling system, units are suited for audio production, video post production, graphic design, and digital photography.

CTI Electronics    Stratford, CT 06615
Jan 05, 2010 Housed in NEMA 4X/IP66 stainless steel enclosure, M2000-Nx Series features gasket-sealed bottom plate with rubber feet to prevent slippage on dirty, wet surfaces. COTS unit has 8-pin NEMA 4 connection, providing X and Y axis voltage outputs, center voltage reference, and optional 1 or 2 pushbutton voltage outputs. With choice of 8 joystick knobs, unit offers many configurations for precision control of analog devices such as DC motors, stepper motors, and PLCs.
