Bodine Electric Company    Northfield, IL 60093
May 12, 2009 Pacesetter(TM) 230/460 Vac, 3-phase gearmotors and motors suit factories where various power supply options are present. In addition to range of torque, speed, and horsepower ratings, these CE- and RoHS-compliant products offer Quintsulation(TM) 5-stage insulation system that protects motor from potential spikes or corona damage caused by inverter. Frame motors 34R and 42R, available with dual-voltage windings and inverter-duty ratings, can be matched with type E, F, and 5N gearheads.

CML USA, Inc.    Davenport, IA 52804
May 12, 2009 Designed to accept large radii tooling to 16 in. CLR, GB90/GB100 Semi-Automatic Giga Bender Mandrel Machine bends tube, pipe, square and rectangular profiles to center radius as tight as 1.5D. System offers programmable bend angles with independent material springback setting for each bend, and interactive PLC touch screen for access to auto and manual operating modes, system diagnostics, and multiple language capability. USB enables unlimited program memory storage and communication.

ESS Technologies, Inc.    Blacksburg, VA 24060
May 12, 2009 Able to palletize 25-30 RSC cases/min, robotic pallet cell incorporates FANUC robot, with vacuum-, gripper-, or hybrid-style end-of-arm-tooling; automatic pallet dispenser; and flow-through conveyor, all in 19 x 8 ft space. It can be configured to allow multiple zones and full pallet discharge can be in-line or 90°. All standard pallet sizes are accommodated and dozens of preprogrammed pallet patterns can be stored. System changeover for multiple case sizes takes 15-20 min.

Abell Combustion, Inc.    Kimberton, PA 19442
May 12, 2009 Offering capabilities of rotary meters without any moving parts, Actaris Dattus(TM) is suited for commercial and industrial gas measurement applications with flow rates from 1,000-56,000 actual cubic feet per hour (acfh). It does not require oil and will not lock-up from pipeline debris. Along with static measurement, gas-volume totalizing, and data logging technologies, meter offers fixed-factor pressure correction, configurable pulse outputs, and modus communication.

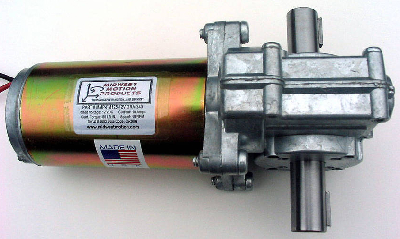

Midwest Motion Products    Watertown, MN 55388
May 12, 2009 Accepting any 12 Vdc source, reversible model MMP-FM125-12V GRA-240 has rated output of 86 lb-in. continuous torque at 19 rpm and 100 lb-in. peak. Elements of construction include 2.5 in. dia motor with 3.2 x 2.2 in. gearbox and overall length of 8.15 in. as well as ¾ in. dia x 1.5 in. long keyed dual output shaft that exits both sides of gearbox. Hollow Shaft designs are also available, and support for variable-speed operation is standard.

RIDGID    Elyria, OH 44035
May 12, 2009 Offered in kit that includes ½, ¾, 1, and 1¼ in. jaws, RIDGID® Model RP 210-B has ergonomic design and weighs 5.625 lb. Flattened top and 270° barrel rotation promote accessibility for users making connections in confined spaces, while indicator lights provide feedback and safety information. Standard lithium-ion battery provides 1.1 A/hr, and hydraulic pressure release retracts ram with one button press. Service interval is rated at 30,000 presses.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
May 12, 2009 With Adapter Plates, users can mount collet chucks and 3-jaw chucks to wide range of spindles. Larger chuck can be mounted on smaller spindle for increased capacity, or smaller chuck can be mounted on larger spindle for increased tool clearance and speed. For applications that produce fines and dust, Bar Seal Assembly can be fitted to Royal S-type collect chucks.

Applied Power Systems, Inc.    Hicksville, NY 11801
May 12, 2009 With current rating of 50-3,000 A, DC Power Inverters incorporate full and half bridge circuit configurations and feature air or liquid cooling, making them suited for force driving power electronics. Additional applications include motor drives, battery chargers, power supplies, UPS systems, and alternative energy, such as solar and windmill converters.

V-Infinity    Beaverton, OR 97005
May 12, 2009 Series VLD24 operates from 5.5-36 Vdc input and offers both PWM digital dimming and analog dimming control via trim POT. Available output currents include 300, 350, 500, 600, and 700 mA with output voltage range of 2-32 Vdc. Ambient operating temperature range is -40 to +85°C at full load in 300 and 350 mA versions and -40 to +71°C in 500, 600, and 700 mA versions. Measuring 0.897 x 0.401 x 0.374 in. in PCB mount package, product has short-circuit protection and on/off control.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
May 12, 2009 Capable of withstanding high-heat applications, Titanium Elite(TM) features aluminum heat shield that protects analog lens in applications up to 300+ A. Shock-absorbing gasket surrounding lens protects it from drop impact in hard welding environments. Helmet weighs only 20 oz and features 4 independent arc sensors that respond in 1/20,000 of second, 9 in.² viewing area, standard auto-on/auto-off and grind modes, and variable shade (8-13) sensitivity and delay.

SynchroTech, A Div. of Synchronized Technologies Inc.    Los Angeles, CA 90010
May 12, 2009 Allowing for flexible tiered USB configurations with single hub, USB-HUB-K10 operates in self powered mode and protects downstream ports against over current. It is USB 1.1 backward compatible, supports low, full, and high speed USB devices and works with any system that supports USB specification. Featuring plug and play installation, unit includes one power supply with 3 A capacity, and USB 2.0 cable to connect to host computer.

Magna-Power Electronics    Flemington, NJ 08822
May 12, 2009 Capable of operating under short-circuit and open-circuit conditions, XR Series includes 54 models with power ratings at 2, 4, and 6 kW, voltage ratings up to 1,000 Vdc and current ratings up to 375 Adc. Power supplies accept wide AC input voltage range from 208-480 Vac, at 50, 60, and 400 Hz with power factor greater than 92% at rated power. All models include standard 37-pin isolated 0-10 V external input/output to monitor and control all automation and integration functions.

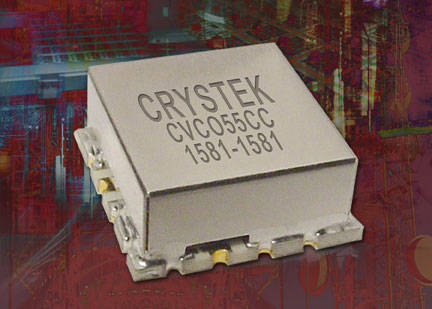

Crystek Corporation    Ft. Myers, FL 33913
May 12, 2009 With control voltage range of 0.5-4.5 V, CVCO55CC-1581-1581 features typical phase noise of -120 dBc/Hz at 10 kHz offset and output power of +2.5 dBm typical. Input voltage is 5 V, with maximum current consumption of 25 mA, while pulling and pushing are minimized to 1.0 MHz and 1.0 MHz/V, respectively. Second harmonic suppression is -15 dBc typical. Featuring 0.5 x 0.5 in. SMD package, VCO is suited for use in applications such as satellite communications systems and base stations.

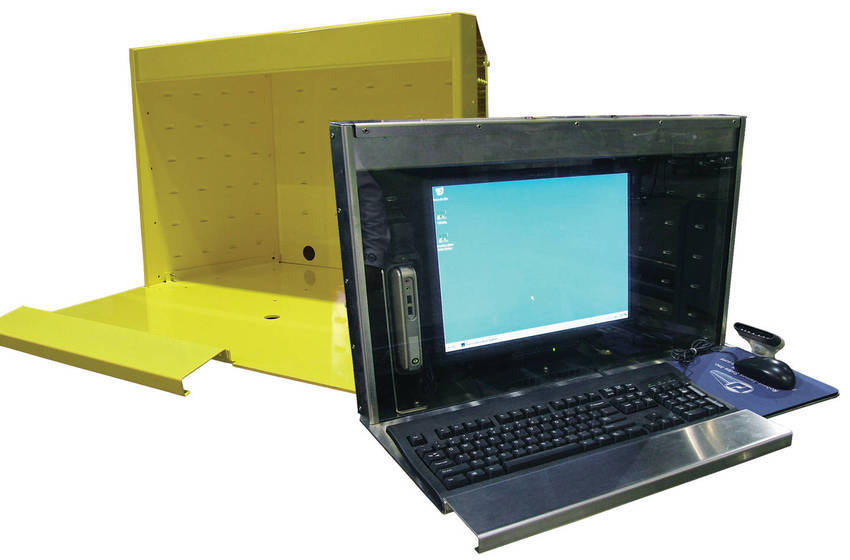

Magnetic Products, Inc.    Highland, MI 48357
May 12, 2009 Placed on standard column, pole, or on optional stand directly on manufacturing floor, Thin Client Kiosk houses and protects systems from dirt, dust, water, and impact. Monitor is positioned inside kiosk where it is shielded with sliding ¼ in. thick Lexan panel. Available in safety yellow steel or stainless steel, fully assembled kiosk measures 26.5 x 26.5 x 18 in., weighs 65 lb, and fits all keyboard/mouse configurations. Custom configurations are available.

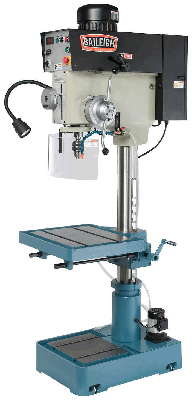

Baileigh Industrial, Inc.    Manitowoc, WI 54220
May 12, 2009 While DP-1000G and DP-1500G utilize heavy gear case drive systems with 4 and 8 speeds, respectively, models DP-1000VS/DP-1250VS/DP-1500VS incorporate variable speed inverter drives with digital RPM readouts as standard. All models feature coolant system to prolong tool life as well as heavy-duty bases and oversized support columns for optimal rigidity. Finely machined vise slots promote drill accuracy, while swing away safety guards and halogen work lamps provide operator safety.

Zoneworks    Milwaukee, WI 53223
May 12, 2009 Offering alternative for permanent walls or rigid panelized systems, insulated fabric wall systems act as barriers to separate inside dock from rest of facility, eliminating need to heat or cool space accessed by trucks. System incorporates TZ Series of insulated curtain walls capable of providing temperature separation up to 40°F. Modular wall panels are constructed of fire-retardant vinyl surrounding multiple layers of recyclable, anti-microbial polyester batting.

Graphite Metallizing Corporation    Yonkers, NY 10703
May 12, 2009 Featuring low coefficient of friction, Model 163 GRAPHALLOY® pillow blocks withstand wash downs and submerged conditions, and eliminate need for lubrication. They are chemically resistant and non-galling, and their rugged design is suited for moderate speed applications under high or low load conditions. Available in cast iron or stainless steel, units are suited for use in plating tanks and industrial washers. Cast iron split-angle housing is also available.

Maxon Precision Motors    Fall River, MA 02720
May 12, 2009 Designed for high speed medical applications of up to 90,000 rpm, EC Size 5 and EC 13 drives feature low-noise and low-vibration operation. Size 5 motor and gearhead measures ½ in. OD, with shaft of 0.125 in., and motor has servo mount. EC13/GP13 version has 13 mm OD, 3 mm shaft, and flange mount with 3 face side threads. Both models offer sterilizability of 500 autoclave cycles (typ) and are available equipped with Hall sensors or sensorless as well as with 3 different windings.

CA, Inc.    Islandia, NY 11749
May 12, 2009 CA Clarity(TM) Project and Portfolio Management (PPM) On Demand delivers visibility over enterprise to help prioritize projects, people, and resources. It offers prebuilt integrations with IT planning and control applications, Stage-Gate®-certified product development content, and ANSI-748 reporting. It is also offered as CA Clarity PPM On Demand Essentials, combining PPM with training, and versions for IT governance, product development, and U.S. Federal compliance and program management.

CA, Inc.    Islandia, NY 11749
May 12, 2009 Providing visibility/control over revenue-generating Web applications, CA Wily Application Performance Management solution features CA Wily Introscope® v8.1 and CA Wily Customer Experience Manager(TM) for insight into transactions crossing various platforms. Interface includes visual map and real-time dashboards. To aid transaction monitoring, program also provides visibility into SOA middleware platforms, databases, Citrix, and Oracle® Forms.
