GEUTEBRUCK GmbH    Windhagen D-53578  Germany

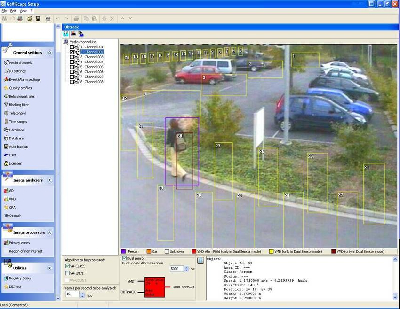

Jan 12, 2010 Able to process resolutions up to several megapixels, VCA4IP software includes Activity Detection function, which provides movement detection for indoor/outdoor applications. Video Motion Detection function differentiates between objects of different sizes, and between movements in different directions and at different speeds. Using video motion detection and object classification algorithms in parallel, Dual-Sensor function generates alarms only when both sets of criteria are met.

Sanyo E & E Corp.    San Diego, CA 92173

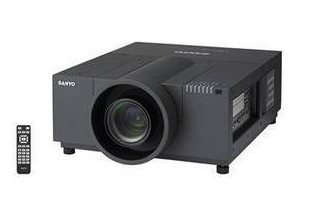

Jan 12, 2010 Model LP-XF1000 dual-lamp projector with rich color features QuaDrive(TM) Engine for color control that enables contrast ratio of 4000:1, which optimizes projection image depth and stereoscopic effect. Unit integrates two 330 W lamps and mechanical shutter than can block projection of light. Active Maintenance Filter system allows for filter cartridge replacement interval of about 11,000 hr. Device also enables adjustment without change of position and can project from ceiling or floor.

Hexagon Metrology Inc.    North Kingstown, RI 02852

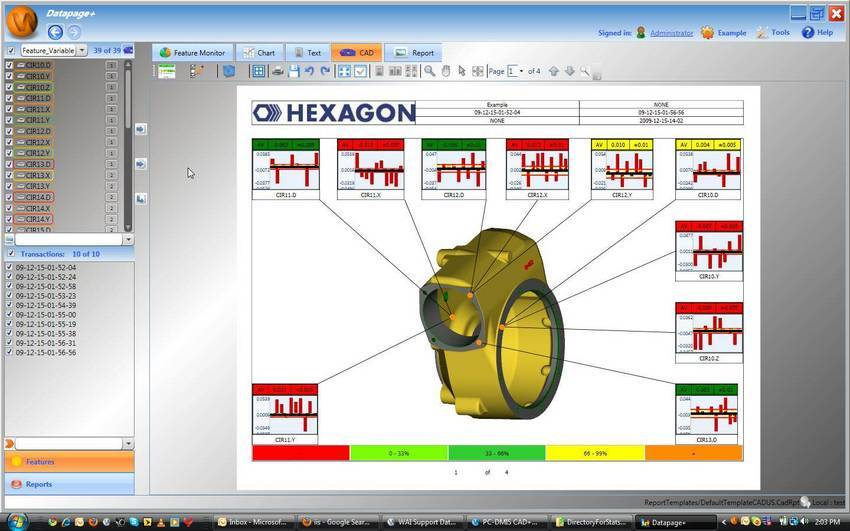

Jan 12, 2010 Designed to meet SMB needs and available in English or Chinese, DataPage+ provides meaningful, actionable, and timely feedback to shop floor to reduce waste, eliminate bottlenecks, and streamline manufacturing processes. Features include SQL Express database format, integration with PC-DMIS, run charts, and histograms. Available as option, another feature allows users to integrate CAD data into customizable, interactive report format.

LaCie USA    Hillsboro, OR 97124
Jan 12, 2010 LaCie CooKey and LaCie WhizKey USB 2.0 Flash keys feature Gold SIP connector that is both water- and scratch-resistant. Durable drives offer up to 32 GB storage and transfer rates of up to 30 Mbps. They can also integrate 4 GB of storage from Wuala online service, which allows secure storage, back up, sharing, and access to files from anywhere and lets users upload files and set privacy settings for files or folders to share.

STMicroelectronics    Lexington, MA 02421
Jan 12, 2010 Model STi7167, featuring DVB-C and DVB-T demodulators and H.264/MPEG 2 decoder, is designed for zapper set-top boxes for cable, terrestrial, and Internet-TV. Unit's passive standby power consumption is less than 200 mW, enabling set-top boxes with standby power consumption of less than 1 W. Measuring 27 x 27 mm, it is capable of decoding HD signals.

Panasonic Electric Corp. of America    Secaucus, NJ 07094
Jan 12, 2010 Gallium Nitride (GaN) based, 106 KB monolithic inverter IC features 6 GaN-based transistors that can be independently driven, allowing high efficiency motor drive. Gate Injection Transistors (GITs) are integrated onto chip's lateral device configuration, independent operation of each is made possible by planar isolation using iron ion implantation that supports breakdown voltage of 900 V between transistors. Unit also offers output power of 20 W.

Cavium Networks    Mountain View, CA 94043
Jan 12, 2010 Display MiniCard module offers encoding up to 1,920 x 1,200p60 as well as HDCP 2.0 encryption and authentication for viewing local/online content. Measuring 44.40 x 26.80 mm, unit consists of DisplayPort receiver and CNW5XXX coprocessor and plugs into motherboard Display MiniCard slot, taking content from GPU through internal DisplayPort interface and sending stream to PCs WiFi module for transmission to remote wireless display. Module's DMC control software works with standard WiFi drivers.

American Portwell Technology    Fremont, CA 94538
Jan 12, 2010 Low-voltage CAD-0205 desktop network appliance supports DDR2 667 non-ECC memory up to 2 GB and includes four GbE ports with 2 pairs of bypass segments through PCI-E x1 interface. Storage devices such as 2.5 in. HDD or SSD, via serial ATA, and compact Flash are also supported. It includes slot for PCI Express Mini Card, supporting both PCI-E x1 and USB 2.0; dual USB ports; and RS232 console through RJ45 interface. Measuring 7.5 x 5.9 x 1.65 in., unit consumes less than 30 W power.

Actio Corporation    Portsmouth, NH 03801

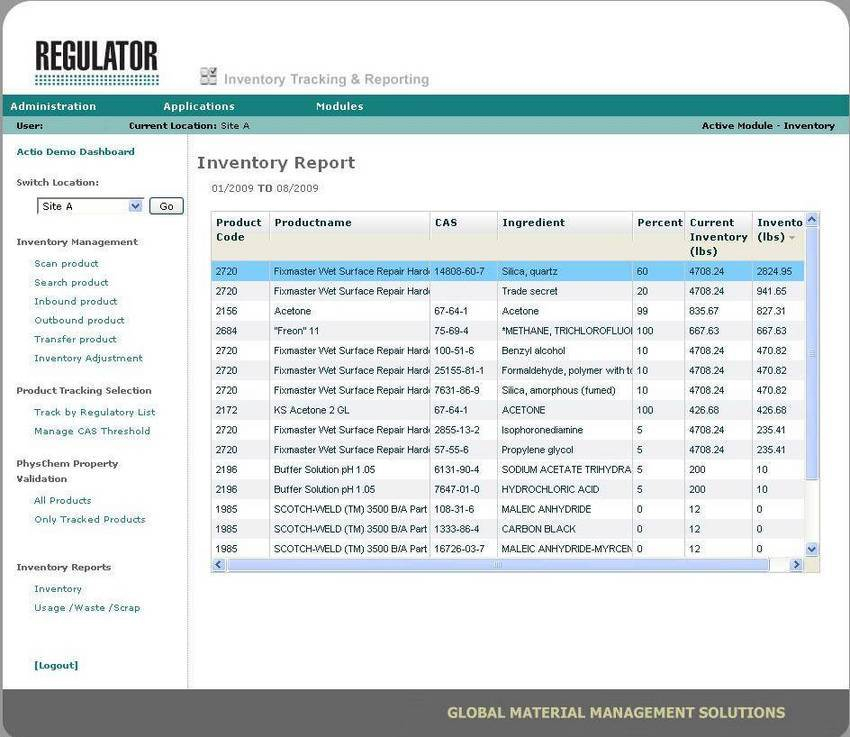

Jan 12, 2010 Actio Regulator® lets users calculate chemical inventory, usage, emissions, chemical mixtures, scrap and waste, and incoming/outgoing distribution volumes. It organizes all ingredient data, auto-updated via ERP feed, and provides analysis, reports, and visibility into ingredient amounts compared against regulation thresholds for HAPs, VOCs, and SVHCs. User interface provides access to various modules with drop-down-menu access. Software enables export to Excel for creating reports.

Semtech Corp.    Newbury Park, CA 91320
Jan 12, 2010 Model SC652 supports up to 5 LEDs with 1 PWM dimming input, while SC656 supports up to 7 LEDs with 1 or 2 independent PWM dimming inputs. Both integrate digital low-pass filters that convert PWM dimming signal's duty-cycle into DC current for LCD backlighting with white LEDs. Drivers PWM inputs accept 200 Hz to 50 kHz PWM signals with logic level of 1.4 V and above. Input supply voltage range is 2.9-5.5 V and units have charge pump modes of 1x, 1.5x, and 2x.

Netgear Inc.    Santa Clara, CA 96054
Jan 12, 2010 Incorporating HomePlug® AV-certified powerline technology, which provides 10/100 Ethernet connection from any electrical outlet, Powerline 200 AV Adapter Kit and Powerline 200 AV+ Adapter Kit with filtered pass-through power socket enable HD video streaming, VoIP, and large file transfers to networked devices over existing electrical wiring. Both kits cover up to 5,000 ft², and include 128-bit AES encryption as well as multi-colored LEDs that indicate network performance.

Aven, Inc.    Ann Arbor, MI 48108

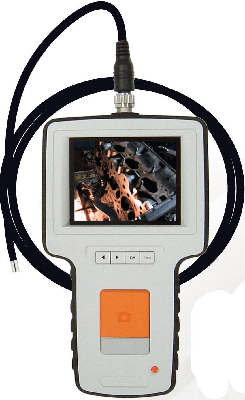

Jan 12, 2010 Equipped with 3.5 in. LCD screen, MIG Video Borescope enables users to see, capture, and share still or video images of tight areas. Self-contained instrument uses 1 GB memory card for image capture and 4 LED lights in 3 ft watertight cable to illuminate without burning or explosion risks. With CMOS image sensor chip in 5 mm mirrored insertion tip, cable provides 67° field of view and ½-4 in. depth of field. Full-motion video can be fed to TV, computer, or other monitor via included cable.

HaydonKerk Motion Solutions    Waterbury, CT 06705

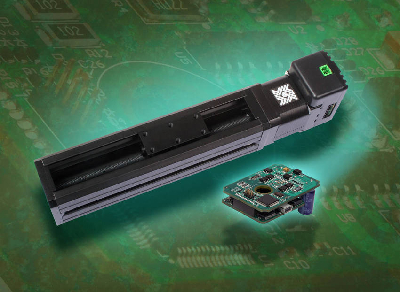

Jan 12, 2010 Offered in motorized and non-motorized configurations, LRS(TM) Linear Rail System consists of stationary base and load bearing carriage with self-adjusting linear bearing that travels along extruded aluminum rail. System is available with several in-line motor options including single stack or double stack size 17 stepper motor, stepper motor with integral chopper drive, or IDEA(TM) programmable linear actuator, consisting of stepper motor, drive, and controller programmed through GUI.

Walls & Forms Inc.    Dallas, TX 75374

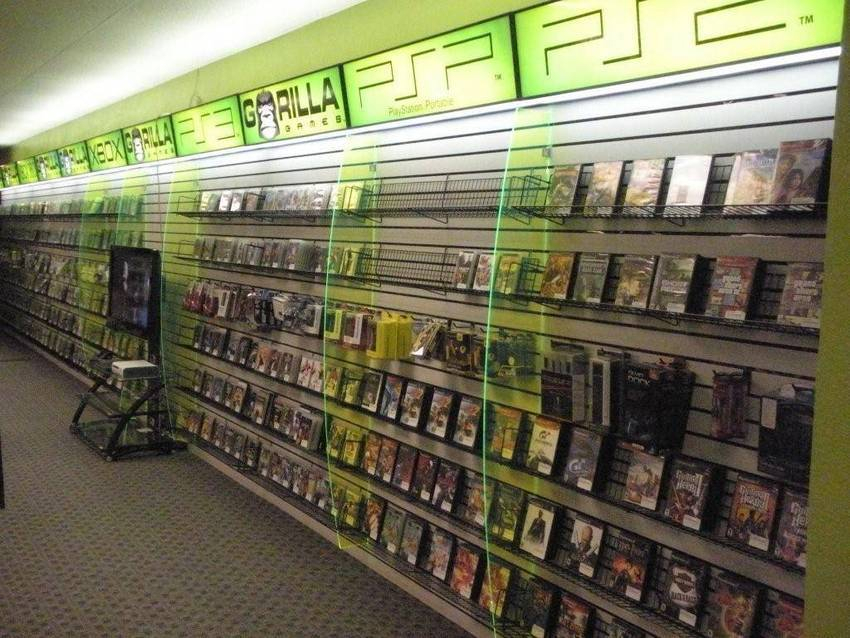

Jan 12, 2010 Available in standard 4 ft sections, Lights Alive features fluorescent tubes with down and up light options. Modular header system, intended for slatwall or wall applications, allows images to be changed out and is wired to UL standards. Offered in various sizes, plug-together system includes single- and double-sided lightboxes as well as range of floor stands in 2-, 3-, and 4-sided formats. Side panels can also feature illuminated logos.

Palmer Manufacturing & Supply, Inc.    Springfield, OH 45504

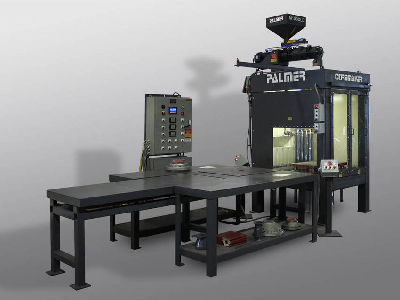

Jan 12, 2010 Offered with RFID tagging that saves settings once programmed, CM-Series CoreMakers(TM) include Cold Box CoreMaker, which comes with gas generator and gassing head, and No Bake CoreMaker with mixer that rotates 90° to allow mixed sand to discharge outboard of CoreMaker footprint. Available with single or dual operator stations, machines feature laser alignment guide, PLC controls, and programmable blow pressure. Four models deliver up to 30, 60, 160, and 300 lb/blow, respectively.

Gardco Lighting    San Marcos, TX 78666

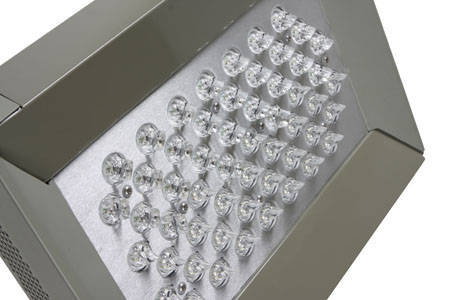

Jan 12, 2010 Offering IES Type V light distribution, Emco LED Garage luminaire (ELG) features extruded aluminum integral thermal radiation fins in upper housing, combined with lateral air ways, to provide thermal management and prevent debris build up. Ceiling mount or ceiling pendant mounted luminaire uses quick mount plate system and can be retrofitted at parking garages that utilize Gardco GP1 luminaires. Product is also available with optional diffused acrylic lenses.

Schaefer, Inc.    Hopkinton, MA 01748

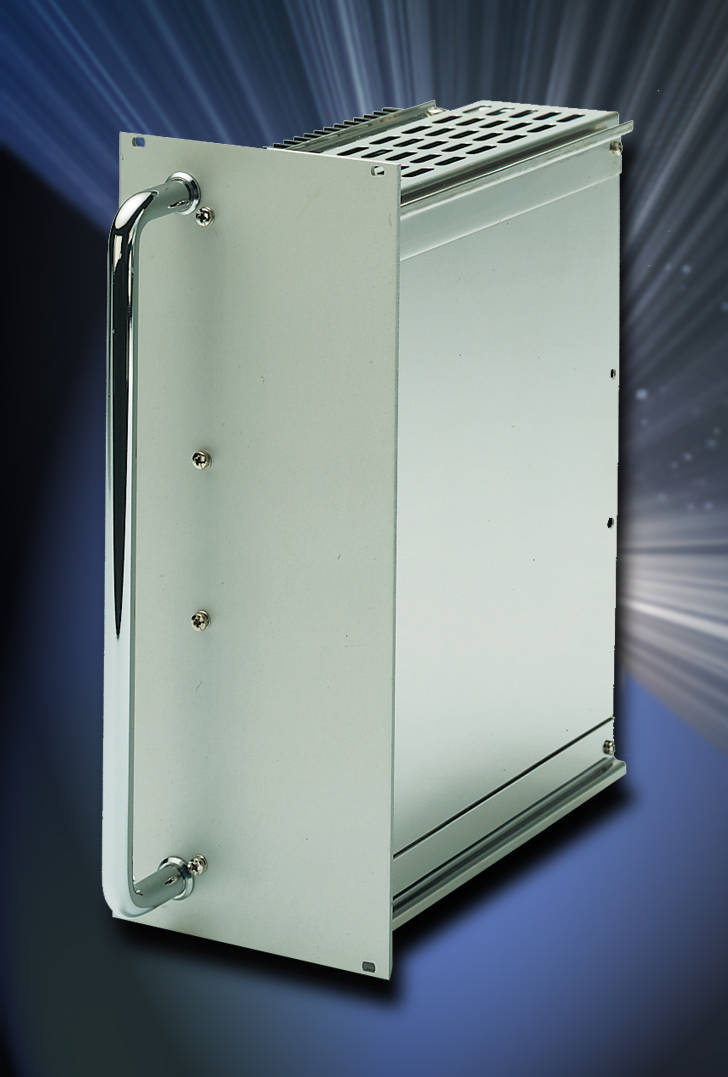

Jan 12, 2010 Able to accept input voltages as high as 3,000 Vdc, C4500HV Series features rugged, space-saving 6U design with remote sense capability and comprehensive protection circuitry. Models cover DC input from 10-800 Vdc, 1- or 3-phase AC input, as well as battery charging versions, with adjustable and fully regulated single output voltages from 9-400 Vdc. Operating temperature is -20 to +75°C, with -40 to +75°C available as option. Custom/modified designs are available.

Stackpole Electronics Inc.    Raleigh, NC 27604

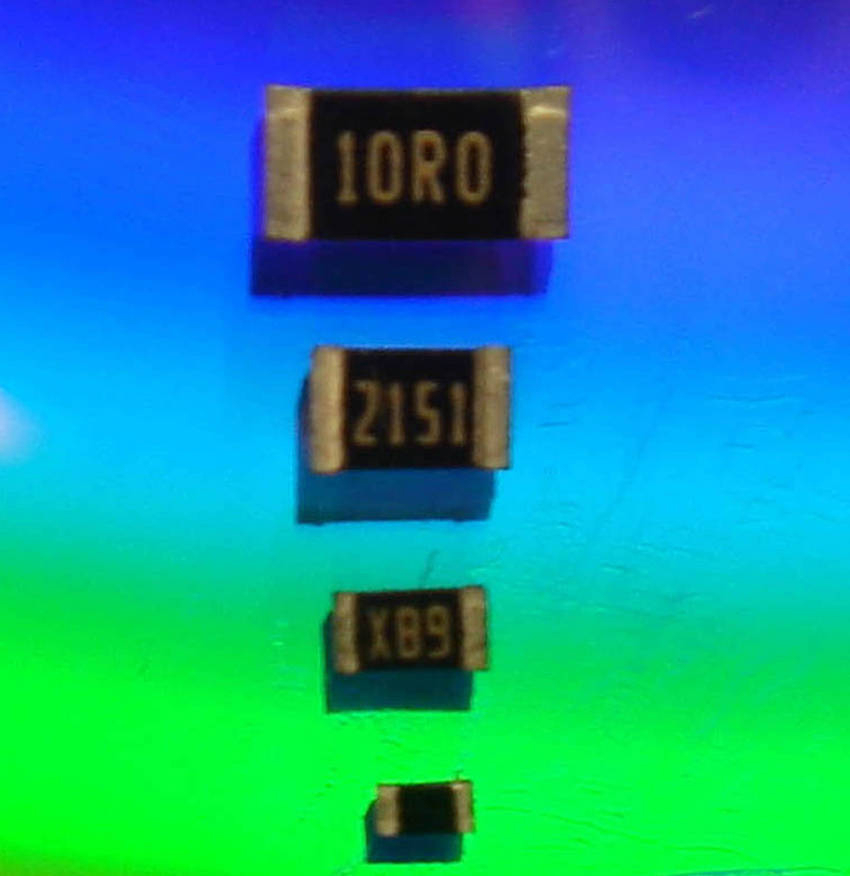

Jan 12, 2010 RNCS series thin film chip resistors, designed for applications requiring high temperature and environmental stability as well as low noise, are offered in version exhibiting 15 ppm TCR. Moisture-withstanding characteristics equal performance of tantalum nitride resistors, making them suitable replacements for those type resistors. They are available in 1,000 pc reel quantities and standard reel sizes.

Aremco Products, Inc.    Valley Cottage, NY 10989
Jan 12, 2010 Single part, water-dispersible, phosphate-bonded, and alumina-filled system, Pyro-Paint(TM) 634-ALP ceramic-based sealant is used to fill micro-porosity in dense refractory brick used in high temperature kilns and furnaces. Coating is inert, chemically resistant, inorganic, and does not outgas or decompose in corrosive applications to 3,200ºF. Available in pint, quart, gallon, and 5 gal drums, coating can be applied by brush, dip, or pneumatic sprayers, and cures fully in 1-2 hr at 700°F.

Dapra Corporation    Bloomfield, CT 06002
Jan 12, 2010 Available in 3 sizes to accommodate ¾, 1, 1¼, and 1½ in. modular head sizes, Carbide Core Modular Extensions feature cylindrical shanks in standard inch sizes, suited for use with milling chucks or standard end mill holders. Carbide core enhances rigidity and vibration dampening capability, while reducing deflection. Optional add-on extensions for additional 2 in. reach, are also available.
