Semtech Corp.    Newbury Park, CA 91320
Feb 04, 2010 Low-voltage, level-shifting I/O expanders SX1508 and SX1509 have 8- and 16-channels, respectively, and operate from 1.5-3.6 V input. Dual-voltage I/O rails provide level-shifting down to 1.2 V and I/O interface with 2 logic levels. Each bidirectional 15 mA I/O includes 256-step LED driver supporting lighting effects such as RGB color mixing. Integrated keypad engine supports key matrix scanning up to 64 keys with auto sleep/wake up. SPI versions are also available (SX1511 and SX1512).

Lumex Inc.    Carol Stream, IL 60188
Feb 04, 2010 Supplied in TO-46 package with glass lens that collectively provide 50,000+ hr lifespan, QuasarBrite(TM) UV LEDs are available in 385, 405, and 415 nm wavelengths at 4-6 mW in through-hole format. RoHs-compliant products provide uniform beam pattern and are suited for various applications: bacterial and superficial sterilization, biohazard and counterfeit detection, forensic analysis, ink flourescing, phototherapy, and dental/dermatology equipment.

Moxa Inc.    Brea, CA 92823
Feb 04, 2010 VPort 461 single-channel industrial video encoder provides up to 3 full D1 video streams in H.264 and MJPEG format simultaneously, with latency of less than 200 msec. It enables remote users to access video on web browser. Featuring temperature range of -40 to +75°C and IP30-rated metal housing, device offers two 10/100 Mbps Ethernet ports for cascading multiple units and SD card socket with up to 32 GB of storage. Product also allows PTZ control via RS-232/422/485.

Anders Electronics PLC    London NW1 OEU  United Kingdom
Feb 04, 2010 Optimizing embedded system functionality, CM-T3530 offers range of multimedia, connectivity, and storage features. It leverages TI OMAP3503/OMAP3530 with Cortex-A8 core at 720 MHz, up to 256 MB DDR, up to 512 MB flash disk, resistive touchscreen controller, and 3D and video decoding acceleration. Miniature multimedia-ready system also features LCD interface with resolution support up 1,400 x 1,050, PAL/NTSC TV output, 16 MP camera interface, and audio codec stereo line-out and microphone.

KORENIX Technologies    Taipei 231  Taiwan

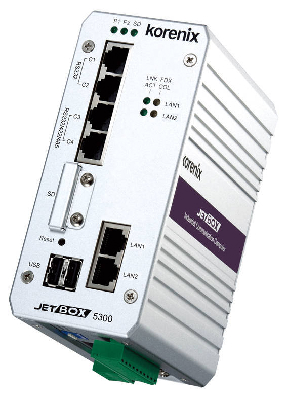

Feb 04, 2010 Operating from -40 to 80°C, JetBox 5300-w has dual Ethernet ports for providing system uplink redundancy and 2 serial ports to remotely manage card readers, cameras, speakers, and other access and security control devices via Ethernet. Fanless unit also includes 8 DIO channels and 2 USB ports. For customers' specific applications, JetBox 5300-w provides Auto-Run customization setting on SD card, which allows users to configure their own Linux commands.

Physik Instrumente (PI)    Auburn, MA 01501
Feb 04, 2010 Offering travel ranges to 20 mm and holding forces to 177 lb, N-216 NEXLINE® Nanopositioning Actuators are based on coordinated motion of preloaded linear and shear piezo elements acting on ceramic runner. Closed loop versions are equipped with linear encoder for direct position measurement of moving runner. Encoder features 5 nm resolution over full travel range. In open-loop operation, positioning resolution to 0.03 nm can be realized by use of analog mode.

Seiko Instruments U.S.A., Inc.    Torrance, CA 90505
Feb 04, 2010 Measuring 5.12 x 3.27 x 1.77 in., DPU-S245 prints 58 mm wide receipts with 203 dpi output at rates to 100 mm/sec for mobile workforce applications. Bluetooth®, IrDA, USB, and serial interfaces enable wireless and wired connectivity, and support for EZ-OP(TM) clamshell-style tray facilitates paper replacement. Rated for 50 km printed output, equivalent to 320,000+ 6 in. printouts, product weighs 0.62 lb and has 48 mm print width.

Polytech Filtration Systems, Inc.    Hudson, MA 01749
Feb 04, 2010 Designed to remove fine granular solids from water-based machine tool coolants, Whirlstream® KLW20 processes 20 gal of coolant/min and can remove up to 75 lb of solids/hr. System draws coolant from existing sump, separates fine solids from coolant, and returns clean, aerated coolant back to sump. To avoid difficulties with intercepting and treating full coolant flow from machine, KLW20 uses kidney loop or side stream separation on existing tank.

Tharo Systems Inc.    Brunswick, OH 44212 0798
Feb 04, 2010 Using H-Series direct thermal or thermal transfer printers with print resolutions of 203 or 300 dpi, Model PA1200fa prints and applies labels to leading edge of product moving down conveyor. After label is printed, it is stripped from liner and held by suction on applicator tamp pad, which is mounted on swing arm that extends over conveyor and tamps label to product. Labels sizes can range from 3 x 1 in. up to 4.5 x 8 in.

Belden    Richmond, IN 47375
Feb 04, 2010 Incorporating Hirschmann(TM) combi contact technology, field-attachable GDMF connector suits wide range of cable gauges up to 1.5 mm² with OD from 4.5-8 mm. It has captive seal, non-slip surfaces on both sides for quick assembly/disassembly, and comes with or without electronic insert with 3 or 4 contacts (2+PE or 3+PE). Offered with IP 65/67 protection, compact connector is resistant to vibration and jarring and can operates in -25 to +90°C temperatures.

FCI    Etters, PA 17319
Feb 04, 2010 Featuring .050 in. pitch, Minitek 127(TM) modular interconnection system includes through-mount and surface-mount, as well as straight and right-angle versions, with pin counts up to 100 positions and 3 types of plating. Miniature system is capable of wide variation of board-to-board and cable-to-board interconnections.

Allegro Industries    Garden Grove, CA 92841-1410
Feb 04, 2010 Designed to maintain and re-direct air flow with minimal restrictions into manholes, sewers, and tanks, Manhole Ventilation Passthru (MVP) combines low profile air vent, 90° elbow, and built-in mounting in one unit. Weighing 11 lb, PVC coated, vinyl and polyester collapsible duct is heat resistant up to 180°F and stores in its own storage bag.

W. R. MEADOWS, INC.    Hampshire, IL 60140-0338
Feb 04, 2010 Non-Ferrous, hydraulic-cement-based Type 588-10K is formulated to transfer load effectively and safely, ensuring long service life of grouted item. Non-corrosive, non-metallic, mineral-based precision grout, developed to have high initial and ultimate flexural and compressive strengths, can be mixed quickly on jobsite and is easily placed by pouring or pumping. Product provides non-shrink performance under various conditions for both interior and exterior applications.

Bosch Sensortec    Reutlinge 72770  Germany
Feb 04, 2010 Packaged in 2 x 2 x 0.98 mm LGA housing, Model BMA220 provides 4 programmable measuring range from ±2 to ±16 g. Integrated evaluation electronics recognize specific motion patterns, eliminating need for external microcontroller. Algorithms for motion recognition run internally on ASIC; therefore, sensor can autonomously and automatically distinguish between random movement, change in spatial position, single tap, double taps, and between slow and fast changes in movement.

Byte Paradigm    Nivelles (Thines) B-1402  Belgium
Feb 04, 2010 Powered and interfaced through USB 2.0 connection, GP-24100 features digital pattern generator, digital data sampling, and 16 digital data lines running at up to 100 MHz. Included 8PI Control Panel software suite with Windows GUI and TCL/tk interface offers access to C/C++ DLL that allows development of custom test programs from any C-compatible environment. Device also features triggering, pattern looping, and external I/O voltage selection from 1.8-3.3 V.

ProSoft Technology Inc.    Bakersfield, CA 93311
Feb 04, 2010 RadioLinx Intelligent Cellular solutions utilize existing cellular infrastructure or Internet for wide area and global wireless connectivity of industrial devices. They include ALEOS(TM) for real-time device status and health monitoring, while ACEmanager(TM) utility enables local or over-the-air device configuration and diagnostics. Compact, DIN-rail-mounted modems feature rugged designand are available for GPRS/GSM, HSUPA, and CMDA network carriers.

ANSMANN AG    Assamstadt DE - 97959  Germany
Feb 04, 2010 Pre-charged for immediate use, maxE/maxE+ are available in 7 sizes: AAA, AA, C, D, 9 V E block, SubC, and flat-top AA. Latter two sizes are suited for use in battery pack assembly. All sizes have low self-discharge feature, which ensures batteries remain 85% charged - even after one year. Maximum charge current up to 1,200 mAh are accommodated, and re-charging can be accomplished in standard charger. Higher capacity maxE+ batteries include AA (2,500 mAh) and E block (250 mAh) formats.

ProSoft Technology Inc.    Bakersfield, CA 93311
Feb 04, 2010 Residing on single slot of Rockwell Automation® ControlLogix® chassis, Message Manager ILX56-MM pulls all data transfer code into one location and requires no special software to support or maintain. Data transfers can be set up by users at one location for up to 16 controllers. Supporting Internet Explorer 7, module includes built-in web-based configuration utility, scrolling display for status and diagnostics, and ability to remove and insert under power.

Semtech Corp.    Newbury Park, CA 91320
Feb 04, 2010 Employing solid-state silicon-avalanche technology, RClamp2502L protects sensitive components connected to data and transmission lines from overvoltage caused by ESD, CDE (cable discharge events), and lightning. This array of surge rated diodes with internal TVS diode protects up to 2 I/O lines and features capacitance of less than 5 pF line-to-line. Operating voltage is 2.5 V, and transient protection is provided up to 15 kV for ESD, 40 A for EFT, and 24 A for lightning.

ProSoft Technology Inc.    Bakersfield, CA 93311
Feb 04, 2010 Providing 1 W of transmit power, 2.4 GHz Model RLX-IFH24E supports distances up to 15 miles, while 900 MHz Model RLX-IFH9E supports distances up to 30 miles, if operating with point-to-point connection, high-gain directional antennas, and clear line of sight. License-free radios offer speed of 1.1 Mbps to support large networks and industrial Ethernet, including EtherNet/IP and Modbus TCP/IP. Serial port enables radios to act as RS-232/485 serial device server.
