ERICSSON INC.    PLANO, TX 75024
Feb 18, 2013 Based on Ericsson 3E FRIDA II platform and Ericsson Energy and Performance Optimizer firmware, digitally controlled BMR4560004/018 High-Cap Converter is aimed at hard-disk applications that operate with capacitive loads up to 15 mF. Embedded voltage-mode-control algorithm maintains output voltage between 11.88–12.12 V and accurately controls 20 ms ramp-up time. Featuring 420 W output power and flat efficiency of 96% from low to high load, converter sustains I/O isolation voltage of 2,250 Vdc.

Pepperl+Fuchs    Twinsburg, OH 44087
Feb 18, 2013 Featuring 2 outputs, VBA-2A-G10-E2L-1M-2V1-W comes in standard, modified, and custom versions. Each output is powered by auxiliary black flat cable, enabling delivery of up to 2 A per output and 4 A per module. When used with standard flat cable, module features IP68/IP69K rating. It can also be configured for lead breakage detection. Standard versions include 2 in (one M12 pigtail), 2 in (two M12 pigtails), 2 in (two M8 pigtails), 2 in/1 out (two M12 pigtails), and 2 out (two pigtails).

Continental    Allentown, PA 18106
Feb 18, 2013 Suited for remote viewing of engine rooms, VDO Camera Systems are also able to eliminate blind spots around boat to improve maneuverability and safety. Vibration-resistant systems are available with 100% waterproof housing, 5.6 or 7 in. color display monitors (single and quad screen) that offer normal/mirror modes, and IR LEDs for nighttime vision. Complete program includes mini cameras, rear view cameras, and side view cameras. Rear view cameras offer optional audio input.

Samtec, Inc.    New Albany, IN 47151 1147
Feb 18, 2013 Featuring Beryllium copper contacts, Tiger Eye™ Interconnects offer screw-down option for both board-to-board and cable-to-board systems on .050 and .0787 in. pitch. Whether used in board stacking or cable applications, screw-down feature assures that connectors can only become unmated when intentionally de-mated by user. Interconnects are also available with metal latches, friction latches, shrouding, polarization, and keying.

Oneida Air Systems Inc.    Syracuse, NY 13204
Feb 18, 2013 Super Dust Deputy can turn single-stage, 1.5–3 hp dust collector into cyclonic collector. Molded, static dissipative plastic cyclone separates over 99% of waste before it reaches collector, preventing filter clogging and keeping airflow consistent. At 27 in. tall, cyclone can be attached to any sturdy, air-tight dust container. With 5 in. inlet and 6 in. outlet, product installs between tool and collector using appropriate diameter flex hose.

Omega Engineering, Inc.    Stamford, CT 06907
Feb 18, 2013 Designed specifically for thermal benchtop testing applications, Model OSXL-A35SC contains both hardware and software for analyzing and verifying R/D projects. Instrument is equipped with uncooled micro bolometer detector and produces crisp thermal images of 320 x 256 pixels. Offering plug-and-play compatibility as well as support for GigE Vision and GenICam protocols, infrared camera can be fully configured from PC, which allows camera control and image capture in real-time.

Phoenix Products Co., Inc.    Milwaukee, WI 53224

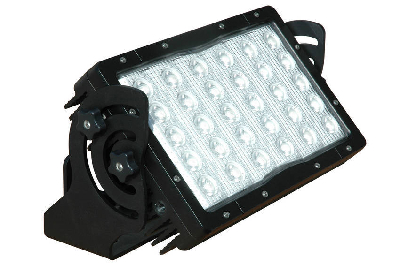

Feb 18, 2013 Designed to replace low to mid-level wattage HID floodlights, MidLev Series delivers up to 4,000 lumens. IP66-rated unit uses fully potted drivers and stranded wires in multi-driver system that allows fixture to remain partially illuminated in event of driver malfunction. Available in 12, 24, 36, 60, and 96 W, instant-on fixture comes in spot, medium, and wide flood packages. Marine-grade extruded aluminum housing acts as heat sink, while heavy-duty steel harp allows for 360° rotation.

The Eraser Company, Inc.    Syracuse, NY 13221
Feb 18, 2013 Able to produce round or flat material up to 3.94 in. wide and 5/8 in. thick, Model MMC200 can cut copper wire/cable, silver solder, power cords, cellophane, fiberglass sleeving, latex, fabrics, belting, flat/ribbon cable, strapping, hosing, and tubing. Microprocessor-controlled unit can be programmed to cut any length with 1% or better tolerance reliant on material construction. Programmable for up to 99 batches and 10 fixed feed rates, MMC200 is rated to cut up to 7,592 two inch pieces/hr.

Wilden Pump & Engineering Co.    Grand Terrace, CA 92313
Feb 18, 2013 Advanced™ Series Metal Air-Operated Double-Diaphragm (AODD) Pumps are suited for loading, unloading, and transfer of resins, solvents, and additives in Paint and Coatings manufacturing applications. Respectively, 1 in. duplex H200, 1 ½ in. simplex H400S, and 2 in. duplex H800 offer max discharge pressure ratings of 300, 250, and 250 psi while delivering flow rates to 25, 64, and 95 gpm. Depending on model, pumps handle up to ¼, 5/16, and ½ in. solids at temperatures to 225°F.

ITW Vortec    Cincinnati, OH 45242-4719
Feb 18, 2013 Coupled with lightweight vest, Dual Action PAC delivers either cool or warm air to wearer's torso and neck. Unit utilizes vortex technology, providing air temperatures ranging from 30–120°F. Flame retardant diffuse air vest, available in 3 sizes, permits full range of motion with no airflow restrictions, and does not absorb sweat or other contaminants. Vest can be worn under other protective clothing and features collar that can be unfolded to deliver airflow to neck and face.

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Feb 18, 2013 Featuring 25° lead angle, DNX 25° FaceMill is available in 3–8 in. cutter diameters and in coarse and fine pitch styles. Negative, square-shaped insert with molded wiper flat achieves up to 8 indexes. With lowered cutting force and V-shaped insert edge, DNX minimizes vibration and provides stable machining experience.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Feb 18, 2013 Able to handle diverse materials, CL-400 delivers positioning speeds of 12,000 ipm, offers up to 1 in. processing range on mild steel, and features dual 5 x 10 ft pallets. Modular material handling system is optional, and 4,000 W resonator promotes cutting precision. Along with water-cooled linear motor drives that deliver dynamic positioning accuracy of ±0.001 in., system features Windows®-based HMI touchscreen control and Laser Programming and Nesting software.

Beamex, Inc.    Marietta, GA 30067
Feb 18, 2013 ATEX and IECEx certified, 2nd generation MC2-IS is designed for field calibration and testing in explosive environments. Unit has calibration capabilities for pressure, temperature, and electric signals, and connects to almost 20 intrinsically safe external pressure modules. In addition to LED backlit display for visibility in various environments, portable calibrator includes multilingual interface and complete numerical keyboard.

French Oil Mill Machinery, Inc., The    Piqua, OH 45356
Feb 18, 2013 Integrating hydraulic power unit, electronic control package, and point-of-operation guarding, 100-ton Vision Series is available with optional lamination package. Electrically heated platens, yielding temperature uniformity to 480°F, are designed for cooling via multiple passages for water circulation and deliver typical temperature uniformity of ±5°F over 95% of surface area. Presses additionally feature adjustable pressing speed and tonnage controls with dual label pressure and tonnage gauge.

ColorGATE    Hannover   Germany
Feb 18, 2013 With VDP Creator, users can create professional, customized artwork master templates for output of print jobs on digital printing systems. Through variety of professional functions, even complex data structures and layouts can be merged by drag and drop, including text, images, graphics, barcodes, and QR codes. VDP Creator supports spot colors, all major databases, all relevant graphic input formats, and standard output formats, such as PostScript, optimized PostScript, PDF, and Adobe PDF/VT-1.

Raytheon Co.    Garland, TX 75266
Feb 18, 2013 With capabilities for voice, maps, drawing tools, chat, real-time position tracking with GPS, streaming video, and image sharing, One Force® Mobile Collaboration provides real-time communications, situational awareness, and suite of collaboration capabilities for first responders using smartphones, tablets, and mobile data computers. End-to-end system allows departments to use existing hardware and infrastructure operating on networks with 2G, 3G, 4G, and Wi-Fi.

Eurocom Corporation    Nepean K2E 7R4  Canada
Feb 18, 2013 Powered by Intel's Xeon E5-2600 series 6- and 8-cores processors based on LGA 2011 processor socket, Panther 5.0 Server Edition delivers server-class performance in 12 lb package. All-in-one solution is equipped with integrated keyboard, 17.3 in. LCD, touch pad, and UPS. Unit supports up to 32 GB of DDR3 1,600 MHz RAM via four 8 GB SODIMM 204-pin modules. In addition, Panther 5.0SE supports 4 Solid State, Hard Disk, or Enterprise level drives with RAID 0,1,5,10 capability.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Feb 18, 2013 Supplied in 10-pin, 3 x 3 x 0.8 mm SON package, LM10011 power management controller has 4- and 6-bit voltage identification (VID) interfaces and is designed to operate along with POL regulator to adjust core voltage of VID-enabled processor. Product offers 1% output accuracy and 16 pin-programmable current output options during start-up. Able to help reduce power consumption in wireless infrastructure applications, controller operates over 2.97–5.5 V input range.

STMicroelectronics    Lexington, MA 02421
Feb 18, 2013 With STM8 MPU core and 6 SMED (State Machine, Event-Driven) circuits, STLUX385 (Masterlux™ platform) improves performance of LED, fluorescent, and HID lighting systems. Single programmable chip addresses power conversion and control topology requirements stemming from such factors as lighting technology used, input power source (AC or DC), dimming requirements, and safety or reliability issues. Controller also integrates hardware Digital Addressable Lighting Interface peripheral.

International TechneGroup Incorporated    Milford, OH 45150
Feb 18, 2013 With Solid Edge® interface, Proficiency Collaboration Gateway v11 enables transfer of design intelligence between major CAD systems which includes geometry, features, sketches, manufacturing info, metadata, assembly information, and drawings in conversion process. Program includes support for Autodesk® Inventor® Associative Drawings and integration of CADIQ, ensuring correctness and quality of data conversion. NX 2D Completion Wizard facilitates semi-automated completion of converted drawings.
