American Industrial Systems, Inc.    Irvine, CA 92614

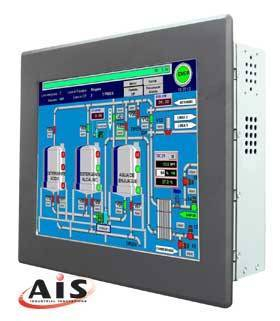

Jan 25, 2010 Ranging in size from 5.7-15 in., Industrial Panel PCs are equipped with Intel® Atom(TM) Processor Z530 and Z510, Intel® US15W chipset, and LED backlit displays. Units are available in several mechanical designs, including Open Frame, Panel Mount, IP65/NEMA 4 Sealed Front Bezel, and Chassis configurations. Featuring rugged steel housing and operating temperature of -25 to 55°C, PCs are suited for industrial operator panels, HVAC control, lighting management, and building control and security.

Leica Geosystems Inc.    Norcross, GA 30092
Jan 25, 2010 Available in 5 models, Builder Series Total Stations enable non-technical users to perform positioning, layout, and other construction-site tasks. Entry-level 100 Series electronic digital theodolite provides horizontal and vertical angle measurements, while 200, 300, 400, and 500 Series are total stations available with reflectorless and/or prism measurement capabilities, data storage via USB memory stick, and wireless communication, including Bluetooth functionality on 500 Series.

Labconco Corp.    Kansas City, MO 64132 2696

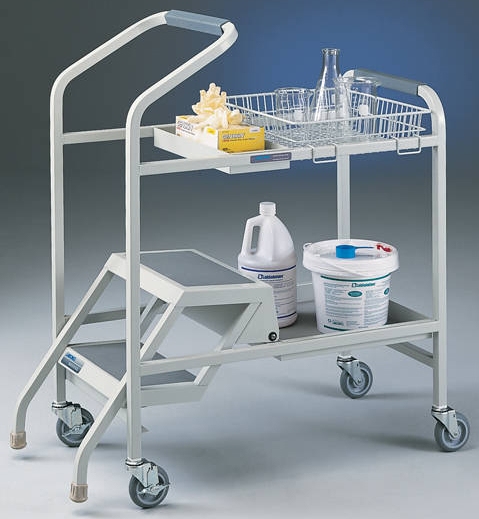

Jan 25, 2010 Able to handle loads up to 400 lb, Stockroom Cart has welded frame of 1 in. square tubing coated with corrosion- and abrasion-resistant, baked-on epoxy. Integrated ladder, which enhances stability when reaching for items on shelves, has spring-loaded, 16½ in. wide steps and skid-resistant, rubber feet. Further safety is provided via ergonomic handrail with extruded rubber grip and 2 toe locks for 4 in. dia casters. Other features include 2 removable steel pans and one wire basket.

Labconco Corp.    Kansas City, MO 64132 2696

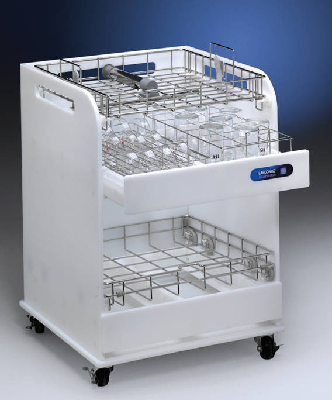

Jan 25, 2010 Made of chemical-resistant, high-density polyethylene, ScrubberMate(TM) Glassware and Rack Cart provides storage and transport of extra washer racks, inserts, or miscellaneous glassware. Cart can accommodate up to 2 washer racks or 4 wire inserts. Alternatively, 48 adjustable and removable pins may be arranged in drawers to hold inverted flasks, beakers, and other glassware. Rails are provided to allow lower washer rack to slide directly onto cart from washer.

Emerson Process Management    Austin, TX 78754
Jan 25, 2010 Available in 1, 2, and 3 in. sizes, EZHSO Series and slam-shut EZHSO-OSX Series incorporate spring cartridge that offers fail-to-open alternative, ensuring gas delivery and maximizing uptime. Whisper Trim® Technology prevents noise at source, and cage can be retrofitted in field. Providing 1,500 psig inlet/outlet rating, regulators feature top-entry maintenance, bubble-tight shutoff, and true no-bleed design that eliminates emissions for high pressure pipelines.

Microscan Systems, Inc.    Renton, WA 98057

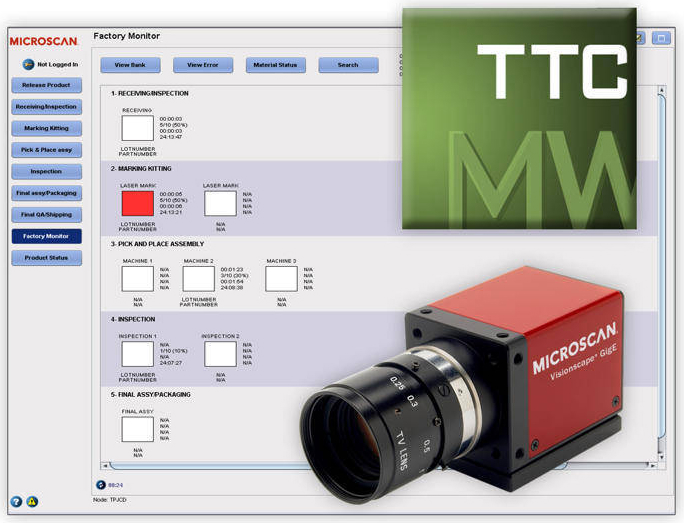

Jan 25, 2010 Track, Trace and Control Solution features Microscan TTC middleware, which can partner with machine vision or auto ID hardware to address plant-wide information. Specifically, functionality provides work-in-progress visibility through any factory, validate process flow, and provide history of process steps accomplished on product. Real-time data collection, combined with error proofing, also demonstrates process compliance, while Web-based controls and reporting facilitate implementation.

Ross Controls    Troy, MI 48083

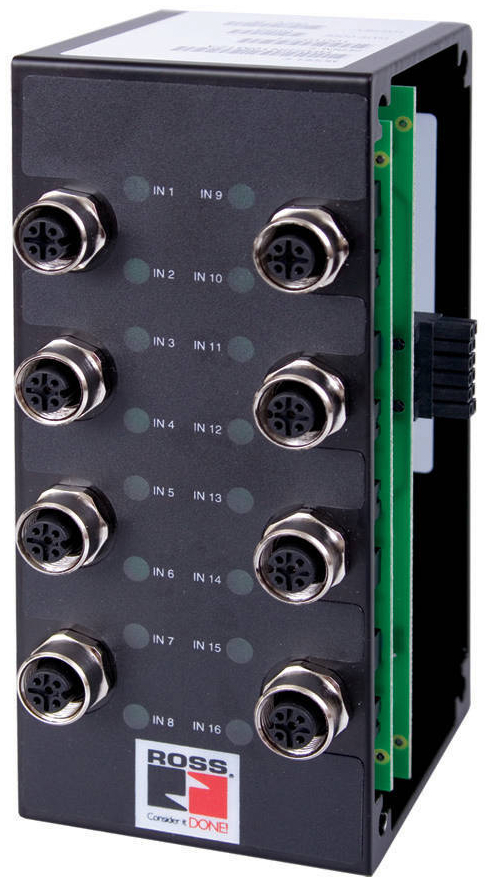

Jan 25, 2010 Suited for fieldbus communication and I/O modules, ROSS D Series Serial Bus system requires no internal wiring and supports MODBUS TCP as well as DEVICENET(TM) protocols. Programmable units offer up to 352 digital outputs, 256 digital inputs, 16 analog outputs, and 16 analog inputs. SD card configuration lets operator make quick revisions to production programs, while plug together assembly for modular manifold construction lends to flexibility.

Soraluce America, Inc.    Rockford, IL 61108

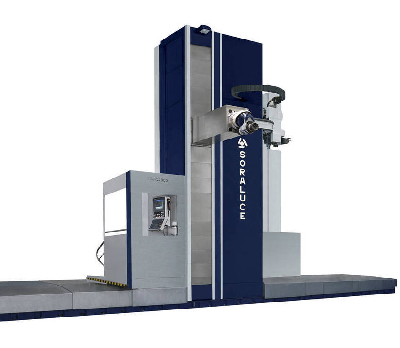

Jan 25, 2010 With 71 kW spindle power, floor-type Model FXR can perform drilling, reaming, tapping, milling, and boring functions on up to 5 sides of prismatic components. Machine offers longitudinal travels from 6,000-20,000 plus mm; vertical travels of 6,000, 6,500, and 7,000 mm; and cross travels of 1,600 or 1,900 mm. Standard control is Heidenhain iTC530, however, machine is also available with Siemens 840D, Fanuc 31i-A5, and others upon request.

Walls & Forms Inc.    Dallas, TX 75374

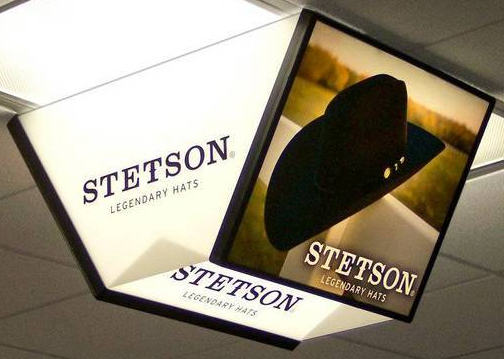

Jan 25, 2010 Lights Alive Ceiling Mounted Light Thief uses existing light from ceiling fixture and is offered in 4 sizes to fit standard 2 x 4 ft ceiling light panels: 16 x 20 or 48 in. and 24 x 24 or 48 in. Acrylic end caps can be printed, and system includes 2 aluminum frames with black finish and ½ in. slimline profile. There are options for POP displays, featuring single- and double-sided light boxes as well as multi-panel and backlit floor stand displays. Slatwall panels can also be added.

Shelco Filters Div., Tinny Corp.    Middletown, CT 06457

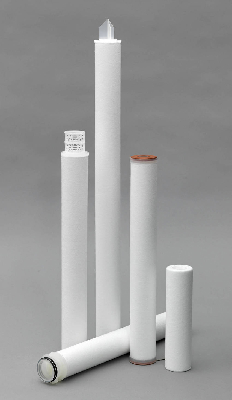

Jan 25, 2010 Developed for critical applications requiring 99.9% absolute or 90% high retention efficiencies, PDA and PDH Series are constructed of 100% polypropylene melt blown microfibers, thermally bonded over rigid center core to provide optimal particle retention and stability under differential pressures. Filters are rated in 0.5-75 micron retention efficiencies, and are available in standard lengths and end cap configurations to fit most filter housings.

Physik Instrumente (PI)    Auburn, MA 01501

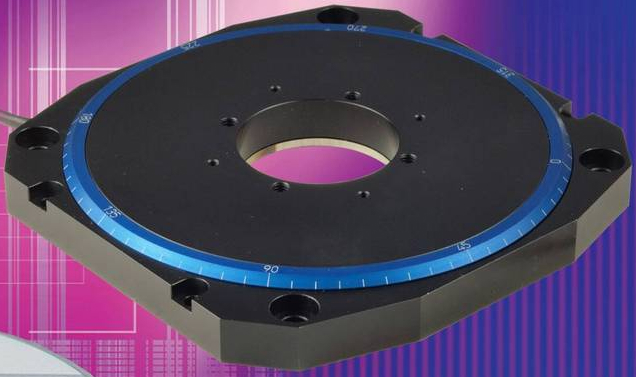

Jan 25, 2010 Based on PILine® piezomotor drive technology, M-660 direct-driven rotary stage has 0.6 in. profile and reaches speeds of 720°/sec while offering resolution to 40 µrad (8 arcsec). Self-locking ceramic direct drive holds position steady at rest, with no energy consumption or heat generation, while direct coupling optical encoder provides phase lag-free, backlash-free feedback to servo controller. Solution also provides bidirectional speed/position control and motion contouring.

Tormach LLC    Waunakee, WI 53597
Jan 25, 2010 Combining cast iron construction, P4 grade ballscrews, and sensorless vector drive spindle technology, Model PCNC 770(TM) is suited for prototyping, small business, research and development, and educational use. Machine offers 130 ipm feedrates in both X and Y axes and features 1 hp, 10,000 rpm spindle that is compatible with R8 and TTS tools. Providing work envelope of 13 x 7.5 x 13.25 in., PCNC 770 is pre-wired for 4th axis and digitizing probe.

Grieve Corporation, The    Round Lake, IL 60073-2898
Jan 25, 2010 Intended for heating parts, including those with emissions of flammable solvents, No. 991 offers 28 x 24 x 18 in. workspace and employs 4 kW installed in Nichrome wire elements. Construction includes Type 304, 2B finish stainless steel interior; brushed #4 stainless steel exterior; and 2 in. insulated walls. Purge timer and powered forced exhauster with powered forced airflow safety switch are also included, along with 2 oven shelves and leg support stand.

Robson Technologies, Inc.    Morgan Hill, CA 95037
Jan 25, 2010 The Phoenix maintains internal ambient temperature around 98.6°F ±0.5°F for testing implantable medical devices, and use of conduction and convection allow it to go as high as 110°F. Chassis uses 3 separate compartments to isolate driving circuitry, heating element, and device under test, and integrated temperature controller provides way to set and monitor internal temperature during test. Unit accommodates high voltages, includes RF shielding, and supports multi-site testing.

TE Connectivity Ltd.    Berwyn, PA 19312

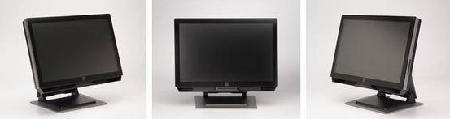

Jan 25, 2010 Available with or without Windows® OS, 19R Series suits point-of-information venues such as retail stores, hospitability, and healthcare environments. Routine computing needs are met by 19R1, which comes with 1.6 GHz Intel Atom(TM) dual-core CPU, while 1.6 GHz Intel Atom dual-core CPU-powered 19R1 and 2.6 GHz Intel Pentium® CPU-powered 19R2 suit customer registration stations and check-in points as well as interactive digital signage applications. Series utilizes Elo APR touch technology.

Fluid Metering, Inc. (FMI)    Syosset, NY 11791
Jan 25, 2010 Model PDS-100 Smooth-flo valveless dispensing and metering system features synchronized dual ceramic piston pumps to provide continuous, pulse-free fluid delivery down to 15 uL/min. Control unit integrates pump heads, stepper motors, drivers, and programmable electronics into rugged anodized aluminum enclosure suited for wall-mounted or benchtop installation. Unit interfaces with electronic process control inputs including RS485, 4-20 mA, 0-5 Vdc, and 0-10 Vdc.

Techno Sommer Automatic    New Hyde Park, NY 11040

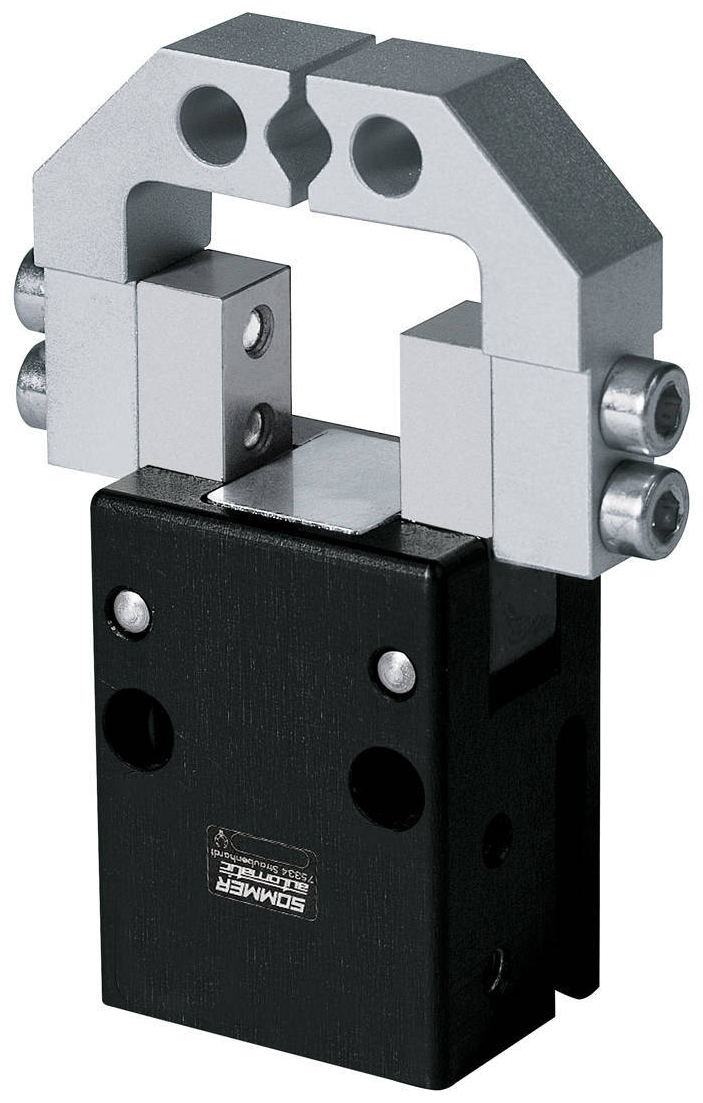

Jan 25, 2010 Designed for use in small electronic and packaging applications, MGW800 Series are available in 8 sizes beginning at 12 x 10 x 26 mm. Design allows manifolding through bottom mounting surface, eliminating side air fittings. Offering up to 39.36 lbf-in. grip torque and 37.5º stroke per jaw, series is suited for assemblies and multiple pick-and-place applications. Jaw position, opened or closed, can be sensed via magnetic sensors, providing positive feedback.

Mosaic Industries    Newark, CA 94560

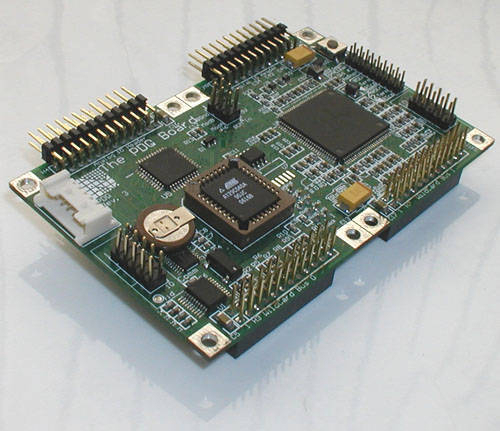

Jan 25, 2010 Measuring 2.5 x 4 in., PDQ Board(TM) includes Motorola 68HCS12 processor, 1 MB memory, and dual-expansion I/O buses. It has 8 digital I/O lines with counter/timer capabilities, 8 PWM digital output signals, and 8 general purpose digital I/O lines. Unit also has 16 analog inputs with 10-bit resolution, dual RS232/485 ports, and synchronous SPI and IIC serial interfaces. Up to 8 I/O modules, called Wildcards, implement various user interface, communications, DAQ, and control capabilities.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 25, 2010 For routine computing needs, Model 19R1 comes with Intel Atom(TM) dual-core 1.6 GHz processor, while Model 19R2 is powered by Intel Pentium® 2.6 GHz processor for high performance computing needs. Model 19MR1, featuring UL60601 certification and Intel Atom dual-core 1.6 GHz processor, is intended for medical and healthcare environments. All support Microsoft® Windows OS and utilize Acoustic Pulse Recognition touch technology for its ability to withstand rigors of public venues.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jan 25, 2010 Based on 600 kHz synchronous buck topology, 6 A Model OKR-T/6 and 10 A Model OKR-T/10-W12 offer power conversion efficiencies of 93% and 92% respectively. Both operate from input voltage range of 4.5-14 Vdc, are able to drive up to 200 µF capacitive loads, and offer programmable output voltage of 0.591-6.0 Vdc. Housed in 0.41 x 0.65 x 0.3 in. SIP package with through-hole mounting, miniature devices feature over temperature and over current protection, On/Off control, and UVLO.
