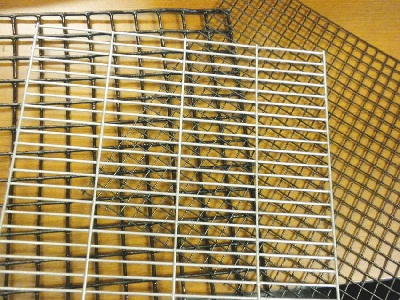

Direct Metals Co., LLC    Kennesaw, GA 30152
Feb 02, 2010 Providing consistent and uniform mesh count, Cage Mesh enables fabrication of dimensionally correct cages. Heavy-duty galvanized and PVC coatings are suitable for flight enclosures, aviaries, chicken wire, fresh water and saltwater traps, small and large animal exhibits, and fencing applications. Available with both square and rectangular openings, Cage Mesh stock comes in mesh ranges from ½-4 in. center-to-center and in wire diameters from .041-.250 in.

Ophir-Spiricon Inc.    Logan, UT 84321
Feb 02, 2010 Model BD5000W-BB-50 and BDFL500A-BB-50 are designed to safety absorb unused part of high power laser beam and dissipate resulting heat, protecting nearby personnel and equipment. BDFL500A-BB-50 is fan-cooled beam dump for up to 500 W, while BD5000W-BB-50 is water-cooled beam dump for applications up to 5 kW. With ability to handle 7 kW/cm² at 500 W and 3 kW/cm² at 5 kW, broadband absorber makes them suitable for applications across UV to far IR.

Newport Corp.    Irvine, CA 92606
Feb 02, 2010 Tristar 355-2 Q-Switched diode-pumped solid-state laser provides over 2 W of 355 nm output at 90 kHz and short pulse width of less than 25 nsec. Features include motorized third harmonic crystal shifter for stable UV power over life of product, unique automatic laser purification system to actively clean UV laser cavity, and automatic data logging for cradle-to-grave product and process traceability. Suitable applications include rapid prototyping, marking, and stereolithography.

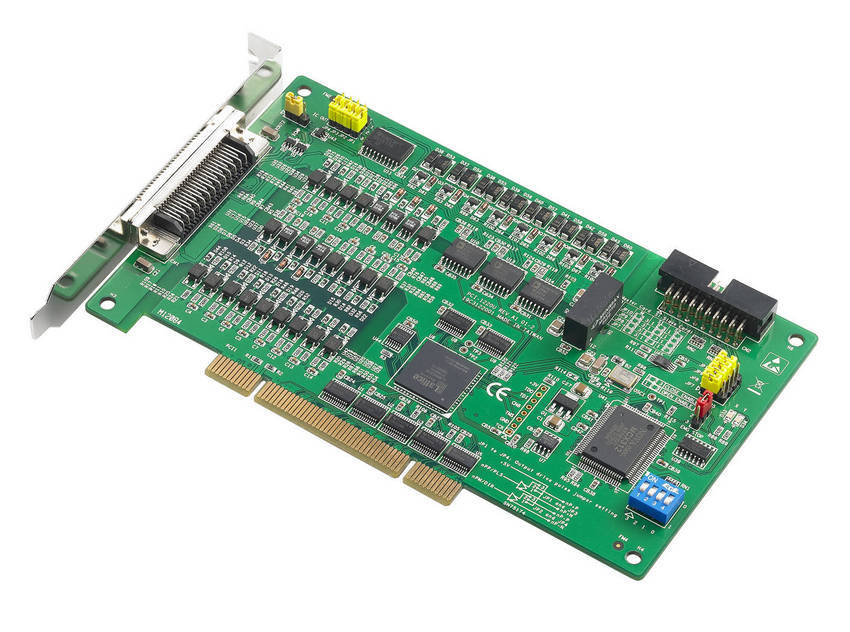

Advantech Automation Corp.    Cincinnati, OH 45240
Feb 02, 2010 Two-Axis universal PCI-1220U is designed for stepping and pulse-type servo motors with hardware controlled linear and circular axis interpolation that ensures synchronized movement across both axes, without consuming PC's CPU. Features include programmable T/S-curve acceleration/deceleration rates, hand wheel and jog functions, up to 4 Mpps output for each axis, 2 pulse output types, 1 MHz encoder input for each axis, and 2 encoder pulse input types.

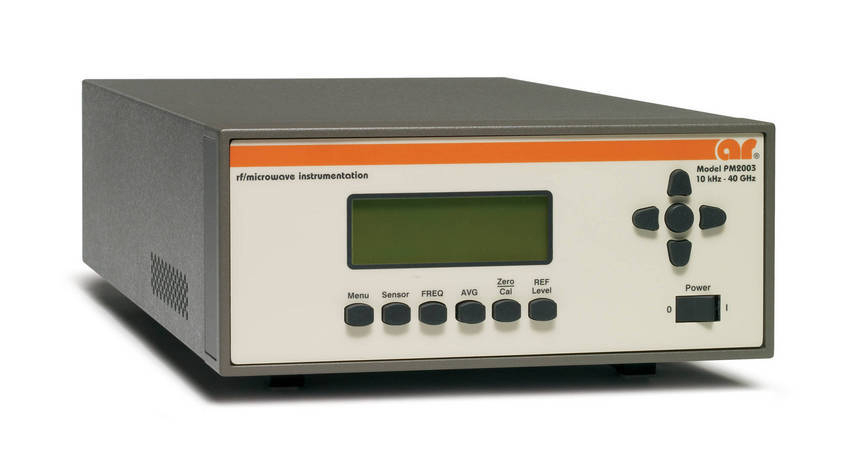

AR RF/Microwave Instrumentation    Souderton, PA 18964
Feb 02, 2010 Offering power measurement range from -70 to +44 dBm, Model PM2003 delivers 200 readings/sec with 1 channel and 100 readings/sec when 2 channels are used. Two channels can be simultaneously displayed and recorded, while third channel can be switched in to be displayed or recorded. Meter offers wide dynamic range, which can extend to 90 dB when diode power heads are used, and to 50 dB with thermocouple heads.

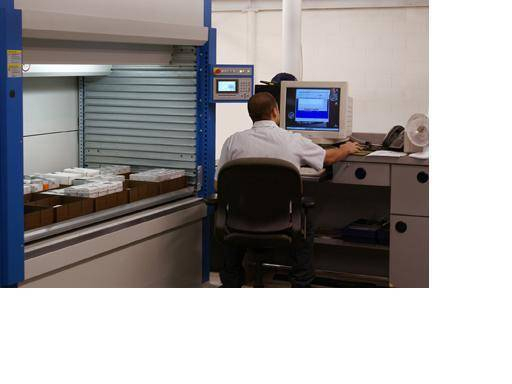

FastPic Systems    Westbrook, ME 04092
Feb 02, 2010 Designed to manage manual and automated storage and retrieval systems, FastPic5® provides real-time record of all inventory transactions with parameters such as user information, order number, material identification, and date and type of transaction. Advanced cubing algorithms allow users to maximize use of both floor space and storage space. Software can be configured to enforce barcode verification of key inventory data and can manage single workstations and multiple work zones.

Waters Corp.    Milford, MA 01757
Feb 02, 2010 In addition to optimizing chromatographic performance when running UPLC columns and fully supporting HPLC columns, ACQUITY UPLC H-Class system emulates HPLC workflows, making method transfer from HPLC to UPLC seamless. QSM quaternary solvent manager and SM-FTN sample manager, with flow-through needle design, mimics traditional HPLC system workflow and enables chromatographer to achieve high separation efficiency using sub-2 micron particle separations at high pressures.

Caliper Life Sciences, Inc.    Hopkinton, MA 01748
Feb 02, 2010 Sciclone G3 combines tube-to-plate reformatting technology, non-contact liquid level and clog detection, advanced blood tube management, and flexible software environment. Rack system simplifies decapping and tube loading, and on-deck sensors and integrated bar code reader identify and track samples.

Connectronics Corp.    Toledo, OH 43607
Feb 02, 2010 Featuring mated size of 0.77 x 0.250 in., high-voltage push-pull CPW Series operates at 12 kVdc Corona Free at 4.5 A max current from temperature extremes of -55 to +125°C. Plug and receptacles are available in straight or 90° configurations with customer-specified wire lengths. FEP insulated high-voltage wire can be purchased with silicone coating compatible with silicone potting and adhesive materials, or pre-etched to aid in bonding to epoxy potting materials.

FISERV, Inc.    Brookfield, WI 53045
Feb 02, 2010 Designed to facilitate day-to-day financial tasks for consumers, Corillian® Online features user interface that combines most commonly used online banking functionalities, such as account balances, transfers, electronic bills, and payments onto single screen. Consumers will also see graphical display of recent spending behavior on same screen. Utilizing Web 2.0 and Rich Internet Application technology, program provides personalized online banking experience.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
Feb 02, 2010 Targeting DDR2/DDR3 memory modules, as well as SSDs and computing motherboards, TS3000B3 and TSE2002B3, with integrated 256-byte EEPROM array, measure local temperature of various subsystems in computing systems. Products enable system controllers to respond if temperature rises above pre-determined levels by adjusting system bandwidth, memory refresh rates, or fan speeds. Sensing accuracy is ±1°C over -20 to +125°C range, and full support is provided for SMBus and I²C interfaces.

Mentor Engineering Inc.    Calgary, AB T1Y7H8  Canada
Feb 02, 2010 XMobile Manager (XMM) v3.0 can remotely program, update, and manage software running on Mentor Ranger® in-vehicle computer. Replacing need to physically update each vehicle's device individually, solution also tracks current software version. UI employs elements such as Windows 7 ribbon and optimized reporting structure with access to analytic information. To accelerate upgrades and data transfers, multiple instances of XMM can be run from one server.

Intersil Corporation    Milpitas, CA 95035
Feb 02, 2010 Featuring R3 Technology(TM), Models ISL95870, ISL95870A, and ISL95870B are single-phase synchronous buck PWM regulators with 3.3-25 V input voltage. Models ISL95870A and ISL95870B are suited for applications requiring dynamically selected slew-rate controlled output voltages. Voltage identification logic-inputs select 4 resistor-programmed setpoint reference voltages that directly set output voltage of converter between 0.5-1.5 V, and up to 5 V with feedback voltage divider.

IXYS Corp.    Santa Clara, CA 95054 2704
Feb 02, 2010 Supplied in 8-pin, 2 x 3 x 0.8 mm TDFN package and requiring 3 external components, LDS8640/41/80/81 are 2-channel, charge-pump based LED drivers that provide full output power from single-cell lithium ion battery or 2.7-5.5 V supply. Channels in LDS8680 can drive one HB LED each up to 800 mA and 400 mA or used concurrently to drive 2 HB LEDs at 400 mA each. Similarly, LDS8640 drives one channel each up to 400 and 200 mA or 2 HB LEDs at 200 mA each.

NEC Electronics    Santa Clara, CA 95050
Feb 02, 2010 Housed in 56-pin, 8 x 8 mm QFN package, All Flash(TM) Microcontrollers combine ultra-low-power 78K0R/Kx3-L 16-bit CPU and IEEE802.15.4-compliant 2.4 GHz RF transceiver for ZigBee® RF4CE. Current consumption is 18 mA during reception and 19 mA during transmission. Available with 64, 96, or 128 KB flash memory, MCUs with internal voltage booster, are capable of writing and erasing data in Flash down to 1.8 V. Applications include DTVs, set-top boxes, and Blu-ray(TM) disc devices.

Andor Technology Ltd.    South Windsor, CT 06074
Feb 02, 2010 Based around 512 x 512 back-illuminated electron multiplying CCD sensor, iXonEM Blue EMCCD Camera offers optimized QE performance from 300-470 nm. Unit features max readout rate of 10 MHz, frame rate of 35 fps, and -100°C thermoelectric cooling to eliminate dark current detection limit. With minimal spurious background noise, camera delivers single photon sensitivity and includes RealGain(TM) calibration of EM gain control.

NEC Electronics    Santa Clara, CA 95050
Feb 02, 2010 Intended for low-end automotive motor and lighting control applications, All Flash(TM) products include three 16-pin MCUs (78K0/FY2-L), three 20-pin MCUs (78K0/FA2-L), and two 30-pin MCUs (78K0/FB2-L). Each features internal 4 MHz oscillator system, LIN interface, and up to 16 KB flash as well as range of peripheral functions, including comparators and full/half-bridge control timers. While standby power consumption is 0.65 µA, active power consumption is 220 µA/MHz.

NEC Electronics    Santa Clara, CA 95050
Feb 02, 2010 All Flash(TM) LCD MCUs integrate metrology engine that consists of 24-bit delta-sigma ADC, power calculation hardware, power quality-management circuits, and anti-tampering circuits. Providing energy measurement and management functions for smart electricity meters, 64-pin 78K0/LE3-M and 100-pin 78K0/LG3-M come in 10 x 10 mm and 14 x 14 mm LQFPs, respectively, and are designed for single-phase, 2- and 3-wire electricity meters. Both offer set of integrated analog and digital peripherals.

Transducers USA    Elk Grove Village, IL 60007
Feb 02, 2010 Featuring operating range of 8-16 Vdc at 25 mA maximum, TRIP-80 series piezo alarms produce sound pressure level of 97 dBA and frequency of 2,700 ±500 Hz. Units measure 26 mm in diameter and are 22 mm tall. Available in PC pin or wire termination configurations, they are suited for industrial control, automation, and various alarm applications.

Transducers USA    Elk Grove Village, IL 60007
Feb 02, 2010 Measuring 43 mm OD with overall height of 33 mm, TRIP-4353-3 produces sound frequency of 2,900 ±500 Hz at sound pressure level of 90 dB. Unit offers continuous, fast-pulse, or slow pulse tone, making it suitable for indicating different conditions. Operating from 6-28 Vdc, TRIP-4353-3 works in noisy environments such as equipment and repair shops, industrial and machine control areas, transportation environments, material handling, and medical equipment situations.
