Isotech, Inc.    Hatfield, PA 19440
Feb 10, 2010 Able to apply everything from bar codes to logos for part identification, multi-use Laser Marking and Cutting Systems deliver multi-purpose functionality that covers annealing, ablating, etching, thermo-chemical reaction application, and engraving. Desktop Laser Marking System, with image intensity control, handles 0-15 mm thick components as well as flat and complex parts. For higher throughput, modular Full Laser Marking Station marks materials at rates to 1,000 characters/sec.

Emuge Corp.    West Boylston, MA 01583-2121
Feb 10, 2010 Solid carbide ball nose end mills, suited for roughing/finishing, are available in cutting diameters from 0.4-6 mm. Suitable for roughing in cobalt chrome, torus end mills have cutting diameters of 3 and 4 mm and come with 2 or 4 flutes. Featuring carbide construction, both tool types have radius tolerance of up to ±.005 mm and diameter tolerance of .01 mm. They can include TiAlN, CrN, or diamond coatings and can be used with benchtop systems and 5-axis machining centers.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Feb 10, 2010 Suitable for ISO materials, GC1125 supports threading operations in steels, cast irons, and aluminum, while GC1135 excels in stainless steels, super alloys, and profiles requiring sharp cutting edges. Both grades are available in 16 mm insert for CoroThread 266 and benefit from iLock(TM) interface with secure insert clamping.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Feb 10, 2010 Supplied with suction-blast or pressure-blast media delivery, RB-9 enables consistent production of specified finish on complex-shaped components. Its 6-axis robot serves as nozzle manipulator when mated with rotary table blast cabinet having 48 x 48 x 48 in. work envelope, and turntable rotation is controlled as seventh axis of robotic motion. System can maintain specific nozzle angle, offset, and surface speed as it follows component contours during programmed grit blasting process.

MadgeTech    Warner, NH 03278
Feb 10, 2010 Suitable for validation, mapping, stabilization studies, and temperature surveys, Model ULT90 comprises splash-resistant Cryo-Temp data loggers, USB docking station, Secure FDA 21 CFR Part 11 software, and IQ/OQ/PQ validation protocols. Secure software includes electronic signatures, access codes, secure data file, and audit trail to provide data integrity. For large freezers, software can graph datasets from multiple loggers to show variances in different parts of freezer.

Cogiscan, Inc.    Bromont, QC J2L 2N8  Canada
Feb 10, 2010 Cycle Stop Controller electrically integrates with cycle stop circuit of any machine type. When used in conjunction with any Cogiscan software module, application forces machine to stop processing when process validation error occurs. This eliminates risk of building defective product due to invalid machine setup or trying to perform operation out of sequence. Solution also integrates with any third-party software application with communication protocol using TCP/IP socket connection.

Photofabrication Engineering Inc.    Milford, MA 01757
Feb 10, 2010 Designed to protect components from radio frequency/electromagnetic interference and environmental hazards, EMI/RF shields also provide electrical grounding. Standard forming tools are available to create covers that attach onto fence yet can be removed and replaced. Shielding options for circuit board applications include 1- or 2-piece construction and choice of brass, tin, tin-lead, nickel, copper, and cold-rolled steel base materials, all of which can be provided with solderable plating.

SIS-Tech    Houston, TX 77034
Feb 10, 2010 As standalone safety instrumented system, DIAMOND-SIS AIB backs up current process control trip logic and meets IEC 61511 requirements. Included IEC 61508 logic solver is functionally independent from process control system, supplements existing logic, meets all appropriate safety standards, and accepts any analog input. System comes in single-, dual-, and triplicated-channel configurations with online diagnostics, testing, and maintenance capabilities.

On Demand Machinery    Elizabeth, NJ 07206
Feb 10, 2010 Designed for on-demand photo books, automatic ODM Super Sewer(TM) features touchscreen LCD control panel that allows operators to choose settings in English, French, Spanish, Japanese, German, and Italian. Control panel also offers selections for producing 4 x 6 to 14 x 18 in. sewn books up to ½ in. thick. Able to stitch up to 600 books/hr, ODM Super Sewer includes Back Tack Technology(TM), which does reverse lock-stitch on head and foot of book block, ensuring strong side sew.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Feb 10, 2010 Designed for conversion of raw sheet into cut parts, MMHS integrates with CL-800 series dual-pallet laser cutting systems, allowing unattended operation for up to 3 shifts via automated load/unload of raw materials and finished parts. System includes cell controller, transporter, safety system, and optional over/under carts. Transporter uses vacuum cups to deliver 5 x 10 ft or 6 x 12 ft sheets to laser, while servo-controlled fingers unload finished parts.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Feb 10, 2010 Built to RoHS standards, IDEA(TM) electronic drive is fully programmable via on-screen buttons. Motor and drive parameters are automatically populated based on entered Haydon actuator part number, and default values can be adjusted as long as they remain within safe range. Users can also troubleshoot programs using line-by-line or multiple line program execution using debug feature. Additionally, inputs and outputs can also be simulated in software before connecting actual I/O hardware.

Bunting Magnetics Company    Newton, KS 67114 0468
Feb 10, 2010 Structured to hold ferrous debris against solid tapered step, Tapered-Step Magnetic Liquid Traps prevent wipe-off of tramp iron and fines, even in high-density applications with volumes up to 180 gpm. Units are equipped with Neodymium magnets capable of handling 300°F high-temperature load. Available in single- and dual-plate styles, traps come in 2 in. size rated to 250 psi as well as 3 and 4 in. sizes that handle up to 200 psi.

Steinmeyer Inc.    Bedford, MA 01730
Feb 10, 2010 This motion system consists of XY stage utilizing air bearings plus ball screw-driven Z table. Able to be completely customized, X/Y stages offer 600 x 600 mm travel, 10 micron positional accuracy, ±1 micron positioning repeatability, as well as 1 micron straightness and flatness. Typical Z stage performance includes 25-200 mm travel, position accuracy of 10 microns, and repeatability of ±1 micron. Position feedback is accomplished via incremental linear encoder with 50 nm resolution.

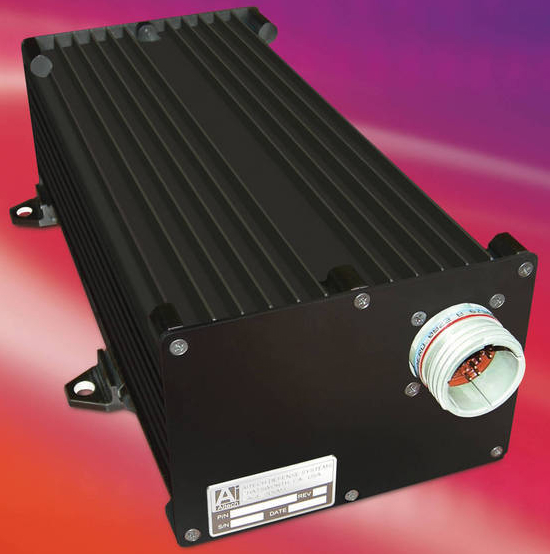

Aitech Defense Systems Inc.    Chatsworth, CA 91311
Feb 10, 2010 Powered by 1.6 GHz Intel® Atom(TM)-based, NightHawk RCU weighs 4.5 lb and employs natural convection/radiation cooling that dissipates up to 22 W at +55°C in stagnant air or 71°C with optional low-pressure fan or baseplate. Complete set of PC I/O interfaces are standard as well as I/O set tailored for embedded military and severe industrial applications. Environmentally-sealed control unit survives up to 40 g peak single half-sine shock and 10 g rms sine vibration at 5-500 Hz.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Feb 10, 2010 BGA Switch-A-Pitch adapters connect 0.40 mm pitch devices to boards with 1.00 mm pitch. Adapters have tops with BGA landing pads on 0.40 mm pitch and bottoms fitted with BGA balls on 1.00 mm pitch, with open space around adapter tops to allow for additional components. Operating in temperatures up to 221°F for FR4 and up to 266°F for lead-free, units allow for different termination styles or pitches on one board. They can also be fitted with active or passive components.

Cognex Corp.    Natick, MA 01760 2059
Feb 10, 2010 Designed for In-Sight® vision systems, In-Sight® Explorer v4.4 features InspectEdge(TM) tools for detecting edge defects and inspecting edge pairs. Program also includes color tools in EasyBuilder that simplify color training, distortion correction for line-scan cameras, support of up to 8,192 lines for large part imaging, and 32-point calibration in In-Sight spreadsheet. Position timing feature enables scheduling of programmed and job complete discrete outputs.

DeWAL Industries, Inc.    Saunderstown, RI 02874
Feb 10, 2010 Resistant to extreme plasma spraying, pressure-sensitive D-Max masks products during hot, abrasive high velocity oxygen-fuel (HVOF) thermal spraying. This flexible and abrasion-resistant tape, exhibiting adhesion of 55 oz/in., conforms to irregular shapes to form protective mask against grit blast, ceramic spraying, plasma spraying, and arc spraying. Tested to temperatures over 1,000°F and forces greater than Mach II, product comes in widths from 0.25-24.0 in. in 18 yd lengths.

Clore Automotive    Lenexa, KS 66215
Feb 10, 2010 Designed for 12 V batteries, SOLAR BA7 digital battery and system tester features operating range of 7-15 V and capacity to test batteries rated between 100-1,200 CCA. It provides numerical as well as pass/fail LED result and is compatible with wide range of battery types, including conventional, maintenance free, AGM, gel cell, and marine starting batteries. Portable device is suited for field testing.

SICK, Inc.    Minneapolis, MN 55438
Feb 10, 2010 Enclosed in thin, compact housing, BCG EcoLine Wire Draw Encoders provide scalable analog output from 4-20 mA, for interfacing with control systems. Pushbutton teach feature allows users to configure unit for different lengths. Offered in 2 versions of standalone MRA-F wire draw mechanisms, BCG units are suited for variety of markets, including mobile vehicle, automotive, medical, ASRS, and general manufacturing.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 10, 2010 Suited for all types of inductive applications, CWRE series 6 A, 12 Vac model features pluggable jumper, which can be used to connect common inputs and outputs. Heavy-duty electromechanical relay is AC or DC rated and features status LED display and Single Pole Double Throw (SPDT) configuration. Pluggable bridges are available for parallel coil and contact connections.
