J. W. Winco, Inc.    New Berlin, WI 53151
Feb 22, 2010 RoHS-compliant, metric sized, series GN 238 hinges feature zinc die-cast body with black powder coated finish, blackened steel adjustable bushings, and stainless steel hinge pin. Hinges are available in both sides adjustable (Type BJ), one side adjustable (Type EJ), and fixed hole (Type NJ) versions. Made of dark gray plastic, hinge cover hides adjustable bushing and screw to prevent dirt ingress, while providing clean, appealing look.

Brennan Industries, Inc.    Cleveland, OH 44139

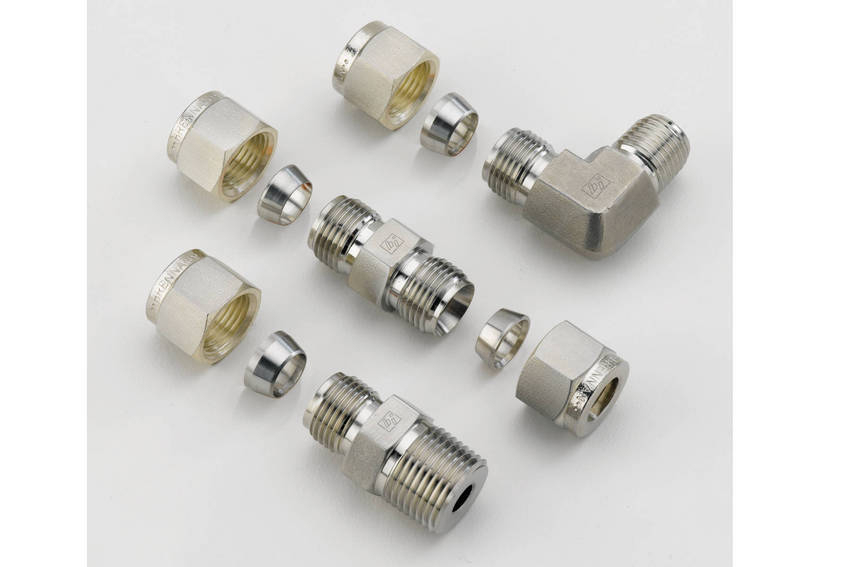

Feb 22, 2010 Offered in sizes ranging from 1/16 to 2 in., single-ferrule instrumentation fittings are available in brass and 316 stainless steel. Single ferrule design, suited for applications under high vibration or pulsation, makes incorrect installation and assembly less likely because there are few pieces involved.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Feb 22, 2010 Featuring specific torque settings for 60 and 80 lb-in., Lithium-Ion battery powered M12(TM) cordless no-hub driver model 2455-22 is accurate for up to 25,000 clamps before re-calibration. Auto shut-off with LED indicator alerts user when torque limit has been achieved, while LED Calibration indicator alerts user when calibration is needed. Weighing 2.75 lb, driver is 7.5 in. long and features 0-750 rpm drill mode.

Spartan Scientific Inc.    Boardman, OH 44512
Feb 22, 2010 Designed for pilot function of 3- and 4-way pneumatic directional control valves, Series 3800 offers pressure range of vacuum to 200 psi depending on orifice size and is dust-tight and water resistant to IP 65. It can also be used in 2- or 3-way manifold assemblies where multiple valves are combined into single block station. Available in plate mount, operator is suited for small custom valves such as those used to operate hospital bed air cushions and air-ride bellows car systems.

Eriez Magnetics    Erie, PA 16506
Feb 22, 2010 E-Z Tec® Dual-Beam Multi-Zone X-Ray and Metal Detector System precisely detects any foreign object, including ferrous, nonferrous, stainless steel, and non-metallics such as stone, glass, bone, and some plastics, as well as aluminium objects in package and raw product. Zone detection capability of X-Ray System allows for rejecting single product with foreign object rather than entire row of product, while dual beam technology provides coverage for conveyor belt more than 40 in. wide.

NSK    Ann Arbor, MI 48105
Feb 22, 2010 Designed for equipment requiring relatively short stroke to operate at speeds exceeding 1 m/sec, Miniature Large-Lead Series ball screws are available with small shaft diameter of 6 or 8 mm to reduce load on motors and large head size of 8, 10, 12, or 15 mm. They also feature low profile nut that reduces height of flanges, facilitating compact equipment design. High speed, low noise units are suited for semiconductor chip mounters and parts aligning equipment.

Madison Company    Branford, CT 06405
Feb 22, 2010 Designed for non-contact level, presence/absence, volume, proximity, and distance measurements, microprocessor-based U44xx family can be programmed via USB or RS-232 interface software. Self-contained U4466 series comes with set-up software and user-selectable options, while loop-powered U4467 series measures volume and open-channel flow of liquids and suits hazardous locations. Web enabled U4468 series is suited for monitoring, and control of local and remote tank conditions.

NLB Corporation    Wixom, MI 48393 2824
Feb 22, 2010 Rated for operating pressures to 10,000 psi, Torrent(TM) 3-D head removes hardened resins and plastics using 3D water jetting action with high-velocity nozzles rotating vertically while head spins horizontally. Nozzle tips with carbide orifices extend reach of water jets, while long life seals and bearings and stainless steel body provide durability. Inserting head into tank or reactor on telescoping lance eliminates need for any personnel to enter vessel.

Energy Transformation Systems, Inc.    Fremont, CA 94539

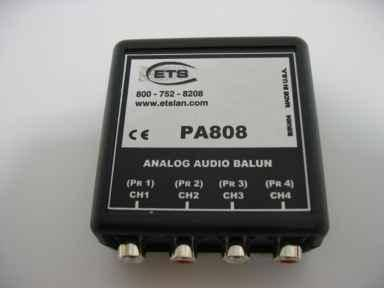

Feb 22, 2010 Suited for use in applications where audio signals are sent over distances more than 14 ft, bi-directional PA808 can send 2 to 4 stereo audio signals on single UTP cable without having to use hydra assembly. Model PA807pt has one data pass through and 2 RCA to RJ45 ports, while decorator wall-plate version PA808WP is suited for use in home theater, classrooms, schools, churches, meet halls, and auditoriums.

Belden    Richmond, IN 47375
Feb 22, 2010 MICE series of Hirschmann(TM) switches are available with media module, which supports Precision Time Protocol (PTP) according to IEEE 1588 V2 and offers synchronization accuracy of less than 80 nsec even in large, cascaded networks. Suited for use in any data network requiring real-time capability, module can also be equipped with electrical port and optical transceiver. It provides 2 RJ45 (10/100/1000 BASE-TX) or 2 SFP fiber optical transceiver (1000 BASE SX/LX) interfaces.

Ingersoll Rand Recognition Systems    Campbell, CA 95008
Feb 22, 2010 Schlage contactless smart credentials utilize MIFARE EV1 technology, are encrypted with AES 128-bit diversified keys, and include mutual authentication and message authentication code. Designed on open architecture platform, units comply with ISO 14443 standards and provide up to 48 Kbps baud rate data transfer between credential and reader. They include memory options of 2, 4, and 8 KB and applications can be added to support system expansion.

Honeywell International, Inc.    Morristown, NJ 07960
Feb 22, 2010 Dolphin 6500 mobile computer features 3.5 in. color touchscreen and either 28-key numeric keypad or 52-key alphanumeric keypad. Allowing single-handed scanning, ergonomic, IP54-rated device offers Adaptus® Imaging Technology that supports data collection for linear and 2D bar codes, digital image capture, and signature capture. It includes Microsoft Windows Embedded CE 5.0 OS and Shift-PLUS power management to support up to 10 hr of battery life.

Eastman Kodak Co., Global Manufacturing Services    Rochester, NY 14652
Feb 22, 2010 Helping SMBs digitize volumes of paper documents and records, Model i1405 can handle daily volumes of up to 9,000 pages/day at 45 ppm and 200 dpi. It supports optical resolutions to 600 dpi, and flexible paper handling capabilities include support for small plastic cards, delicate onionskin paper, and lengthy, non-conventional print-outs. Along with USB 2.0 connectivity, scanner offers one-click output destination, scan-to functionality, and image-enhancing features.

Larson Electronics, LLC    Kemp, TX 75143
Feb 22, 2010 Featuring UL 844 Class 1 Division 2 ratings for Groups A, B, C, and D, 48 W Model HAL-48-2L-LED is suitable for both high and low voltage applications in industrial and military sectors. LED tube style bulbs each secure 24 W of high-powered LED potted into aluminum housing and covered with integrated polycarbonate cover. Offering solid state design, LED light provides 50,000 hour bulb life and is resistant to vibration and extremes in temperature.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Feb 22, 2010 Offering quad-band (GSM850/EGSM900/DCS1800/PCS1900) transmit performance and 4 dedicated receive ports, RF7178 integrates class 12-compliant GSM/GPRS power amplifier, pHEMT antenna switch, and receive SAW filters. Dual-band (EGSM900/DCS1800) RF7177, pin-to-pin compatible with RF7178, features pHEMT antenna switch and SAW filters. While providing scalable platform for handset manufacturers, each eliminates ~10 component placements and allows use of common PCBs across handset models.

Panorama Antennas Ltd    London   United Kingdom
Feb 22, 2010 Designed to support multi-service, multi-operator wireless environment, CMWB-038-6 operates on full wireless spectrum from 380 MHz to 6 GHz. Any number or combination of services - TETRA UHF, GSM 400, AWS 700 MHz, Quadband GSM, 3G UMTS, 2.4 GHz WLAN, LTE, and WiMAX - are supported, enabling simultaneous mobility for employees, consumers, and emergency services. Design ensures delivery of wireless coverage even in complex locations and structures.

Soitec, Inc.    Peabody, MA 01960
Feb 22, 2010 Serving cellular phone and WiFi markets, high-resistivity (HR) silicon-on-insulator (SOI) substrates exhibit stabilized base wafer resistivity to meet all cellular electrical specifications. Smart Cut technology is used to integrate high-resistivity base wafer, enabling low signal absorption below oxide. Manufactured in 200 mm, HR SOI substrates offer greater than 1 kOhm/cm resistivity. Another option is 300 mm offering for SoC market working at 90 nm node and below.

DB Software    Anchorage, AK 99501
Feb 22, 2010 Run under Windows® 98/NT4.0/2000/XP/2008, Data Exchange Wizard ActiveX v3.6.3 offers wizard-driven interface that helps developers accelerate integration of Import/Export mechanism into any application. It works directly with Oracle, MS SQL Server, MySQL, Interbase, Firebird, PostgreSQL, and ODBC Ole DB while also offering full support for flat files, MS Excel, MS Access, and DB files. Features such as error log, rejected recods file, and integrated Expressions builder are standard.

Mobile Mark    IL, IL 60176
Feb 22, 2010 Housed in weather-resistant radome with 4 dBi patch element and 26 dB LNA, Model NT-1575 is designed for right-hand circular polarization. Interior of antenna is completely sealed with high-impact foam. Measuring 1.6 in. tall x 3.66 in. diameter, antenna terminates with TNC Jack connector and can be surface mounted to ¾ in. diameter hole or pole-mounted on pipes up to 2½ in. OD. It is rated at IPx7 for water ingress resistance and has ESD rating of 15 kV.

Advantech    Milpitas, CA 95035
Feb 22, 2010 Based on 1.66 GHz Intel® Atom(TM) N450 and 1.66 GHz dual core D510 processors with ICH8M chipset, 3.5 in. Model PCM-9362 features dual Gigabit LAN, 6 USB 2.0 ports, 4 COM ports, 2 SATAII interfaces, CF socket, and miniPCI expansion. SBC supports single 5 V or 12 V power inputs to fulfill different power requirements. Integrated 2D/3D graphics engine supports Dynamic Video Memory Technology 3.0 as well as Intel® Gen 3.5 and DirectX 9 compliant Pixel Shader 2.0.
