Hitachi High Technologies, Inc.    Schaumburg, IL 60173-2295
Jan 26, 2012 In 30 minutes, Sigma G5 can change from high-speed mounter to fine pitch placer. Unit is equipped with Over-Drive Motion, which allows either placement head to pick components from front or rear feeder cart without restrictions. Direct Drive Head offers wide component handling range of 0402 mm x 44 mm² x 12.7 mm, while multi-function head provides additional flexibility for SiP, MCM, and Flip Chip assemblies.

Auralex Acoustics    Indianapolis, IN 46256
Jan 26, 2012 Measuring 2 x 2 ft with thicknesses from 1-3 in. due to wave design, Studiofoam® Wave Panels help control unwanted mid- or high-frequency reflections and standing waves in vocal booths, control rooms, live rooms, and rehearsal spaces. Panels are made from melamine-free formula that will not crumble with age. They can be used with common mechanical fasteners such as t-pins, finish nails, and tacks, as well as Auralex Foamtak(TM) or Tubetak(TM) for removable installation.

Burr Oak Tool    Sturgis, MI 49091
Jan 26, 2012 Designed for round and flat-tube coils up to 3 m long, Electric Coil Form Machine produces bends in single row coils or multiple single-row coils joined at one end. Single, vertically oriented bend arbor produces one, two, or three 90° bends, creating L-, U-, or box-shaped coils. To avoid forming wrong radius, RFID matches part data to arbor cover. Options include slip sheets, coil length measurement, inside coil pusher, bar code scanner, and coil staging table.

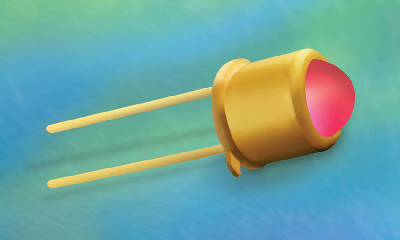

Opto Diode Corporation    San Jose, CA 95127
Jan 26, 2012 Housed in hermetically sealed, TO-46 package with gold-plated surfaces and welding caps, Model OD-850W offers optical output power of 40 mW at 100 mA, continuous forward current at 100 mA, and peak forward current at 300 mA. Storage and operating temperatures range from -40 to 100°C with max junction temperature of 100°C. GaAlAs LED is suited for industrial control applications such as photoelectric controls and optical encoders.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810
Jan 26, 2012 Intended for laboratory applications, SC950 features a 50 Lpm pumping capacity and deep 1.5 Torr end vacuum to enable shorter processing time with range of solvents. Wireless remote control enables system to be operated within fume hood with sash closed for added safety and energy conservation. Able to be positioned in remote locations, system offers 4 operating modes and can also be controlled remotely from PC via supplied Windows®-based software that has process recording capability.

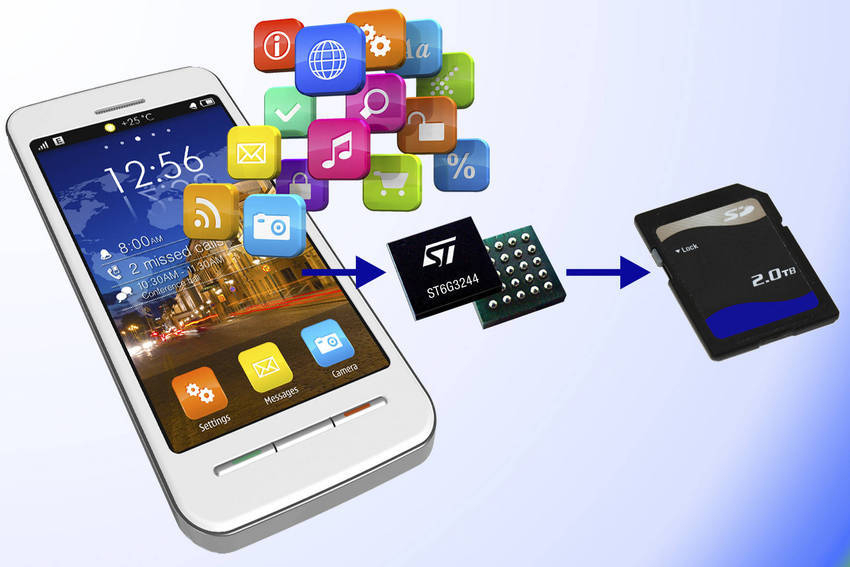

STMicroelectronics    Lexington, MA 02421
Jan 26, 2012 Supplied in BGA25 package, ST6G3244 selectable supply (1.8 or 2.9 V), 6-bit, bidirectional CMOS-level translator is suited for interfacing application processors or digital basebands to SD, mini-SD, and micro-SD memory cards in mobile phones, portable media players, tablets, digital cameras, or PNDs. SD (Secure Digital) 3.0-compliant product also offers Power Down mode and secures data integrity through balanced propagation delays and EMI filters and signal conditioning.

Advantech Technologies, Inc.    Irvine, CA 92618
Jan 26, 2012 Suitable for handheld and portable devices, 95 x 95 mm SOM-6765 is powered by Intel® Atom(TM) N2600 and D2700 CPUs based on 32 nm technology and COM.0 R2.0 type 2 pin-out. Hardware HD decode and support for DDR3 1066 memory are standard, along with dual display output and various graphic interfaces: LVDS, VGA, and Blu-ray via HDMI. Advantech iManager 2.0-compliant board also offers several expansion options, on-board Giga-bit LAN, and multiple I/O options.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Jan 26, 2012 Used for steel drilling, CoroDrill® 860 comes in lengths 3-8xD and offers optimized chip evacuation control. Design accommodates conventional drilling, chamfered holes, inclined surfaces, cross holes, stack drilling, and convex/concave surfaces. When using high cutting data in long and short chipping materials, drill provides consistently problem-free drilling. Geometry, combined with flute shape, provides cutting edge shape for effective clearance of chip.

Key Technology, Inc.    Walla Walla, WA 99362
Jan 26, 2012 Integrating Iso-Flo® dewatering shaker, Flo-Belt, and Manta® 2000 series sorter, Wet Spinach Sorting System can sort up to 5.5 tons of finished product/hr. On Manta, spinach leaves are inspected by fluorescence-sensing lasers and top- and bottom-mounted Vis/IR cameras, maximizing removal of foreign material and leaf defects. With stainless steel construction, watertight double gaskets on doors, and sealed control panel, Manta operates in harsh environments and withstands high-pressure washdowns.

Konica Minolta Sensing Americas, Inc.    Ramsey, NJ 07446
Jan 26, 2012 Designed for use without PC, CL-500A can measure illuminance, chromaticity, color temperature, and CRI. In addition to LED and OLED markets, RoHS-compliant light measurement product can be used in R/D and color inspection of projector light sources, digital signage, and any application where measuring total flux or light distribution characteristics is required. Additional features include handheld form factor, onboard display, and Excel add-in software that fosters data analysis.

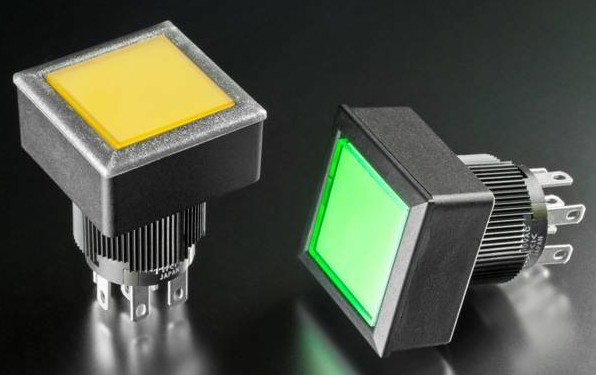

NKK Switches    Scottsdale, AZ 85260-3420
Jan 26, 2012 With above panel dimension of 1.8 mm, YB2 Series is comprised of 24 mm square, flush mount, tamperproof pushbutton switches intended for applications requiring low-profile, secure, and splash-proof design. Illuminated and non-illuminated models feature 18 mm dia square actuator and come in SPDT and DPDT momentary and maintained action. Rated IP65, switches have snap-action contact mechanism; latch-down actuator supplements maintained models.

PDC International Corp.    South Norwalk, CT 06854
Jan 26, 2012 Featuring stainless dual wall construction, Model KST 80A-712 with Steam Venting Package is compatible with wide range of containers, including those that are challenging to shrink consistently. Dual-zone system has 5 rows of steam distribution tubes on each side, each externally adjustable for steam volume, flow, and rotary position. Monitoring tunnel temperatures in real-time, Electronic Regulator makes continuous adjustments in steam release to compensate for thermal loads of incoming product.

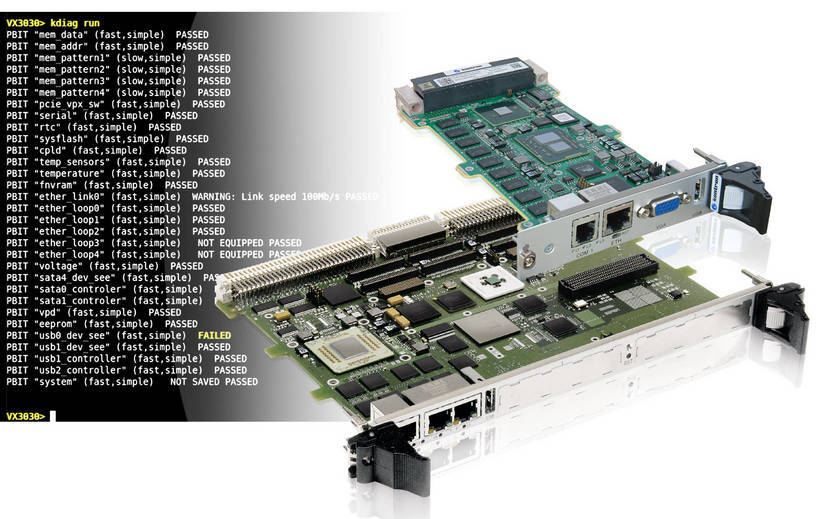

Kontron    Poway, CA 92064
Jan 26, 2012 Intelligent Power-on Built-in Test Solution, Kontron PBIT, is available on 3U and 6U VPX/OpenVPX(TM) and VME processor boards. It provides modular and scalable set of uniform test routines with which to assess health status and configuration for both boards and complete systems. Stored in non-volatile memory, Kontron PBIT checks on-board components and also looks for peripheral components across backplane, XMC/PMC slots, and those connected via USB/SATA.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jan 26, 2012 Providing stable readings in seconds, miniLab Pocket pH Meters use ISFET sensor technology that contains several proprietary layers deposited selectively on silicon substrate. Quantity of hydrogen ions at or near sensor surface causes electrical effect that is detected and measured as pH. Featuring IP67-rated waterproof design, meters excel in environmental studies and academic teaching labs as well as food/beverage, medical, pharmaceutical, agricultural, and petrochemical applications.

Saelig Co., Inc.    Pittsford, NY 14534
Jan 26, 2012 EPIC (Electric Potential Integrated Circuit) Sensor measures electric field changes without physical or resistive contact. Speed at which this product measures electric potential sources will simplify medical ECG/EKG/EEG/EOG, movement sensing, proximity non-touch switching, and gesture recognition signal taking. As it does not need line of sight, sensor can detect movement through solid walls and used to replace, or as adjunct to, PIR sensors.

MAG IAS, LLC    Erlanger, KY 41018
Jan 26, 2012 Targeting aerospace industry, GEMINI can switch from automated fiber placement to automated tape laying in minutes. System utilizes VIPER® automated fiber placement head and CHARGER(TM) or Forest Line ATLAS automated tape laying heads. Head docking cradles outside workzone enabling offline setup/maintenance of heads while machine continues to produce parts. Allowing unlimited part length and multiple work zones, gantry design accommodates fixed floor-mounted or rotation type tooling.

Larson Electronics, LLC    Kemp, TX 75143
Jan 26, 2012 Able to produce 760 lm using 7 W, EHL-LED-120XLV-100 handheld LED work light runs cool to touch and lasts for 50,000 hr of operation without bulb changes. Inline transformer gives light 120-277 Vac current capability, and LED bulb assembly is available in 12 or 24 Vdc configurations. Supplied with 100 ft of SOOW cord, this Class 1, Division 1 and 2 hazardous location-approved light has 6000K color temperature and is constructed with non-sparking aluminum housing and aluminum lamp cage.

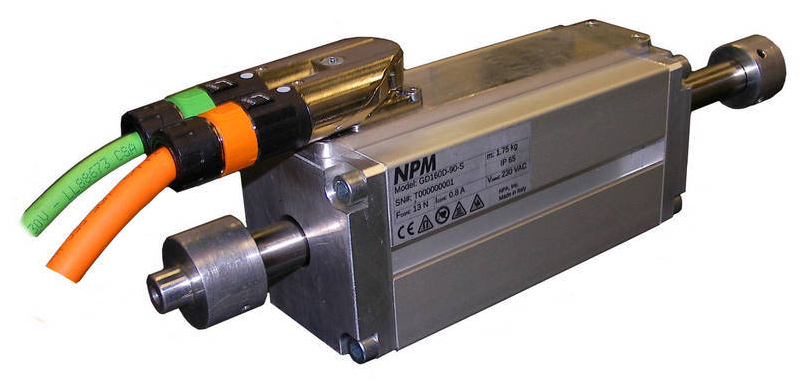

Nippon Pulse America, Inc.    Radford, VA 24141
Jan 26, 2012 Green Drive comes in 2 sizes, G16x and G25x series, with respective 16 and 25 mm dia shaft (magnets). Acceleration force is rated up to 600 N for 40 sec, and effective stroke lengths range from 10-1,540 mm. Cooling systems can increase rated force up to 20%, and products feature nominal rated force from 13-150 N and position repeatability of ±0.05 mm. Position sensors, temperature sensors, interpolation electronics, and 4 feedback output types are included.

Larson Electronics, LLC    Kemp, TX 75143
Jan 26, 2012 Approved for Class 1, Div 2 hazardous locations, 150 W Model HAL-TP-1X150LED-100 produces 14,790 lumens of clean white light, covering 18,000 ft² of work area while using 400 W of power. Unit features aluminum lamp housing finished in bronze powder coat, stainless steel hardware, and aluminum tripod, resisting rust and corrosion in wet areas. Operating from 120-277 Vac, Model HAL-TP-1X150LED-100 offers 3-8 ft height adjustment, fully adjustable light head, and 100 ft of SOOW cord.

Surround Technologies, LLC    Bloomfield, NJ 07003
Jan 26, 2012 Accelerator(TM) for .NET v3.2 offers device-independent Web application, built for use with touch-based interfaces, that allows capture and storage of customer signatures or other written input. Other features include attachment management capabilities, flexible and powerful data grid capabilities, search filtering, and Multi-Level TreeGrid. Latter combines standard Tree and Grid controls, expanding features of both to let user view hierarchical data in grid-like structure.
