Extech Instruments Corp.    Nashua, NH 03063

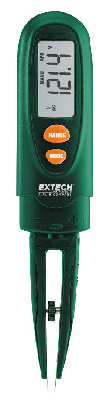

Mar 25, 2010 With selectable auto-/manual-ranging, handheld Model RC200 measures AC/DC voltage, capacitance, resistance, continuity, and diode function in circuit. User squeezes tweezers around surface mount component or test point for automatic component identification and testing. Adjustment dial allows user to optimize tweezers' spacing. For standard electronic and electrical testing, tweezer tips can be removed and swapped with test leads adaptor for voltage readings up to 600 V.

Datalogic Mobile    Eugene, OR 97402
Mar 25, 2010 Designed to meet needs of field service, field sales, delivery, retail, and logistics, applications, Elf(TM) integrates Green Spot good read technology with both laser barcode reader and 2D imager. Connectivity options include UMTS HSDPA mobile radio for voice and data communications, embedded 802.11 a/b/g radio with CCX V4 certification, and Bluetooth® wireless 2.0 EDR. Equipped with QWERTY and numeric keyboards, PDA provides micro SD card slot, which supports SDHC storage cards.

E Instruments International LLC    Langhorne, PA 19047
Mar 25, 2010 Suited for HVAC professionals, Model MP120 features pressure range up to 4 in. H2O and air velocity range up to 8,000 fpm with 0.1 resolution and accuracy of ±1% reading +0.2 mbar. Unit can display pressure in kPa, in. Wg, mbra, mm Hg, psi, m/sec, fpm, and km/hr and air velocity in fpm, m/sec, and km/hr. Measuring 5 x 2.5 x 1.25 in. handheld meter includes Max, Min, and Hold selection and blue 128 x 128 pixel display that can be read in light or dark environments.

Thermo Fisher Scientific    Waltham, MA 02454

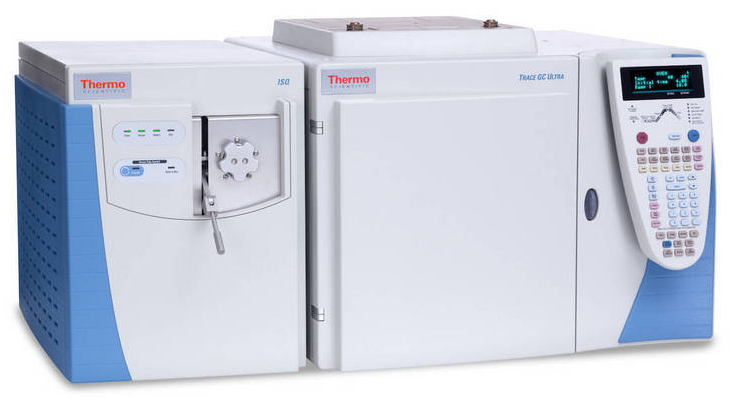

Mar 25, 2010 ISQ(TM) single quadropole GC-MS system features ExtractaBrite(TM) ion source that removes without venting analyzer, providing maximum uptime and reducing maintenance. Designed to provides high-throughput sample analyses and 24/7 operation, system offers mass range from 1.2-1,100 micron for analysis of diverse compounds. Sequential full scan/selected ion monitoring provides qualitative and quantitative analyses in one injection for confirmation and screening in one run.

Lumex Inc.    Carol Stream, IL 60188

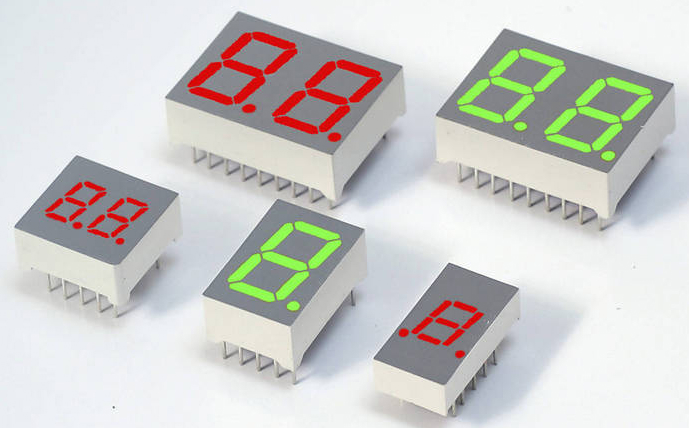

Mar 25, 2010 Capable of performing in temperatures up to 105°C, QuasarBrite High-Temperature Seven-Segment LED Displays are available in sizes with 0.28-4 in. character height. Each 7-segment ¼ W LED display comes with complementary integration support and is compatible with standard drivers. Compliant with RoHs requirements, products suit applications subject to extreme heat conditions: industrial control device technology, military applications, and appliances.

Innovative Solutions, LLC    Naugatuck, CT 06770-2224

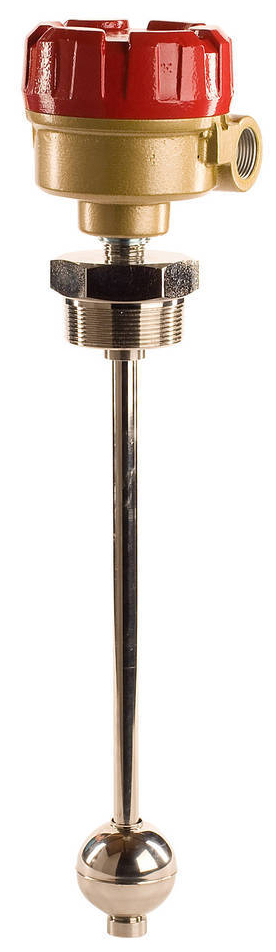

Mar 25, 2010 Carrying FM explosion-proof rating for Class I, Division 1, Groups A/B/C/D, TR420E series 316 stainless steel level sensor contains equally spaced reed switches and resistors. It comes in lengths up to 18 ft, features ¼ in. resolution, and can be supplied in various mount sizes and enclosure styles. When activated by vertically moving magnetic float, variable resistive signal is converted to proportional voltage or 4-20 mA current output through 12 or 24 Vdc powered conditioning board.

ATI Industrial Automation    Apex, NC 27639
Mar 25, 2010 Featuring integrated web server, DKD Ethernet Modules control and communicate with Heavy Automation Robotic Tool Changers using Ethernet/IP(TM) while passing DeviceNet(TM) network and power to tool-side. Modules feature Arc Prevention Circuits, which protect all electrical power contacts against high inrush current during coupling/uncoupling. Provided through connector on Tool module, Tool Stand Interlock technology prevents uncoupling of tooling when not safely nested in Tool Stand.

ATI Industrial Automation    Apex, NC 27639
Mar 25, 2010 Designed to facilitate tool changes by hand, Models MC-16 and MC-36 feature payload limits up to 40 and 100 lb, respectively. Model MC-16 includes 4 integrated 1/8 NPT pass-through air ports, while Model MC-36 has 6. Offering multiple fail-safe features, screw-cam locking mechanism resists vibration and prevents loosening. Units also include quick-action locking for one-handed manual operation.

Bodine Electric Company    Northfield, IL 60093

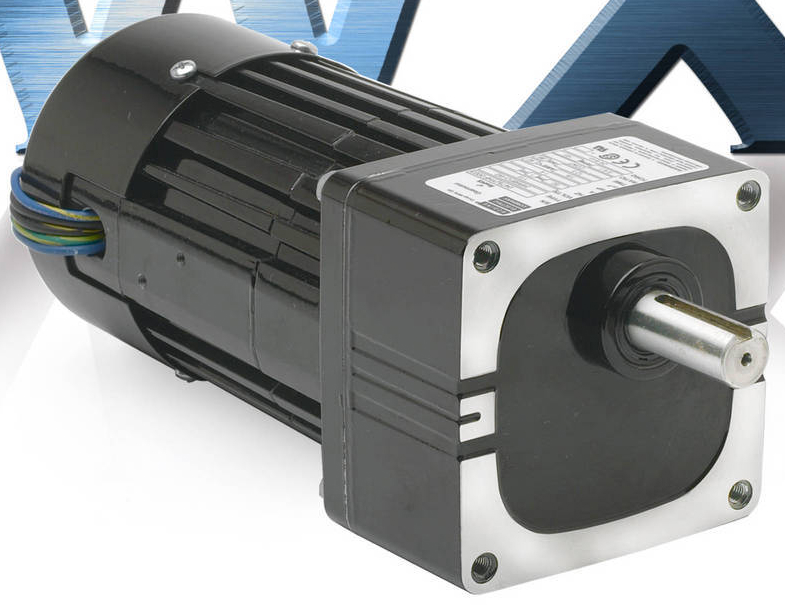

Mar 25, 2010 Combining WX gearhead and 3-wire-reversible 34R (4 in. dia), single-phase, 1/7 hp motor winding, WX gearmotors are designed to drive applications such as conveyor systems, packaging equipment, metering devices, and commercial appliances. Steel helical gears, designed to AGMA 9 standards or higher, ensure quiet operation, while synthetic lubricant allows these unvented gearmotors to operate over wide temperature range. Gear ratios range from 4:1 to 312:1.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115

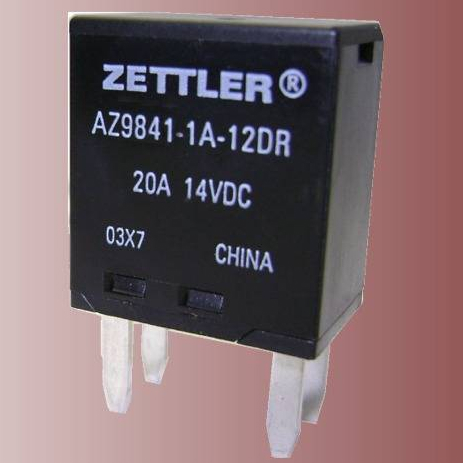

Mar 25, 2010 Designed for automotive use, AZ9841 series 40 A power relays are offered with SPST (1 form A), SPDT (1 form C), and 35 A continuous N.O. ratings at 35°C. They are available with 6, 12, or 24 Vdc coils and come with optional shunt resistors and silver tin oxide contacts. Withstanding operating temperature as high as 125°C, compact relays suit applications including headlights, magnetic clutches, radiator fans, blowers, fog lamps, tail lights, heaters, defoggers, and horns.

Dicon Fiberoptics Inc.    Richmond, CA 94804
Mar 25, 2010 Delivering fast switching time, high port count MEMS 1x56 optical switch features internal MEMS components, which meet Telcordia GR-1221 standards. Compact switch is suited for 1xN optical switching for port sizes between 1x25 to 1x56 with single mode fiber. Optical switches with port counts up to 1x128 are also available for FTTH monitoring solutions.

Tovatech, LLC    South Orange, NJ 07079
Mar 25, 2010 Available in 6 tank sizes from 0.75-7.5 gal, P series safely cleans delicate laboratory instruments at 37 or 80 kHz in 4 ultrasonic modes for cleaning, intense cleaning, dissolving, and degassing. Pulse mode produces periodic spikes in ultrasonic power to dislodge difficult-to-remove contaminants. Featuring hold button for temporary removal of samples, unit has intuitive control panel with digital readouts for selecting ultrasonic power, frequency, mode, time, and temperature.

Ci Design Co., Inc.    Irvine, CA 92618
Mar 25, 2010 Model iStoragePro iR16FC4ER is 3U 16-bay RAID unit equipped with dual 4 GB Fibre connections multipath, which provides speeds up to 700 MB/sec. Able to reach speeds of up to 4 Gbps for 4 port trunking with sequential RAID 5 link aggregation, iStoragePro iR16IS4ER, 4-port and iR16IS2ER, 2-port devices have iSCSI RAID protection and support load balancing and failover via Ethernet iSCSI ports. Utilizing SAS expansion, subsystems can be cascaded with up to 80 hard disk drives.

GE Intelligent Platforms    Charlottesville, VA 22911
Mar 25, 2010 Proficy® Pulse enables users to view, analyze, and correlate real-time operational situations and historical intelligence. Allowing users to share data via Web, it consolidates operational and process data to provide instant insight into plant operational health. Graphics editor for development of HMI interfaces and background scheduler are also included. Combined with Proficy Historian, program enables consolidation of disparate data into single viewpoint.

Avago Technologies    San Jose, CA 95131
Mar 25, 2010 Developed using InGaP Hetero-Junction Bipolar Transistor technology, Models AVT-51663/53663 are internally matched to 50 W and designed in Darlington configuration. At 5 V/37 mA, Model AVT-51663 features 19.0 dB gain, 24 dBm OIP3, 12.5 dBm P1dB, and 3.2 dBm noise figure at 2,000 MHz. Model AVT-53663, operating at 5 V/48 mA, delivers 19.5 dB Gain, 5 dBm OIP3, 15 dBm P1dB, and 3.2 dB noise figure at 2,000 MHz. Applications include WiMAX, wireless base stations, satellite TV, and set-top boxes.

CMX Systems Inc.    Jacksonville, FL 32223
Mar 25, 2010 Offering array of kernel services, CMX-RTX(TM) and CMX-Tiny+(TM) accelerates development time for designers who want to utilize 32-bit EFM®32 Gecko MCUs. CMX-RTX, which supports most 8-, 16-, 32-bit processors and DSPs, delivers fast context switch times and low interrupt latency. Scaled-down from CMX-RTX but retaining most of its power as well as more frequently used functions, CMX-Tiny+ suits processors with small amount of RAM embedded on processor's silicon (512 bytes min).

CMX Systems Inc.    Jacksonville, FL 32223
Mar 25, 2010 CMX-MicroNet(TM) and CMX-TCP/IP(TM) TCP/IP stacks support SSL/TLS (Secure Socket Layer/Transport Layer Security) add-on, which provides SSL/TLS server and client support as well as suite of security standards for embedded devices. Self-contained internal memory manager with fine-grained sizing and tuning features enables optimization of platform memory allocation, and designers can further optimize flash and RAM by enabling only those features required for specific application.

EMAG    Farmington Hills, MI 48335
Mar 25, 2010 Intended for turned parts manufacturers, VL 5i integrates recirculating conveyor chain with carrier prisms; fluid cooling system for spindle motor and turret; and chip conveyor. Automation equipment helps create fixed production cycle, and pick-up station behind machining area lets operator remove finished components and insert new raw-parts at front of machine. With indexing times of 2.2 sec, 12-station turret accommodates turning and driven tools for drilling/milling.

EMAG    Farmington Hills, MI 48335
Mar 25, 2010 Designed as console-type, cross-operated pick-up machine, Model VLC 250 features 250 mm chuck and can be individually configured to meet machining requirements. Recirculating conveyor transports workpieces to pick-up position, where they are taken up by chuck. To check workpiece tolerances, measuring probe can be integrated into process. Modular design enables choice of 4 different spindles, linear motion or hydrostatic guideways, and turning, drilling, grinding, or milling technologies.

NUM Corp.    Naperville, IL 60563
Mar 25, 2010 To assist with production and resharpening of special-purpose tools, NUMROTO v3.5.1 lets users create machine models that will accurately account for all add-on and moveable parts of machine. Continuous monitoring of removal rates helps protect against grinding wheel overloads as well as optimize feed rates and operation cycle times. Additional functionality allows import of compensation profiles generated by external measuring machine as well as integration of proprietary ISO CNC programs.
