Bradley Corp.    Menomonee Falls, WI 53051
Apr 21, 2010 Composed of bio-based resin made of soy and corn, Evero(TM) Natural Quartz Material comes in 15 colors and can be molded into round and curved shapes. Material is virtually maintenance-free since it does not require sealing, buffing, or reconditioning. Non-porous surface does not support microbial growth and is stain-, chemical-, scratch-, and heat-resistant. In addition to Class A fire rating, GREENGUARD-certified material meets ANSI Z124.3 and Z124.6.

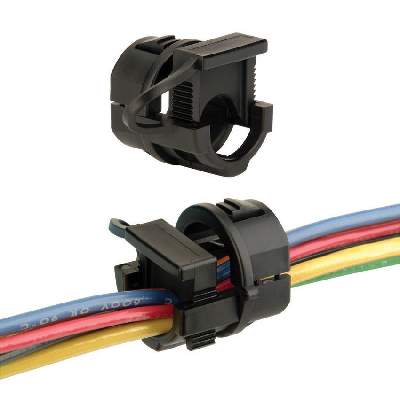

Heyco Products    Toms River, NJ 08753
Apr 21, 2010 Designed to self-lock onto cable, Snap-In Ratcheting Strain Relief can be removed through insertion of snap ring pliers with .040 in. tips into holes located on outside of part. Unit is available for .875 in. hole size with .770 in. flats and installs with fingertip pressure. Wire locking ratchet allows for wire range of .115-.575 in. Suited for one or multiple round or flat wire cables, strain relief can be preassembled offline for final assembly at later time.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 21, 2010 Intended for mechanical protection of wire and cables, Versaflex polyester sleeves offer flexibility and strength via braided design that allows for expansion and contraction while retaining tension. Cold-applied, RoHS-compliant products conform to irregularly shaped products or substrates without need to heat shrink, do not retain heat or moisture, and are resistant to abrasion. Offering includes flame-retardant and non flame-retardant versions, both available in multiple sizes.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 21, 2010 Secured with one-piece lock washer-nut, SOLKLAMP Threaded Hex Bolt inserts through ground hole of solar module aluminum frame and penetrates its surface to establish ground path. Bolt handles 6-12 AWG solid, uninsulated copper wire; is rated at 1,530 A with 6 AWG ground wire; and provides 100 lb retention in UL 486A/B pull-out test. Product meets requirements of UL 1703 for safety in flat-plate photovoltaic modules and panels.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 21, 2010 Available in 2, 3, and 4 positions, SlimSeal Solid State Lighting (SSL) connector maintains IP67 seal rating and comes in UV-resistant wire-to-wire and wire-to-board configurations. Polarized solution accepts 18-24 AWG stranded wire and comes in housing manufactured with UL 94 V0-rated thermoplastic. Offering SMT and thru-hole headers, sealed single-row LED connector has 5 A operating current, 250 V AC/DC max operating voltage, and 1,500 Vac dielectric withstanding voltage rating.

Air Technical Industries    Mentor, OH 44060
Apr 21, 2010 Featuring omni-directional mobility, Telescopic Mast Jib Crane handles components that need to be lifted during aircraft manufacturing process. Crane can travel in any direction 360° and can turn within its own measurements. Chrome-plated to prevent corrosion, telescopic section extends up to 36 ft under-hook height, while beam has 13.5 ft of reach and is equipped with dual hoists that provide lifting speed up to 32 fpm. Speed of crane is infinitely variable from 0-3 mph.

Lighting Specialties    Buffalo Grove, IL 60089
Apr 21, 2010 Intended for inspection and assembly applications, MIDAS(TM) (Microscope Inspection Digital Application System) aids in viewing, capturing, and documenting images from any direction or angle. Universally positionable solution, which integrates 1.3 MP USB camera and ¼ in. color CMOS image sensor, has 10X-200X magnification range and Hi-Res, 1,280 x 1,024 pixel image capture. Six white LEDs provide illumination, while polarizing lens prevents glare and reflection.

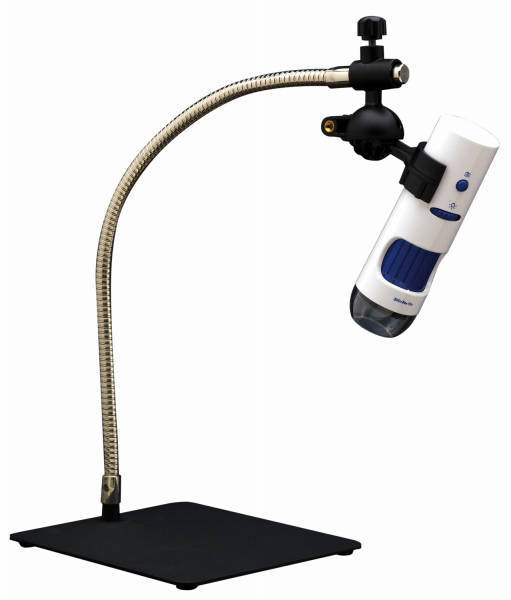

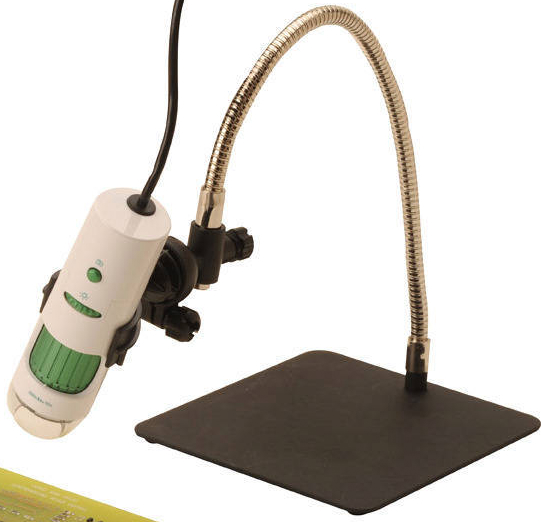

Aven, Inc.    Ann Arbor, MI 48108
Apr 21, 2010 Enabling users to inspect samples hands-free from any direction and varied heights, Flex Stand features gooseneck tube, sheathed in metal, that adjusts to any position and stays rigid while tightly clamping scope with vibration-free precision. Clamp head also rotates for optimal flexibility. Stand is suited for use with Digital Mighty Scope, a compact microscope for industrial quality control and inspection as well as R&D applications.

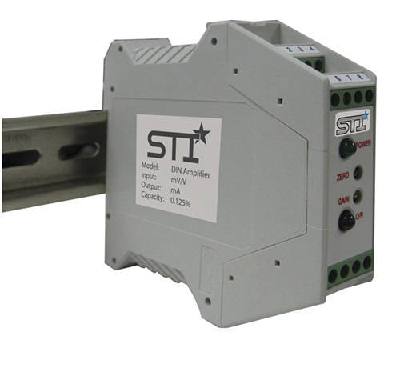

Stellar Technology, Inc.    Amherst, NY 14228
Apr 21, 2010 Suited for use with LVDTs requiring AC excitation and synchronous demodulation, Series AP5102 accepts signal inputs of 20 mV to 4 V and produces analog outputs of 0-10 Vdc, ±10 Vdc, or 4-20 mA. Amplifier incorporates DC-DC converter, which ensures output of unit is isolated from supply. Packaged in DIN rail mount housing constructed of high-impact thermoplastic, unit permits access to screw terminal connections for power, analog output, shunt, and sensor signals.

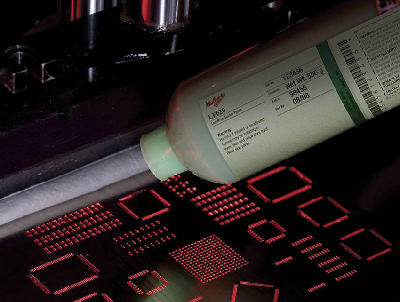

Henkel Corporation    Rocky Hill, CT 06067
Apr 21, 2010 Suited for handheld and automotive sectors, Multicore LF620 ensures consistent print performance with minimal hot slump, even in regions with temperatures of 86°F or more and RH upwards of 80%. No-clean, halide-free formula exhibits low voiding in CSP via-in-pad joints and optimal solderability over range of surface finishes including Ni/Au, Immersion Sn, Immersion Ag, and OSP copper. Paste offers abandon time of 4 hr and print work-life up to 24 hr with no degradation in print quality.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Apr 21, 2010 Intended for filling syringes, vials, and other containers for liquid drugs, peristaltic pump system consists of peristaltic pumps and disposable tubing system integrated with filling machine control system, drive, and controllers. Offset alignment of pump rollers ensures low pulsation volumetric flow for accurate dosing and reduced strain on tubing. Along with 0.1-30 mL filling range, system features disposable tubing to ensure product quality by eliminating cross contamination risk.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Apr 21, 2010 Equipped with automatic troubleshooting function, Model GKF 1400 ASB can fill combination of powders, pellets, liquids, and diverse range of tablets. Integrated checkweigher enables real-time automatic fill adjustment, while attached capsule body scanner ensures production quality by detecting and removing incomplete capsules prior to filling process. With ability to manage several dosing stations, GKF 1400 ASB provides production capacity of 84,000 capsules/hr.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Apr 21, 2010 Available in 2-8 in. sizes, PoolMaster(TM) Valves feature PVC body and disc with EPDM liner. Units are immune to electrolytic and galvanic corrosion, and contain no byproducts that can leach out and contaminate water and other sensitive fluids. One-piece body incorporates fully supported flanged bolt holes to prevent stressing of mating pipe flanges, while blowout-proof 316 SS shaft and full body liner assure positive sealing of liner to valve body.

Appleton    Rosemont, IL 60018
Apr 21, 2010 Delivering open neutral protection to plant personnel against risk of electrical shock, 125 Vac U-Line® series safeguards connected apparatus against damage from short circuits and current overload. It features OSHA compliant GFCI for 20 A receptacles, along with built-in carrying handle and 3 ft SO power cord with U-Line 20 A NEMA 5-20P plug. Weighing just 7.5 lb, portable unit meets Class I, Division 1 and 2 specifications, and UL and CSA requirements for non-hazardous locations.

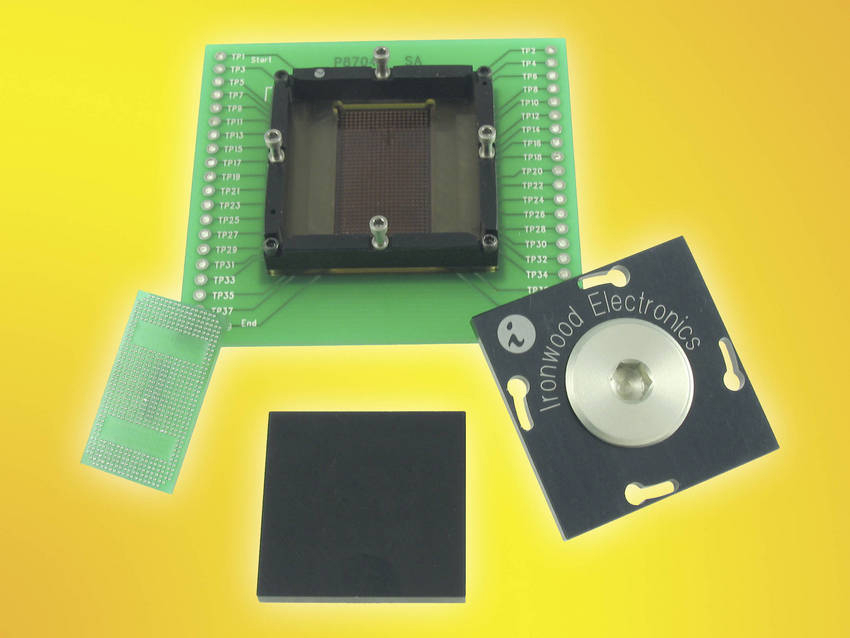

Ironwood Electronics, Inc.    St. Paul, MN 55121
Apr 21, 2010 Featuring typical contact resistance of 20 mW per I/O, SG-BGA-7181 is designed for 13.5 x 25.2 x 1.95 mm package size and operates at bandwidths up to 10 GHz with less than 1 dB of insertion loss. It has pin self-inductance of 0.15 nH, mutual inductance of 0.025 nH, capacitance to ground of 0.01 pF, and current capacity of 2 A per pin. Targeting 0.65 mm pitch 588 pin BGA, device operates at -35 to +100°C and is built with low inductance gold plated embedded wire on elastomer.

Danray Products LLC    Rockford, IL 61107
Apr 21, 2010 Constructed of 0.090 in. thick anodized aluminum, blue-colored fan guard safety scale has 0.25 in. dia hole, and easy-to-read text and graphics that will not rub or scratch off. Scale checks openings in fan guards for compliance with OSHA 29 CFR 1910.212(a)(5).

Harris Corp.    Melbourne, FL 32919
Apr 21, 2010 Suited for public safety and other mission-critical users, Model P7300 delivers end-to-end, encrypted digital voice and data communications. Radio uses high-speed DSP and RF components to support multiple applications, such as Project 25 digital trunking, P25 digital conventional, ProVoice(TM) digital trunking, OpenSky® trunking, EDACS, and suite of conventional analog features. To meet specific security requirements, Model P7300 can be customized to include 256-bit AES and 64-bit DES encryption.

STMicroelectronics    Lexington, MA 02421
Apr 21, 2010 Cadence® OrCAD® PSpice® platform, used for simulation of analog and power ICs, offers full-featured, native analog and mixed-signal circuit simulator for system design. It is intended for analysis of ST products within specific circuit test-benches, which can be obtained through SMPS@eDesign Studio. First ST families available in PSpice via OrCAD technology from Cadence will be DC-DC converters and ViPER monolithic ICs for SMPS.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 21, 2010 Available with WiLink(TM) 6.0 (WL1271) solution, OMAP35x processor Evaluation Module (EVM) gives designers opportunity to incorporate wireless connectivity technology into portable designs. Integrating WLAN and Bluetooth® technologies on one chip, WL1271 solution promotes bold designs on EVM through combination of OMAP(TM) processor and wireless connectivity. Pre-integration and optimization technologies reduce design barriers, accelerate development, and open range of use cases.

Umetrics Inc    New Jersey, NJ 07405
Apr 21, 2010 As Windows®-based software for real-time monitoring and prediction, SIMCA-Batch On-Line (SBOL) v3.4 provides multivariate statistical process control and batch statistical process control (BSPC) for batch processes. It supports alarms based on results, including visualization and export of triggered alarms, while notes for annotations enable process diary functionality. Along with support for projects created in SIMCA-P+ 12, product features workflow-enhancing client/server architecture.
