Bel-Art Products    Wayne, NJ 07470
Apr 06, 2010 Used to stir and mix everything from solutions in cuvette to 55 gal drums, Spinfinity(TM) is manufactured under protected processes that encapsulate magnet in plastic material. Covering has zero porosity and addresses conditions that cause material breakdown. While octagon shape optimizes surface area, interrupted profile of built-in pivot ring minimizes friction and chattering. Product comes in 3 x ½ in. size (item 37190-0001) and suits applications concerned with sample contamination.

DuPont Microcircuit Materials    Research Triangle Park, NC 27709
Apr 06, 2010 Removable conductive silver plating link, CB500, is typically applied by screen or stencil printing via manual/automated equipment. Composition compliments traditional PCB manufacturing processes by enabling use of additive processing to rigid and flexible substrates. In addition to eliminating need for copper bus bars and other plating connections, product reduces or eliminates need for front, back, and side etching resist. It also reduces forming of unintended copper bump antennae.

Penny & Giles    Irwindale, CA 91706
Apr 06, 2010 Model NRH280DP dual-output, hall effect sensor features 6.5 mm profile and supports air gap of 2-7 mm, which allows use in high shock and vibration environments. Operating in temperatures from -40 to +140°C, it supports parameters such as measurement range, and clockwise/counterclockwise direction output. Each channel can be programmed with any one of 341 angles, in 1° increments. Sensor operates from 5 Vdc regulated or 9-30 Vdc unregulated supply and has overvoltage protection to 40 Vdc.

Baldor Electric Company    Fort Smith, AR 72901
Apr 06, 2010 Available in power ratings up to 33.5 A, MicroFlex e100 and MotiFlex e100 single- and 3-phase drives can control rotary and linear servo motors, linear motors, and closed-loop vector motors. Embedded Mint Lite capability supports basic motion programming requirements including performing relative and absolute moves, S-ramp profiles, jog and homing movements, and reacting to real-time trigger events. With TCP/IP-compatible Ethernet interface, drives can link into Ethernet factory networks.

One Stop Systems    Escondido, CA 92029
Apr 06, 2010 Corrosion- and heat-resistant 1U servers support up to 5 drives, measure 21 in. deep, and feature center- or corner-mount rack with slides included. Delivering 5 TFLOPS with dual CPUs and 10 TFLOPS additional processing power via 8 GPUs, 2U Server offers dual front-loading 1,500 W power supplies. Support for 2 or 5 HDDs with build-in RAID is standard on 3U Server, which serves applications requiring multiple add-in boards as well as soft-switch applications requiring multiple Ethernet ports.

Paine Electronics, LLC    East Wenatchee, WA 98802
Apr 06, 2010 Amplified Miniature S-Class Transducer Series devices operate at pressure ranges from 0-500 to 0-5,000 psia, measure 2.47 in. long with 0.77 in. dia, and weigh 2.64 oz. Operating at temperatures from -40 to +140°F, transducers provide high-level output signal amplification with Class S, QML-V/ELDRS free electronics to meet EEE-INST-002/MSFC-STD-3012 standards. They can be provided with Grade 2 level and other alternate components.

Mate Precision Tooling    Anoka, MN 55303
Apr 06, 2010 Ultra® IMT(TM) fully indexable multitool is available in 3-station version, which can punch up to 6 mm material at up to 142 kN, and 8-station model that can punch 6 mm material at up to 62 kN. Both assemble/disassemble without tools and include zero mark to indicate start/home position and station ID window to view active station. Ergonomic systems are ported for lubrication, and feature spiral grooves in OD of holder to reduce friction between machine and holder.

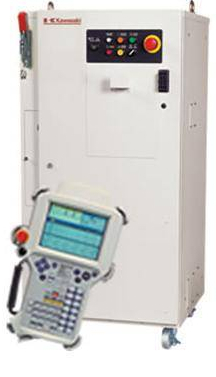

Kawasaki Robotics (USA), Inc.    Wixom, MI 48393
Apr 06, 2010 Kawasaki D Series Controller features CPU with multiple processors, with processing speed between CPU and digital servo drives suitable for optimizing motion control. High-speed signal monitoring of E-stop and collision detection circuits minimizes risk of system failure. Product supports any network communications protocol, and uses K-Logic sequencer for configuration without external PLC. Incorporating teach pendant interface touchscreen, unit allows control of up to 16 axes.

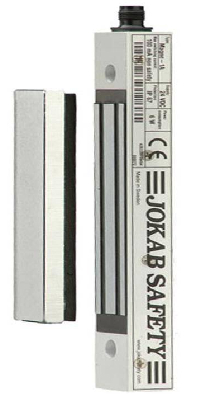

Jokab Safety North America    Westland, MI 48185
Apr 06, 2010 Able to electrically lock and hold door closed with up to 1,500 N of force, Magne 1A can be used together with Eden door position sensors to provide protection from dangerous machine movements. Magnet provides locked/unlocked indication with no current peaks on activation. Use of M12 connectors enables several Magne units and Eden sensors to be connected in series. Operating from -20 to +50°C, Magne 1A has no moving parts and is IP67-rated for harsh environments.

Folding Guard Co.    Chicago, IL 60608
Apr 06, 2010 Designed to provide open but secure storage of personnel equipment and gear, TA-50 Lockers have bi-parting, center-meeting doors. Latching rod engages top and bottom edge of door frame while center latch engages door jamb, enabling doors to latch on 3 sides. Door handle has built-in padlock hasp. Measuring 78 x 42 x 24 in., lockers are constructed of heavy gauge steel with flanged top and bottom shelves for stability, as well as hanger bar and hooks.

GAO Tek Inc.    Toronto M1B2K4  Canada
Apr 06, 2010 Designed for Fiber-to-the-x network testing, Model 6416 locates faults or breaks of optical fiber and measures physical characteristics including length, transmission loss, and splice loss. Operating for more than 10 hr on single charge, it features event dead zone of 1.6 m, resolution of 0.25 m, and 65,535 sampling points. Unit has anti-reflective TFT LCD and dual USB interfaces which support USB stick and direct cable download to PC via ActiveSync.

ALECO    Muscle Shoals, AL 35661
Apr 06, 2010 Manufactured from monolithic, rotationally molded panels that resist moisture, chemicals, dust, bending, and torque, rugged ImpacDor® HD-175 features stainless steel hinges and mounting hardware. It has 250° helical hinge and precision aluminum follower that allows door to swing in both directions. Choice of decorative colors, molded polyethylene bumpers from 12-48 in., and vision panels in various sizes and styles, as well as washdown package are available.

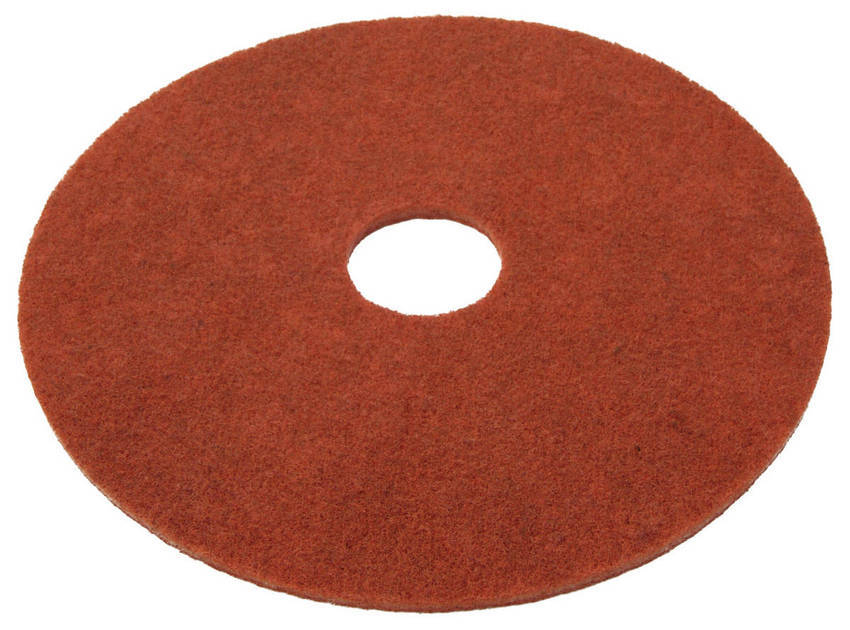

Pro-Link, Inc    Canton, MA 02021
Apr 06, 2010 Green and sustainable floor, hand, and utility pads are designed for cleaning and polishing floors and other surfaces. Fibers are made from recycled materials, primarily recycled soda and water bottles, and water-based latex resins that contain no VOCs are used in binding process. Packaging cartons are also made from recycled materials.

Gigahertz-Optik Inc.    Newburyport, MA 01950 4009
Apr 06, 2010 Enabling remote timing of pulsed light measurements, UV-Vis-NIR pulsed P-9710-4 is capable of measuring pulse energy of single and multiple burst pulsed events greater than 1 µsec in length. Independent of signal magnitude, system bandwidth is 0.166 Hz at 6 sec to greater than 300 MHz within current measurement range of 0.1 pA to 2 mA. Other features include adjustable sampling time of 100 µsec to 6 sec and computation of luminous effective intensity based on selectable methods.

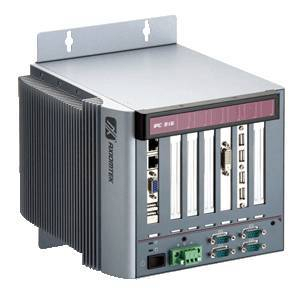

AXIOMTEK    Taipei   Taiwan
Apr 06, 2010 Built with Intel® GM45 express chipset and ICH9M Southbridge, application-ready IPC916-211-FL supports socket P Intel® Core(TM)2 Duo and Celeron® M processors with 667/800/1,066 MHz FSB. It offers 2 PCI, one PCIe x 16, and 3 PCIe x 1 slots, and supports two 2.5 in. SATA HDD drive bays. Enclosed in 210 x 248 x 185 mm cold-rolled steel housing, CE marked unit features front I/O and supports 10 V to 30 Vdc, 150 W power supply. I/O includes 2 Gigabit Ethernet, 2 USB 2.0, and 4 COM ports.

Zero-Max, Inc.    Minneapolis, MN 55441 5537
Apr 06, 2010 Handling bore diameters from 0.875-1.378 in. and operating torque from 3,937-9,843 in. lb, ServoClass® couplings provide high torsional stiffness, zero-backlash, and low hysteresis. Made from RoHS compliant materials, couplings are lightweight and feature 304 stainless steel disc packs and 7075-T6 aluminum hubs and center members. Units are available in single and double flex models in inch and metric sizes, and feature clamp style hubs with corrosion resistant socket head cap screws.

J. W. Winco, Inc.    New Berlin, WI 53151
Apr 06, 2010 Available in metric sizes, RoHS-compliant GN 614 series plungers are used as detents, as well as for push-on/push-off applications and ejectors. Four versions of plungers are offered: in all stainless steel; with Delrin housing and stainless steel ball and spring; with Delrin housing and ball and stainless steel spring; and with brass housing and stainless steel ball.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Apr 06, 2010 Having no springs, pivot points, or floats, Liqui-Mover® pressure-power condensate pumps offer capacities up to 180,000 lb/hr. They use 150 psig ASME labeled steel tanks and are rated up to 450°F. Using steam or compressed air as motive pressure to lift or pump high-temperature condensate, pumps reduce or eliminate loss of flash steam and associated heat energy.

CRAIC Technologies Inc.    San Dimas, CA 91773
Apr 06, 2010 Mountable on open photoports of many microscope brands, Universal C-mount Adapter (UCA) allows camera or spectrophotometer to be parfocal and parcentral with eyepieces on microscope. It features X, Y, and Z adjustment, as well as wide range of photoport flanges for quicker use of cameras and spectrophotometers attached to microscopes.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Apr 06, 2010 Offered with ring and dot illumination options in red, yellow, orange, blue, green, or white, PV7 series has contact rating of 2 A, 48 Vdc and offers mechanical life of 1,000,000 cycles. Contact resistance is 50 mW initial max, insulation resistance is 1,000 MW min, and dielectric strength is 2,000 Vac. Operating at -20 to +70°C, switch is suited for elevator and kiosk applications, and for applications requiring public usage, such as ticket dispensers.
