Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada

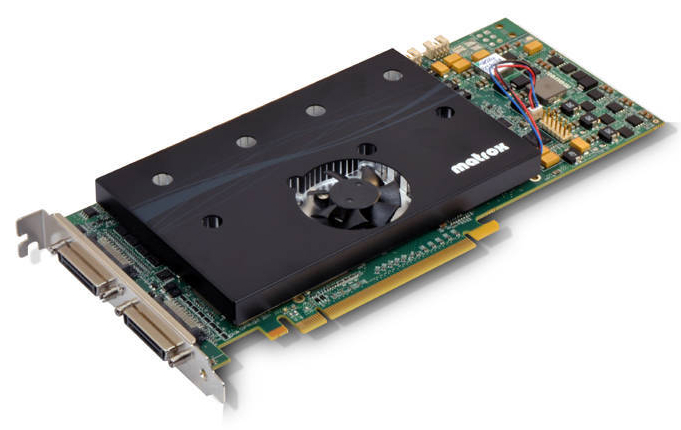

Feb 02, 2012 Mura(TM) MPX Series with v2.01 driver facilitates HDCP (High-bandwidth Digital Content Protection) interoperability by capturing HD video signals from up to 4 HDCP sources and displaying content on up to 4 HDCP-enabled displays. Built on PCIe x16 Gen2 technology, each board leverages 64 Gbps duplex data transfer. Video wall controller with up to 6 boards can support up to 24 inputs that are scaled, positioned, and manipulated across 24 outputs.

J. W. Winco, Inc.    New Berlin, WI 53151
Feb 02, 2012 Available with flange for surface mounting, with female thread, and with male thread, RoHS-compliant series GN 702 enable fast closing and holding of doors, flaps, slide-in models, etc. by locking in four 90° positions. Latch is zinc die-cast, with black or red electrostatically applied powder coat textured finish. Indexing mechanism for flanged and female threaded types is steel/plastic, and steel parts are zinc plated, blue passivated.

Aeroflex, Inc.    Wichita, KS 67215

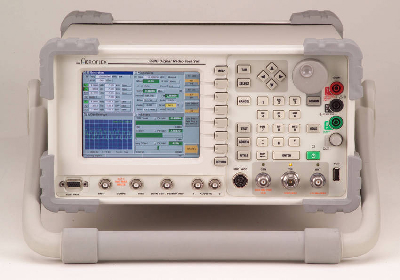

Feb 02, 2012 Featuring modular design, Model 3920 uses software v2.0.0 to aid development, manufacturing, and field test of both analog and digital PMR radios and base stations worldwide. With Aeroflex Auto-Test II scripts, test set supports automated testing and alignment of TETRA, P25, DMR, dPMR, NXDN(TM), as well as many analog legacy radio systems. IF and audio filters have been added to further emulate Agilent 8920 test set, allowing users to upgrade to Aeroflex 3920.

Balluff, Inc.    Florence, KY 41042-0937
Feb 02, 2012 Supplied in IP67 housing with glass lens, BOS 50K series suits installations where laser sensors may cause safety concerns or perform poorly due to airborne contaminants. Background suppression sensor, with visible red light emitter, can detect objects regardless of color and has 2 m range. Design aids setup, and potentiometer accelerates adjustment. Other members of this series include diffuse mode with 2 m range, polarized retroreflective with 18 m range, and thru-beam with 60 m range.

DVS Digital Video Systems AG    Hannover 30165  Germany

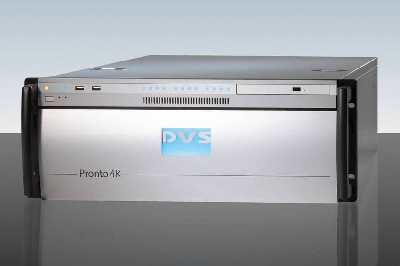

Feb 02, 2012 Supporting variety of file formats, Pronto4K allows compressed/uncompressed material from HD to 4K resolution to be played out as well as compressed/uncompressed SD, HD, and 2K material to be captured in real-time. Content is played out via one HDMI 1.4a or 4 HDMI 1.3 interfaces. In addition, stereoscopic material can be played out via one HDMI 1.4a, 2 HDMI 1.3, or two 3 Gbps SDI interfaces. By synchronizing multiple recorders, multi-screen presentations can be realized.

DSL    Hertfordshire SG6 1LP  United Kingdom
Feb 02, 2012 Suited for diverse applications, OPC-5xx7 panel PCs are available with 8, 12, 15, or 19 in. LCD screens with resistive touchscreen options. Each PC is powered by fanless 1.6 GHz Intel® Atom(TM) CPUs with up to 2 GB RAM on solid capacitor motherboard. In addition to support for CompactFlash or SATA HDD and 11-32 Vdc input, products offer dual 10/100/1000 Mbps LAN, 4 USB 2.0 ports, and 3 serial ports to accommodate connectivity requirements.

JVC Professional Products Company    Wayne, NJ 07470

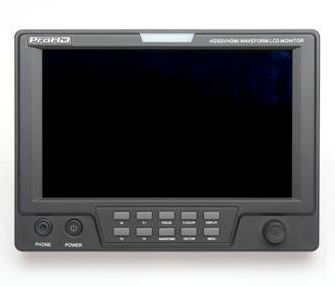

Feb 02, 2012 Able to display 480i, 480p, 720p, 1080i, and 1080p video signals at various frame rates, ProHD DT-X71 Series includes 7 in. AC/DC monitors that offer 1,024 x 600 resolution and 160° viewing angle. Basic DT-X71C model offers one HDMI and one composite video input, while DT-X71H adds 2 HD/SD-SDI inputs and one HD/SD-SDI loop through output. Model DT-X71F includes additional HD/SD-SDI loop through output and one HDMI converted to SDI output. All models include stereo audio input.

EasySYNC Ltd,    Hillsboro, OR 97124-5803
Feb 02, 2012 Rugged adapter modules allow legacy serial devices to interface with interconnect ports based on USB technology. Supporting max data rates of 1 Mbps for each port, USB2-H-100X-M series interfaces with RS232 level I/Os. Products of USB2-H-500X-M and USB2-H-600X-M series respectively interface with RS485 and RS422 level I/Os and support data rates to 8 Mbps per port. Supplied in metal enclosures, plug-and-play adapter modules come in 1-, 2-, 4-, 8-, and 16-port configurations.

Tripp Lite    Chicago, IL 60609
Feb 02, 2012 Used to provide protected hospital-grade outlets outside patient-care areas, models SPS606HGRA and SPS610HGRA feature right-angle input plug with respective 6 and 10 ft power cord. Plug lets units be placed in confined areas, while keyhole mounting tabs and flanges facilitate installation. Offering 6 hospital-grade outlets, products come in all-metal housing with safety cover that prevents accidental shutoff and carry UL/cUL certifications.

Larson Electronics, LLC    Kemp, TX 75143

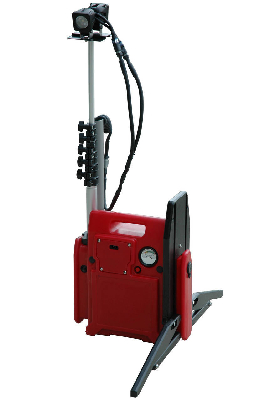

Feb 02, 2012 Available in spotlight and floodlight configurations, Model LED10W-1X2LT includes 2 IP68-rated aluminum LED light heads that produce 800 lumens each for total of 1,600 lumens. Tower is adjustable from 3-8 ft in height and will illuminate area approximately 120 x 100 ft. Set of polyethylene outrigger legs can be extended to provide added stability. Powered by 12 V AGM sealed lead acid battery with 33 Ah and 500+ charge cycle rating, unit operates for 20 hours on single charge.

Larson Electronics, LLC    Kemp, TX 75143

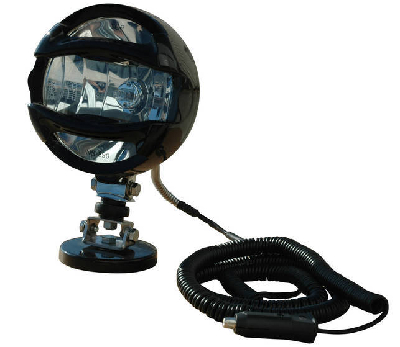

Feb 02, 2012 Mounting to any ferrous metallic surface via 100 lb grip magnetic base, Model ML-7 uses 100 W halogen bulb and can be operated from almost any 12 Vdc power source, including vehicles, boats, and industrial equipment. Unit is constructed of aluminum with integral rock guard. Lens and reflector assembly are sealed together to resist dirt and wetness. To help protect lamp assembly from damaging vibration while providing adjustability, light includes tension hinge and rubber isolator system.

Omega Engineering, Inc.    Stamford, CT 06907
Feb 02, 2012 Based on micro-machined silicon sensor with 0.08% accuracy, Model DPGM409 covers full spectrum in pressure measurement with gage, sealed gage, absolute, compound gage, vacuum, and barometric ranges. User selectable analog output of 0-5 Vdc, 0-10 Vdc, or 4-20 mA is standard, and built-in wireless transmitter is optional. Enclosed in washdown-rated stainless steel and ABS housing, battery-powered gauge has 1 in. digits and front panel programmable MIN/MAX/AVG readings.

Omega Engineering, Inc.    Stamford, CT 06907
Feb 02, 2012 SCE-ELSSLPPL series of NEMA 4X electrical enclosures is designed to house electrical and electronic controls, instruments, and equipment in areas which may be regularly hosed down or are in very wet conditions. Each 304 stainless steel electrical cabinet provides protection from dust, dirt, oil, and strong jets of water for weatherproof applications. Suitable areas of use include food and chemical industries.

Visure    Madrid   Spain
Feb 02, 2012 IRQA Systems Engineering Template IRQA extension addresses challenges - platform/architecture diversity, regulatory compliance, mechanical constraints - that create complex requirements for embedded software systems. Addressing quality issues and tracking embedded system requirements is done through automated requirements specification and change management functionality. Tool provides users with means to gain assurance that their software functions as specified and can meet product deadlines.

International TechneGroup Incorporated    Milford, OH 45150
Feb 02, 2012 Proficiency Collaboration Gateway enables transfer of complete design intelligence in conversion process between major CAD systems. Through native Autodesk® Inventor® interface, solution supports parametric assemblies and parts as well as associative drawings. It also provides complete, automatic solution for legacy data migration and OEM delivery to users of Autodesk Inventor. Interface also incorporates use of CADIQ CAD model quality and validation solution.

Sangoma Technologies Corp.    Markham, ON L3R 9R6  Canada
Feb 02, 2012 Working with intelligent routing capabilities, W400 provides mobile network VoIP and SMS gateway connectivity for Asterisk-based IP-PBX systems. PCIe-compliant board works with Asterisk DAHDI drivers and has Asterisk Manager Interface support to facilitate integration in open source IP-PBX solutions. Modular design provides 1-4 GSM ports, each operating as independent mobile interface that supports voice and SMS access to and from any PBX extension or device within IP-PBX network.

ITTIA - Mobile and Embedded Database Solutions    Bellevue, WA 98004
Feb 02, 2012 Through security and authentication features, ITTIA DB SQL offers flexible data safety techniques to address data management and distribution issues that let malicious systems on network or malware applications intercept access to confidential data. Features specifically enable software developers to optimize data security in embedded applications by encrypting both network communications and storage media, addressing eavesdropping, unauthorized interception, and session highjacking.

DENSO Corp.    Aichi 448-8661  Japan
Feb 02, 2012 Without compromising on strength or performance, 16 mm wide radiator is sized to afford flexibility for installation in engine compartment while also promoting vehicle safety in case of frontal collision. Tank is made with environmentally friendly plant-derived resin, and efficient heat radiation is achieved via fin design with optimized number of louvers on surface. Material of construction for fins and tubes also promotes to overall efficiency.

Boulder Imaging, Inc    Louisville, CO 80027
Feb 02, 2012 Suited for quality control and inspection, Benchmark Optical CMM provides precise micron-level part measurement and conformance to specification for virtually any part or material in real-time. Detailed reports can be generated and exported to variety of formats, including PDF, Word, and Excel. Statistics feature creates graphical trending plots of metrology data, allowing users to analyze historical data for parts audit, financial impact, and overall performance measurement.

IRphotonics    Hamden, CT 06518
Feb 02, 2012 Offered in various lengths, HE Series hermetically sealed, fiber in metal tube cables feature flexible squarelock conduit and optional PVDF lining. Products are suited for housing Mid Infrared Fibers (iGuide(TM)) and shielding them against physical and environmental conditions. Cables are suitable for use in defense and aerospace applications that use indium fluoride fibers and remote spectroscopy applications in harsh industrial environments. Various optical fiber connectors are available.
