KNF Neuberger, Inc.    Trenton, NJ 08691-1810

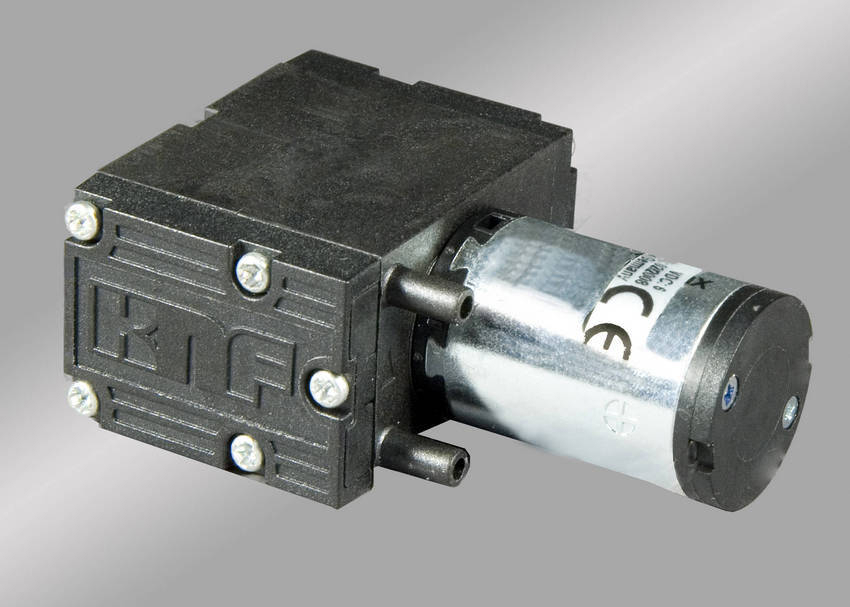

Apr 15, 2010 Integrating head connections inside compact and leak-tight housing, NMP015.1.2 with elastomeric micro diaphragm delivers oil-free operation without any risk of contaminating sampled gas. PEEK housings and pump heads contribute to high stiffness and temperature and chemical resistance. Offered with ironless core DC motor or brushless DC motor, pump can achieve flow rates up to 2.1 Lpm, vacuum to 650 mbar absolute, and continuous pressure to 0.6 bar g. Customized versions are also available.

HMS Industrial Networks AB      Sweden
Apr 15, 2010 Anybus® X-gateway(TM) allows plant-floor devices on Profibus network to communicate with devices on Modbus-TCP network and vice versa. It functions as server (slave) on Modbus-TCP network and as master on Profibus side. After configuration has been downloaded into X-gateway, it passes up to 512 byte of input and 512 byte of output data transparently between Modbus-TCP and Profibus. Embedded web server on Modbus-TCP side supports web based remote diagnostics and visualization.

C&K Components    Newton, MA 02458

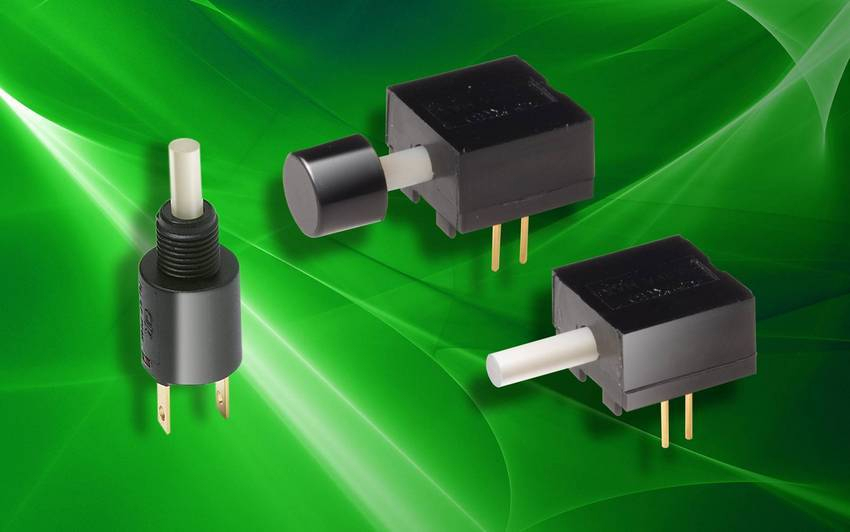

Apr 15, 2010 Available with pretravel and overtravel, KM1202 switches offer min electrical life of 10,000 actuations at full load. They feature gold- or silver-plated contacts, with max contact rating of 0.4 A at 20 Vac/dc or 0.25 A at 125 Vac/dc, respectively. Max contact resistance is 30 mW at 2-4 Vdc for both silver- and gold-plated contacts, and min dielectric strength is 1,000 Vrms. Operating at temperatures from -30 to +85°C, RoHS compliant switches feature total travel of 5.84 mm.

Quadro Engineering Corp.    Waterloo N2V1A1  Canada

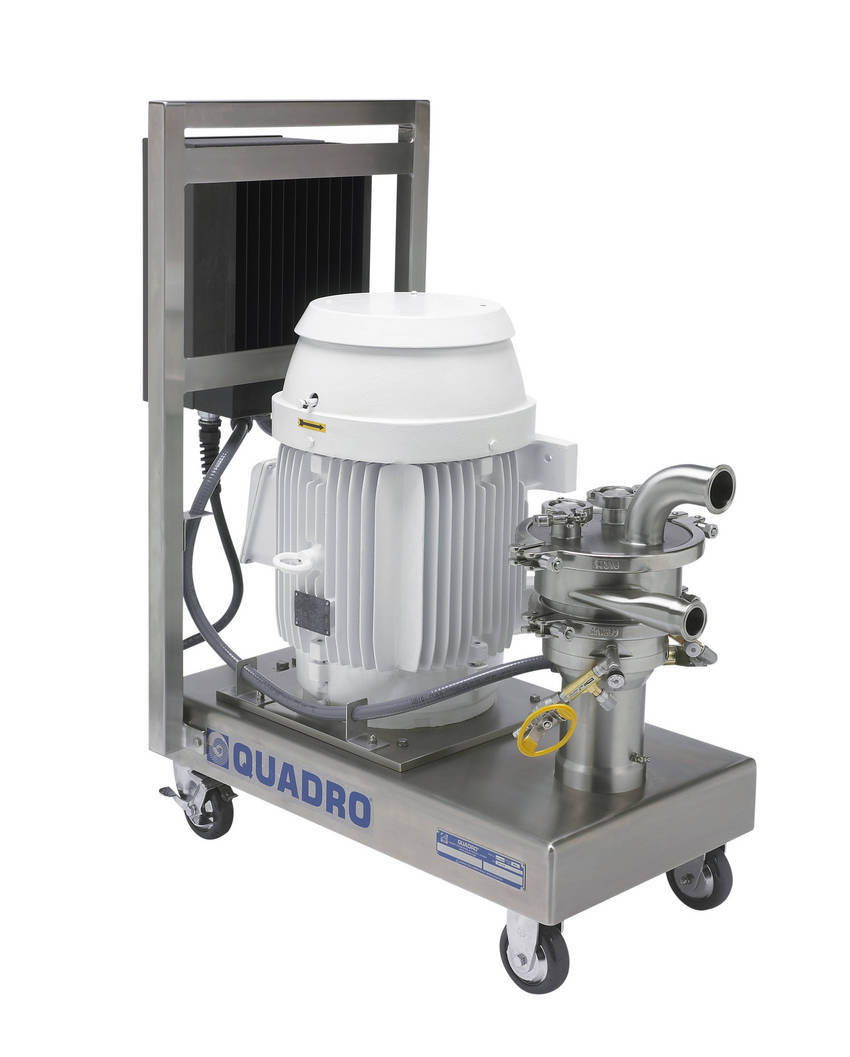

Apr 15, 2010 Employing rotor-stator suspension milling technology, high shear Ytron HV-Wet Mill is available in 3 different models ranging from 25-125 hp with capacities up to 150 gpm. Energy optimized tooling operates at tip speeds up to 70 m/sec with low power consumption, while sanitary high-speed mechanical seal eliminates potential trap areas around rotor shaft, optimizing clean-in-lace results. Options include selection of motors, controls, and portable bases.

United Electronic Industries    Canton, MA 02021
Apr 15, 2010 Designed for UEIPAC programmable automation controllers, Model DNA-CAR-550 allows direct connection to variety of Cell/CDMA/GSM networks as well as Wi-Fi networks and satellite-based GPS systems. PCIe Mini Card interface board includes replacement front-panel to allow for added features and functionality such as 4-LED annunciator panel, SIM/UIM card slot, and 2 external SMA RF connectors for various application-specific antenna requirements.

Trident Microsystems, Inc.    Santa Clara, CA 95051
Apr 15, 2010 Featuring universal Digital Transport Adapter (uDTA) support, CX24482 speeds deployment of ADC boxes while providing universal support for multiple security systems and encryption of digital content. Cable STB IC, fully certified by Cisco and CCAD, will help cable industry transition cable network from analog to digital services. It offers DVB-compliant transport stream process with MPEG2 video decoder and MPEG2/Dolby AC3 audio decoder.

Citrus Technology Ltd.    Manchester M2 6DN  United Kingdom
Apr 15, 2010 With Citrus Replay v1.1, users can explore, analyze, define, and reuse business rules with automatic exception handling. Recent Analysis window provides live history of queries for reuse. Users can create library of segments, such as good customers, bad suppliers, and at-risk customers, and reuse these segments across different database instances. In addition, program enables users to review and explore business rules with customizable highlighting, sorting, grouping, and ad hoc filtering.

Exar Corp.    Fremont, CA 94538
Apr 15, 2010 Supporting memory reference voltage, XRP6142 also provides memory buffer supply or terminating voltage supply. Operating from 3.3-5 V rails, it supports conversions down to 0.5 V from input voltage as low as 1 V, and time control scheme allows for constant switching frequency operations, from 500 kHz to 1 MHz, over entire input voltage range. Housed in 16-pin, halogen-free QFN package, RoHS-compliant device has 2 W integrated gate drivers that enable point-of-load designs in excess of 15 A.

OCZ Technology Inc.    Portage, IN 46368
Apr 15, 2010 Z-Drive R2 Solid State Drive (SSD) Series is suited for use in high IOP and high-throughput environments. Bootable product features interchangeable module design, allowing for upgrades and capacity increases in field. Unit's 8 PCI-E lanes and eight-way RAID 0 configuration optimize performance for enterprise applications. Delivering transfer rates of 1.4 Gbps, device is available in capacities from 256 GB to 2 TB.

Daimer Industries Inc    Woburn, MA 01801
Apr 15, 2010 Intended for carpet cleaning professionals seeking 50 Hz machine, XTreme Power XPH-5850T carpet shampooers feature tank heating element that heats to 65.5°C in up to 15 min. and integral pump that can produce pressure levels of 6.9 bar. Machines weigh 18.1 kg, measure 325.6 x 58.4 x 61 cm, and offer 47.2 Lps max airflow. In addition to 6.1 m hose that attaches to 25.4 cm carpet wand, standard equipment includes 6.1 m solution hose and 25.4 cm floor wands.

Repair-and-Secure    Seattle, AL 98124-1069
Apr 15, 2010 Tailored towards users with missing, outdated, or corrupted drivers, Driver Update Robot scans PC to identify proper driver for any computer system and automatically installs latest official drivers - including legacy drivers. Solution is based on database that contains over 100,000 hardware devices and latest hardware drivers for all of them. Supported by any system running Windows 98/2000/XP/2003/Vista, database is constantly updated with latest drivers.

NC4    El Segundo, CA 90245
Apr 15, 2010 Enabling emergency management community with powerful information management/reporting capabilities needed to achieve situational awareness, R9 Incident management system offers 40+ standard reports as well as custom forms capability to meet needs of federal, state, county, local, and tribal organizations tasked with managing emergencies. Universal Console web-based mapping client lets users create/add map layers and combine views of data including weather, hazards, traffic web cameras, and more.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Apr 15, 2010 PowerWise® LMH0387, supplied in 48-pin CSP, provides flexibility to program BNC interface connectors as inputs (equalizer) or outputs (cable driver). Designed for SDI broadcast video equipment, chip targets 3G/HD/SD video capture and editing cards that have limited number of coax BNC connectors as well as processing and distribution equipment that support various I/O configurations. It enables bidirectional communication on single BNC and eliminates complex external return loss networks.

ND SatCom, Inc.    Plano, TX 75081
Apr 15, 2010 Based on Citrix XenApp in data center and ND SatCom's SkyWAN® MF-TDMA satellite router, which ensures Secure Private Satellite Network connections, XWARP(TM) enables companies to provide virtualized applications from their data centers to users anywhere and anytime, while minimizing latency in satellite-based IT networks to almost zero. System can be implemented in existing terrestrial network environment, in existing Citrix infrastructure, or as completely new network environment.

LEDAS Ltd.    Novosibirsk   Russian Federation
Apr 15, 2010 Allowing assembly design, motion simulation, and history-free geometric editing, LGS 3D v3.0 enables users to express design intent through combination of geometric constraints and driving dimensions. Program adjusts radii of circles, cylinders, and spheres automatically to satisfy constraints, allowing users to modify fillets, blends, and round holds in models parametrically. Version 3.0 also provides extended API error diagnostics and corrected journaling mechanisms.

FileMaker Inc.    Santa Clara, CA 95054 1171
Apr 15, 2010 Offered as self-paced program comprised of 12 modules, FileMaker Training Series helps database users and developers master essentials of FileMaker 11 as well as prepare for FileMaker 11 Certification examination. Modules cover range of information, from introductory concepts to more advanced topics. Each contains detailed, step-by-step instructions on key FileMaker development topics, and materials include 700+ page manual as well as DVD with demo files, exercises, and videos.

Larson Electronics, LLC    Kemp, TX 75143
Apr 15, 2010 Drawing less than 2 A on 24 V, Model HML-5M-LED40 contains integrated 40 W LED PAR46 lamp that comprises 4 independent 10 W LED packages and produces 3,600 lumens. If one LED package fails due to damage or defect, remaining 3 will continue to operate. Unit features heavy gauge steel handle, beam positioning, and 100 lb grip magnetic base. Vibration proof and IP67-rated waterproof, spotlight is rated for 50,000 hr and is suited for MRAPs, MATVs, and HUMVEEs in military fleet.

Rio Tinto Alcan    Quebec   Canada
Apr 15, 2010 Manufactured in accordance with ASTM B 958 standards, Ultra HS(TM) high strength steel core wires offer low sag and vibration protection in up to 100°C for self damping conductors. Conductors with Ultra HS(TM) core wires can operate at temperatures up to 250°C. Available for wide range of power transmission cables, wire offers protection from vibration damage for standard aluminum conductor steel reinforced (ACSR) cables.

Tapeswitch Corp.    Farmingdale, NY 11735
Apr 14, 2010 Designed to replace master/slave or cascaded units with single integrated unit, Slant-Guard Light Curtain can have 2 or more segments, each at different angle, up to max length of 6 ft. Unit operates up to 98 ft with 1 3/16 in. resolution. Housed in IP65 rated enclosure, light curtain provides response time of less than 18 msec and is suitable for machine guarding, hazardous area protection, access monitoring and control, and diagonal zones of protection.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797

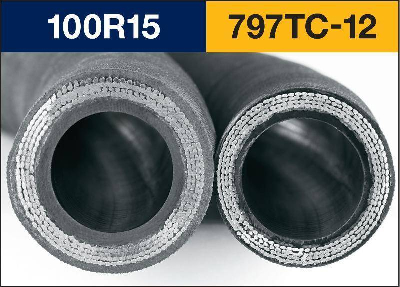

Apr 14, 2010 Available in -8, -10, -12, and -16 sizes, Compact Spiral(TM) 787TC and 797TC Hose feature 5,000 and 6,000 psi working pressure, respectively. Both have synthetic rubber inner tube with 4 spiral steel wire reinforcement and synthetic rubber cover. Suited for petroleum base hydraulic fluids and lubricating oils, hoses have been successfully tested to 2,000,000 impulse cycles, which is 2 times ISO 18752-DC standard and 4 times SAE requirement.
