QNAP Systems, Inc.    Taiwan   China
Apr 14, 2010 Compatible with VMware's vSphere 4 (ESX 4.0) virtualization platform, TS-559 Pro provides up to 10 TB storage using 5 hot-swappable 2 TB hard drives (2.5 or 3.5 in.) and single disk volume/JBOD configuration. It is powered by 1.66 GHz Intel® Atom(TM) D-510 dual-core CPU and includes 1 GB DDRII RAM. Functionality enables businesses of all sizes to take advantage of interoperability between VMware VMs and QNAP storage to fully utilize VMware cloud computing environments.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Apr 14, 2010 Featuring 5.6 in. head length and 7 in. height from base to top, PS21 Pocket Driver can reach and maneuver into tight spaces. Tool is equipped with 2-speed 0-350/0-1,300 rpm drivetrain, 20+1 clutch, 12 V lithium-ion battery pack, and digital electronics. With LED light, users can clearly see their work, even in dark areas. Electronic Cell and Motor Protection System protects both tool and battery from overloading, overheating, and deep discharging.

JAI, Inc.    San Jose, CA 95134
Apr 14, 2010 Featuring 2-CCD design with two ICX204AL 1/3 in. monochrome progressive scan sensors mounted to optical prism, Model AD-081GE can simultaneously capture 2 channels of 30 fps video, with each channel having 1024 x 768 resolution and 8- or 10-bit pixel depth. Two images can then be analyzed separately or processed with image fusion algorithm. Camera achieves dynamic range levels up to 20-bits (~120 dB) in linear fashion that avoids noise, shutter, and compression issues.

NuWay Tools, Inc.    Morganton, NC 28680-1451
Apr 14, 2010 Constructed with solid steel and heavy-duty components, Pump-er-Up ensures everything needed to finish drywall job can be steered anywhere on jobsite floor. Joint compound bucket, placed on stable raised platform, eliminates need to lean over and pump. Lower platform is suited for spare tools, taping knives, and tool oil. Attachment to standard joint compound pump provides elevated and fully mobile platform that can be moved about floor by pump handle.

Analog Devices, Inc.    Norwood, MA 02062-9106
Apr 14, 2010 SHARC 2148x Series offers 400 MHz performance and up to 5 Mb on-chip memory, while SHARC 2147x Series, which measures 12 x 12 mm, offers 266 MHz performance, same memory, and 363 mW power (typ) power consumption. Memory usage for both series is optimized via Variable Instruction Set Architecture support, and dedicated hardware accelerators with independent compute units and DMA memory mapping enable execution of FFT/FIR/IIR signal processing operations in background.

Vi TECHNOLOGY    Saint Egreve 38120  France

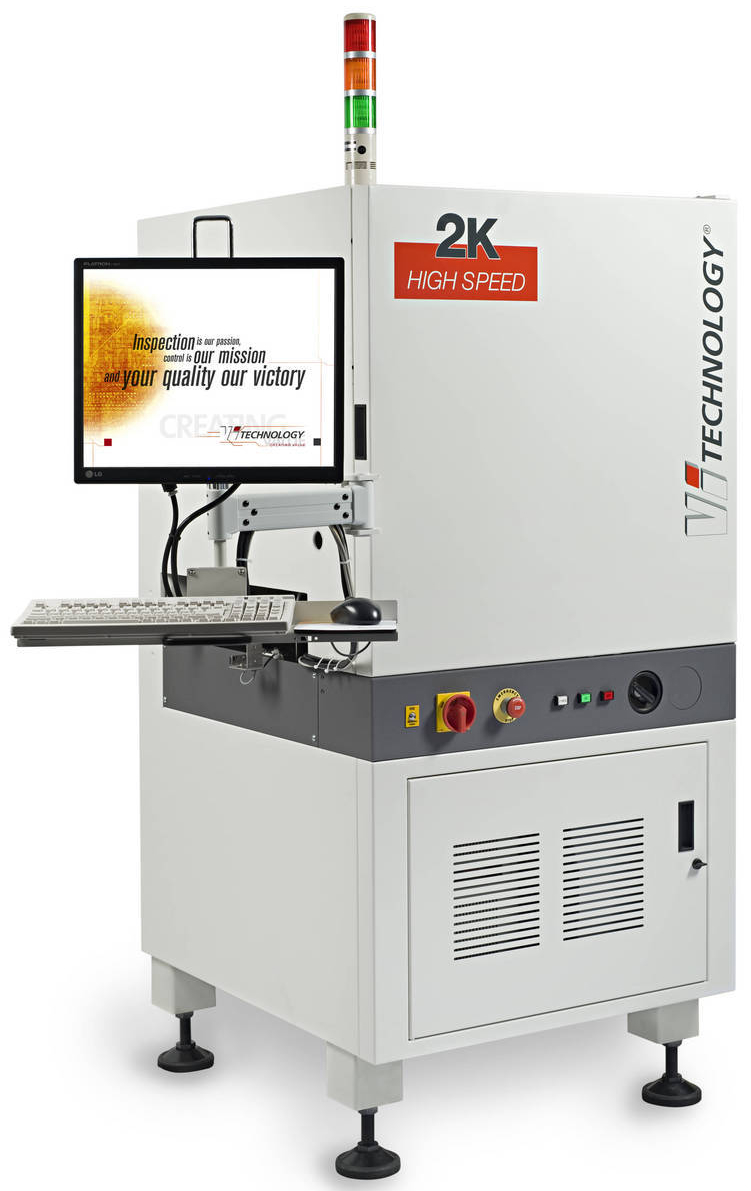

Apr 14, 2010 Offering 01005 component inspection capabilities for up to 14 x 14 in. PCBs, 2K HIGH SPEED employs Premium acquisition head with camera, optics, and i-LITE illumination system to provide 100% defect coverage at any location in assembly line. Support for Vi TECHNOLOGY® Super-resolution technology and mathematical algorithms that reconstruct Hi-Res images from several images at standard resolution are included, and below 10% Gage R/R is systematically achieved on 01005 package type.

GE Intelligent Platforms    Charlottesville, VA 22911
Apr 14, 2010 Effective against full spectrum of targets, ADEPT5000 detects and tracks targets in real-time across full range of military/aerospace electro-optical system applications. Performance is optimized via multi-target tracking engine and signature-based pre-processors, which can discriminate stationary/moving targets from atmospheric challenges. Resulting signals passed to sophisticated algorithms for track path analysis, are optimized for particular operational scenarios.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112

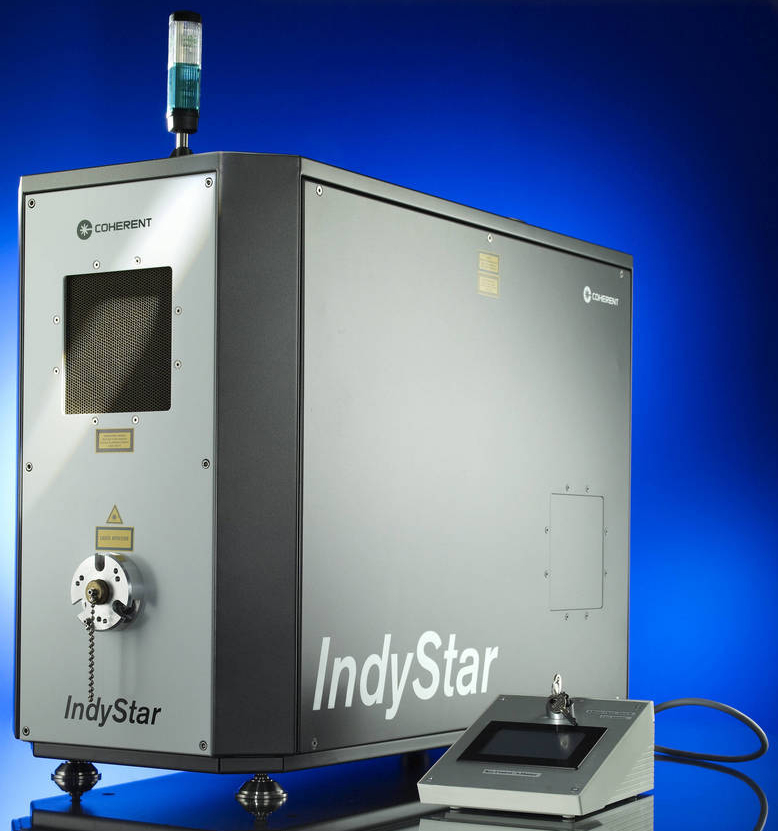

Apr 14, 2010 Offering 2 kHz repetition rate for increased throughput, fully Semi S2-certified IndyStar 2 kHz is offered with 193 nm output for 8 W of stabilized power or 248 nm output for 12 W. Integral electronics platform enables POWERLOK and TIMELOK stabilization features, which respectively ensure constant pulse energy of each single laser pulse and provide trigger-to-pulse delay stability. Uses include semiconductor fabrication, testing, inspection, and micromaterials processing facilities.

FleetwoodGoldcoWyard    Romeoville, IL 60446
Apr 14, 2010 Configurable to suit different layouts, Automatic Counter Bagger/Robotic Palletizer is used to count, bag, and palletize can ends. Modular system counts and bags aluminum and steel ends from 200-401 diameter and bags 26-50 in. long sticks. Offering manual or fully automated robotic palletizing, system processes up to 6 bags/min and can run glued or unglued bags. Multiple pallet configurations selectable from HMI screen, and servo belt driven actuators are used for stick transfers.

Synopsys, Inc.    Mountain View, CA 94043 4033

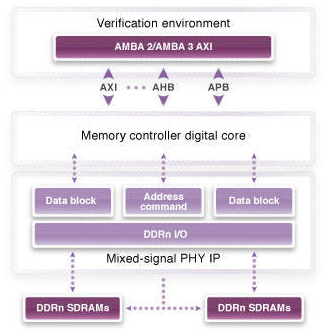

Apr 14, 2010 DesignWare(TM) DDR multiPHY supports range of DDR SDRAM standards - LPDDR2, LPDDR/Mobile DDR, DDR3, DDR3L (1.35 V), DDR3U (1.2x V), DDR2 - in single PHY. This lets designers target different DDR types for single chip through software control, promoting flexible integration into various applications. Supporting data rates from 0-1,066 Mbps, product offers DFI 2.1-compliant interface to memory controller and features Delay Lock Loop (DLL) bypass modes for operation below 200 MHz.

Ideal Industries, Inc.    Sycamore, IL 60178
Apr 14, 2010 Available in 60 and 120 ft versions, Volt-Guard(TM) incorporates 1,000 V non-conductive fiberglass into stiff rectilinear tape design for optimal pushing power. Unit is enclosed within Tuff-Grip(TM) Pro case, which is constructed of polypropaline plastic and has passed repeated drop testing from up to 20 ft. Fiberglass eyelet protects both electrician and system, while also sliding through tight conduit bends. Grooved, non-slip handle allows for safe grasp, even when wet.

Kaman Aerospace, Measuring & Memory Systems    Middletown, CT 06457

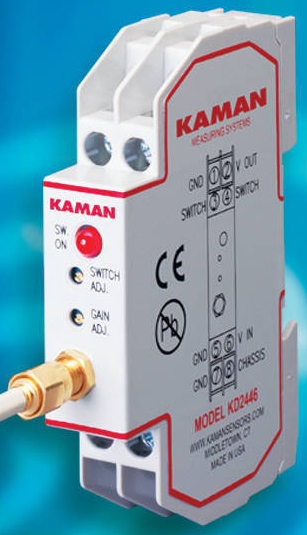

Apr 14, 2010 With 10 KHz analog output and threshold-adjustable 3.3 KHz switched output, KD-2446 provides flexible solution for high-speed automated manufacturing and process control applications. It comes in Pb-free DIN package and performs with 0.008% FS resolution and 0.56% FS switch point hysteresis. Inductive eddy current technology ensures non-contact measurement, with equal performance for ferrous and non-ferrous targets, in displacement, vibration, sorting, and event capture applications.

Amacoil Inc.    Aston, PA 19014
Apr 14, 2010 Offering smooth linear motion in positioning and indexing applications, AZ1040 features one-piece aluminum profile extrusion which serves as belt housing. T-slots and receiver grooves for load carriage guide bars are incorporated into the profile design, and load carriage measures 7.4 x 6.3 in. Depending on payload weight, max travel speed is 16.4 fps. Repeatability is rated at ±0.008 in. over travel spans of up to 6.5 ft.

Continental Fan Mfg. Inc.    Buffalo, NY 14215

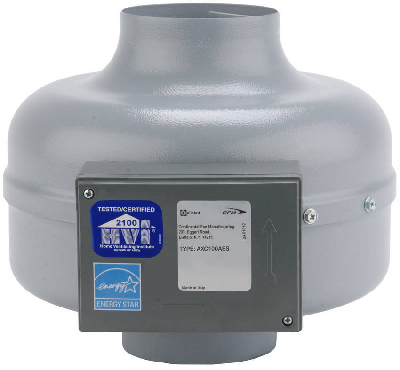

Apr 14, 2010 Available in 4-12 in. sizes, AXC-ES Centrifugal Fans provide airflow from 150-1,000 cfm. Units feature shielded ball bearing motor in galvanized housing, external rotor motor design for optimal cooling, and thermal overload protection with automatic reset. Available with optional solid state speed control, fans can be installed in flexible or rigid duct and can supply or exhaust air. Applications include bathroom exhaust, range hood exhaust, fume handling, and general ventilation.

Keyence Corporation of America    Elmwood Park, NJ 07407

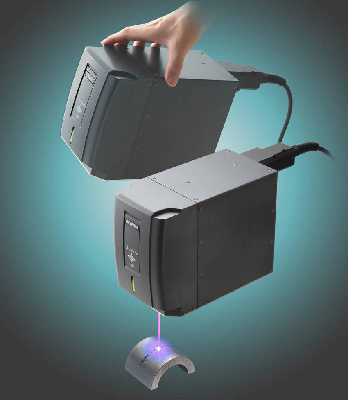

Apr 14, 2010 Suited for installation in tight spaces, Series MD-F3000 can permanently mark and etch dense, hard metals. Unit incorporates 3-axis beam control system, which ensures distortion-free marking across full 300 x 300 mm area without mechanisms to index target or marking head. Head has fanless design and is completely sealed from dirt and dust. Additional features include internal power monitor, encoder inputs, touch panel interface, and storage of up to 2,000 programs.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012

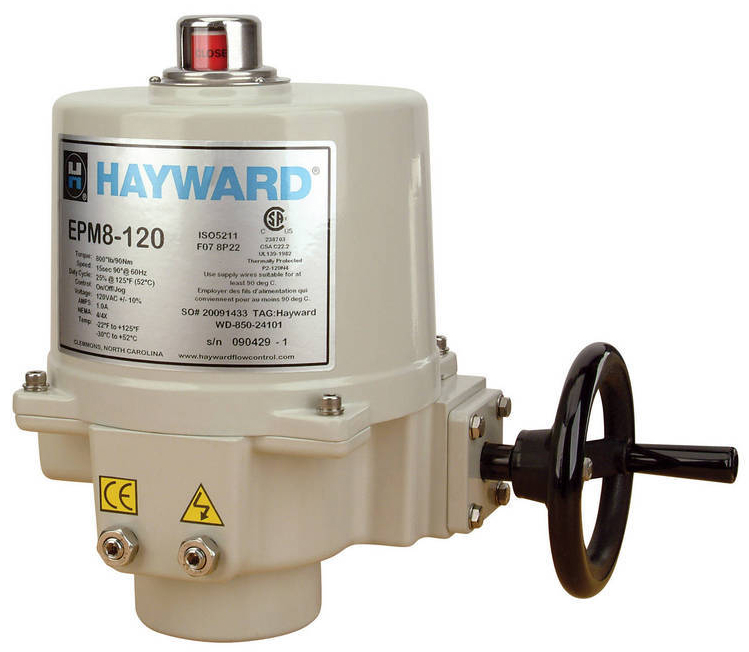

Apr 14, 2010 Offered in on/off and proportional control models, EPM Series is designed for use with up to 24 in. ball and butterfly valves and torque outputs from 300-13,500 lb-in. Electric actuators utilize modular PCBs and epicyclical gear design to minimize wiring and provide dependable torque transmission. Proportional control model adds features such as real-time thermal management with close-loop feedback as well as user-selectable data logging and control function diagnostics.

Lumex Inc.    Carol Stream, IL 60188

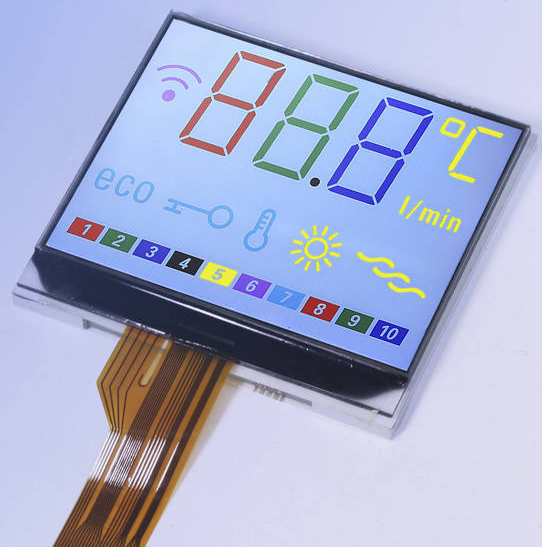

Apr 14, 2010 Promoting integration of color displays into formerly monochromatic devices, InfoVue FSC (Field Sequential Color) alphanumeric LCDs are compatible with standard LCD drivers and feature integrated RGB LED backlights that allow for various color display options. Chips-on-glass technology facilitates color programming, while manufacturing process eliminates need for color filters, transistors, and brightness enhancement film. Custom sizes from 1-5 in.² are available.

Bio-Chem Fluidics    Boonton, NJ 07005
Apr 14, 2010 Available in both normally closed and normally open configurations, 075 and 100 series pinch valves allow large bore flow passage through flexible tube, which is pinched off to produce tight seal. Valve body with smooth contours facilitates insertion and removal of tubing without snares, while chemically resistant construction offers protection from corrosion. Available with optional tube sensor and manual override, valves suit applications requiring frequent changes of flow path.

Acrosser Technology    Cypress, CA 90630
Apr 14, 2010 Suited for UTM, VPN, web access management, and anti-spam mail solution at small office, AR-N8601 adopts VIA CN700, VT8237R+ chipsets, and Eden ULV 500 MHz CPU enclosed in compact 210 x 150 x 33 mm box. It supports up to 1 GB DDR2 system memory at 400 MHz by leveraging 3 PCI onboard 10/100 Fast Ethernet. Low noise device features CF socket, 1 x SATA, SATA power, 2 x USB, VGA and KB/MS pinheads, and supports PXE boot from LAN.

HBM, Inc.    Marlborough, MA 01752 3014
Apr 14, 2010 Portable GEN2i can record measurement data directly to integrated solid state disk at speeds up to 20 MB/sec, or can store data temporarily on RAM of input modules. Device offers isolated voltage inputs with 200 kS/sec per channel and bridge and IEPE modules up to fast inputs that support 100 MS/sec. Operating with Windows 7, modular, PC based unit features integrated high resolution 17 in. touchscreen and menu driven operation.
