Brady Corp.    Milwaukee, WI 53201 2131
May 07, 2010 Available in 4 colors and 9 diameters from 3/32-1.5 in., B-345 High Temperature PermaSleeve(TM) wire markers are made from irradiated PVDF and have shrink ratio of 2:1 or 3:1. Heat-shrink sleeves, which fit snugly around wires for optimal insulation protection and permanent identification, meet specifications for military standards and operate over -55 to +225°C range. Products suit high-temperature and low-vacuum outgassing applications in aerospace, defense, and mass-transit industries.

GAO Instruments Inc.,    Toronto   Canada
May 07, 2010 Operating at 25, 40, 60, 100, and 150 MHz, model A0110002 meets all needs for low-bandwidth debugging and enables users to solve complicated trigger problems on rising edge, falling edge, pulse width, delay, and count. Dual-channel device, with 250 MSPS max repeat sampling rate and equivalent single shot sampling rates up to 50 GSPS, incorporates mathematical functions, FFT spectrum analysis, automatic parameter measurements, and waveform recording function.

Alliance Plastics    Erie, PA 16510
May 07, 2010 Providing masking to first thread of standard blind female threads, Masking Plugs are available in silicone with temperature range to 600°F and black EPDM with temperature range to 425°F. Although EPDM has slightly lower heat resistance, it offers chemical resistance and is reusable. Ergonomic plugs are designed with pull tab to facilitate installation and removal.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
May 07, 2010 Suited for use in oil and gas refineries, Double Block and Bleed Service Valve has secondary ball/sealing surface to retain pressure in event that first ball or sealing surface is damaged. Unit features 4130 alloy steel body, 17-4 PH stainless steel ball, fluoroloy stem and seals, and Viton O-ring. Operating at temperatures up to 450°F, NACE-compliant valve has rotating base and provides mechanical operation, eliminating need for compressors and local power source.

Alliance Plastics    Erie, PA 16510
May 07, 2010 Available in PVC or TPR, blanking plugs are designed to plug standard sheet metal holes. PVC material is non-staining and will resist effects of ozone, acids, and sunlight. TPR material, resistant to oils, acids, and alkalies, can withstand short-term temperatures up to 350°F. Body plugs, also available, are made from TPR and rated from -100 to +300°F. They fit metric holes, and each size covers range of panel thicknesses.

Alliance Plastics    Erie, PA 16510
May 07, 2010 Manufactured with natural nylon, NPT Threaded Nylon Plugs feature head design that allows user to apply or remove unit by hand or with 12-point socket head, screwdriver, or wrench. Nylon material absorbs paint, keeping paint flakes to minimum. Products offer strength and abrasion resistance and are suited for use in intermittent temperatures from -40° to +230°F. Optional O-ring provides watertight seal for leak protection.

Beckhoff Automation LLC    Minneapolis, MN 55337
May 07, 2010 Using EP7041 EtherCAT® Motion Box, small EtherCAT motion applications can be implemented directly in field without protective control cabinet. Unit enables 64-fold micro-stepping, which ensures smooth and precise motor rotation. Measuring 5 x 1.2 x 1 in., IP67-rated box operates in harsh environments and contains encoder connection, 2 digital inputs for limit switches, and digital output for brake. Stepper motors with standstill torques from 0.38-5 Nm are available.

Avalue Technology Inc.    Chung Ho City, Taipei   Taiwan

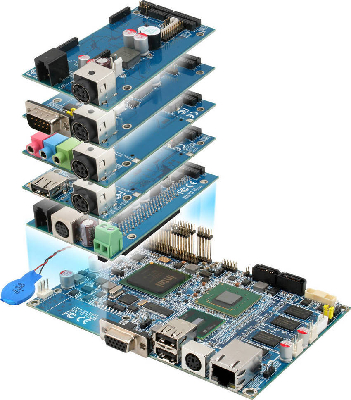

May 06, 2010 Measuring 146 x 101 mm, Model ECM-945GSE+ is powered by 1.6 GHz Intel® Atom(TM) N270 processor, which is compatible with Intel®945GSE/ICH7-M IO control chipsets. Unit is embedded with DDRII memory with max capacity of 1 G. Computer supports 36-bit LVDS LCD and CRT+LVDS dual-screen display output, as well as 2 Mini PCIe and SATA interfaces each. It also comes with gigabit ultra-speed Ethernet and 6 sets of USB 2.0 connectivity interfaces.

American Industrial Systems, Inc.    Irvine, CA 92614
May 06, 2010 Able to survive harsh mobile environments, Military Ruggedized Tablet is powered by 1.6 GHz Intel® Atom(TM) Processor N270 and has integrated touchscreen. Aluminum-magnesium alloy construction, which offers individually sealed ports for complete IP54 protection, is engineered to Military 810F shock, vibration, temperature, humidity, dust, and drop standards. Other features of this 10.4 in. tablet include programmable buttons, 802.11b/g WiFi and Bluetooth modules, and PCMCIA slot.

FEI Company    Hillsboro, OR 97124

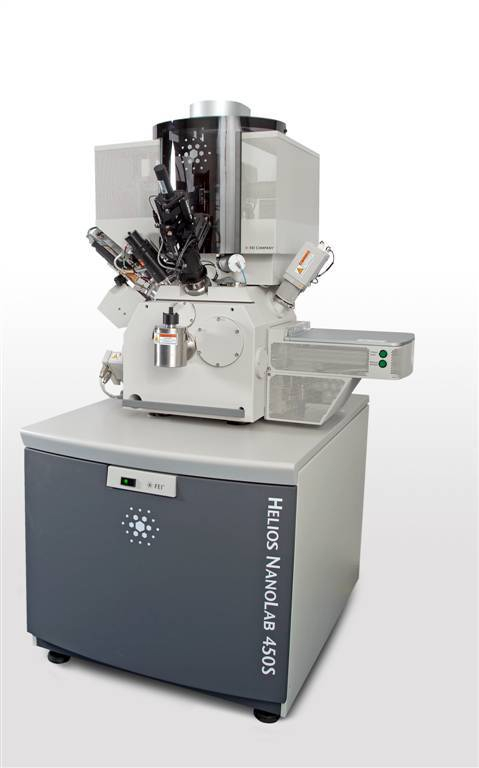

May 06, 2010 Helios NanoLab(TM) x50 DualBeam(TM) Series includes Helios 650, for academic and industrial research centers, and Helios 450(S) series for advanced semiconductor labs. Devices integrate high-resolution scanning electron microscope and focused ion beam (FIB) that optimizes imaging/milling and speeds material removal on large structures. High-quality 3D data helps understand material characteristics such as particle/porosity distribution and crack propagation.

Newport Corp.    Irvine, CA 92606

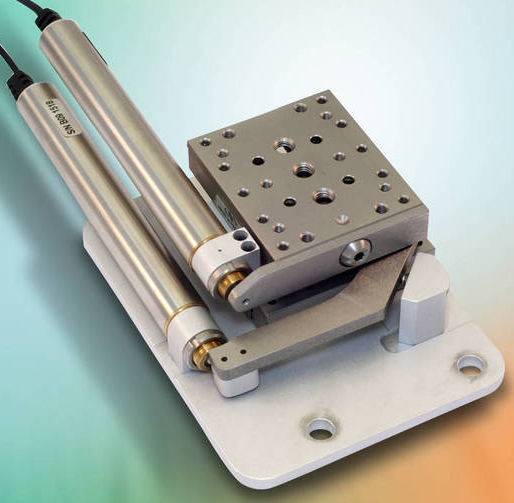

May 06, 2010 Built from 2 UMR5.16 linear stages and TRA actuators, UMR-TRA XY stages occupy 90 x 38 mm footprint (including the base plate) to suit applications in confined spaces. Actuators are parallel, and use of mechanical lever allows action of one actuator to be converted to perpendicular motion. Featuring 12.5 mm travel, stages are offered in English or metric, DC or stepper motor, and vacuum-compatible stepper motor versions. Latter is compatible down to 10^-6 hPa.

Agie Charmilles, LLC    Lincolnshire, IL 60069

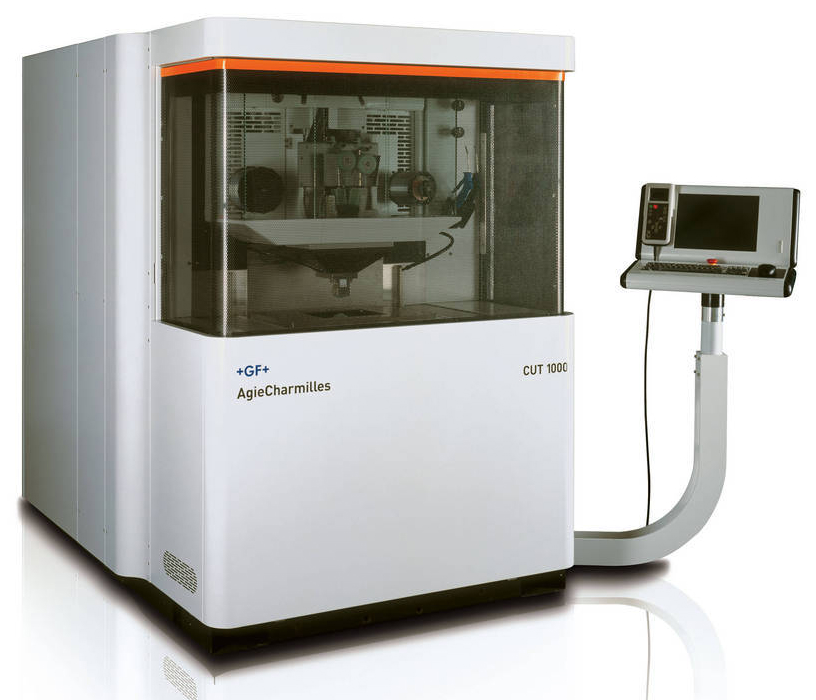

May 06, 2010 Designed for micro machining and ultra precision applications, CUT 1000 uses .02 mm dia wires and IPG-V eCut technology. AC Duo enables work with 2 wire spools of different wire types and automatic switching between different diameter wires. Programmable via machine control, forward feed of wires takes place automatically and is monitored by sensors. Table design separates the X and Y axes on monobloc, eliminating mutual interference and tripping errors.

Meyda Tiffany    Yorkville, NY 13495
May 06, 2010 Featuring bent stained glass lighting, 44 in. wide Plain Dome Chandel-Air(TM) (110002) is engineered to combine Beige Irididescent Art Glass, energy saving fan technology, and nostalgic style. All designs have fan built-into unit, and custom options can accommodate desired sizes, colors, or finishes to meet specifications in residential and commercial applications. Optional 2-circuit remote control offers 3-speed fan control and dimming capabilities.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
May 06, 2010 Combining low-speed planetary stirrer with high-speed disperser, Model PD-100 Sanitary PowerMix is used for development of viscous pharmaceutical, cosmetic, and food products requiring combination of slow and high-speed agitation. High-speed blade provides internal shearing action, while planetary stirrer continually moves material into high-speed blade. Action of planetary blade also removes material from tank wall, ensuring good heat transfer during mixing process.

ERICO    Solon, OH 44139-2631
May 06, 2010 With CADDY® GLIDER, installers can attach one or more electrical boxes to Telescopic Screw Gun Bracket. Once attached, installer can adjust box location and width of bracket between studs. Up to 3 boxes can be installed in standard 16 in. spacing. CADDY Glider is suitable for variety of applications, especially prefab where some assembly is done off-site prior to final installation.

Ace Glass, Inc.    Vineland, NJ 08362
May 06, 2010 Intended for use on glass polished or stainless steel shafts of overhead stir motors, 8050 mechanical seal stirrer bearing operates equally in vacuum and pressure applications as low as -0.6 Torr. Completely contained bearing and internal parts prevent shedding of materials into reaction. Featuring all PTFE, Rulon, or PEEK wetted area construction, product is rated for up to 400 rpm speeds and available in 10, 19, and 28 mm shaft sizes as well as several joint sizes.

VISIONx, Inc.    Pointe Claire, QC H9S4K9  Canada
May 06, 2010 Using high-resolution digital camera and low-distortion telecentric lens, VisionGauge® Digital Optical Comparator captures geometrically exact image of part. VisionGauge® software then projects image, along with part's CAD overlay, onto quad monitor display. Collimated back illumination, using LED technology, produces clear images with sharp edge profiles. Available in both horizontal and vertical configurations, comparator offers magnifications of 5, 10, 20, 50, and 100 X.

Henkel Corporation    Rocky Hill, CT 06067

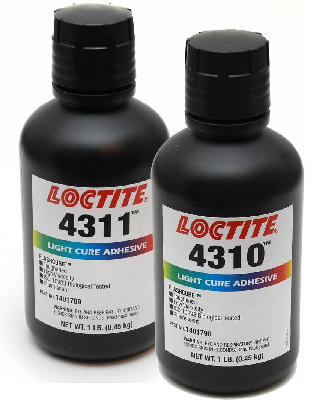

May 06, 2010 Featuring secondary moisture-cure mechanism that allows thorough curing in unexposed areas, Loctite® Flashcure® Light Cure Cyanoacrylate Instant Adhesives adhere to plastics, elastomers, rubbers, and metals. Low-viscosity Loctite® 4310(TM) Flashcure® and high-viscosity Loctite® 4311(TM) Flashcure® cure tack-free in 2-5 sec upon exposure to low-intensity UV/visible light. With temperature range of -65 to 180°F, both are fluorescent for inspection purposes and meet ISO 10993 biocompatibility standards.

Meyda Tiffany    Yorkville, NY 13495
May 06, 2010 Commerce family of semi-flushmount and pendant type lighting fixtures are suited for residential, hospitality, and commercial applications. Designed with 8 paneled, wispy beige, faux alabaster shade, 72 in. wide Commerce Semi-Flushmount (107469) features cafe noir hand-finished hardware and 8-light socket cluster. Fixture can be extended to height ranging from 55-164 in. Collection includes 48, 45.5, 34.5, and 45.5 in. wide semi-flushmount models and 48 in. wide inverted pendant.

Meyda Tiffany    Yorkville, NY 13495
May 06, 2010 Available with energy efficient lighting options, Modesto Inverted Pendant (106637) features handcrafted Caramel onyx acrylic bowl and Timeless Bronze finished hardware to blend with any residential, commercial, hotel or restaurant interior decor. Fixture height can be extended from 55-164 in., depending on ceiling height and application.
