UltraTech International, Inc.    Mentor, OH 44060
Apr 23, 2010 Offered in 3 x 4, 6 x 6, 10 x 15, and 15 x 15 ft sizes with custom sizes also available, Ultra-Dewatering Bag is used to contain sediment and/or oil from fluids pumped out during dewatering operations, preventing them from entering storm drains and catch basin inlets. Bag helps comply with NPDES, 40 CFD 122.26(1999) stormwater management requirements from EPA.

Yageo Corporation    Taipei   Taiwan
Apr 23, 2010 Measuring 3.2 x 1.6 mm, 3216 ceramic chip antenna (PIFA mode) supports 1.575-2.45 GHz bandwidths and is designed for use in high-end, handheld GPS devices. SMD packaging and compact size facilitate mounting on circuit boards, while breakthrough from traditional mono-polar circuit design mode lends to efficiency and size. Also, use of coupling and parasitic effects reduces frequency and strengthens low frequency performance.

Ondrives Ltd.    Chesterfield, Derbyshire S41 9RN  United Kingdom

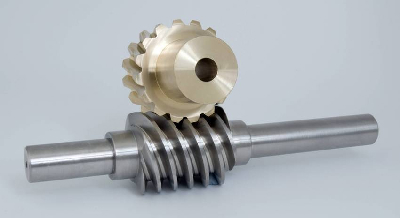

Apr 23, 2010 Available from 0.5 to 3.0 Mod, Precision Worms and Wheels come in regular backlash models as well as anti-backlash versions. Standard and anti-backlash 0.5 Module parts are made to Quality Grade 7e DIN 58405 and all other Modules in range are made to 7e25 DIN 3961. Customers can choose from either 817M40T steel or 303 stainless steel for worms and worm shafts. Tapped holes, pin holes, keyways, and different bore sizes are all available on request.

Linear Technology Corp.    Milpitas, CA 95035
Apr 23, 2010 To safeguard low-voltage, portable electronics from damaging input voltage transients and current surges, LTC4361 utilizes 2% accurate 5.8 V threshold to detect overvoltage event and respond within 1 µs (max) to isolate downstream components from input. Overvoltage protection of up to 80 V can be achieved without additional external components. Additionally, this 2.5-5.5 V IC/MOSFET solution monitors voltage drop across current sense resistor at input to protect against overcurrent faults.

Swift Filters, Inc.    Oakwood Village, OH 44146
Apr 23, 2010 Metal felt filter elements employ filter media, made of thin filaments of nonwoven stainless steel, that withstands high-pressure, highly corrosive, highly viscous, and radioactive applications. Metal felt is up to 85% porous, resulting in optimized flow rates and service life. Random fiber filtration (metal felt) can provide absolute particle retention, extended on-stream time, and dirt-holding capacity for under 60 micron filter elements.

Parker Fluid Control Division    New Britain, CT 06051

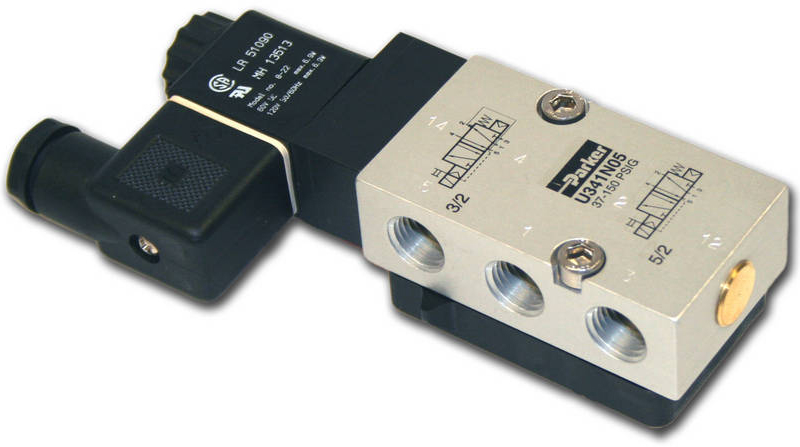

Apr 23, 2010 Designed for direct mounting in any position on NAMUR interface, High Flow valve has anodized aluminum body, stainless steel spool, and brass internal parts. Spring return allows fail-safe operation in case of power loss, and screened exhaust nut protects valve function during outdoor use. Supporting flow rates from 1.2-3.0 Cv, valve has life expectancy of up to 5 million cycles, features ¼ in. NPT ports, and handles 30-150 psi pressure range.

McLube Div., McGee Industries, Inc.    Aston, PA 19014

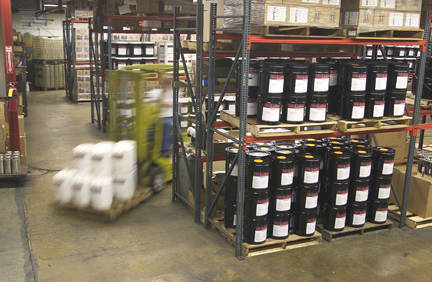

Apr 23, 2010 Supplied in ready-to-use formulation, MAC-968 semi-permanent release coating is effective for all types of rubber stock and contains no heavy metals, powders, silicone oils, or VOCs. Colloidal dispersion provides thin, colorless bonded film coating that will adhere to mold surface, allowing for maximum of parts to be molded per application. Product will not contaminate rubber stock and is designed to improve flow properties, part appearance, thermal stability, and lubricity.

McLube Div., McGee Industries, Inc.    Aston, PA 19014
Apr 23, 2010 Applied to rubber compounds/parts, MAC-863 concentrated mixture of polymeric material provides thin, colorless film coating that can be used on black and colored stock. It will not contaminate rubber stock, ensuring optimal part appearance. No heavy metals, powders, or silicone oils are contained in VOC-free product. Compound can be used in Barwell type operations, pellets, slugs, and extrusions.

American Portwell Technology    Fremont, CA 94538

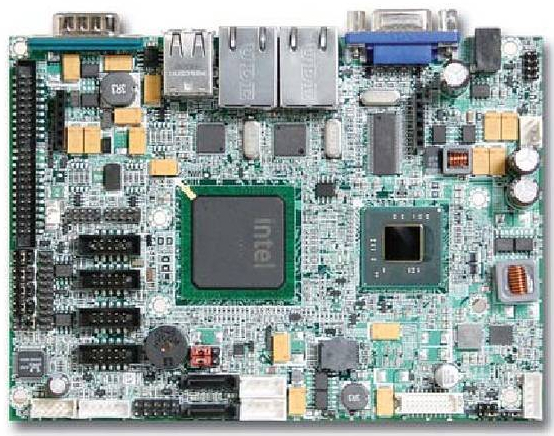

Apr 23, 2010 Measuring 5.75 x 4.00 in., PEB-2780VG2A is based on Intel Atom N450 (single core) and D510 (dual core) CPU with Intel 82801HM I/O controller. It supports up to 2 GB DDR2 667 non-ECC system memory, dual display (VGA and LVDS), and dual Gigabit Ethernet as well as various I/O and expansion options. Supporting fanless and battery-operated configuration, board offers 12 Vdc input as well as Intel DX9 graphics and Intel Dynamic Video Memory Technology 4.0.

Dwyer Instruments, Inc.    Michigan City, IN 46361

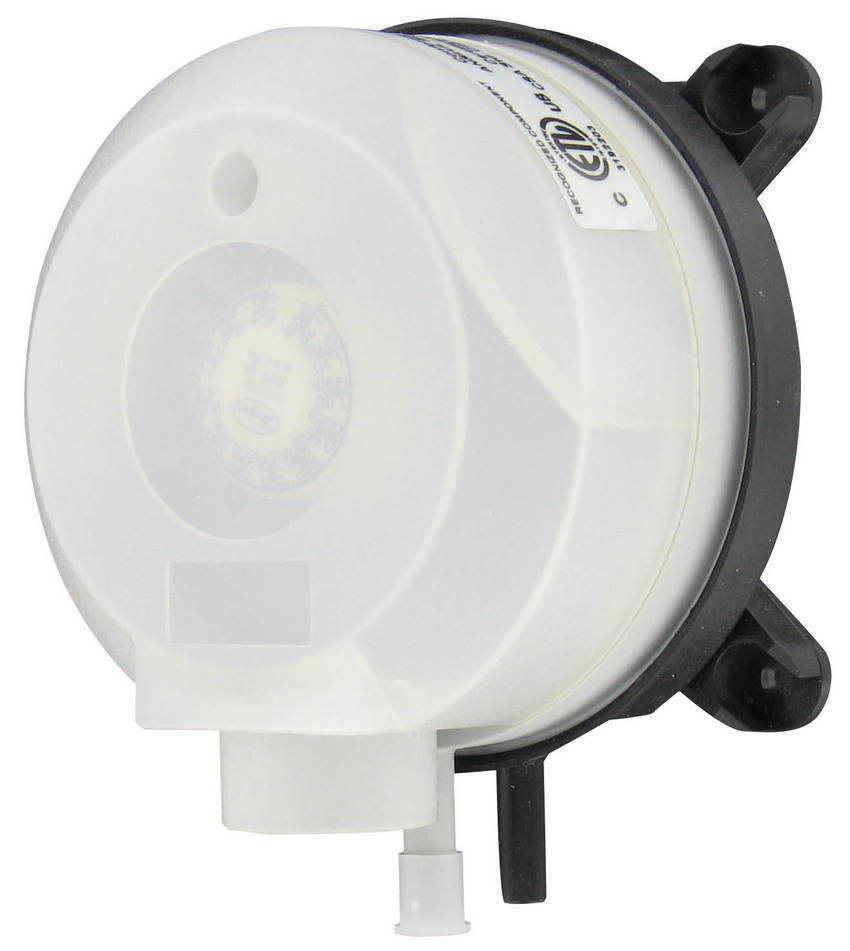

Apr 23, 2010 Series EDPS ETL-listed switch is designed for pressure, vacuum, and differential pressures. It features PA 6.6 body, scaled adjustment knob for making changes to switching pressure, and silicone diaphragm. Available with settings from 20-4,000 Pa, it is suited for use with air and other noncombustible gases. Compact unit can be used in monitoring air filters, ventilators, and industrial cooling-air circuits and controlling air/fire-protection flaps.

Pass & Seymour/Legrand    Syracuse, NY 13221
Apr 23, 2010 Available in 316L stainless steel for use in corrosive and exterior environments, FS 41 FASTRUT Connector secures wire mesh tray to strut channel framing without bolts, nuts, or clamps. Unit snaps into place and is held secure by spring steel materials and locking edge design. Connector attaches any size wire cable tray to channel framing using 2 connectors for 12 in. tray or narrower and 3 connectors for larger tray widths.

Filton Process Control Engineering    RH16 1BP   United Kingdom

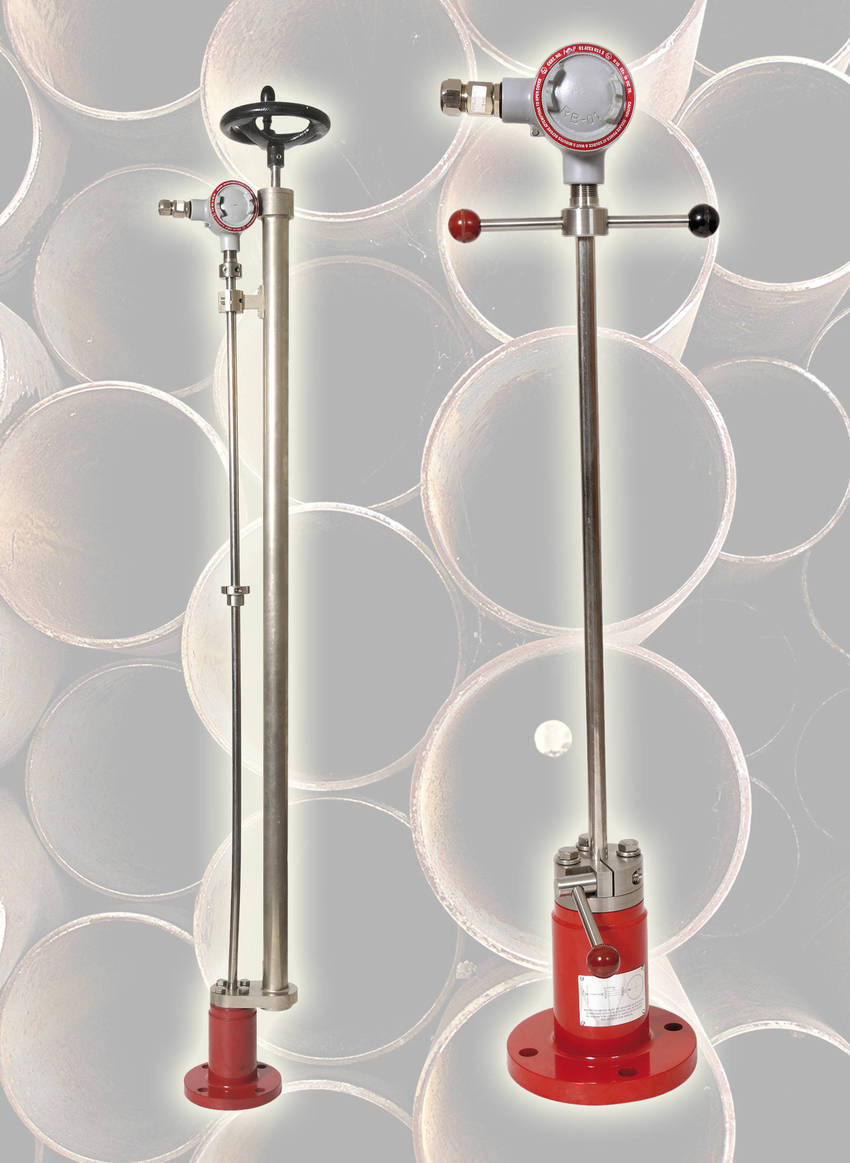

Apr 23, 2010 Suited for pipeline diameters from 4 in. upwards, Series 5000 flowmeters can be installed/removed using suitable valve, ensuring flow line continues to remain under pressure. They can be fitted with different, interchangeable rotor assemblies and are available with wide range of electronic signal conditioning and readout instruments, which can be mounted locally or remotely at distances up to 3,000 m using preamplifier. Units suit oil, gas, and general industrial flow metering.

Vasco Data Security Inc.    Oakbrook Terrace, IL 60181
Apr 23, 2010 Offering OTP and e-signature validation with full management and reporting capability, IDENTIKEY Server Banking Edition utilizes Hardware Security Module (HSM) next to VACMAN Controller technology to authenticate users and validate transactions. SOAP interface allows integration in Web-based applications. With EMV-CAP and HSM support, banks in emerging markets gain total authentication solution capable of leveraging prior investments for authentication purposes.

Impression Technology USA    Vadnais Heights, MN 55127
Apr 23, 2010 Integrating Memjet print engine technology, RapidX1 offers 12 in. OD unwind and rewind capacity, 8 ½ in. wide 5-color printhead, and optical sensor for pre-cut and stripped labels. Roll-to-roll unit features max web width of 220 mm, minimum web width of 50 mm, and max print speed of 12 ips at 1,600 x 800 dpi. Utilizing same print engine technology, RapidX2 has large diameter unwind, and loop outfeed, which enables printer to run in line with post finishing equipment.

ABBYY USA    Fremont, CA 94538
Apr 23, 2010 ABBYY FlexiCapture v9.0 permits remote installation of scanning and data verification stations, enabling documents of any kind and size to be processed and verified without regards to location. Offering OCR in 186 and ICR in 113 languages, form processing solution performs data extraction from forms and documents into backend applications. Functionality enables documents to be processed at corporate headquarters while scanning and data validation can be handled in dedicated area.

Caterpillar, Inc.    Peoria, IL 61629
Apr 23, 2010 Model AP500E has Cat® C4.4, 4-cylinder, turbocharged diesel engine and deck-mounted cooling system that optimizes visibility for operator. Dual swing-out stations include Advisor Monitoring System that provides various monitoring tools. System also includes 25 kW generator, 4 pumps to control its 2 conveyors and 2 augers independently, and position sensor to maintain travel speeds when making turns. Screed options suit work near obstacles or paving of highways/streets.

Caterpillar, Inc.    Peoria, IL 61629
Apr 23, 2010 With standard compaction width of 67 in. and 51 in. offset feature, Model CD54 provides total compaction width of 118 in. Compactor is powered by 4-cylinder Cat® 3054C turbo-charged engine, which provides 99.5 hp at 2,200 rpm and meets U.S. EPA Tier 2 emission requirements. Equipped with front and rear pivoting split drums and 4 steering modes, Model C54 enables 110 in. inside turning radius when fully offset. Applications include highways, city streets, industrial sites, and runways.

NXP Semiconductors    NanGang District   Taiwan
Apr 23, 2010 Suited for fashion, retail, and electronics markets, UCODE G2iL and G2iL+ offer single antenna port sensitivity of -18 dBm for extended read ranges. Features such as tag tamper alarm, privacy mode options, and password-protected data transfer or digital switch lend to data security. Additionally, UCODE G2iL+ improves read and write performance to -23 dBm when connected to power supply and offers real read range reduction (4R), which reduces read range to few inches.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 23, 2010 Built using Bulk Metal® Z-Foil technology, SMR3P series has non-inductive, non-capacitive design and offer resistance values from 100 W to 15 kW. Molded package with flexible terminations ensures minimal stress transference from PCB, and design can withstand high-temperature and radiation-rich environments. Products exhibit TCR of ±0.5 ppm/°C max, tolerances to 0.01%, load-life stability of ±0.005% (50 ppm) after 10,000 hr with 0.6 W @ 70°C, and PCR of ±5 ppm @ 0.6 W and +70°C.

Pigeon Point Systems    Scotts Valley, CA 95067 6989
Apr 23, 2010 Module Management Controller Board Management Reference Starter Kit is based on SmartFusion(TM) intelligent mixed-signal FPGAs, which integrate board-specific logic into SmartFusion chip. System's analog processing with zero load on processor supports xTCA-aware analog sensor monitoring. Also included is benchtop management controller development board, which inserts into any compliant AMC slot. Integrated firmware offers source code in C for management controller code and development tools.
