Zoneworks    Milwaukee, WI 53223
May 24, 2010 Custom-designed to match any size pallet, insulated pallet covers feature materials and flexible structure that help maintain proper temperature of heated or cooled palletized products anywhere throughout supply chain. Covers have collapsible design with handles and are made of fire-retardant industrial vinyl that prohibits water absorption. While multi-layered construction lends to durability, anti-microbial batting delivers thermal insulation.

Kollmorgen Corp.    Radford, VA 24141

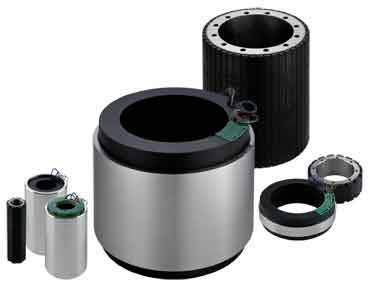

May 24, 2010 Suited for 240 or 480 Vac operation, RoHS compliant KBM(TM) series motors come in standard frame sizes from 60-825 mm dia and deliver speeds from 105-18,600 rpm. Each frame size is available with up to 3 or 4 stack lengths. UL listed, CE marked units feature fully encapsulated stator windings and internal windings rated for continuous duty operation up to 155°C. Rare-earth neodymium iron boron magnets provide continuous torque from 1.07-2,540 lb-ft and peak torque from 3.62-9,450 lb-ft.

Pres-On Products, Inc.    Addison, IL 60101

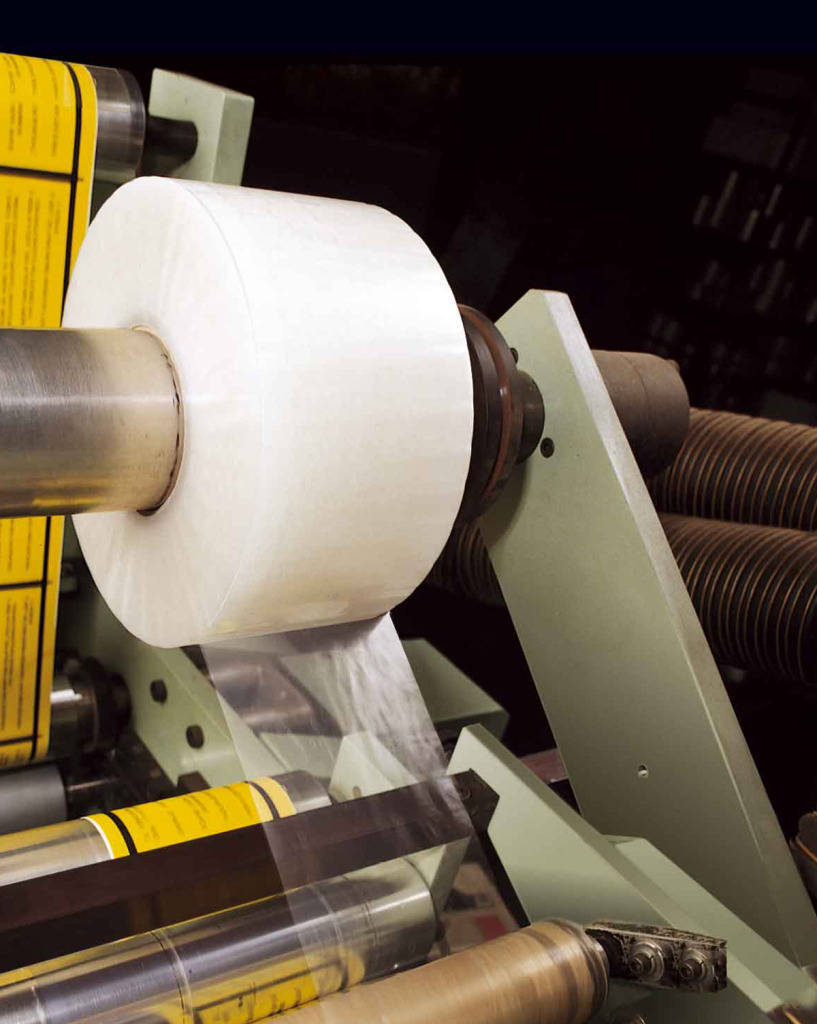

May 24, 2010 Supplied on production-ready rolls, PB200 tapes are suited for temporary bonding of labels, packaging padding, re-closable bags, and retail point-of-purchase displays. Tapes consist of permanent laminating acrylic adhesive on unwind side that adheres to variety of substrates, including foams, corks, felts, and films. User side features removable acrylic pressure-sensitive adhesive that can hold 1½ lb load per square inch of tape, and removes cleanly from most surfaces for up to 1 yr.

Dicon Fiberoptics Inc.    Richmond, CA 94804
May 24, 2010 Suited for either 50 or 100 GHz channel plans, Optical Channel Monitor (OCM) scans DWDM networks and reports power of each channel in real time. Voltage controlled unit supports standard 88 channels with options to cover 96, and can scan continuously with speed of 250 msec or hold particular park state position. Customizable wavelength range covers C and L band applications and any combination of 10 and 40 Gbit optical channels. Device measures 70 x 106 x 10.8 mm.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245

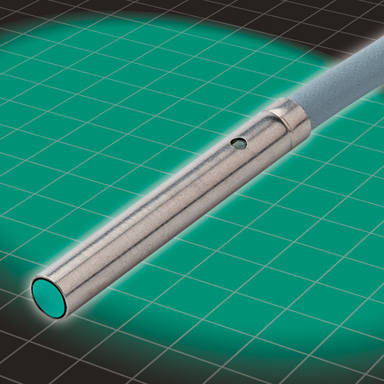

May 24, 2010 Suited for detection of small and narrow metal targets, Miniature Inductive Proximity Sensors are available in 3 and 4 mm dia stainless steel housing with smooth or threaded barrel and deliver sensing range up to 1 mm. They also feature LED indication and 2 m PUR cable. Available with normally open NPN or PNP outputs, sensors offer 3-wire, 10-30 Vdc connectivity and max switching frequency of 1,300 Hz.

Semrock Inc.    Rochester, NY 14624
May 24, 2010 Including 3 excitation and emission filters and matching beamsplitter with 4 precision edges, DA/FI/TR/Cy5-A is designed for simultaneous 4-color imaging by eye or with color camera using broadband illumination. FF01-387/485/559/649-25 quad-band exciter includes high-transmission passband at UV wavelengths in addition to 3 longer-wavelength precision passbands. Filters do not burn-out even under intense UV irradiation and are impervious to humidity and temperature-induced degradation.

Tectrol Inc.    Toronto, ON M3J3E5

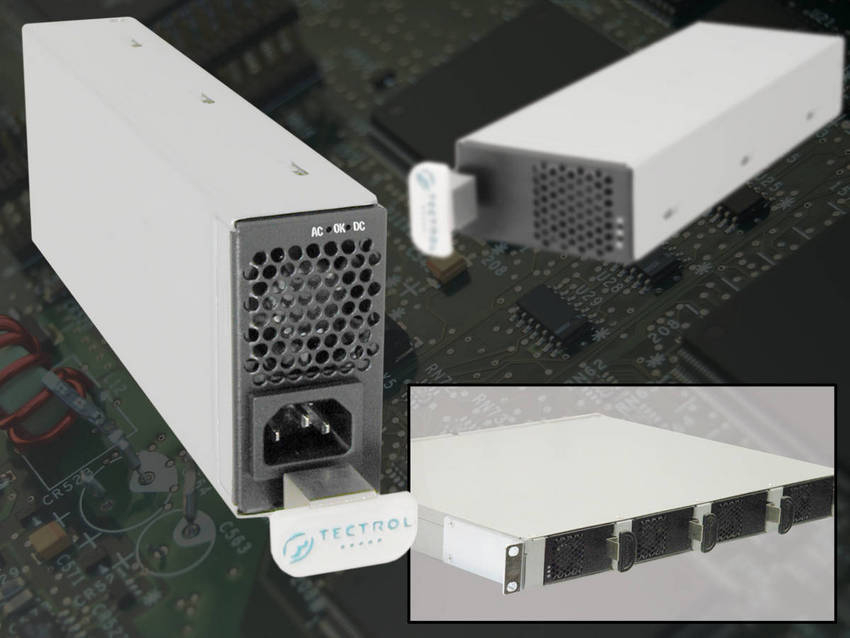

May 24, 2010 TFE800 Series front end power supply modules offer greater than 90% efficiency in 10 x 3.3 x 1.6 in. package. Suited for mid-plane system architectures, TFE-800-48 delivers 48 Vdc at 16.67 A in 1U or 2U orientation. Features include I²C digital interface, universal ac input with active PFC, auxiliary 3.3 VSB at 1.0 A, hot-swap capability, remote on/off, remote sense, and front panel LED indicators. All units are RoHS 6/6 compliant and safety qualified for cTUVus EN60950-1.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 24, 2010 Based on V3 ColdFire core, ColdFire MCF5301x series helps enhance general industrial control applications. Each 32-bit microprocessor (MPU) incorporates audio subsystem - speech codec, microphone, headset, and loudspeaker amplifiers - as well as multiple connectivity options: dual 10/100 Ethernet MACs, two smart card interfaces, two USB controllers, and one SDIO host controller. Optional non-recurring engineering (NRE)-free VoIP-based digital voice software solution is also included.

LDD Trading Associates, LLC    Milford, NH 03055
May 24, 2010 Equipped with 2 or 3 rows of angled LEDs, IDR-LA Series LED Low Angle Direct Ring Lights are intended for applications requiring high light intensity at close working distances. They condense light in area and deliver low angle of illumination onto part surface to enhance contrast of raised, indented, or textured surface features. Offered in 7 sizes with ODs from 38-200 mm, products are available with red, white, blue, or green LEDs. Optional diffusers are available.

TE Connectivity Ltd.    Berwyn, PA 19312
May 24, 2010 Polymer thermal protection architecture of PolyZen(TM) ZEN059V130A24LS enables absorption of high-energy pulses and blocking of harmful overvoltage and reverse bias sources for electronics with USB ports. Polymer-enhanced Zener diode, consuming 5 V power and featuring Zener voltage of 6 V, meets Suspend Mode requirements for USB 3.0. Placed on USB input port, Powered-B plug, and/or any supplementary power port, device offers embedded time delayed overvoltage lockout and overcurrent switching.

GAO FiberOptics Inc.    Toronto   Canada
May 24, 2010 Used for testing single mode (SM) or multi-mode (MM) fiber, portable model 08511 has 650 nm visible laser source and output power of 1.8 mW. Functionality detects breaks or critical bend points in fiber optic cables and also identifies fiber in ribbon or bundled fiber optic pigtails. Further support is provided for mechanical fusion splice optimization as well as location of faults at distance of up to 5 km from source. FC adapter is compatible with SC and ST connectors.

Clarity Systems    Toronto M2N 5Y7  Canada
May 24, 2010 Covering all corporate performance management processes in one software product with web-based user interface, CLARITY 7 includes CLARITY 7 Consolidations, which delivers multi-GAAP/IFRS functionality, multi-currency capabilities, and inter-company eliminations, as well as ability to perform simulations on consolidation models. With CLARITY 7 Studio, finance department users can take control of creation and on-going management of sophisticated data entry templates and reports.

Inovonics Wireless Corp.    Louisville, CO 80027
May 24, 2010 Model EN7286NX enables up to 192 points of EchoStream network to communicate directly with GE NetworX control panels NX-4/-6/-8/-8E. It enables individual wireless point annunciation, assigning each device its own zone and enabling users to identify exact alarm notification origin. Transparency from panel programming perspective benefits installers, because manner in which transmitters/zones are programmed at panel is not altered from traditional wired installations.

RADWIN    Tel Aviv 69710  Ireland
May 24, 2010 Providing up to 16 E1s/T1s + Ethernet and operating at range of up to 75 miles, RADWIN 2000 C-Series is optimized for IP and 3G mobile backhaul, and supports evolution to 4G networks. Systems incorporate advanced technologies such as MIMO and OFDM together with proprietary protocols to ensure optimal operation in sub-6 GHz bands. Products can also operate in challenging conditions, including non-line-of-sight, interference zones, and extreme temperatures.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 24, 2010 Integrating atomic force microscopy (AFM) capabilities and those of inverted light or inverted confocal microscope, 6000ILM enables life science researchers go beyond optical diffraction limit to achieve nanoscale spatial resolution. It uses computer-controlled laser with automated photodetector alignment and offers point-and-shoot AFM imaging based on optical image. Functionality supports use of 0.55NA condensers to perform fluorescence or DIC imaging simultaneously with AFM imaging.

AVX Corp.    Myrtle Beach, SC 29578
May 24, 2010 Consisting of standalone, surface mount discrete wire IDC contact and cap, 9176 Series allows wide range of devices to be connected to PCB without soldering. IDC contact provides gas-tight connection to wire conductor, while optional cap provides positive strain relief, even in harsh conditions. Suited for LED lighting applications, connectors support current rating of 10 A and accept 18-24 AWG wires with insulation diameter from 1.1-2.1 mm.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
May 24, 2010 Supplied in 8-pin LLP®, PowerWise® LMH6629 delivers 0.69 nV/sqrt Hz noise with -3 dB bandwidth of 900 MHz at gain of 10. It also provides input current noise of 2.6 pA/sqrt Hz as well as respective second and third harmonic distortion performance of -90 and -94 dBc. Combined with low DC errors, characteristics enable precision operation in AC- and DC-coupled applications. Input common-mode range extends below ground, and output swings to within 0.8 V of either rail.

Murata Power Solutions, Inc.    Mansfield, MA 02048
May 24, 2010 Designed for 3.3 Vdc supply applications, OKL-T/3-W5 and OKL-T/6-W5 series have input voltage range of 2.4-5.5 Vdc, respective max output currents of 3 and 6 A, and programmable output range of 0.6-3.63 Vdc. Power conversion efficiency levels reach 95.3% for OKL-T/3-W5 and 93.5% for OKL-T/6-W5. Also available, OKL-T/6-W12 series supports 4.5-14 Vdc input range and offers output current of 6 A. Efficiency reach 93%, and output is programmable from 0.6-5.5 Vdc.

Inkcups Now    Danvers, MA 01923
May 24, 2010 Designed for multicolor printing on small 3D or flat parts, Model ICN-2506C accommodates up to six 90 mm ink cup assemblies and includes 18-station carousel with shot pin registration. Programmable pad cleaning function allows cleaning of all 6 print pads within seconds. For rapid job setup and changeover, printer includes micro-adjust plate holder assemblies and quick-release locking handles on pad and cup assemblies. Parts counter and rear and forward stroke delay are programmable.

Eaton Corporation    Raleigh, NC 27615
May 24, 2010 Comprised of over 100 models, LS-Titan(TM) Series includes safety limit switches and safety interlock switches, all with positive opening contacts per IEC and EN 60947-5-1. Miniature-DIN safety limit switches feature modular design with interchangeable heads that can be rotated in 4 directions. Depending on application requirements, switches are supplied in insulated plastic or metal enclosures. Electronic safety position switch with solid-state outputs is also available.
