Xspect Solutions Inc.    Wixom, MI 48393
May 24, 2010 Able to be integrated into production operations, Wenzel ScanTec optical measuring system utilizes non-contact technology based on white light distance sensor. It allows direct measurement of various types of surfaces and provides feedback in customizable reports. Fully automatic, unit operates at speeds up to 180 and 4,200 coordinates/min in point measurement and scanning modes, respectively. Supporting software may be adapted to most CMM computer control systems.

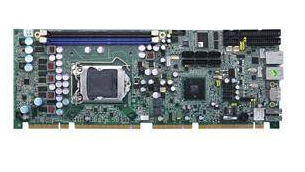

AXIOMTEK    Taipei   Taiwan
May 24, 2010 Powered by Intel® Core(TM) i7, Core(TM) i5, and Core(TM) i3 processors, Model SHB103 supports Intel® Turbo Boost technology, Intel® Hyper-Threading technology, and QuickPath. PICMG 1.3 SBC includes 8GB DDR3 1066/1333 memory and PCI Express 2.0 x16 slot. To satisfy demands for data transfer speed, unit provides 14 USB 2.0 ports, 6 SATA ports, and integrated RAID 0, 1, 5, 10 function with transfer rates up to 3 Gbps. Applications include gaming, DSA, DVR, automation, and visual inspection instruments.

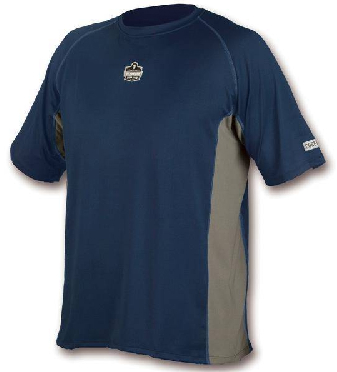

Ergodyne Corp.    St. Paul, MN 55108
May 24, 2010 Part of CORE Performance Work Wear(TM) line, Model 6418 is loose fitting and lightweight for hot days. Mid layer shirt regulates body temperature, maximizes visibility, and protects against harmful ultraviolet exposure. Circular knit fabrics are combined with technical treatments that provide moisture management and stop bacterial growth.

C&K Components    Newton, MA 02458
May 24, 2010 Available with gullwing or J-lead terminations, surface-mount RS Series features magnetic reed sensor with omnipolar orientation. Miniature size, 1,000,000 cycle lifespan, and ruggedized design enable products to withstand cabinet door slams and misalignment in telecom and enclosure applications. Available with top or side actuation, RoHS-compliant NO switches feature contact rating of 5.0 VA, max switching current of 0.35 A, and max carrying current of 0.5 A.

GE Intelligent Platforms    Charlottesville, VA 22911
May 24, 2010 NETernity(TM) CP921RC-30x 6U CompactPCI® 24-port GbE switch is fully managed Layer 2/3+ product that allows IPv6 switching and routing. Failover Groups feature, part of OpenWare(TM) switch management software, enables redundant links across backplanes from nodes to switches, redundant switches, and redundant links to external networks. Switch is PICMG 2.16- and RoHS-compliant and also supports hot swap, IPMI v1.5, as well as Layer 4-7 switching when required.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
May 24, 2010 Designed for automated switch and measure applications that require multiple instrument connections, Model 3732 has 4 banks of high-speed reed relays, each with 4 rows and 28 columns. Bank-configuration relays allow configuring matrix banks automatically as single 4 x 112 matrix or as 2 isolated 4 x 56 matrices, with no need for external wiring. Rated for more than 109 no-load operations, card will switch up to 200 V at carry currents up to 1.2 A with switching speed of 0.6 msec.

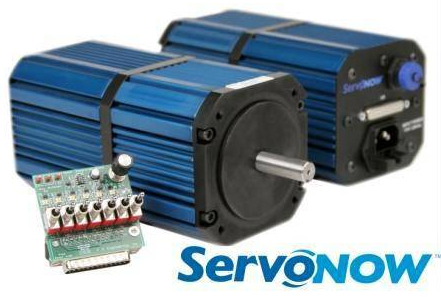

Bison Gear & Engineering Corp.    St. Charles, IL 60174
May 24, 2010 ServoNOW(TM) integrated servo system incorporates closed loop brushless servo motor with built-in driver, controller, feedback device, and 110/220 Vac universal power supply in one package. USB port enables programming/monitoring via PC, and up to 32 index motion profiles in velocity or positioning are integrated with QuickLaunch control program. Other features include programmable digital I/O, analog I/O, and 4,096 counts position resolution.

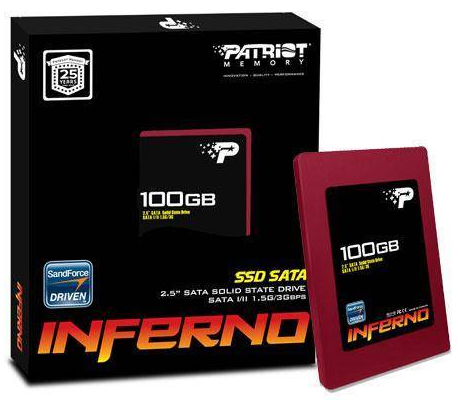

Patriot Memory    Fremont, CA 94538
May 24, 2010 Offering 100 or 200 GB capacity, Inferno series is based on SF-1200 processor series and offers optimized transfer speed, system responsiveness, boot time, and application loading time. Solid-state drives (SSDs), paired with screened MLC NAND Flash, deliver respective sequential read and write speeds of 285 and 275 MBps. Also, SandForce DuraClass(TM) technology provides endurance and reliability through write technology and wear leveling.

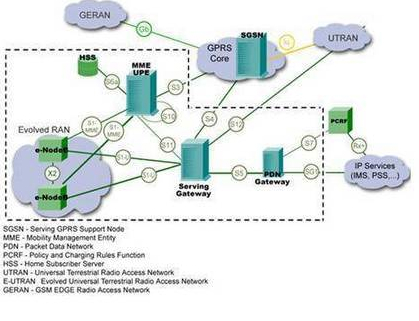

GL Communications Inc.    Gaithersburg, MD 20877
May 24, 2010 LTE Protocol Analyzer can capture, decode, and perform variety of test measurements across various LTE network interfaces. It offers display of statistics based on frame count, byte count frames/sec, and bytes/sec for all captured data. Hex dump view displays raw data as hexadecimal and ASCII octet dump, while detail view shows decodes of user-selected frame from summary view. Users can export summary information to database/spreadsheet and export decode information to ASCII file.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 24, 2010 Combining aeration and vibration, Model FD helps solve difficult bulk solid flow applications. Design creates vibration as air flow between pads boot and bin wall. Unit features silicon 50 SH (A) Elastosil disk, 304 stainless steel shaft, and EPDM sealing washer. Suitable for all types of dry products, Model FD operates from 29-87 psi air supply in temperatures from -40 to 340°F.

Zoneworks    Milwaukee, WI 53223
May 24, 2010 Custom-designed to match any size pallet, insulated pallet covers feature materials and flexible structure that help maintain proper temperature of heated or cooled palletized products anywhere throughout supply chain. Covers have collapsible design with handles and are made of fire-retardant industrial vinyl that prohibits water absorption. While multi-layered construction lends to durability, anti-microbial batting delivers thermal insulation.

Kollmorgen Corp.    Radford, VA 24141
May 24, 2010 Suited for 240 or 480 Vac operation, RoHS compliant KBM(TM) series motors come in standard frame sizes from 60-825 mm dia and deliver speeds from 105-18,600 rpm. Each frame size is available with up to 3 or 4 stack lengths. UL listed, CE marked units feature fully encapsulated stator windings and internal windings rated for continuous duty operation up to 155°C. Rare-earth neodymium iron boron magnets provide continuous torque from 1.07-2,540 lb-ft and peak torque from 3.62-9,450 lb-ft.

Pres-On Products, Inc.    Addison, IL 60101
May 24, 2010 Supplied on production-ready rolls, PB200 tapes are suited for temporary bonding of labels, packaging padding, re-closable bags, and retail point-of-purchase displays. Tapes consist of permanent laminating acrylic adhesive on unwind side that adheres to variety of substrates, including foams, corks, felts, and films. User side features removable acrylic pressure-sensitive adhesive that can hold 1½ lb load per square inch of tape, and removes cleanly from most surfaces for up to 1 yr.

Dicon Fiberoptics Inc.    Richmond, CA 94804
May 24, 2010 Suited for either 50 or 100 GHz channel plans, Optical Channel Monitor (OCM) scans DWDM networks and reports power of each channel in real time. Voltage controlled unit supports standard 88 channels with options to cover 96, and can scan continuously with speed of 250 msec or hold particular park state position. Customizable wavelength range covers C and L band applications and any combination of 10 and 40 Gbit optical channels. Device measures 70 x 106 x 10.8 mm.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 24, 2010 Suited for detection of small and narrow metal targets, Miniature Inductive Proximity Sensors are available in 3 and 4 mm dia stainless steel housing with smooth or threaded barrel and deliver sensing range up to 1 mm. They also feature LED indication and 2 m PUR cable. Available with normally open NPN or PNP outputs, sensors offer 3-wire, 10-30 Vdc connectivity and max switching frequency of 1,300 Hz.

Semrock Inc.    Rochester, NY 14624
May 24, 2010 Including 3 excitation and emission filters and matching beamsplitter with 4 precision edges, DA/FI/TR/Cy5-A is designed for simultaneous 4-color imaging by eye or with color camera using broadband illumination. FF01-387/485/559/649-25 quad-band exciter includes high-transmission passband at UV wavelengths in addition to 3 longer-wavelength precision passbands. Filters do not burn-out even under intense UV irradiation and are impervious to humidity and temperature-induced degradation.

Tectrol Inc.    Toronto, ON M3J3E5
May 24, 2010 TFE800 Series front end power supply modules offer greater than 90% efficiency in 10 x 3.3 x 1.6 in. package. Suited for mid-plane system architectures, TFE-800-48 delivers 48 Vdc at 16.67 A in 1U or 2U orientation. Features include I²C digital interface, universal ac input with active PFC, auxiliary 3.3 VSB at 1.0 A, hot-swap capability, remote on/off, remote sense, and front panel LED indicators. All units are RoHS 6/6 compliant and safety qualified for cTUVus EN60950-1.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 24, 2010 Based on V3 ColdFire core, ColdFire MCF5301x series helps enhance general industrial control applications. Each 32-bit microprocessor (MPU) incorporates audio subsystem - speech codec, microphone, headset, and loudspeaker amplifiers - as well as multiple connectivity options: dual 10/100 Ethernet MACs, two smart card interfaces, two USB controllers, and one SDIO host controller. Optional non-recurring engineering (NRE)-free VoIP-based digital voice software solution is also included.

LDD Trading Associates, LLC    Milford, NH 03055
May 24, 2010 Equipped with 2 or 3 rows of angled LEDs, IDR-LA Series LED Low Angle Direct Ring Lights are intended for applications requiring high light intensity at close working distances. They condense light in area and deliver low angle of illumination onto part surface to enhance contrast of raised, indented, or textured surface features. Offered in 7 sizes with ODs from 38-200 mm, products are available with red, white, blue, or green LEDs. Optional diffusers are available.

TE Connectivity Ltd.    Berwyn, PA 19312
May 24, 2010 Polymer thermal protection architecture of PolyZen(TM) ZEN059V130A24LS enables absorption of high-energy pulses and blocking of harmful overvoltage and reverse bias sources for electronics with USB ports. Polymer-enhanced Zener diode, consuming 5 V power and featuring Zener voltage of 6 V, meets Suspend Mode requirements for USB 3.0. Placed on USB input port, Powered-B plug, and/or any supplementary power port, device offers embedded time delayed overvoltage lockout and overcurrent switching.
