Dwyer Instruments, Inc.    Michigan City, IN 46361
May 05, 2010 Series BYDS Bypass Damper Switch is designed for use with 3-wire floating-point damper actuator that controls static pressure on zone control systems requiring motorized bypass damper. Unit sends 24 V to actuator to drive it open when static pressure increases, and will stop once pressure reaches set point. Green LED indicates when damper is in open position or being driven open. Tubing and 2 static pressure probes are included.

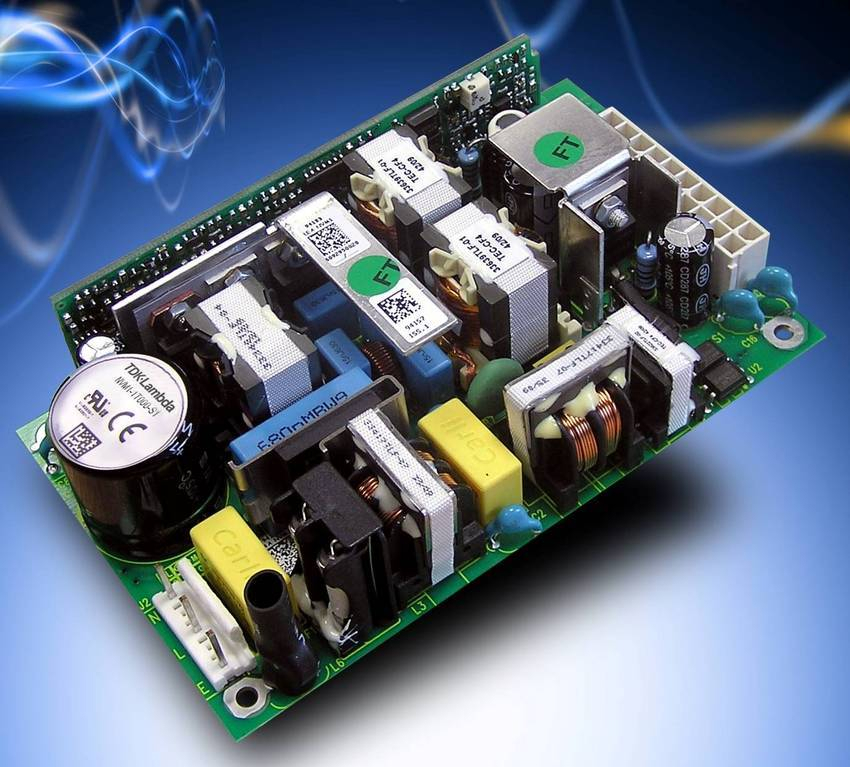

TDK-Lambda Americas Inc.    San Diego, CA 92154
May 05, 2010 Meeting UL/EN/IEC60601-1 standard, NVM175 series AC-DC power supplies combine 4.5 kVac reinforced input-to-output isolation with dual input fusing and output-to-ground isolation of 1,500 AC. They feature universal AC input and are rated at 180 W at 50°C with user supplied air flow. Available with either 12 or 24 V output voltage, units achieve up to 90% efficiency and have power good signal, remote on/off, and protection from over current, voltage, and temperature conditions.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
May 05, 2010 Targeted at commercial laundries, hotels, resorts, hospitals, and nursing homes, MOD 72S is rotationally molded of 100% waterproof, weatherproof polyethylene with no-metal interior that eliminates potential to catch shrinkwrapped bundles or snag expensive linens. Rugged, lockable roof and door hide and secure linens inside. Available in 16 colors, units feature internal rib support system and non-marking casters.

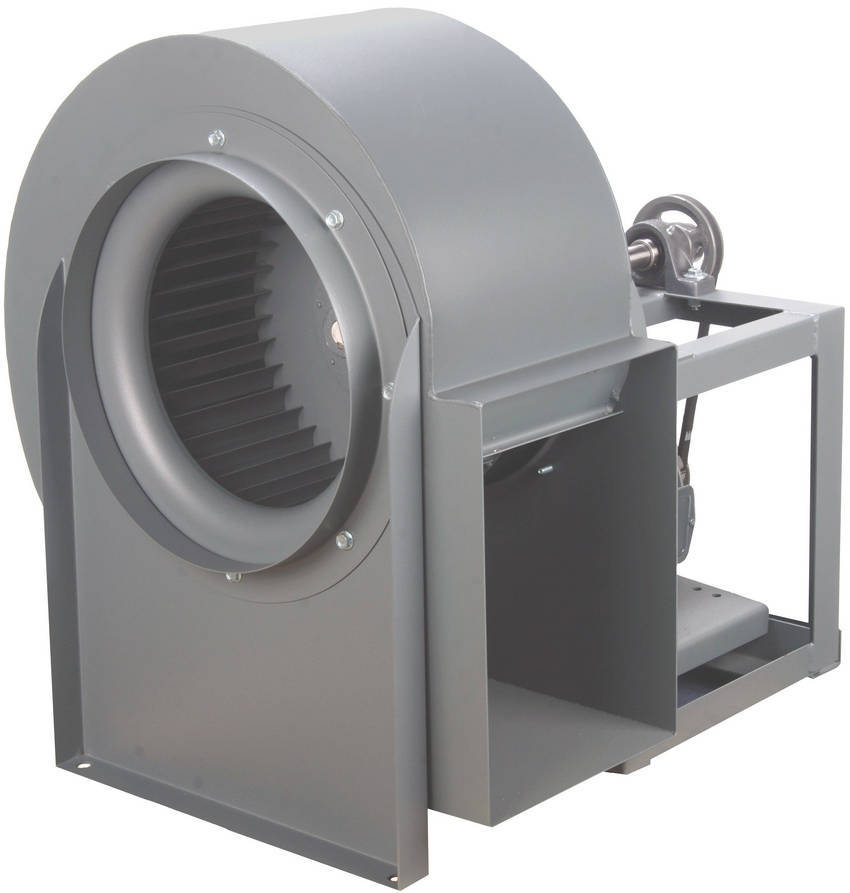

Continental Fan Mfg. Inc.    Buffalo, NY 14215
May 05, 2010 Heavy gauge, rugged welded steel constructed FCU Utility Fans have capacities ranging from 237-20,056 cfm. Featuring forward curved belt drive blowers, units suit low to medium pressure ventilating and exhaust applications. Devices are available in SWSI, Arrangement 10, Class I construction, and include self-aligning pillow block bearings, circular stamped inlet ring, adjustable V-belt drive, and TEFC industrial duty motor. Average life of standard bearings is 100,000 hr.

Heidenhain Corp.    Schaumburg, IL 60173-5337
May 05, 2010 Designed for use with numerically controlled machine tools, TT 449 unit can be placed anywhere on work table and is rated for continuous duty at 200 hr typ with included lithium battery. Design eliminates need for cable, increasing mobility for tool measurement and inspection directly on machine. Suitable for applications where unlimited movements are necessary, IP67-rated tool also has rated break point that protects touch probe from damage due to operator error.

Edmund Optics    Barrington, NJ 08007
May 05, 2010 Featuring 2 micrometer drives, one for each axis, TECHSPEC Tip-Tilt Stages provide tilt control of both optics and mounting posts with tip-tilt motion up to 6°. They feature black anodized aluminum construction and are available in stage sizes of 30, 40, and 70 mm square. Each of these sizes is offered in choice of English or Metric configurations.

Acme Industrial Co.    Carpentersville, IL 60110
May 05, 2010 Available in range of inch and metric sizes, in lightweight and heavy duty versions, Key Locking Studs feature solid one-piece design to provide high pull-out strength and torque-out capabilities. They can be used on soft materials such as aluminum or magnesium and removed using standard screw extractor without damage to parent material. Produced to NAS and SAE Standards (MS51833 and MS51834), studs come in variety of materials, including 303, A286, 17-4PH CRES and 4140 alloy steel.

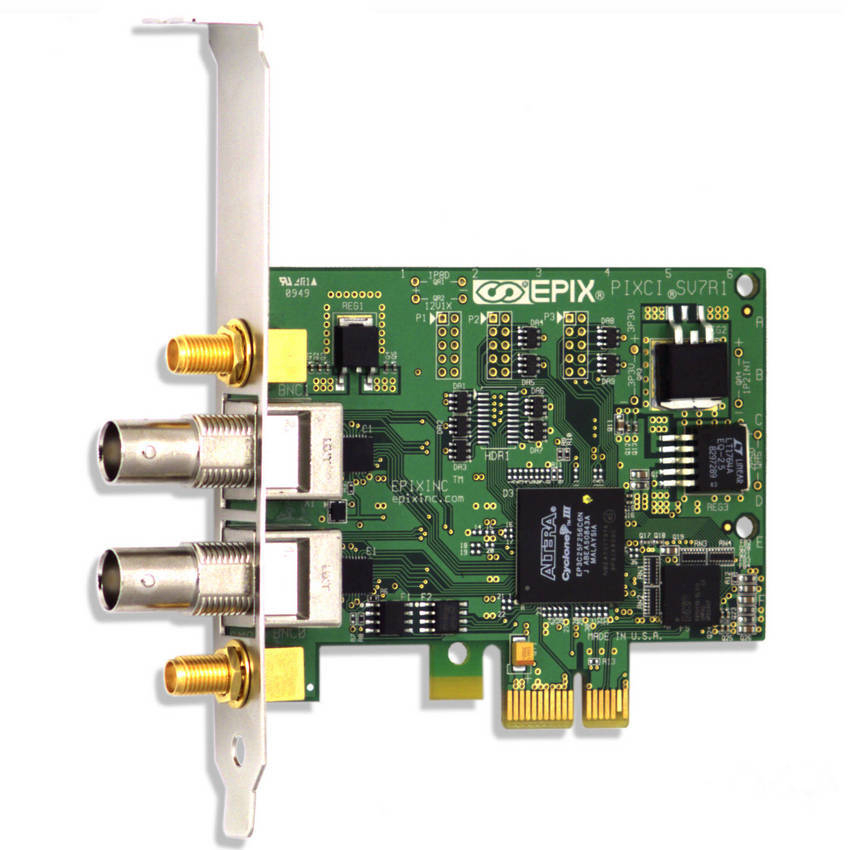

EPIX, Inc.    Buffalo Grove, IL 60089 6934
May 05, 2010 Able to capture different resolution or format video from 2 cameras (NTSC, RS-170, PAL or CCIR) simultaneously, PIXCI® SV7 can transfer digitized video to PCI Express bus at video rate. It can also transfer images at full or reduced frame rates to computer or to other targets on PCI Express bus. Video signal can be conditioned with programmable gain, hue, brightness, saturation, and contrast adjustments, while SMA connectors provide TTL trigger in and strobe out.

RGB Spectrum    Alameda, CA 94501
May 05, 2010 MediaWall® 4500/4200 video walls and SuperView® 5000 multiviewers are available with HD-SDI Input Module that offers additional input source interface, opening up display capabilities for television broadcast sources and serial digital graphic networks. In addition to supporting max clock rate of 1.5 Gbps, HD-SDI Dual Input Module addresses various serial digital sources via use of standard YPbPr, 4:2:2 color space, and 8-bit per component sampling.

RGB Spectrum    Alameda, CA 94501
May 05, 2010 Suited for applications requiring display of multiple images on monitor/projector, QuadView® HDx accepts standard Hi-Res DVI, RGB, and HD as well as optional S-Video, component, and NTSC/PAL composite video signals, any 4 of which can be displayed simultaneously. Deinterlacing and scaling produces quality graphics and HD renditions, while included optional video switcher accepts up to 16 video inputs. Only control signals are passed over network, ensuring real-time video performance.

Vista-CCTV    Wokingham RG41 5TS  United Kingdom
May 05, 2010 Suited for commercial and residential applications, VBC100 and VBC200 Color/Monochrome Bullet Cameras feature IP67-rated enclosures that prevent ingress of dust or water. VBC100/101 range is supplied with wide-angle 3.6 mm electronic iris lens for max scene coverage, while VBC200/201 range comes with vari-focal 4-8 mm lens, which allows user to make fine adjustments for precise scene selection. Pre-wired cables are long enough to feed through soffits, ceilings, and call cavities.

S3 Graphics    Fremont, CA 94539
May 05, 2010 Featuring fanless design, Chrome eH1 is suited for harsh environments and industrial-grade systems. Card incorporates ChromotionHD(TM) 2.0 video processor unit, advanced filtering, and clear-image post-processing to perform smooth decoding of MPEG-4/AVC, MPEG-2, and VC-1 for HD video. Designed to meed needs of next generation embedded systems, Chrome eH1 also includes DX10.1 3D graphics and range of display connectivity options including DVI, HDMI, DisplayPort, and CRT.

OSI Fibercomm    Hawthorne, CA 90250
May 05, 2010 With Spacelabs Ultraview 2900, clinicians can efficiently chart and access lab results on one display, while other display remains dedicated to patients' real-time physiologic waveforms and alarms. Dynamic Network Access(TM) feature, which functions like Citrix thin client, is embedded in monitor and enables full access to all applications installed on hospital's Citrix server.

LeCroy Corp.    Chestnut Ridge, NY 10977
May 05, 2010 Available in 4 models, ArbStudio Series includes 2- and 4-channel versions with analog waveform capabilities plus 2- and 4-channel versions that offer combination of analog waveform and digital pattern generation capabilities. All have max sample rate of 1 GS/s, memory of 2 Mpts/ch, and 16-bit resolution. Providing both True Arbitrary and Direct Digital Synthesis, units operate with ArbStudio software, which runs on external PC, freeing user from small displays and readouts.

LeCroy Corp.    Chestnut Ridge, NY 10977
May 05, 2010 With 16 channels, 1 GS/sec sample rate, and max input of 100 MHz, LogicStudio 16 provides timing cursors, zooming and panning of waveforms, persistence display, and history mode, which can replay old data captures. Protocol analysis for I2C, SPI, and UART is included to decode waveforms as they are captured and to trigger on specific address or data packets on bus. Interfacing with WaveJet oscilloscope, LogicStudio software provides view of up to 4 analog and 16 digital channels simultaneously.

Lionbridge    Waltham, MA 02451
May 05, 2010 Available to translators, agencies, and clients through GeoWorkz.com eCommerce platform, Translation Workspace(TM) enables users to translate, manage, and sequence language assets in real-time; collaborate with other translators; monitor project productivity; automate quality assurance; and engage in qualified resources on demand - all within secure, private work environment. Subscription-based SaaS model eliminates need for users to buy, install, or maintain software.

LSI Corp. of America    Minneapolis, MN 55441
May 05, 2010 Based on LSI(TM) SP2704 StarPro® media processor, Media Processing Development System allows OEMs to build media-aware networks that enable intelligent media and graphics processing in data center and enterprise network. Containing complete family of voice and video codecs and frameworks, system enables support for new video codecs such as networking-centric SVC-HD codec. System also provides path to future video algorithms for video analytics, speech-to-text, and text-to-speech.

MathCraft    Dulles, VA 20166
May 05, 2010 Offered as fully integrated and Web-based enterprise solution, Access Commander Enterprise Security Suite(TM) (ESS) ensures accountability of industrial security assets while streamlining secure visitor management. It conforms to government mandates for DoD, NISPOM, SAP/SAR, and SCI requirements for industrial security and establishes accountability for visitor actions while protecting their identities. Security can also be scaled to particular geographical and enterprise requirements.

Autodesk, Inc.    San Rafael, CA 94903
May 05, 2010 Designed for any task that requires creation of accurate plans, such as home renovations and landscape design, AutoCAD Freestyle includes toolset for creating standard shapes, sketching, and inserting images and symbols. Grid on drawing surface helps users understand spatial dimensions, such as proportion and distance. With AutoCAD Freestyle, markups and annotations of designs created in AutoCAD software can be sent back for incorporation into AutoCAD file with complete DWG compatibility.

Mu Dynamics, Inc.    Sunnyvale, CA 94085
May 05, 2010 Mu Test Suite for IPv6 is designed for network equipment manufacturers, government agencies, as well as wired and wireless service providers that need to ensure they can effectively support IPv6. Realistic, stateful recreation of IPv4 and IPv6 flows enables accurate emulation of different components in both native and dual-stack (transitional) environments, while automated regression testing minimizes manual setup of third-party client devices and versions.
