National Semiconductor Corp.    Santa Clara, CA 95051-0695
May 24, 2010 Supplied in 8-pin LLP®, PowerWise® LMH6629 delivers 0.69 nV/sqrt Hz noise with -3 dB bandwidth of 900 MHz at gain of 10. It also provides input current noise of 2.6 pA/sqrt Hz as well as respective second and third harmonic distortion performance of -90 and -94 dBc. Combined with low DC errors, characteristics enable precision operation in AC- and DC-coupled applications. Input common-mode range extends below ground, and output swings to within 0.8 V of either rail.

Murata Power Solutions, Inc.    Mansfield, MA 02048
May 24, 2010 Designed for 3.3 Vdc supply applications, OKL-T/3-W5 and OKL-T/6-W5 series have input voltage range of 2.4-5.5 Vdc, respective max output currents of 3 and 6 A, and programmable output range of 0.6-3.63 Vdc. Power conversion efficiency levels reach 95.3% for OKL-T/3-W5 and 93.5% for OKL-T/6-W5. Also available, OKL-T/6-W12 series supports 4.5-14 Vdc input range and offers output current of 6 A. Efficiency reach 93%, and output is programmable from 0.6-5.5 Vdc.

Inkcups Now    Danvers, MA 01923
May 24, 2010 Designed for multicolor printing on small 3D or flat parts, Model ICN-2506C accommodates up to six 90 mm ink cup assemblies and includes 18-station carousel with shot pin registration. Programmable pad cleaning function allows cleaning of all 6 print pads within seconds. For rapid job setup and changeover, printer includes micro-adjust plate holder assemblies and quick-release locking handles on pad and cup assemblies. Parts counter and rear and forward stroke delay are programmable.

Eaton Corporation    Raleigh, NC 27615
May 24, 2010 Comprised of over 100 models, LS-Titan(TM) Series includes safety limit switches and safety interlock switches, all with positive opening contacts per IEC and EN 60947-5-1. Miniature-DIN safety limit switches feature modular design with interchangeable heads that can be rotated in 4 directions. Depending on application requirements, switches are supplied in insulated plastic or metal enclosures. Electronic safety position switch with solid-state outputs is also available.

Aramsco    Thorofare, NJ 08086
May 24, 2010 Offered in various widths, E-Z Tape provides professional-looking paint lines on many common surfaces, such as lightly textured walls, metal fixtures and hardware, and unfinished wood and trim. Medium-level adhesive tape removes cleanly without any adhesive transfer or surface damage for up to 14 days after application. Available in rolls of 180 ft long, one roll of tape can mask medium-sized (10 x 10 ft) room, including ceiling, baseboards, doors, and any window trims.

HASCO Hasenclever GmbH + Co KG    Ludenscheid D-58513  Germany
May 21, 2010 Toolox® 33 tool steel grades are available as K20 plates that allow mold plate machining in one process/setup, as well as P and K252 plates. Products have metallurgical properties that correspond to 1.2311 with machinability better than 1.2312. Suitable for etching, high gloss polishing, and welding, structure of grades does not require stress relieving after machining. Incorporated holes allow plates to be clamped onto HASCO Clamping Fixture A8001, minimizing machine setup times.

Royal Plastic Mfg., Inc.    Minden, NE 68959
May 21, 2010 Featuring 27.6 x 15.0 x 21.7 in. build volume, EOS P800 offers high-temperature laser sintering capability for polymeric part manufacturing. With this process, both functional and prototype parts can be manufactured directly from 3D CAD definition into components made from PEEK polymer. Melting or sintering together of thin layers of powdered material can achieve design complexities outside those supported by traditional machining or injection molding processes.

IAR Systems AB    Uppsala SE-750 23  Sweden
May 21, 2010 Offering set of development tools for building and debugging embedded system applications using assembler, C, and C++, IAR Embedded Workbench helps developers minimize power consumption in embedded systems. Program includes added functionality that works by coupling power consumption directly to application software, enabling developers to analyze power consumption and correlate it with program execution. Using this approach, developers can tune and optimize application's power profile.

Cooper Hand Tools    Raleigh, NC 27612
May 21, 2010 Offered in 50 ft standard, 200 ft engineer's, or 100 m 2-sided metric/English versions, Lufkin® fiberglass long tapes feature 4-arm, open frame design that protects blade and sheds mud and dirt. Yellow clad fiberglass blade, is smooth, kink-resistant, wipes clean, and is impervious to moisture. End hook folds back for true-zero measurements, and size of ring opening facilitates use when wearing gloves. Handle has cushioned grip that promotes all-day comfort.

Chicago Pneumatic Co.    Rock Hill, SC 29730-7463
May 21, 2010 Designed with twin hammer clutch to remove stubborn fasteners, 3/8 in. Model CP7735 features 3-position regulator in forward that provides torque needed without over torquing fastener. Teasing throttle allows operator to have complete control when removing or starting fastener to prevent from stripping threads. Model CP7735 is also available in ½ in. version as well as quiet version that reduces impacted sound pressure to 86 dBA.

Chicago Pneumatic Co.    Rock Hill, SC 29730-7463
May 21, 2010 Offered in color-coded models, 3 in. Series CP7225 and CP7255 include yellow versions for 3/32 in. to 2.5 mm orbits and red for 3/16 in. to 5 mm orbits. Units produce 75 dBA for quiet operation with less than 2.5 m/s² vibration for full shift usage. Central vacuum, non-vacuum, PSA, and hook and loop models are available.

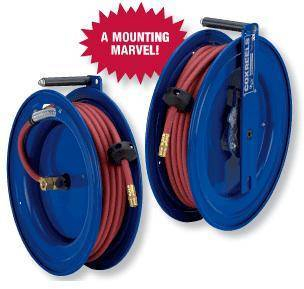

Coxreels    Tempe, AZ 85283-4323
May 21, 2010 Supporting hose IDs from ¼-½ in. and pressures from 300-5,000 psi, S Safety Series Side Mount spring driven hose reels feature 2-bolt mounting pattern that facilitates installation and detachment for multiple workstation applications. Steel arm mounts flat to any surface, and 360° payout enables use from any direction. Along with auto rewind and cartridge-style spring motor, features include heavy-duty steel construction, multi-position locking ratchet, and brass NPT Swivel.

Comark Corp.    Medfield, MA 02052
May 21, 2010 With inputs of current and voltage, RF515 can be connected to control loop and programmed to measure range of parameters: pressure, gas, flow, level, dissolved oxygen, CO2, and more. LCD screen displays local temperature at point of measurement, while LEDs allow checks of active/alarm indication in situ. Along with selectable scales, transmitter features BioCote®-protected surfaces that inhibit growth of bacteria, mold, and fungi.

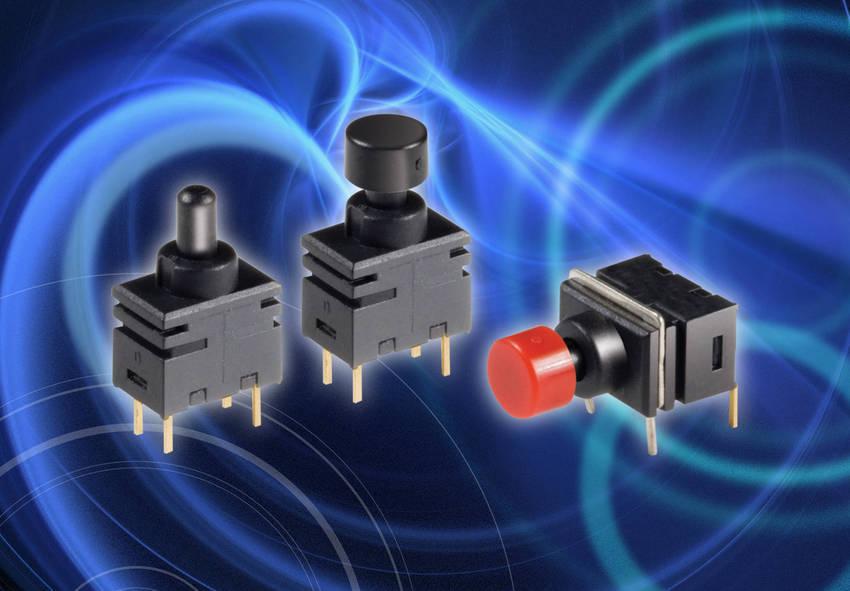

C&K Components    Newton, MA 02458
May 21, 2010 Suited for telecom/datacom applications, FP Series sealed switches include right angle version that measures 5.6 x 7 mm with board height of 5 mm, and vertical model measuring 4.5 x 7 mm with board height of 5.6 mm. Switches have operating life up to 50,000 cycles, and contact resistance of 10 mA at 2 Vdc, with initial contact resistance of 80 mW maximum. Operating in temperatures from -20 to +80ºC, switches feature maximum operating force of 6.9 N and mechanical travel of 1.0 mm.

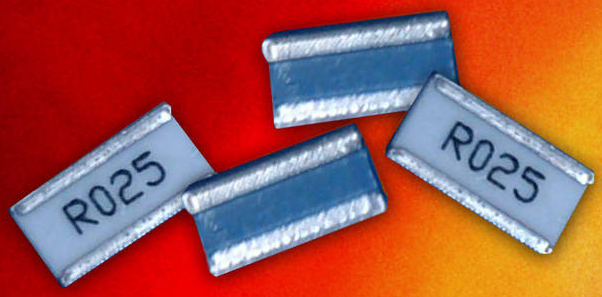

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
May 21, 2010 Intended for current sensing applications, LRF3W-MIL Series is optimized for stability and available with screening to MIL-PRF-55342 or customer drawing. Chip resistor package includes uninterrupted 2-pad termination on long sides of resistor, maximizing thermal transfer and reliability. Resistance ranges from 0.003-1.0 W, with rated power of 3 W @ 70°C; absolute TCRs are to ±100, ±250, and ±500 ppm/°C; and absolute tolerances reach ±1%, ±2%, ±5%, and ±10%.

Hyde Industrial Blade Solutions    Southbridge, MA 01550
May 21, 2010 Designed with sharpened recessed curves along edge, professional-grade Wavy Scallop Edge Blades have sharp points at leading edge of cut to offer linear cutting surface. Scallops on blade's edge optimize cutting ability by providing single point penetration into work being cut. Unlike abrasive wheels that generate heat, smoke, and debris that can contaminate hydraulic cutting systems, blades slice cleanly through work, eliminating large volumes of waste.

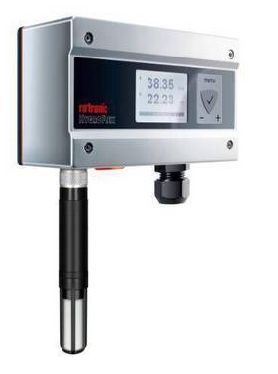

Rotronic Instrument Corp.    Hauppauge, NY 11788
May 21, 2010 Based on HygroClip2 probe fitted with AirChip3000 technology, HygroFlex5 Series provides compensation of humidity and temperature at 30,000 reference points, recording of 2,000 data points, and calculation of current dew point. If sensor accuracy declines significantly, AirChip3000 recognizes problem and will issue alarm. Available in duct-mounted and wall-mounted versions, transmitters enable any psychometric calculation to be output as analog signal.

Haas Automation, Inc.    Oxnard, CA 93030
May 21, 2010 To accommodate large-volume machining, EC-1600 features 64 x 50 x 32 in. work cube; 64 x 32 in. T-slot table that supports up to 10,000 lb parts; and 6,000 rpm, geared-head, 50-taper spindle. Fully enclosed machine also includes multiple chip augers to evacuate chips and 95 gal flood coolant system. Cast-iron construction provides rigidity and dampens vibration, and 30 hp vector drive system provides 450 lb-ft torque to spindle for heavy cutting.

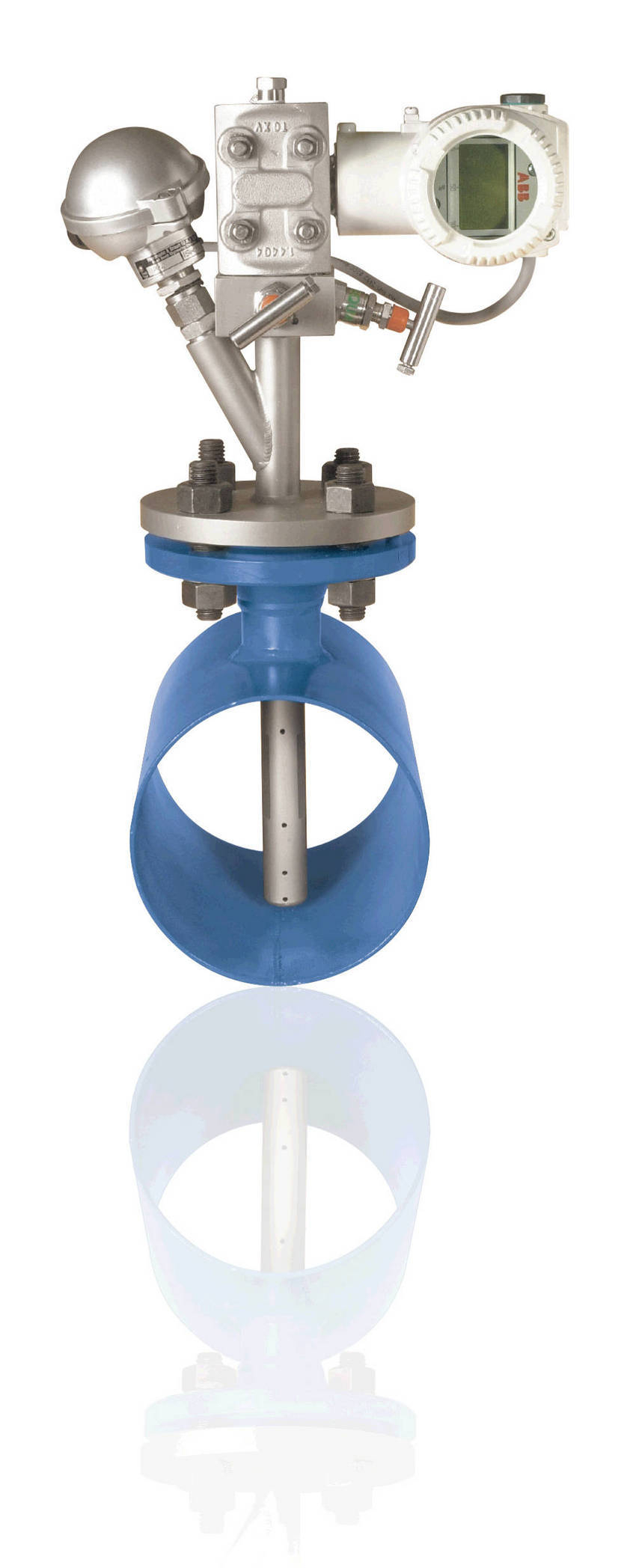

ABB Instrumentation    Warminster, PA 18974
May 21, 2010 Manufactured as one-piece outer tube for optimal strength, Torbar averaging pitot tubes use dual averaging technique that minimizes susceptibility to effects of non-ideal upstream pipe work configurations. Profiled flats around downstream hole help maintain constant flow co-efficient at higher velocities. Various wetted materials are offered, and in-line, fixed, and withdrawable designs are available for pipes with diameters from 10 mm to 8 m.

Innovative Sensor Technology    Las Vegas, NV 89119
May 21, 2010 Intended to directly replace wire wound technology, PW and PG series are capable of achieving DIN 60751 class A accuracy in -200 to +600°C range. Thin film platinum temperature sensors of PW and PG series respectively feature temperature coefficients of 3,850 ppm/K and 3,911 ppm/K. In addition to lend to materials conservation, dimensions promote packaging versatility.
